BlackVue DR770X-BOX-PRO 64 GB 3 Camera System with Central Record Box + Front FHD Dashcam

PB Tech price
PB Tech price
$ 686 .84
 +GST
$ 755 .52
 inc GST
$686.84  +GST
$755.52

BlackVue DR770X-BOX-PRO 64 GB 3 Camera System with Central Record Box + Front FHD Dashcam

  • Brand: BlackVue
  • MPN: DR770X-BOX-PRO
  • Part #: CARVUE0023
  • UPC:
PB Tech price
$ 686 .84 $ 755 .52
 +GST  inc GST


Delivery: Order now and it ships on 09 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$686.84  +GST
$755.52

Features

Built for Stealth and Security

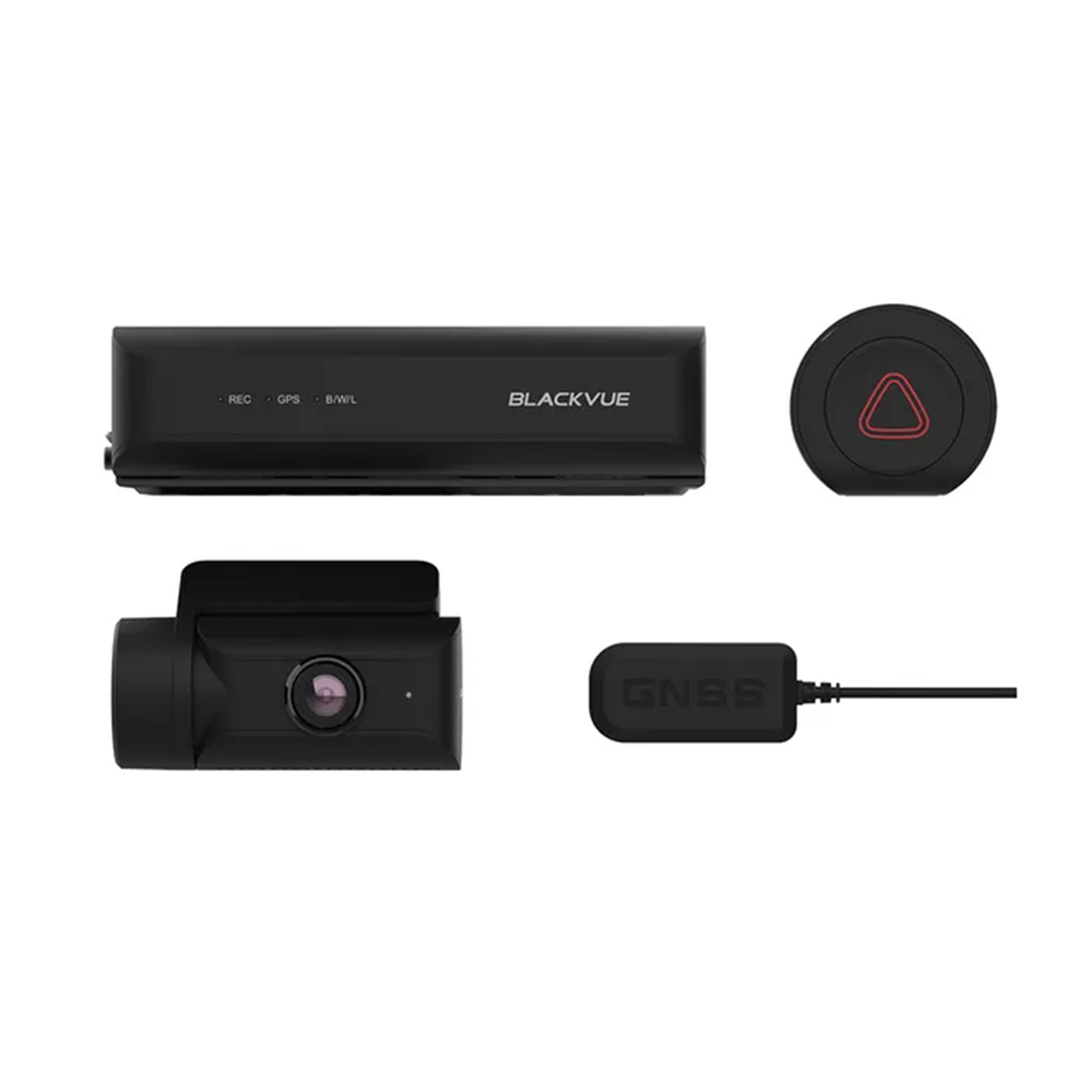

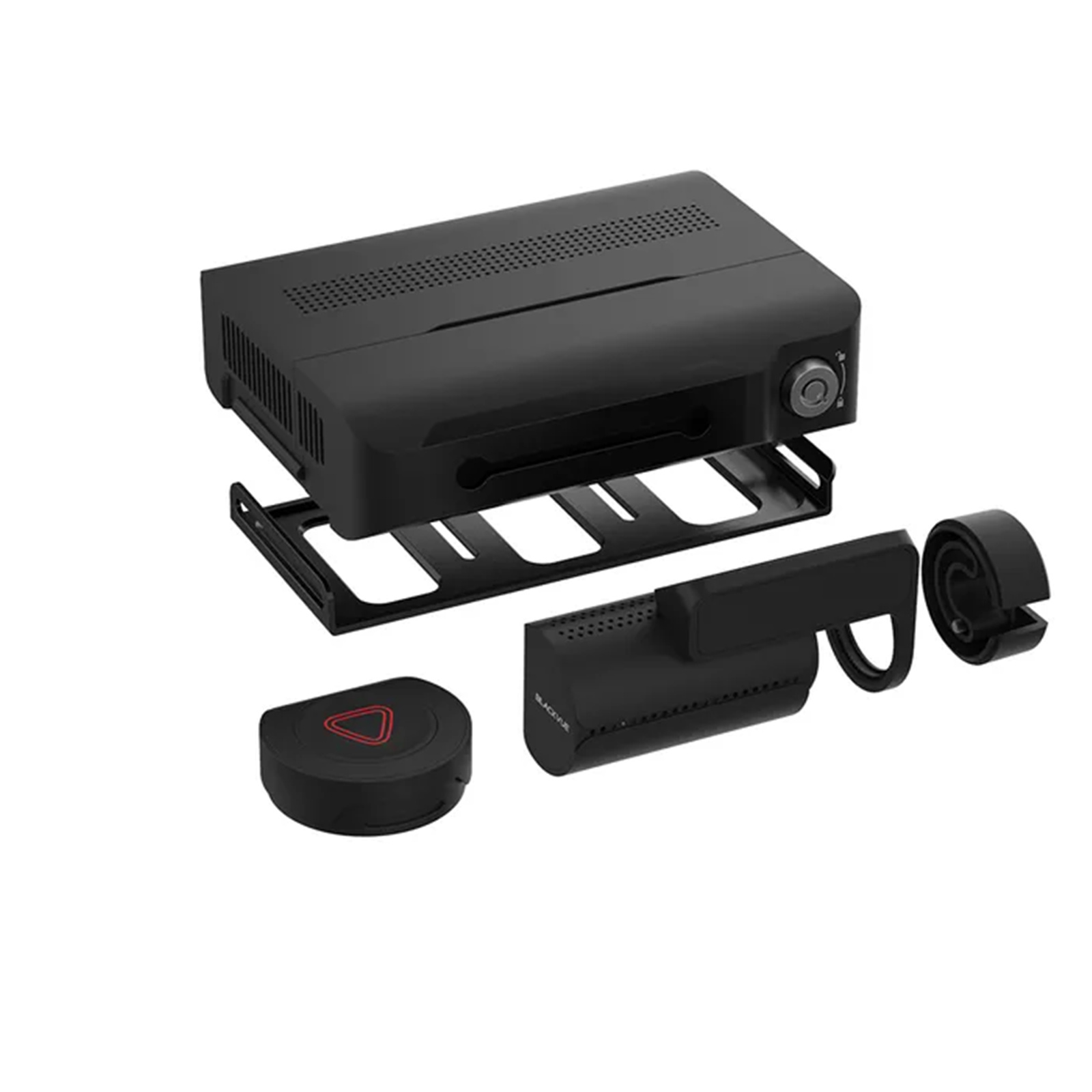

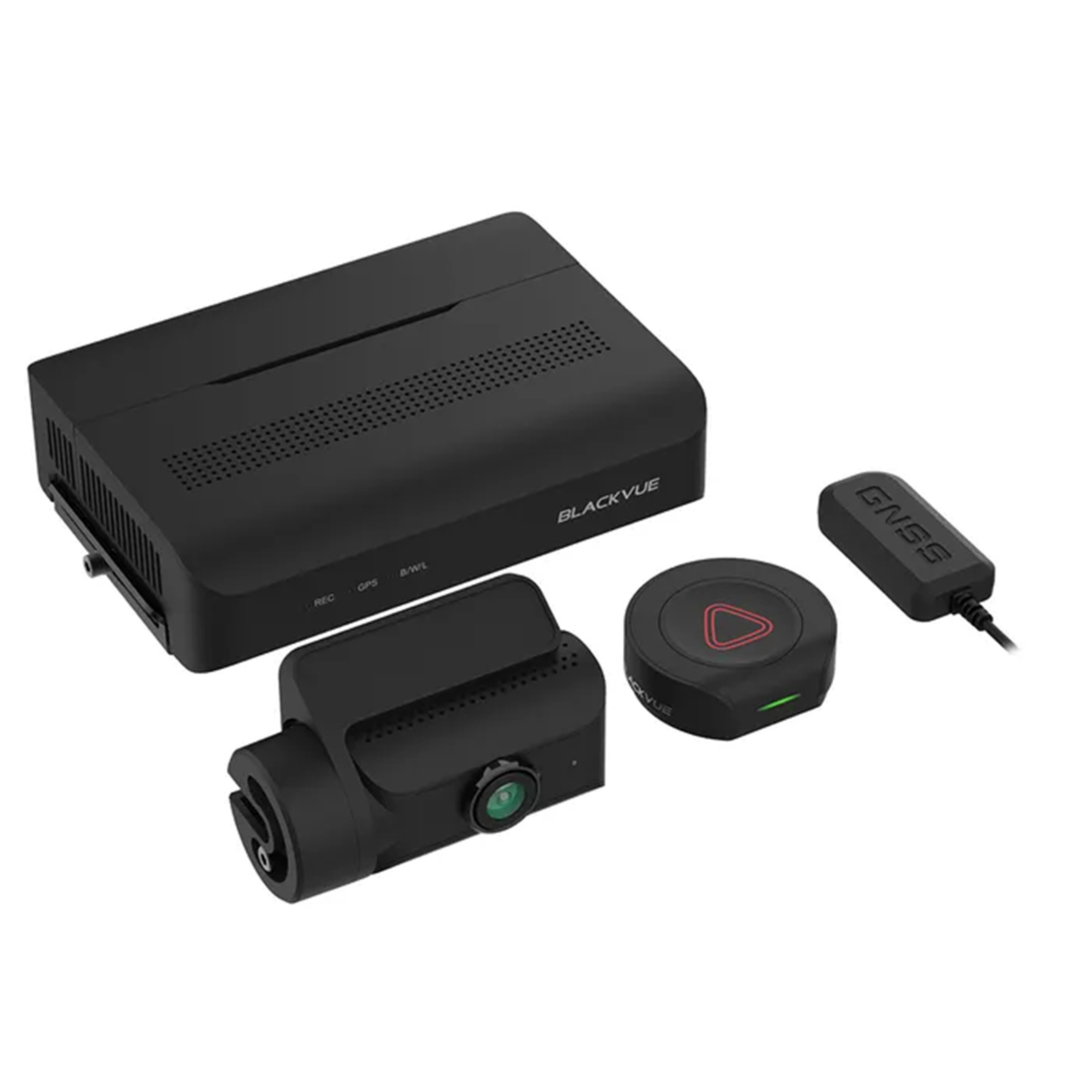

Up to Triple Camera Protection and Secure Recording Unit (FRONT CAMERA INCLUDED ONLY) The DR770X Box Pro is a triple-channel-capable dash cam with BlackVue Cloud connectivity. The compact cameras connect via coaxial video cable to the lock-protected "Box" recording unit, which can be stowed away in a glove compartment for maximum stealth and security. All cameras use Full HD Sony STARVIS™ image sensors for outstanding image quality under any light, and the infrared cameras can record clear videos in full darkness. The wireless button lets you manually and safely bookmark videos (tagged as "Manual Event") while driving. Native Parking Mode support via included hardwiring cable. View and download videos easily with the BlackVue App. Cloud support via optional LTE Connectivity module or Wi-Fi hotspot.

- Up to Three Cameras and Secure Recording Box
- Standard Rear Camera
- Ultrawide Infrared Interior Camera
- AI-Powered Driver-Monitoring Camera

Specifications

Color / Size / Weight

Main unit : Black / Length 130.0mm x Width 101.0 mm x Height 33 mm / 209 g
Front : Black / Length 62.5mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Rear Truck : Black / Length 70.4mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
DMS : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g:
EB-1 (Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g

Memory

microSD Card (64 GB/128 GB/256 GB/512GB)

Recording Mode

Normal recording, Event recording (when impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode.When using other methods, G-sensor will trigger parking mode.

Camera

Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear/Rear Truck : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR/DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle

Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear Truck(ERC1) : Diagonal 116°, Horizontal 97°, Vertical 51°
Interior IR(RC1-IR) : Diagonal 180°, Horizontal 150°, Vertical 93°
DMS(RC1-DMS) : Diagonal 109°, Horizontal 94°, Vertical 52°

Resolution / Frame Rate

Full HD (1920x1080) @ 60 fps - Full HD (1920x1080) @ 30 fps- Full HD (1920x1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.

Video Codec

H.264 (AVC)

Image Quality (Mbps)

Extreme: 16 + 10 + 10 Mbps / Highest: 12 + 10 + 10 Mbps

Video Compression

Mode MP4

Wi-Fi

Built-in (802.11 b.g.n)

GNSS

External (Dual Band : GPS, GLONASS)

Bluetooth

Built-in (V2.1+EDR/4.2)

LTE

External (Optional)

Microphone

Built-in

Manufacturer Part No:
DR770X-BOX-PRO
Brand:
Product Type:
3 Camera System
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
CARVUE0023
Product Model:
DR770X-BOX-PRO
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
