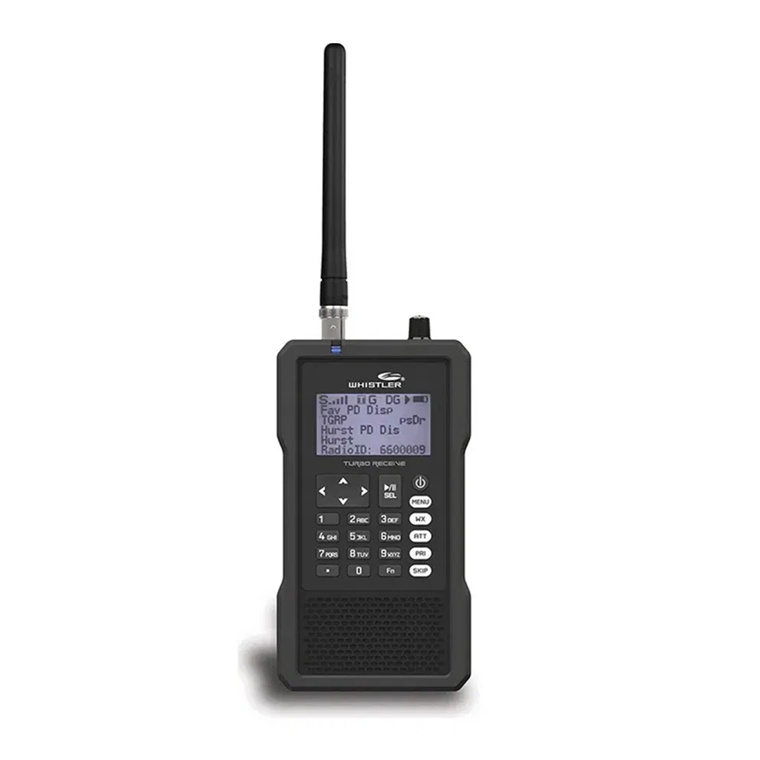

Whistler TRX-1E Digital Handheld Scanner Radio

The Whistler TRX-1 is multi-system adaptive digital trunking scanners with Motorola P25 Phase I&II, X2-TDMA, and DMR making it capable of monitoring the following unencrypted channels/systems:

Conventional DMR (Entered as a DMR trunked system)
Hytera XPT
MotoTRBO™ Capacity Plus
MotoTRBO™ Connect Plus
MotoTRBO™ Linked Cap Plus systems and NXDN

-The TRX-1 allows the user the ability to group their stored objects using up to 200 Scan lists plus a special Skywarn scan list. Objects can be mapped to as many Scan lists as desired, giving you complete flexibility for grouping objects and selecting groups in any combination for scanning.

-Programmable audible alarms can be configured to sound when certain Scannable Objects are active. Can be used in conjunction with, or separately from, the Alert LED described above.

-Record received audio from selected objects and searches to the Micro SD card. Replay recorded audio using a powerful built-in playback system or transfer to PC for playback and archiving. Record up to 50 hours of audio on the 2 GB microSDr

-Date and time stamp recorded audio files, and "alarm clock" function allows you to program the scanner to wake up and start scanning at a specific time each day.

-A built-in Discriminator Output provides raw discriminator signal to third party signal decoding software without risky hardware modifications.

-Predefined service search ranges make it easy to find activity in your area.

-A simplified keypad and display with familiar Scan, Pause, Skip and Navigation controls make it easy for you to use your TRX-1. Behind the scenes, Whistler's exclusive Object Oriented database runs the show, with support for millions of stored objects, limited only by MicroSD card capacity.

-With the expanded V-Scanner II (VS-II) storage system, you can use the TRX-1 PC Application to save up to 200 V-Scanner configurations on the MicroSD Card, which can be recalled at any time in the field using the radio's keypad.

-Industry-standard Composite Device USB interface with USB Mass Storage Device (MSD) and Serial Data (CDC) support. Access the MicroSD card without removing it from the radio, stream decoded Control Channel data and upgrade your radio's firmware over USB. Mini USB cable included.

-The TRX-1 detects and masks digital voice audio, and decodes RadioID/TalkgroupID data embedded in voice packets.

-Uses an industry-standard MicroSD card to store the RadioReference data library and all of your programming - capacity for millions of stored objects! Supports cards up to 32 GB

-Scans most common trunked radio system signaling formats, including Motorola, EDACS, LTR, and P25 trunked radio networks. Both talkgroup and individual call monitoring are supported.

-Quickly sweeps the TRX-1's frequency ranges for transmissions from nearby sources. When a nearby transmission is found, the TRX-1 automatically tunes to that frequency and receives the traffic. Lockout found frequencies and continue searching the same band.

-Customize existing programming or add new objects to scan, and keep your TRX-1 firmware and Library data up to date.

-The backlight can be programmed to flash with custom flash patterns when certain objects are active, providing another way of alerting the operator when important radio traffic is present.
displays the weather event and sounds an alert for a specific county or counties of your choice.

-Scan Sets expand the functionality of Scanlists by allowing you to define different combinations of enabled Scanlists as Scan Sets, then you can select one or more Scan Sets for scanning using a simple menu system. With Scanlists and Scan Sets, you have unlimited possibilities for grouping, enabling and disabling objects for scanning.

-Shows relative strength of received signals. Slim, compact case design with a textured exterior finish and large speaker - Designed for durability, one-handed operation and ease of use.
provides instant access to frequencies used by storm spotter networks. Monitor storm conditions as they occur, and become aware of dangerous conditions before the media or emergency management officials are able to announce them to the general public.

-Programmable tri-color LED displays thousands of colors that can be used to indicate different types of activity or activity on special channels. Program color sequences with multiple colors for special alerts, even emulate the red/blue strobe of police vehicles.
