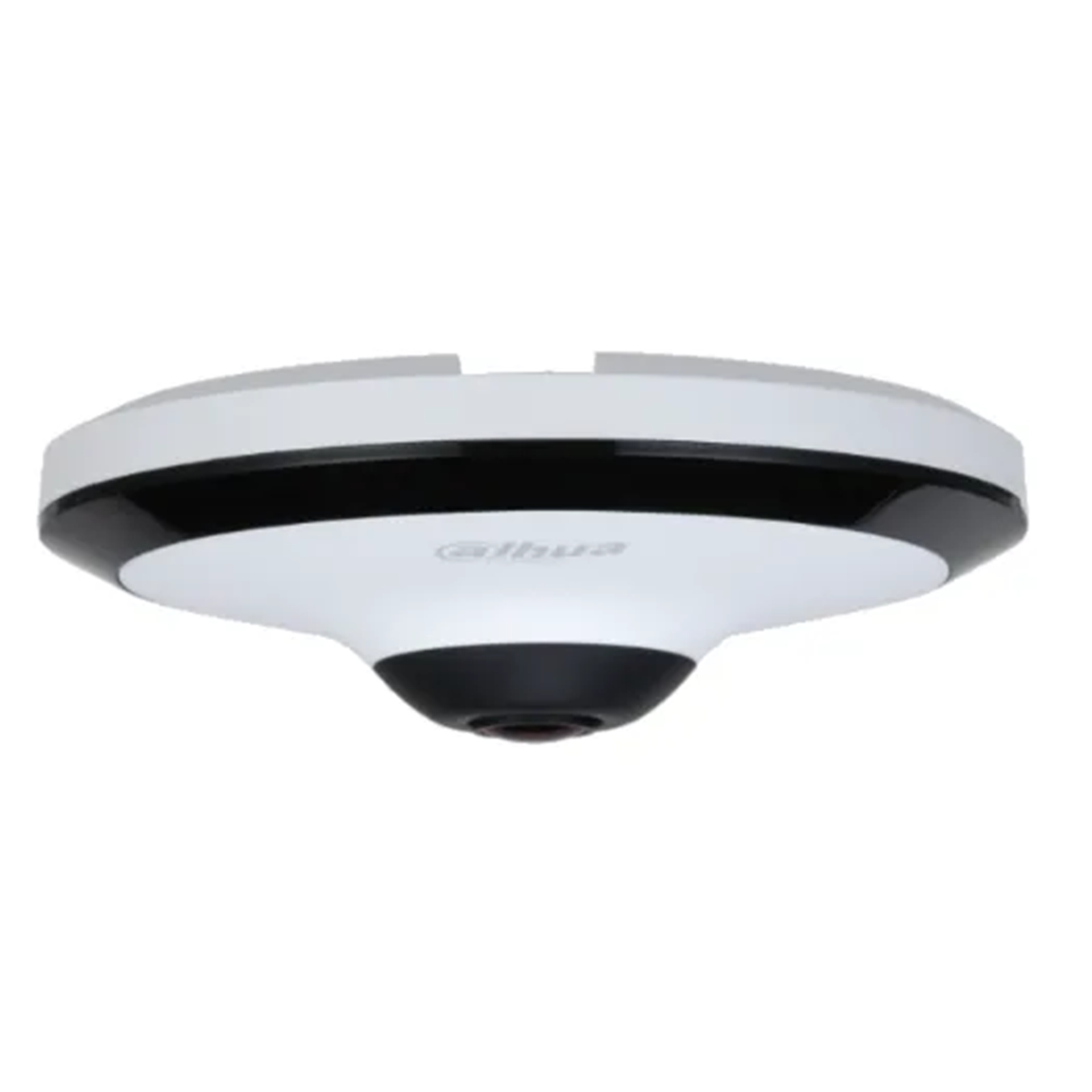

Dahua IPC-EW5541P-AS 5MP/3K Outdoor 1.4mm Panoramic Fisheye IP Camera
Out of stock
Dahua IPC-EW5541P-AS 5MP/3K Outdoor 1.4mm Panoramic Fisheye IP Camera
- Brand: Dahua
- MPN: IPC-EW5541P-AS
- Part #: CCTDHA1188
- UPC:
View all shipping info
- Brand: Dahua
- MPN: IPC-EW5541P-AS
- Part #: CCTDHA1188
- UPC:
Features
- 5MP, 1/2.7" CMOS image sensor
- 5MP (2592 × 1944) @25/30 fps
- Built-in efficient IR illumination distance: 10 m
- 120dB WDR, 3D DNR, HLC, BLC
- Intelligent detection: Intrusion, tripwire, people counting
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic
- Heat map for people counting.
Series Overview
With fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centers, banks and hotels.
Functions Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and people appearance probability. Display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions. In Area No. With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No.
Technology recognizes human targets accurately to count people in area in real-time. You can set people quantity threshold, when the number larger or smaller than the threshold, it triggers linkage. It is applicable in the scene that has limit on people quantity.
True WDR
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Protection (wide voltage)
The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
Dahua IPC-EW5541P-AS 5MP/3K Outdoor 1.4mm Panoramic Fisheye IP Camera
- Brand: Dahua
- MPN: IPC-EW5541P-AS
- Part #: CCTDHA1188
Product URL: https://www.pbtech.com/au/product/CCTDHA1188/Dahua-IPC-EW5541P-AS-5MP3K-Outdoor-14mm-Panoramic
Features
- 5MP, 1/2.7" CMOS image sensor
- 5MP (2592 × 1944) @25/30 fps
- Built-in efficient IR illumination distance: 10 m
- 120dB WDR, 3D DNR, HLC, BLC
- Intelligent detection: Intrusion, tripwire, people counting
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; built-in Mic
- Heat map for people counting.
Series Overview
With fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centers, banks and hotels.
Functions Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Heat Map
Duhua heat map technology is used to display the crowd density and people appearance probability. Display the crowd status by different colors. Generally, the crowd status is the statistics of people quantity in space and time dimensions. In Area No. With advanced stereo image technology and deep leaning algorithm,
Dahua In Area No.
Technology recognizes human targets accurately to count people in area in real-time. You can set people quantity threshold, when the number larger or smaller than the threshold, it triggers linkage. It is applicable in the scene that has limit on people quantity.
True WDR
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Protection (wide voltage)
The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specifications
Camera
Image Sensor
1/2.7" 5Megapixel progressive CMOS
Max. Resolution
2592 (H) × 1944 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s-1/100,000 s
Min. Illumination
0.006 Lux @ F2.0 (Color, 30IRE)
0.0006 Lux @ F2.0 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
10 m (32.8 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR LED)
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
1.4 mm
Max. Aperture
F2.0
Field of View
Horizontal: 180°
Vertical: 180°
Diagonal: 180°
Iris Type
Fixed
Close Focus Distance
0.2 m (0.7 ft)
DORI Distance
Detect 28 m (91.9 ft)
Observe 11.2 m (36.7 ft)
Recognize 5.6 m (18.4 ft)
Identify 2.8 m (9.2 ft)
Smart Event
Heat Map
Yes
IVS (Perimeter Protection)
Tripwire; intrusion
People Counting
Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream (2592 × 1944 @1-25/30 fps)
sub stream (704 × 576 @1-25 fps/704 × 480 @1-30 fps)
third stream (1280 × 720 @1-25/30 fps)
Stream Capability
3 streams
Resolution
5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 3 kbps-8192 kbps
H.265: 3 kbps-8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
PCM; G.711a; G.711Mu; G726
Alarm
Alarm Event
No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception
Network
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8, IE9 and IE11
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input
1 channel in: 5mA 3V-5V DC
Alarm Output
1 channel out: 300mA 12V DC
Power
Power Supply
12V DC/PoE
Power Consumption
Basic power consumption: 3.6W (12V DC); 4.4W (PoE)
Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)
Environment
Operating Conditions
-10°C to +50°C (14°F to +122°F)/Less than 95% RH
Strorage Conditions
-40°C to +60°C (-40°F to +140°F)
Structure
Casing
Metal + plastic
Dimensions
44.6 mm × F126.2 mm (1.8" × F5.0")
Net Weight
299 g (0.7 lb)
