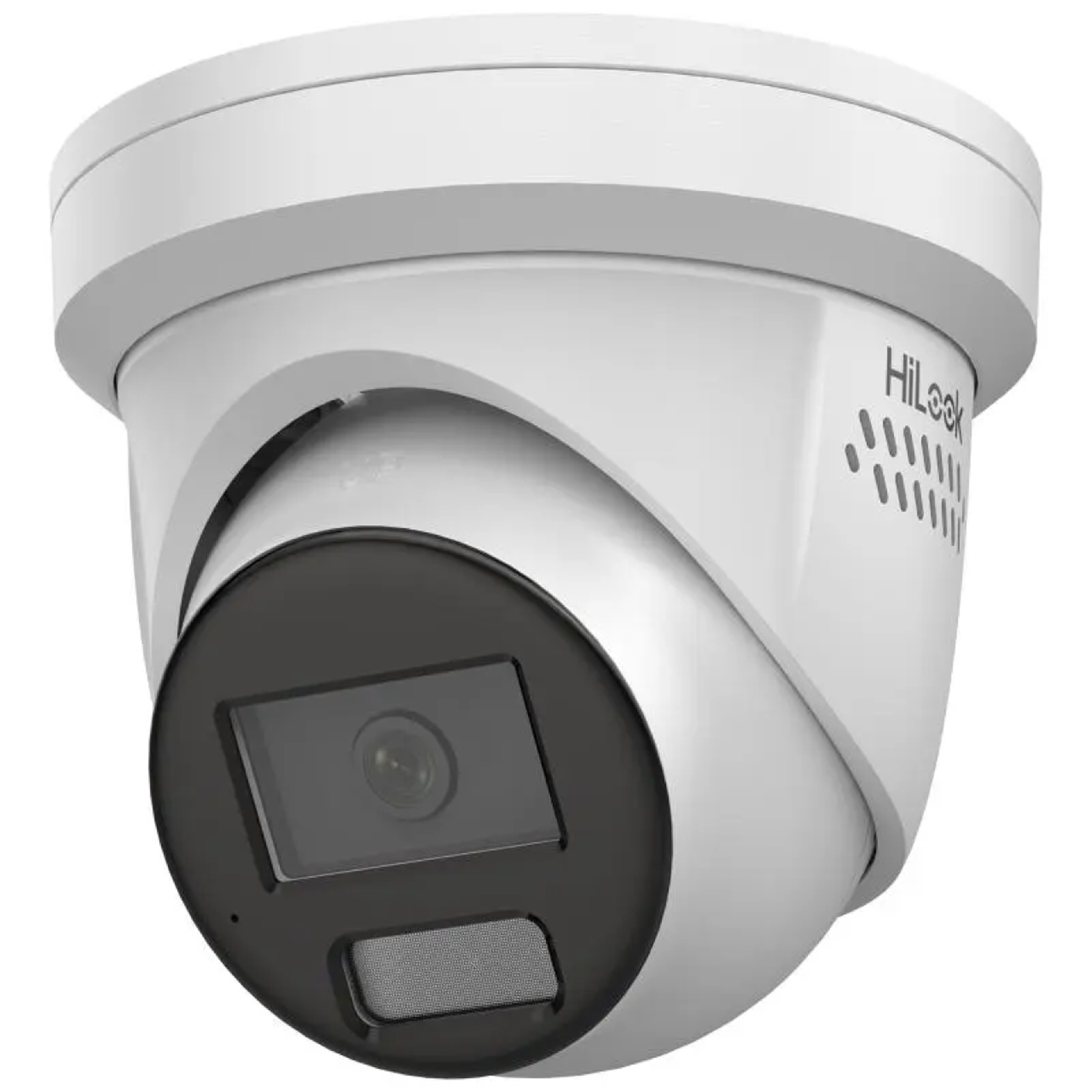

HiLook IPC-T269H-MU/SL (2.8mm) 6MP/3K+ Outdoor Turret POE Camera with Built-in Mic

Brand: HiLook
MPN: IPC-T269H-MU-2.8
Part #: CCTHIK1580
UPC:

In stock

Delivery: Order now and it ships on 12 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: HiLook
MPN: IPC-T269H-MU-2.8
Part #: CCTHIK1580
UPC:

Be the first to review this product

Max Video Resolution

3200 x 1800

Two-Way Audio

Wireless Technology

Memory Card Support

Up to 256GB MicroSD

Video Storage - Local

MicroSD Card

Night Vision

Black & White

Camera Megapixels

6 Megapixels

Indoor/Outdoor Use

View full specs

Returns & Warranty Bulk Quote Print Page

Features

6 MP All-in-One Fixed Turret Network Camera

- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Human and vehicle targets classification based on deep learning
- Active red and blue strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- 24/7 colorful imaging
- Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
- Water and dust resistant (IP67)

Specifications

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max. Resolution

3200 x 1800

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON),0 Lux with white light B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

Lens Type

Fixed lens, 2.8 mm

Iris Type

Fixed

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

Aperture

F1.6

Lens Mount

M12

Illuminator

Supplement Light Type

White light & IR

Supplement Light Range

IR Range: Up to 30m ; White light Range: Up to 30m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.

Video Compression

Main stream

H.265+/H.265/H.264+/H.264,

Sub-stream

H.265/H.264/MJPEG,
Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile,Main Profile,High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR,VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region Of Interest (ROI)

1 fixed region(s) for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host

Up to 32 users 3 levels: administrator, operator, and user

Network Storage

Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Day/Night Switch

Day,Night,Auto,Schedule

Image Enhancement

BLC,HLC,3D DNR

Image Settings

Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser

Privacy Mask

4 regions of privacy masks

Wide Dynamic Range (WDR)

120 dB

Interface

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium

Built-In Microphone

Yes

Built-In Speaker

Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Line crossing detection(human and vehicle targets classification)

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, password protection, password reset via email

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power

12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 9.7 W

Material

Metal except for trim ring

Dimension

Ø 138.3 mm× 112.1 mm (Ø 5.4" × 4.4")

Package Dimension

170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")

Weight

Approx. 820 g (1.8 lb.)

With Package Weight

Approx. 1150 g (2.5 lb.)

Approval

EMC

FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )

Environment

CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

Manufacturer Part No:

IPC-T269H-MU-2.8

Brand:

HiLook

Product Type:

Outdoor Turret POE Camera with Built-in Mic

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

CCTHIK1580

Product Model:

IPC-T269H-MU/SL (2.8mm)
