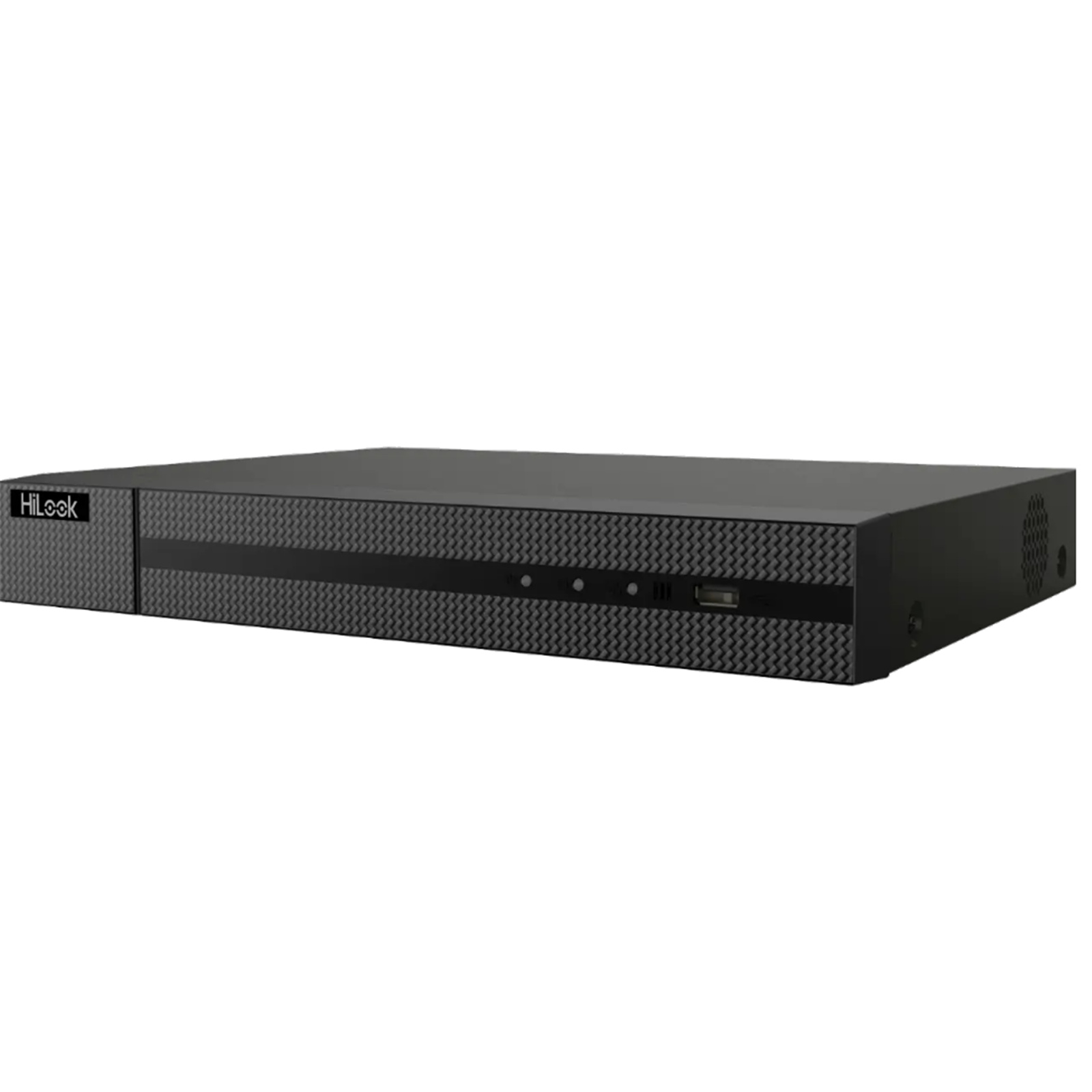

HiLook NVR-104MH-C-4P 4 Channel 1U PoE 4K Network Video Recorder with 2TB HDD
4-Port PoE - Max Power Budget 50W - Supports up to 1x 6 TB HDD
HiLook NVR-104MH-C-4P 4 Channel 1U PoE 4K Network Video Recorder with 2TB HDD
4-Port PoE - Max Power Budget 50W - Supports up to 1x 6 TB HDD
- Brand: HiLook
- MPN: NVR-104MH-C-4P
- Part #: CCTHLK0077
- UPC:
View all shipping info
- Brand: HiLook
- MPN: NVR-104MH-C-4P
- Part #: CCTHLK0077
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Video Recorders





HiLook NVR-104MH-C-4P 4 Channel 1U PoE 4K Network Video Recorder with 2TB HDD 4-Port PoE - Max Power Budget 50W - Supports up to 1x 6 TB HDD
- Brand: HiLook
- MPN: NVR-104MH-C-4P
- Part #: CCTHLK0077

Product URL: https://www.pbtech.com/au/product/CCTHLK0077/HiLook-NVR-104MH-C-4P-4-Channel-1U-PoE-4K-Network
Features
HiLook 4K H.265+ 4ch NVR
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40 Mbps incoming bandwidth
Specifications
Video And Audio
IP Video Input
4-ch
HDMI Output
HDMI:,4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA: ,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Input
1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80Mbps
Audio Output
1-ch, RCA (Linear, 1 KO)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1kO)
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264,MPEG4
Decoding Capability
1-ch @ 8 MP / 4-ch @ 1080p
Synchronous Playback
4-ch
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
Network Protocol
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface
4-ch
Power
= 50 W
Standard
IEEE 802.3 af/at
RAID
RAID Type
No
Auxiliary Interface
SATA
1
Capacity
Up to 8TB capacity for each disk
USB Interface
2 × USB 2.0
General
Power Supply
48 VDC, 1.35 A
Consumption
= 10 W (without enabling PoE)
Working Temperature
-10 to +55° C (14 to 131° F)
Working Humidity
10 to 90 %
Chassis
1U
Dimension (W × D × H)
265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight
= 1 kg (2.2 lb)
