HiLook HA-KIT-IP1 IP Video Intercom Kit with 7" Colour Touch Screen&2MPCameraSupportsWiFi&PoE,Recieve Video Calls, Unlock on Mobile APP Anywhere, Any Time, IP65 Water Resistant, Built-in Loudspeaker.
HiLook HA-KIT-IP1 IP Video Intercom Kit with 7" Colour Touch Screen&2MPCameraSupportsWiFi&PoE,Recieve Video Calls, Unlock on Mobile APP Anywhere, Any Time, IP65 Water Resistant, Built-in Loudspeaker.
- Brand: HiLook
- MPN: HA-KIT-IP1
- Part #: CCTHLK1022
- UPC:
View all shipping info
- Brand: HiLook
- MPN: HA-KIT-IP1
- Part #: CCTHLK1022
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Intercom Systems





HiLook HA-KIT-IP1 IP Video Intercom Kit with 7" Colour Touch Screen&2MPCameraSupportsWiFi&PoE,Recieve Video Calls, Unlock on Mobile APP Anywhere, Any Time, IP65 Water Resistant, Built-in Loudspeaker.
- Brand: HiLook
- MPN: HA-KIT-IP1
- Part #: CCTHLK1022

Product URL: https://www.pbtech.com/au/product/CCTHLK1022/HiLook-HA-KIT-IP1-IP-Video-Intercom-Kit-with-7-Col
Features
HILOOK IP Video Intercom Kit with 7" Colour Touch Screen & 2MP Camera Supports WiFi & PoE, Recieve Video Calls, Unlock on Mobile APP Anywhere, Any Time, IP65, Built-in Loudspeaker. Includes Rain Cover.
Indoor Station Features
- 7-inch touch screen, user-friendly interface, Plug & Play
- Easy, cost-efficient installation, Wifi & POE Supported
- Receives video call and unlocks on mobile App anywhere, any time
- Supports live view of up to 16 IP cameras

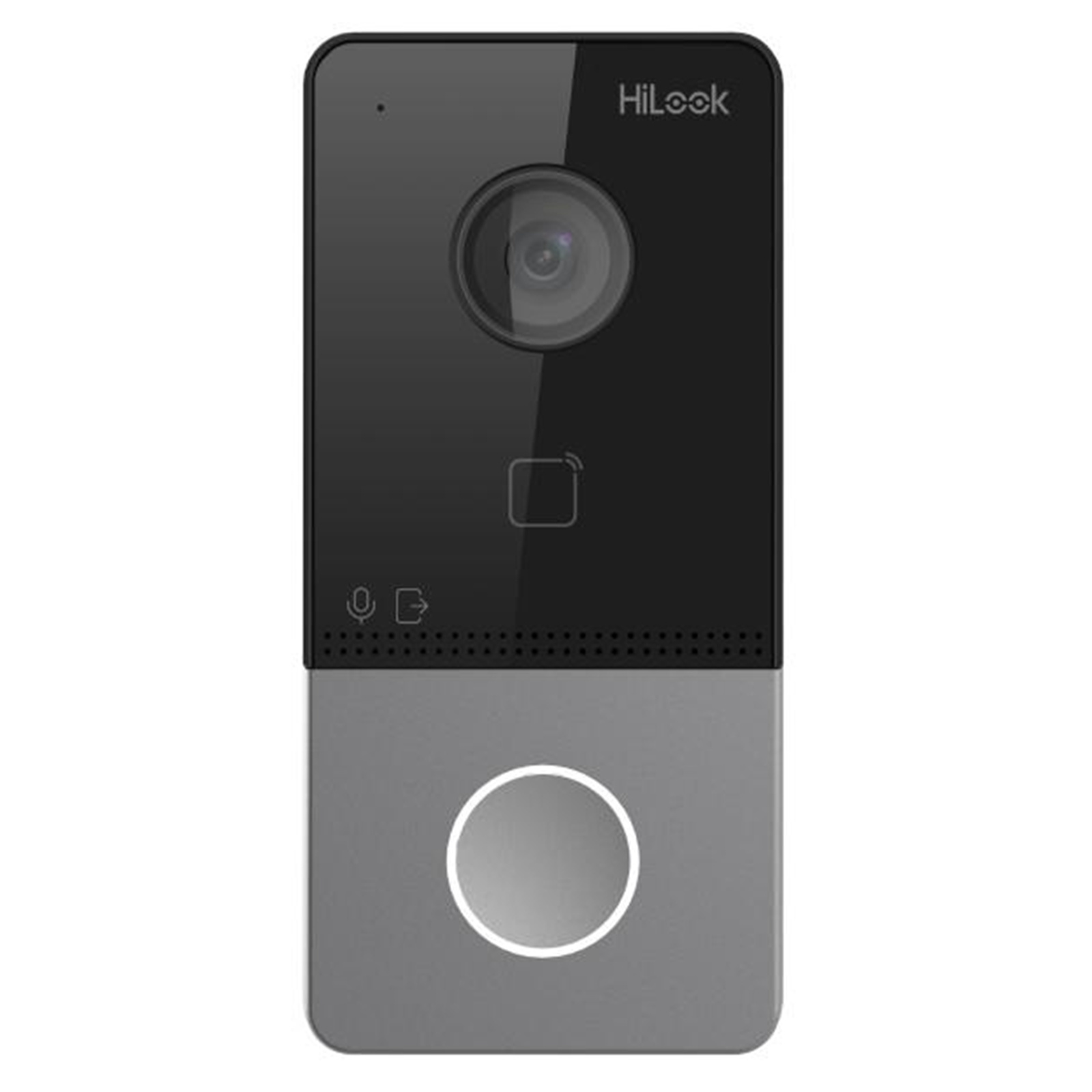

Door Station Features
- High-quality imaging with 2MP resolution
- Easy, cost-efficient installation, Wifi & POE Supported
- Easy configuration through WEB interface
- IP65 water resistant, preventing water ingress for outdoor use
Video footage viewable
- Via FREE mobile app
- On local monitor
- Over local network
Note
* Both the indoor monitor & door station can be powered using either PoE (Power over Ethernet) or 12V DC-not mains power
* Outdoor station must connect to the internet via a wired Ethernet cable
* Indoor monitor can connect via either Wi-Fi or a wired connection. However, both devices must be on the same network in order to communicate with each other
Appearance and Interfaces
Specifications
Door station/System parameters
Operation system
Embedded Linux operation system
Flash
32 MB
RAM
256MB
Door station/Video parameters
Camera
2MP HD camera
Night vision
Low illumination IR supplement mode:3 m
Backlight compensation
Support
Digital noise reduction
Support
WDR
True WDR
Field of view
Horizontal: 131° Vertical: 78°
Video Compression Standard
H.264
Stream
Main stream: 1080p@ 30fps, 720p@ 25fps Sub stream: D1@ 25fps
Motion detection
Support
Flash-avoid frequency
50 Hz, 60 Hz
Door station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Audio intercom
Two-way audio communication
Door station/Network parameters
Network protocol
TCP/IP, RSTP
Wired network
10/100 Mbps Ethernet
Door station/Device interfaces
RS-485
1
Alarm input
4
Debugging port
1
Grounding
1
TAMPER switch
1
Door station/General
Power consumption
< 10 W
Working temperature
-40° C to 53° C(-40° F to 127.4° F)
Working humidity
10% to 95%
Dimension
138 mm × 65 mm × 27 mm
Installation
Surface mounting
Protection level
IP65
Indicator
2
Power supply
IEEE802.3af, standard PoE
12 VDC
Indoor station/System parameters
Operation system
Embedded Linux operation system
Memory
128 MB
Flash
32 MB
Indoor station/Display parameters
Display screen
7-inch colorful TFT screen
Display resolution
1024 × 600
Operation method
Capacitive touch screen
Indoor station/Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in loudspeaker
Audio quality
Noise suppression and echo cancellation
Audio compression standard
G.711 U
Audio compression Rate
64 Kbps
Indoor station/Network parameters
Wired network
10/100 Mbps self-adaptive
Wireless network
Wi-Fi 802.11 b/g/n
Protocol
TCP/IP, SIP, RTSP
RS-485
1 RJ-45 10/100 Mbps self-adaptive
Indoor station/Device interfaces
RS-485
1
Alarm input
8-ch alarm inputs
Relay output
2
TF card
Max to 32 G, SD 2.0 or lower version
Indoor station/General
Power consumption
≤ 6 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (L x W x H)
200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
