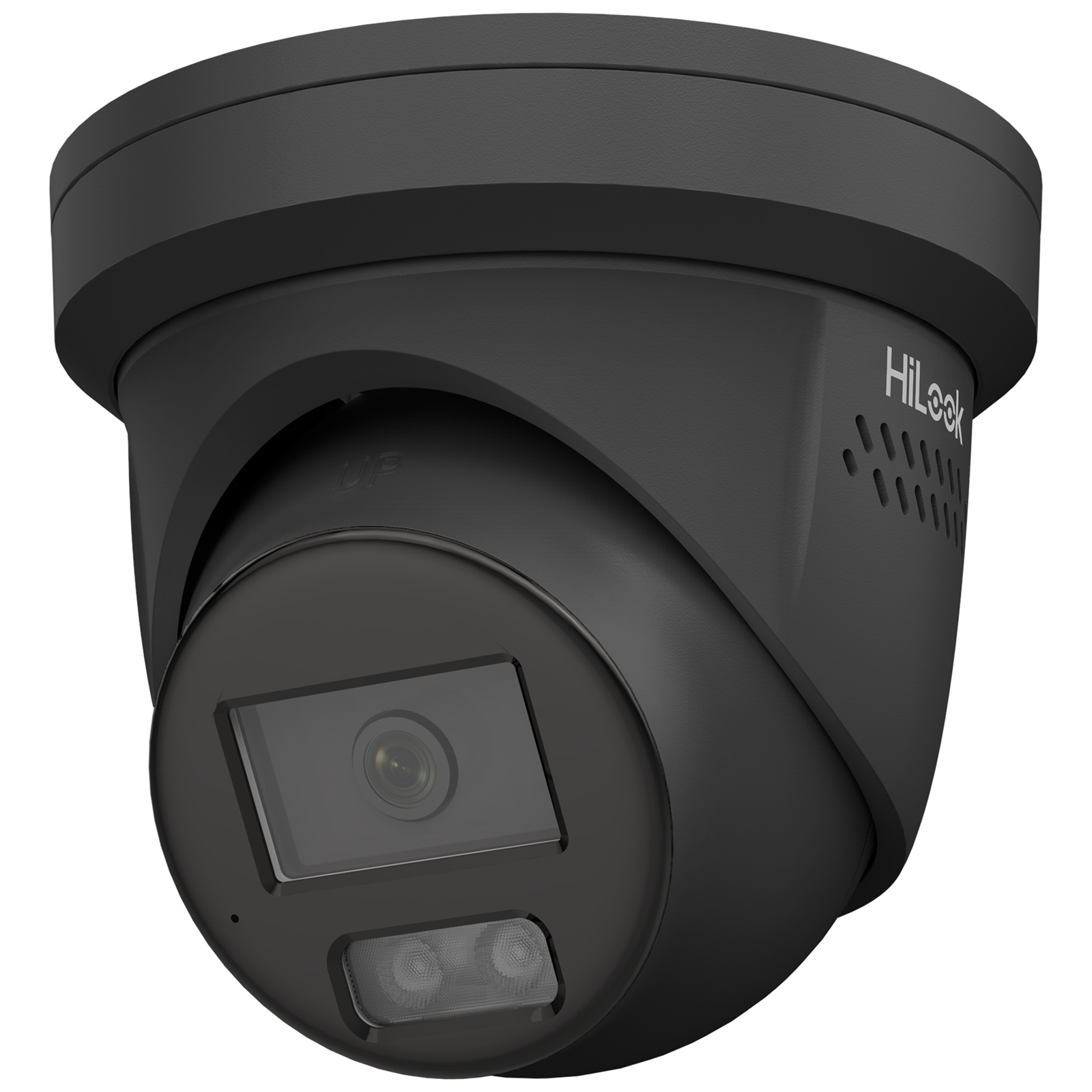

HiLook IPC-T269H-MU (4mm) 6MP/3K+ Outdoor Turret POE Camera with Built-in Mic -Black

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with white light
B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 4mm

Iris Type

Fixed

Focal Length & FOV

4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°

Aperture

F1.6

Lens Mount

M12

Illuminator

Supplement Light Type

White light & IR

IR Range

Up to 30 m

White light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Max. Resolution

3200 x 1800

Main Stream

50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression

Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

User/Host

Up to 32 users
3 levels: Administrator, Operator and User

Network Storage

Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Day/Night

Switch Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser

Privacy Mask

4 regions of privacy masks

Interface

Alarm

1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)

Audio

1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7
KO, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 O, interface type: non-equilibrium

Built-in Microphone

Yes

Built-in Speaker

Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware Reset

Yes

Communication Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm,exception

Smart Event

Line crossing detection(human and vehicle targets classification)

General

Linkage Method

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

General Function

Anti-flicker, heartbeat, password protection, password reset via email

Software Reset

Yes

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%
PoE: 802.3af, Type 1 Class 3

Power Consumption and Current

12 VDC, 0.70 A, max. 8.4 W
PoE (802.3af, 36 V to 57 V), 0.27 A to 0.16 A, max. 9.7 W

Power Interface

Ø5.5 mm coaxial power plug

Camera Material

Metal except for trim ring

Camera Dimension

Ø 138.3 mm× 112.1 mm (Ø 5.4" × 4.4")

Camera Weight Approx.

820 g (1.8 lb.)

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 );
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
