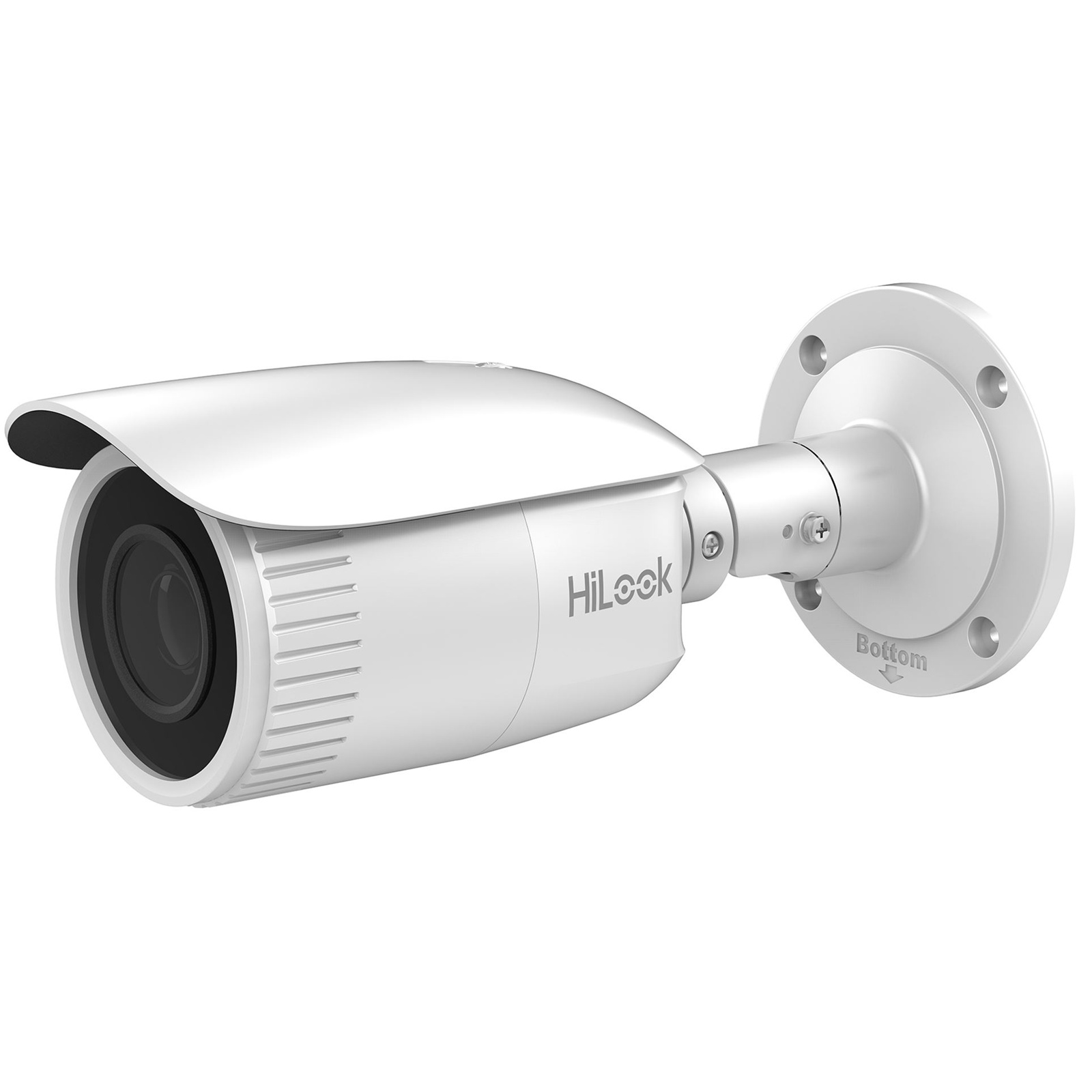

HiLook IPC-B650H-Z (2.8 - 12mm) 5MP/2K+ Outdoor Bullet PoE Camera
HiLook IPC-B650H-Z (2.8 - 12mm) 5MP/2K+ Outdoor Bullet PoE Camera
- Brand: HiLook
- MPN: IPC-B650H-Z
- Part #: CCTHLK34778
- UPC:
View all shipping info
- Brand: HiLook
- MPN: IPC-B650H-Z
- Part #: CCTHLK34778
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
HiLook IPC-B650H-Z (2.8 - 12mm) 5MP/2K+ Outdoor Bullet PoE Camera
- Brand: HiLook
- MPN: IPC-B650H-Z
- Part #: CCTHLK34778
Product URL: https://www.pbtech.com/au/product/CCTHLK34778/HiLook-IPC-B650H-Z-28---12mm-5MP2K-Outdoor-Bullet
Features
HiLook IPC-B650H-Z 5MP IP Varifocal Bullet Network PoE Camera
- 1/2.7" progressive scan CMOS
- 2560 x 1920@ 15fps
- 2.8 mm to 12 mm varifocal lens
- H.265+, H.265, H.264+, H.264
- Dual-stream
- 3D DNR (Digital Noise Reduction)
- Up to 30m IR range
- PoE (Power over Ethernet)
- IP67
Video Footage Viewable
- Via FREE mobile app
- On local monitor
- Over local network
Specifications
Camera
Image Sensor
1/2.7" progressive scan CMOS
Min. Illumination
Colour: 0.01 Lux @(F1.2; AGC ON), 0.02 Lux @ (F1.6, AGC ON)
Shutter Speed
1/3s to 1/100,000s
Slow Shutter
Yes
Auto-Iris
No
Day &Night
IR cut filter
DNR(Digital Noise Reduction)
3D DNR
WDR (Wide Dynamic Range)
120dB
Angle Adjustment(Bracket)
Pan: 0°~60°
tilt: 0°~100°
rotation:0°~360°
Lens
Focal Length
2.8mm~12mm
Aperture
F1.6
Focus
Auto
FOV
Horizontal FOV: 98°~28°
Vertical FOV: 71°~21°
Diagonal FOV: 130°~35°
Lens Mount
F14
IR
IR Range
Up to 30m
Wavelength
850nm
Compression Standard
Video Compression
Mainstream: H.265/H.264
Substream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/Main Profile/High Profile
H.264+
Mainstream supports
H.265 Type
Main Profile
H.265+
Mainstream supports
Video Bit Rate
32Kbps~8Mbps
Smart Feature-set
Region of Interest
1 fixed region for the mainstream and sub-stream
Max. Resolution
2560x1920
Main Stream
Max. Frame Rate
50Hz: 12.5fps (2560×1920), 20fps (2560×1440), 25fps (2304×1296, 1920×1280, 1280×720)
60Hz: 15fps (2560×1920), 20fps (2560×1440), 30fps (2304×1296, 1920×1280, 1280×720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Image Enhancement
BLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Network Storage
Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS)
AlarmTrigger
Motion detection, video tampering alarm, illegal login, network disconnected, IP address conflicted, HDD error, HDD full
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6UDP, Bonjour
General Function
One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address Filter
Firmware Version
5.5.52
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client
HiLookVision PC Client, HiLookVision App
Web Browser
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Interface
Communication Interface
1x RJ45 10M/100M self-adaptive Ethernet port
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128G
Video Out(Without -Z model)
1Vp-p Composite Output(75O/BNC)
Reset Button
Yes
General
Operating Conditions
-30°C~60°C, humidity: 95% or less (non-condensing)
Power Supply
12V DC± 25%, 5.5mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12V DC, 0.9A, Max: 11W
PoE: (802.3af, 36V~57V), 0.4A~0.2A, Max: 12.9W
ProtectionLevel
IP67
Material
Camera body & bracket: metal, sun shield: plastic
Dimensions
Camera: Ø105mm×244mm
With package: 315mm×137mm×141mm
Weight
Camera: approx. 700g
