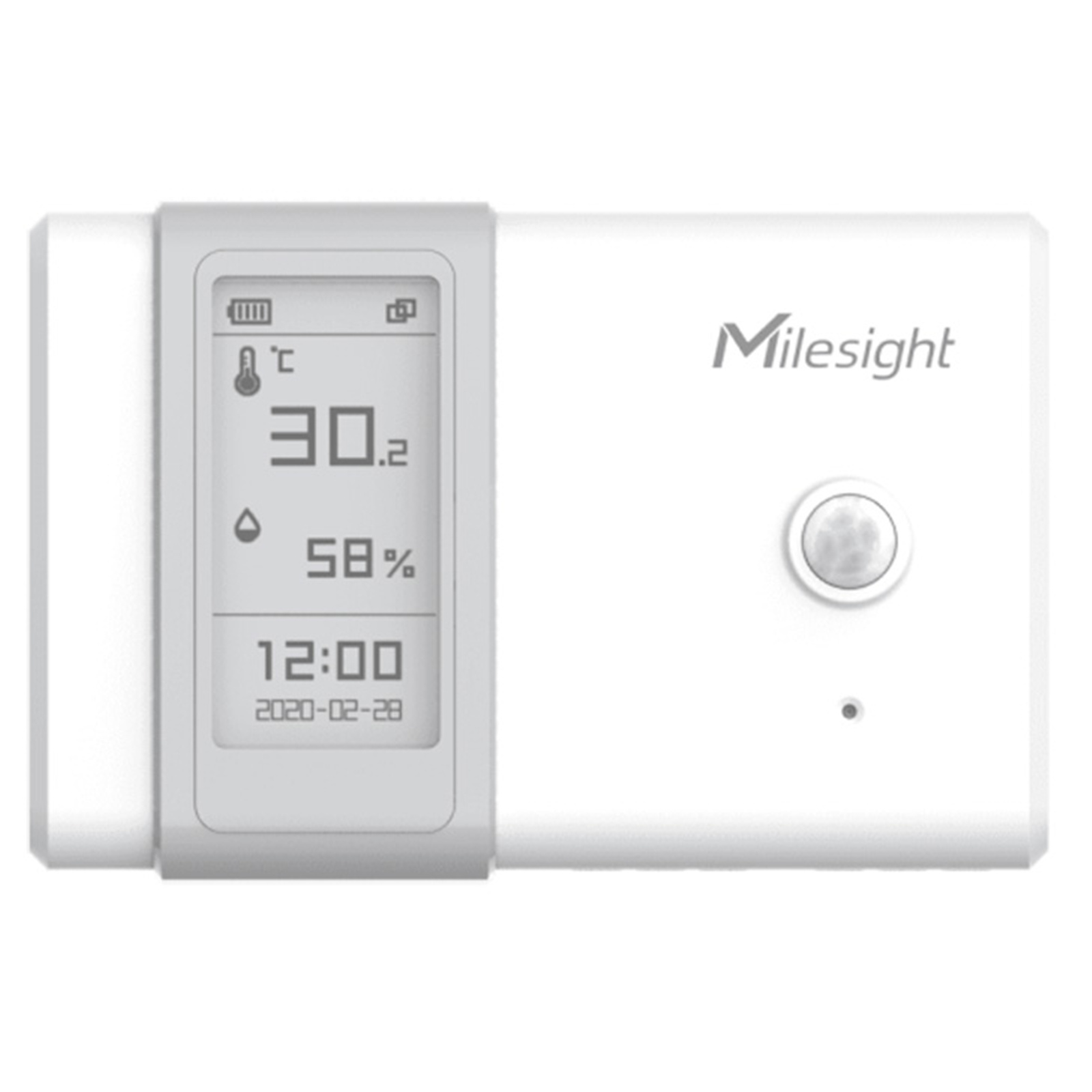

Milesight AM104-915m LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor - Temp, Humidity, PIR and Light
Milesight AM104-915m LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor - Temp, Humidity, PIR and Light
- Brand: Milesight
- MPN: AM104-915m
- Part #: CCTMLS1030
- UPC:
View all shipping info
- Brand: Milesight
- MPN: AM104-915m
- Part #: CCTMLS1030
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Security Sensors





Milesight AM104-915m LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor - Temp, Humidity, PIR and Light
- Brand: Milesight
- MPN: AM104-915m
- Part #: CCTMLS1030

Product URL: https://www.pbtech.com/au/product/CCTMLS1030/Milesight-AM104-915m-LoRaWAN-AU915AS923-Ambience-M
Features
The Milesight AM100 Series consists of multiple smart LoRaWAN AU915/AS923 IoT sensors that are built specifically for indoor ambient measurements. It has a clean and modern design that makes it discrete in indoor ambience. The AM104 measures the following: Temp, Humidity, PIR, Light.
- Robust LoRa connectivity for indoor or HVAC environments
- Integrated multiple sensors
- Configuration via NFC
- Visual display via E-Ink screen
- LoRaWAN v1.0/v1.0.2
- Ursalink Cloud compliant
- Low power consumption (about 1 year battery life) - Standard AA alkaline battery
- IoT for next-generation environmental monitoring
Specifications
Manufacturer's Code
AM104-915m
Frequency
AU915/AS923
Tx Power
20dBm
Sensitivity
-147dBm @300bps
Mode
OTAA/ABP Class A
Temperature Range
-40degC to + 70degC
Temperature Accuracy
±0.3degC from 0degC to + 70degC, ±0.6degC from -40degC to 0degC
Humidity Range
0% to 100% RH
Humidity Accuracy
±3% RH from 10% to 90%, ±5% RH below 10% and above 90%
Operating Temperature
-40°C to +70°C
Relative Humidity
0% to 100% (non-condensing)
PIR Detection Area
94 ° Horizontal, 82 ° Vertical
PIR Detection Distance
5m
Light Range
60000 lux (Visible + IR, IR)
Light Accuracy
±30%
Dimension
105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in)Power Input
