Features
Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display
E-Ink digital paper is a form of ink made from micro-particles in a thin film layer. The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed. Pre-customized Templates Are Flexible for Different Scenarios, such as Workplace, Hotel, Hospital, Retail Store, Etc. Up to 150 Languages Including English, Spanish, French, Japanese, Portuguese, Chinese (Simplified & Traditional), etc. (Exclude Hebrew, Arabic & Thai).
Perfect for smart buildings, smart city deployments or industrial use-cases.
- Bigger E-ink Screen Featuring Red/White/Black Color Display
- Customized Templates in Multiple Modules and Languages
- Low Power Consumption with up to 5 Years Battery Life with 3 × 590mAh CR2450 Lithium Batteries
- Open API and a LoRaWAN Button Enable Various Applications

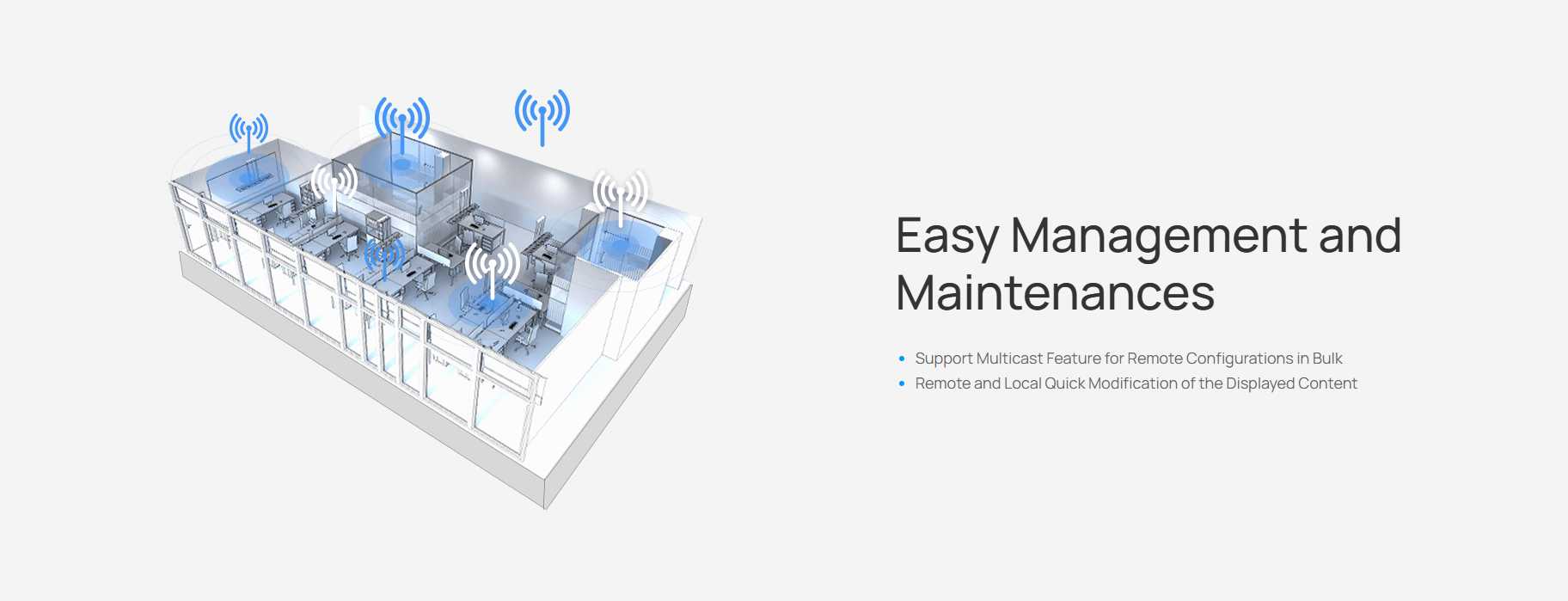

- Support Local and Remote Control for Bulk Deployment

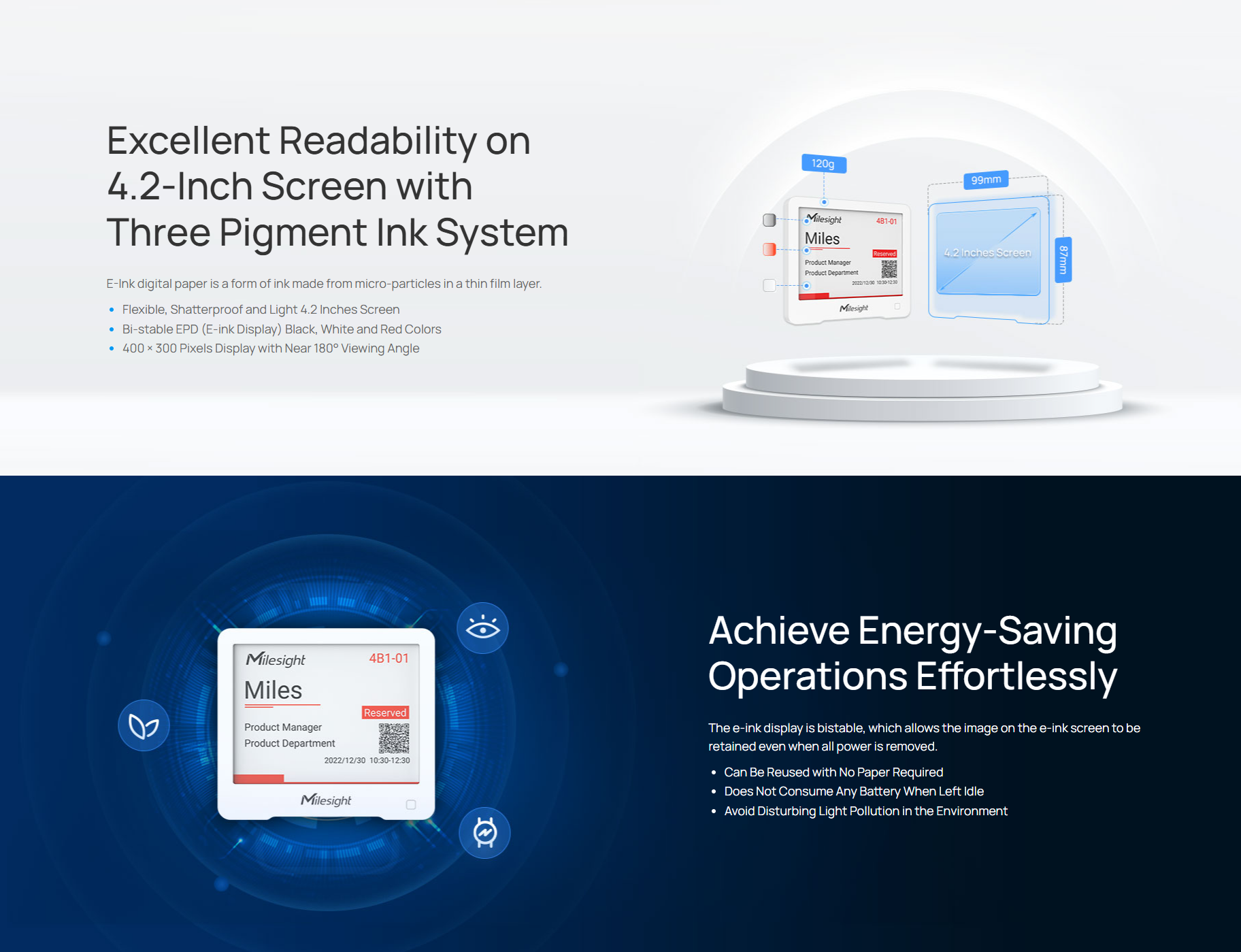

- Flexible, Shatterproof and Light 4.2 Inches Screen
- Bi-stable EPD (E-ink Display) Black, White and Red Colors
- 400 × 300 Pixels Display with Near 180° Viewing Angle
Specifications
Manufacturer's Code
DS3604-915M
Frequency
AU915/AS923-1&2&3&4
Technology
LoRaWAN®
Tx Power
16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity
-137dBm
Mode
OTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen
4.2-inch Black & White & Red E-Ink Screen
Resolution
400 x 300 Pixels
DPI
119
Viewing Angle
180°
Refresh Rate
16s (10 - 40°C)
Display Character
Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages
Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Button
1 x Reset Button (Internal) + 1 x Screen Button
Buzzer
1 x Buzzer
Configuration
NFC Configuration via Mobile App
Power Supply
3 × 590mAh CR2450 Lithium Batteries
Battery Life
Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature
0°C to +40°C (0? to +104?)
Operating Humidity
0% to 95% (non-condensing) below 25°C/77?
Ingress Protection
IP30
Color & Material
White, ABS + PC
Dimension
99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation
3M Tape Mounting, Wall Screw Mounting
