Milesight EM320-TH-915M-Magnetic Temperature and Humidity IoT Sensor LoRaWAN AS923/AU915 EM320-TH (Magnetic)
- Brand: Milesight
- MPN: EM320-TH-915M-Magnetic
- Part #: CCTMLS1051

Product URL: https://www.pbtech.com/au/product/CCTMLS1051/Milesight-EM320-TH-915M-Magnetic-Temperature-and-H
Features

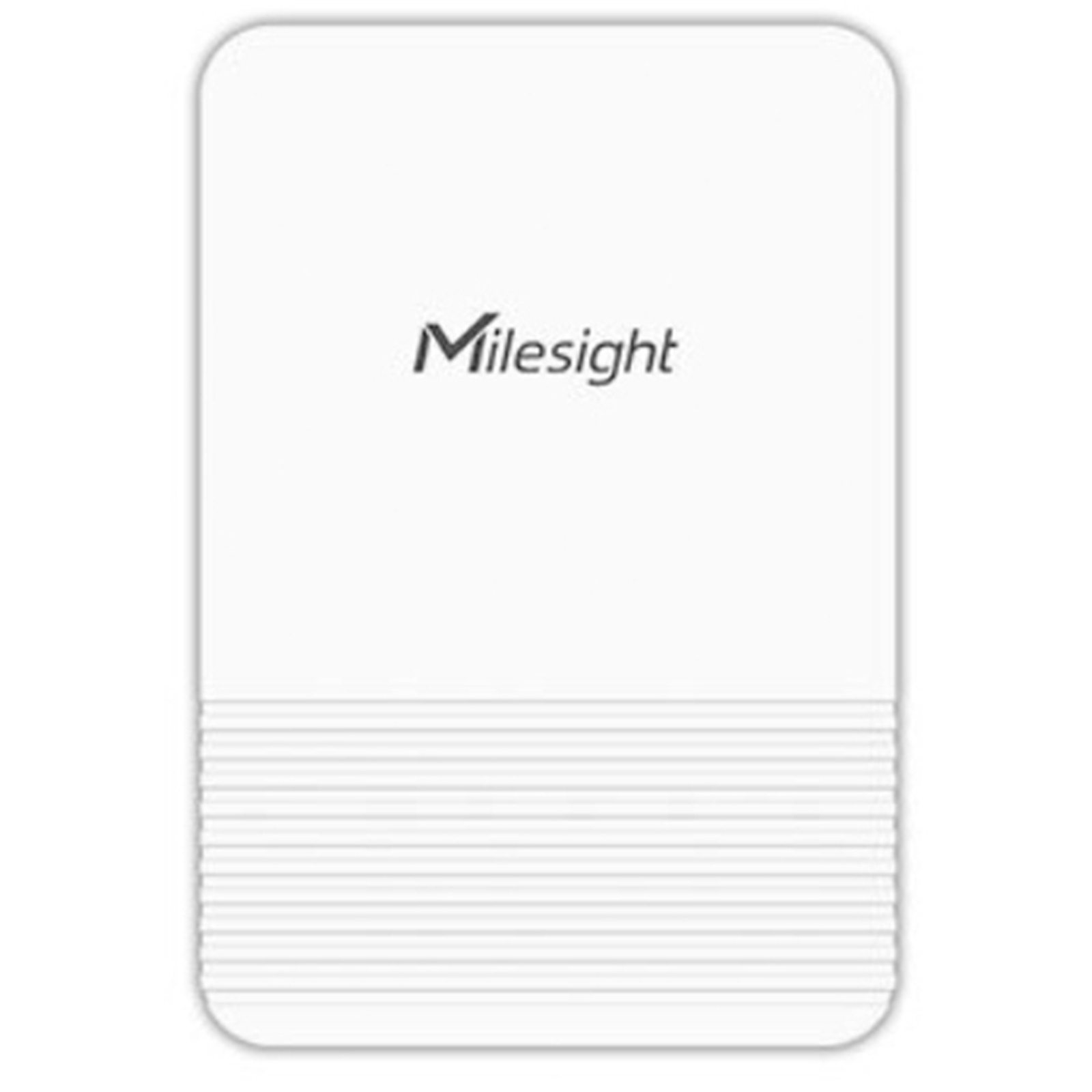

The Milesight EM320-TH is a simple, compact and powerful LoRaWAN IoT temperature and humidity IoT sensor. It is equipped with high-precision sensors and an IP67 waterproof design, applicable for accurate temperature and humidity data detection in various harsh environments.
With a food-grade rated enclosure and optional magnet design, the EM320-TH can be placed in freezers and refrigerators or can be in contact with food or medicines safely. In addition to LoRaWAN® technology with low power consumption, it has built-in high-capacity batteries which provides a life cycle of up to 5 years.
The EM320-TH is compatible with both Milesight LoRaWAN® Gateways and either Milesight IoT Cloud or Scopious IoT, to achieve remote data monitoring and management. It is suitable for both indoor and outdoor applications such as cold chain transportation, agricultural greenhouses, office buildings, hospitals, factories, etc.
Perfect for smart buildings, smart city deployments or industrial use-cases.
- Uses Sensirion high-precision sensor, capable of sensing subtle changes in temperature and humidity
- IP67 waterproof enclosure with multi-level structure and sealing ring design
- Uses food-grade material enclosure, which is safe for contact with food or medicines
- Ultra-low power consumption
- Anti-theft and anti-slip pad design on back cover to secure firm and sturdy installation
- Long range data transmission for up to 15 kilometers in rural areas
- Store locally 3000 historical records and support retransmission to prevent data loss
- Equipped with NFC for easy configuration
- Standard LoRaWAN protocol - Compliant with Milesight Cloud, Scopious IoT and third-party platform
PLEASE NOTE - This is the magnetic backed version.
Specifications
Manufacturer's Code
EM320-TH-915M-Magnetic
Frequency
AU915/AS923
Tx Power
20dBm
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A
Temperature Range
-30°C to + 60°C
Accuracy
+/- 0.2°C
Resolution
0.1°C
Humidity Range
0% to 100% RH
Accuracy
+/- 2%
Resolution
0.5% RH
Configuration
Mobile APP(NFC)
Power Supply
2 × 2700 mAh ER14505 Li-SOCL2 Batteries
Battery Life
>5 years
Operating Temperature
-30°C to +60°C
Ingress Protection
IP67
Dimension
85 × 58 × 18 mm
Material and Colour
ABS + PC (Food Grade), White
Mounting
Magnetic
