Milesight EM500-PT100-T200-868 Ursalink LoRaWAN IN865/EU868 Outdoor Temperature Sensor
- Brand: Milesight
- MPN: EM500-PT100-T200-868
- Part #: CCTMLS1064

Product URL: https://www.pbtech.com/au/product/CCTMLS1064/Milesight-EM500-PT100-T200-868-Ursalink-LoRaWAN-IN
Features
The Ursalink Environment Monitoring Sensors (EM500 Series) are LoRaWAN sensors designed for different professional applications. These sensors utilize a high ingress protection rating enclosure for use in the most challenging outdoor environmental conditions, and are powered by built-in battery for years-long use life.

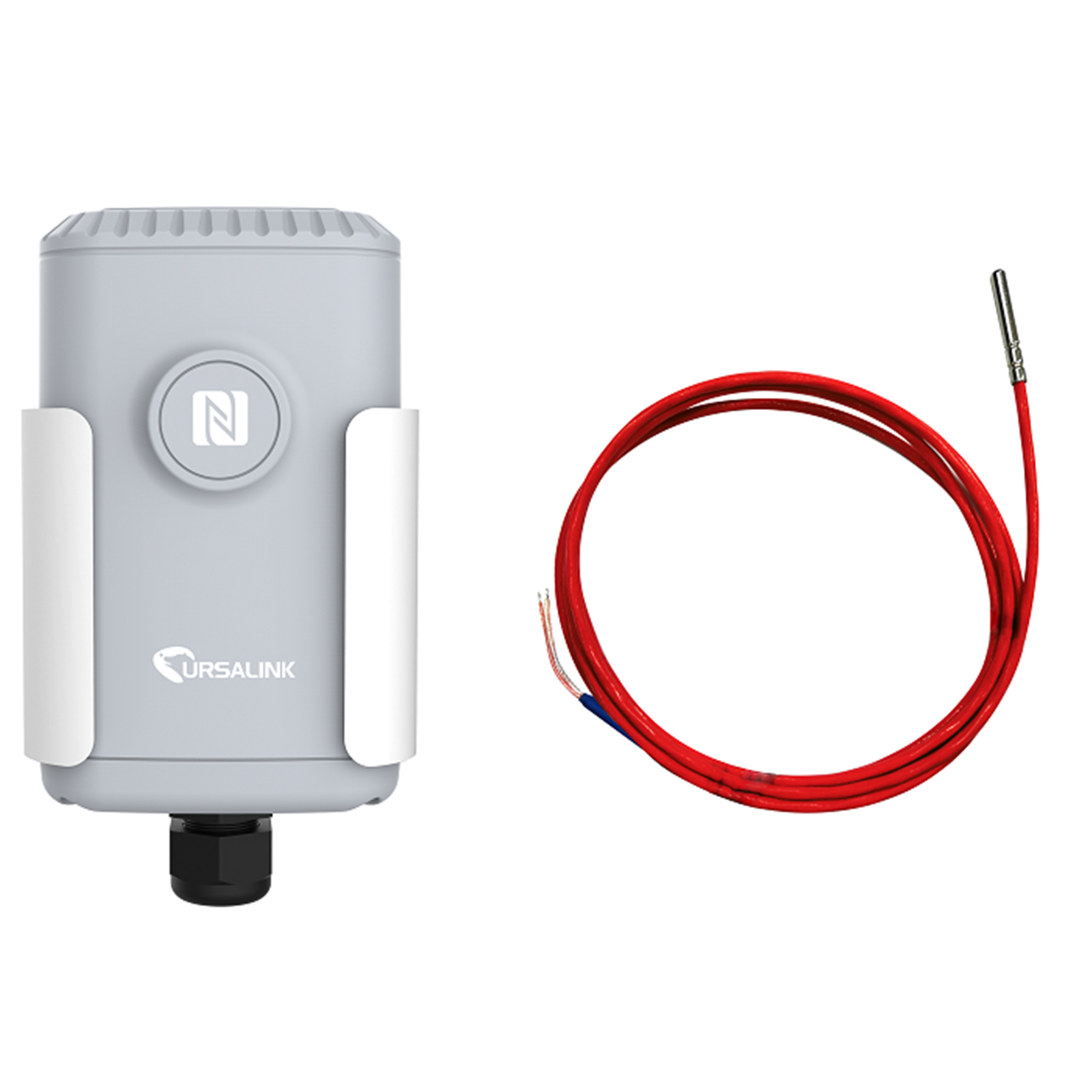

The EM500-PT100-T200-868 is an Outdoor IP66 rated Temperature Sensor.
Great for many applications including smart city, Smart farming / Agriculture.
- Robust IP66 rated enclosure
- Configuration via NFC
- LoRaWAN
- Ursalink Cloud compliant
- Low power consumption
Stable and Precise Temperature Measurement
Produced with precious platinum material that offers exceptional temperature resistance, it allows stable precise temperature measurement performance even with extreme heat. The device can withstand extreme temperature ranges, from freezing -200°C to molten-hot 800°C, making it a superb sensing device for an extensive range of applications, ranging from industrial factories to experiment labs.
10 Years Long Battery Life
With a guaranteed low power consumption with LoRaWAN® technology, the battery can last up to 10 years with a 10-minute reporting cycle, making it ideal for various distinct scenarios.
Extensive Range of Applications
With a guaranteed low power consumption with LoRaWAN® technology, the battery can last up to 10 years with a 10-minute reporting cycle, making it ideal for various distinct scenarios.
LoRaWAN® Wireless Deployment
The device employs LoRaWAN® technology that permits highly secured long-range wireless data transmission and guaranteed low power consumption, facilitating convenient and effortless installation process in various distinctive scenarios, making it the perfect device for industrial factories with complex surroundings.
Specifications
Manufacturer's Code
EM500-PT100-T200-868
Frequency
EU868
Tx Power
20dBm
Sensitivity
-147dBm @300bps
Mode
OTAA/ABP Class A
Temp Measurement Range
-50 °C to +200 °C
Temp Accuracy
±0.15°C
Operating Temperature
-20°C to +70°C
Dimension
105.4 × 71× 69.5 mm (Probe not included)
Power Input
19000 mAh Li-SOCL2 battery
Mounting
DIN rail, wall
IP Rating
IP66 (can be upgraded to IP67)
