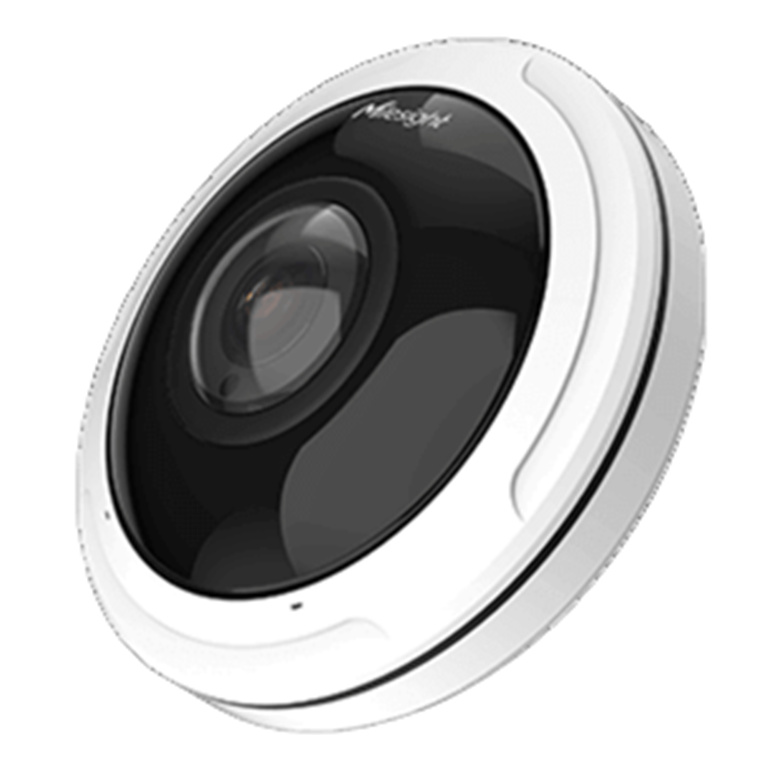

Milesight MS-C9674-PA 12MP AI 360 Fisheye Network Camera
Milesight MS-C9674-PA 12MP AI 360 Fisheye Network Camera
- Brand: Milesight
- MPN: MS-C9674-PA
- Part #: CCTMLS1126
- UPC:
View all shipping info
- Brand: Milesight
- MPN: MS-C9674-PA
- Part #: CCTMLS1126
- UPC:
Features
The Milesight 360° Panoramic H.265+ Fisheye Network Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
- 12 Mega Pixel
- Ultra High Resolution
- 360° Panoramic View
- Heat Mapping
- Auto Tracking
- 120dB Super Wide Dynamic Range (WDR)
- IP67 & IK10 rated Housing
- 15m Infrared Distance
- ONVIF Profile G & Q & S & T, API Compatibility
- vGRID SaferCity Platform Compliant
Revolutionary IR Performance
The upgraded Smart IR II Technology extends the viewing range to 15m, using three High Beams and three Low Beams LEDs for improved image clarity. It ensures even IR light distribution in different situations, with adjustable brightness. The IR anti-reflection panel greatly enhances infrared light transmittance.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like Al Video Analytics, People Counting, Heat Map and People Flow Analytics, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.
360° Panoramic View
Offers a panoramic experience equivalent to over 4 regular network cameras but with higher efficiency. It provides a 360° surround view with no blind spots.
12MP Ultra High Definition
It features with 12MP ultra high definition which better restores the images to guarantee superb image quality. Introducing 360° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.
People Flow Analytics
Milesight People Flow Analytics function can analyze up to 6 different directions of people flow based on real-time tracking for space planning and business decisions making.
Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Fisheye Auto Tracking
With Fisheye Auto Tracking, Milesight Fisheye Camera enables automatic tracking of moving objects in the 360° Panoramic View. This ensures comprehensive security by digitally panning, tilting, and zooming within specific areas to avoid missing any details.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink RLC-823A 8MP/4K Outdoor PTZ PoE IP Camera 16 x Optical...
Milesight MS-C9674-PA 12MP AI 360 Fisheye Network Camera
- Brand: Milesight
- MPN: MS-C9674-PA
- Part #: CCTMLS1126
Product URL: https://www.pbtech.com/au/product/CCTMLS1126/Milesight-MS-C9674-PA-12MP-AI-360-Fisheye-Network
Features
The Milesight 360° Panoramic H.265+ Fisheye Network Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
- 12 Mega Pixel
- Ultra High Resolution
- 360° Panoramic View
- Heat Mapping
- Auto Tracking
- 120dB Super Wide Dynamic Range (WDR)
- IP67 & IK10 rated Housing
- 15m Infrared Distance
- ONVIF Profile G & Q & S & T, API Compatibility
- vGRID SaferCity Platform Compliant
Revolutionary IR Performance
The upgraded Smart IR II Technology extends the viewing range to 15m, using three High Beams and three Low Beams LEDs for improved image clarity. It ensures even IR light distribution in different situations, with adjustable brightness. The IR anti-reflection panel greatly enhances infrared light transmittance.
Genius AI Deep Learning
Equipped with a bunch of cutting-edge smart functions like Al Video Analytics, People Counting, Heat Map and People Flow Analytics, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.
360° Panoramic View
Offers a panoramic experience equivalent to over 4 regular network cameras but with higher efficiency. It provides a 360° surround view with no blind spots.
12MP Ultra High Definition
It features with 12MP ultra high definition which better restores the images to guarantee superb image quality. Introducing 360° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.
People Flow Analytics
Milesight People Flow Analytics function can analyze up to 6 different directions of people flow based on real-time tracking for space planning and business decisions making.
Advanced Heat Map
Milesight Heat Map function empowers beyond security, which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.
Fisheye Auto Tracking
With Fisheye Auto Tracking, Milesight Fisheye Camera enables automatic tracking of moving objects in the 360° Panoramic View. This ensures comprehensive security by digitally panning, tilting, and zooming within specific areas to avoid missing any details.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Specifications
Product Code
MS-C9674-PA
Name
12MP AI 360° Fisheye Network Camera
Image Sensor
1/1.7" Progressive Scan CMOS
Min. Illumination
Color: 0.01Lux @F1.2, Color: 0.05Lux @F2.8, B/W: 0Lux with IR on
WDR
120dB Super WDR
Lens
1.98mm @ F2.8
Mount
M12
Field of View
Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time
1/100000s~1s
Day/Night Mode
Day/Night/Auto/Customize/Schedule
IR Distance
Up to 15m
Mount Mode
Ceiling Mount/Wall Mount/Flat Mount
Decoding Mode
On-board Dewarping/Client-side Dewarping
Max. Image Resolution
4000x3000
Primary Stream
Fisheye View: 60Hz: 30fps @ (3000x3000, 2560x2560, 1920x1920, 1280x1280)50Hz: 25fps @ (3000x3000, 2560x2560, 1920x1920, 1280x1280)
Secondary Stream
Fisheye View: 60Hz: 30fps @ (1280x960, 1024x1024, 736x736, 576x576)50Hz: 25fps @ (1280x960, 1024x1024, 736x736, 576x576)
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate
16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking
Up to 24 areas
ROI
Up to 8 areas
Image Settings
Saturation/Brightness/Contrast/Sharpness
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
Supported
Ethernet
1*RJ45 10M/100M/1000M Ethernet Port
Audio I/O
Built-in Microphone and Audio Input/Output interface
Alarm I/O
1/1
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Network Protocols
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storage
Supports microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support
Yes, Voice&Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action
FTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc.
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Temperature
-40?~60?
Working Humidity
0~90%(Non-condensing)
Power Supply
PoE(802.3af)/DC 12V±10%
Power Consumption
6W MAX, 11W MAX(With IR on)
Weather Proof
Up to IP67-rated for weather-resistant performance
Housing
Vandal-proof IK10-rated metal housing
Dimensions
F140mm x 5.4mm
Weight
700g
