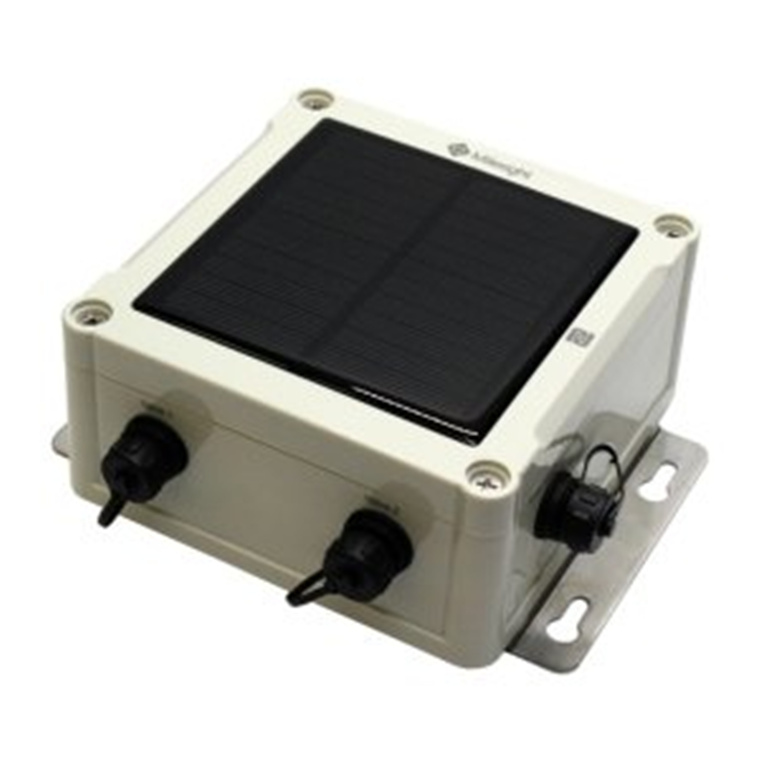

Milesight UC511-DI-915M UC511 Solar Powered LoRaWan AU915/AS923 IoT Controller withLatchingSolenoids and Pulse Meter support
Milesight UC511-DI-915M UC511 Solar Powered LoRaWan AU915/AS923 IoT Controller withLatchingSolenoids and Pulse Meter support
- Brand: Milesight
- MPN: UC511-DI-915M
- Part #: CCTMLS1182
- UPC:
View all shipping info
- Brand: Milesight
- MPN: UC511-DI-915M
- Part #: CCTMLS1182
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Security Systems





Milesight UC511-DI-915M UC511 Solar Powered LoRaWan AU915/AS923 IoT Controller withLatchingSolenoids and Pulse Meter support
- Brand: Milesight
- MPN: UC511-DI-915M
- Part #: CCTMLS1182

Product URL: https://www.pbtech.com/au/product/CCTMLS1182/Milesight-UC511-DI-915M-UC511-Solar-Powered-LoRaWa
Features
The UC511 LoRaWAN AU915/AS923 wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC511 can be easily and quickly configured by NFC or USB-C. For outdoor applications, it uses an embedded solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.
The UC511 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
- Compatible with standard DC latching solenoids
- Transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Data visualization and remote management via Milesight IoT Cloud
Up to 16 Schedule Events
Supporting different typs of control mode
You can determine the valve, irrigation timing, and water usage in each rule engine.
Programmable Unit per Pulse
- One-time scheduled irrigation
- Periodic Irrigation within Pre-determined Period
- Trigger through Milesight D2D
- Trigger through pre-determined conditions
Real-time Alarming
- Every increase of water volume over threshold
- Accumulated Water volume within pre-detemined period over Threshold
Water Flow Monitoring
Equipped with 2 Digital Inputs for Connecting Pulse Water Meters
- Programmable Unit per Pulse
- Enable Precise Irrigation
Ultra-Rugged Enclosure for Harsh Environment
The UC51x Series features an IP67 rated enclosure and an M12 connector that offer robust protection against water ingress, corrosion, and vibrations. This combination of features ensures long-term, dependable operation in challenging all-weather environments.
Autonomous Operation
The UC51x Series can execute the preset commands autonomously even when the network is unavailable.
Multicast for Control in Bulk
By utilizing multicast, users can efficiently configure a group of devices in bulk. This feature streamlines the setup process, making it effortless to simultaneously manage multiple UC51x Controllers and enabling batch solenoid valve control, ultimately saving time and effort.
Internal and External Antenna Versions
The UC51x Series provides flexibility in antenna placement, ensuring optimal signal strength and range, even in environments with obstacles or challenging RF conditions.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
MPN
UC511-DI-915M
Frequency
AU915/AS923
Tx Power
20dbm
Sensitivity
-147dBm @300bps
Mode
OTAA/ABP
Interface type
M12 A-coded Male
Ports
2 × Solenoid Interface
Solenoid Support
2 wires 12V DC latching solenoids
Cable Length
1.5m
Pulse Interface
1 × Pulse Interface, support 2 pulse meters
Logical Level
Low: 0~0.9V, High: 2.5~3.3V
Cable Length
1.5m
Power On/Off
NFC, power button (Internal)
Configuration
Mobile APP(via NFC) or PC software(via USB Type-C)
Operating Temperature
-20°C to +60°C
Ingress Protection
IP67
Dimension
120.1 × 120.1× 55.4 mm
Power Supply
Solar powered + 2*2550mAh rechargeable battery + 5-24 VDC supply
