Milesight UR32S-L04AU-P UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi, NXP Processor, IP30Protection with Metal Housing
- Brand: Milesight
- MPN: UR32S-L04AU-P
- Part #: CCTMLS1213

Product URL: https://www.pbtech.com/au/product/CCTMLS1213/Milesight-UR32S-L04AU-P-UR32S-3G4GLTE-Cellular-CCT
Features

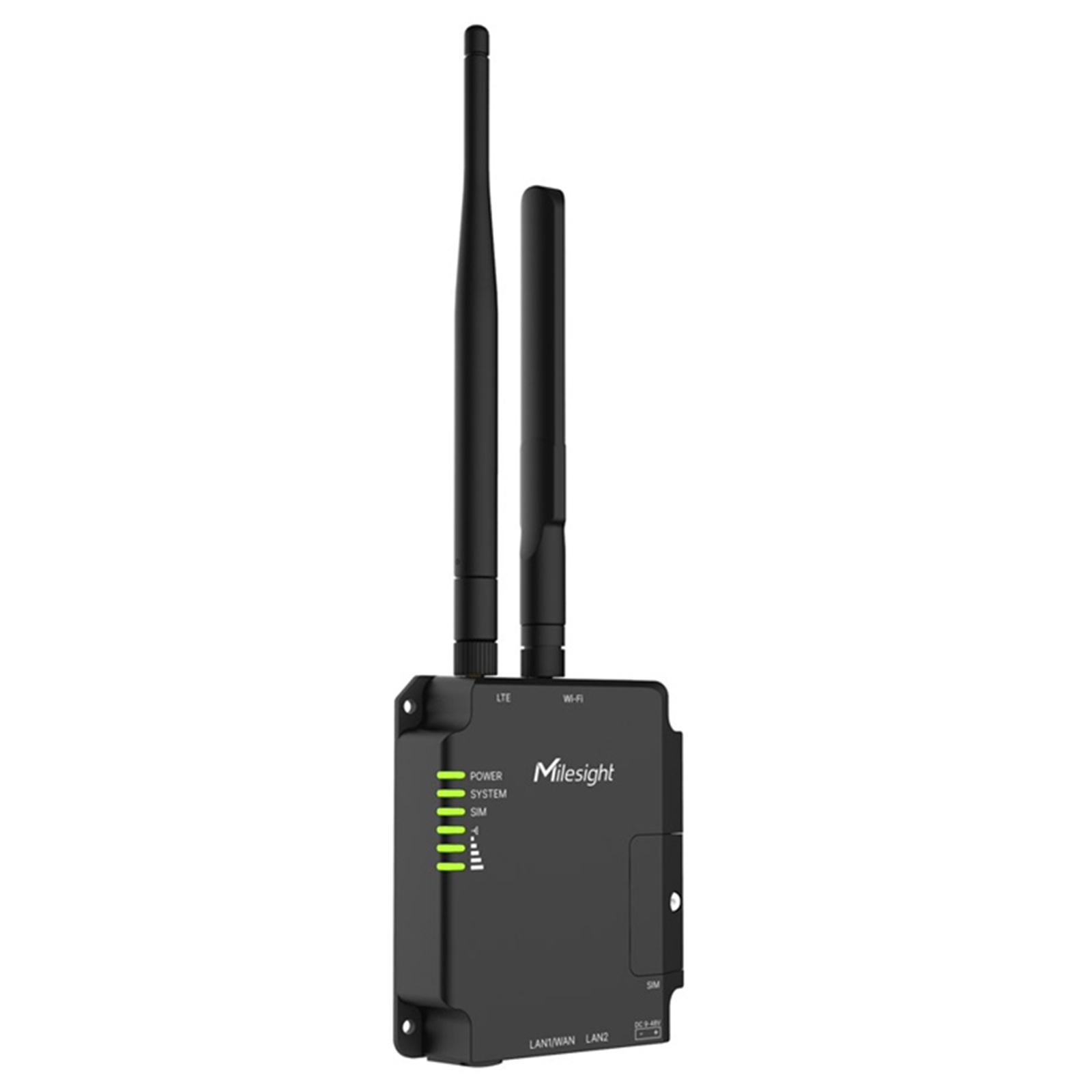

Milesight UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi, NXP Processor, IP30 Protection with Metal Housing.
By deploying it in practical CCTV projects, Milesight CCTV Router UR32S can achieve a stable and secure connection between on-site surveillance devices and remote side professional installers or technicians. In this way, Milesight cameras and NVRs can be managed in batch easily and remotely in a more secure and efficient way.
Milesight CCTV Router UR32S supports Wi-Fi Client and AP Mode, allowing users to simply connect the router to M-Sight Pro APP. Since all devices connected to the router will be immediately listed on the APP, users can configure the remote access permissions of devices in batch for installers or technicians within a few steps.
Milesight CCTV Router UR32S features global 4G LTE CAT4/3G network with multiple carrier networks, achieving easy global connectivity. Meanwhile, it supports automated failover or failback between Ethernet and cellular with SIM card inserted.
- Wi-Fi Client and AP Mode
- Global 4G LTE CAT4/3G Network
- NXP Processor
- IP30 Protection with Metal Housing
- VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
Application Example
Specifications
CPU
ARM Cortex-A7,528 MHz
Memory
128 MB DDR3 RAM and 128MB Flash
Antenna Connector
1 × 50 Ohm SMA Cellular Connector (Center PIN: SMA Female)
SIM Slots
1 (Mini SIM-2FF)
Ethernet
1 × WAN + 1 × LAN (Default) or 2 × LAN 100Mbps
Mode
Full or half duplex (Auto-Sensing)
PoE
2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Antenna Connector
1 × 50 Ohm Wi-Fi SMA Connector (Center PIN: RP-SMA Female)
Standards
IEEE 802.11 b/g/n,2.4GHz
Tx Power
802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 14 dBm +/-1.5 dBm (54 Mbps), 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
Modes
AP or Client mode
Security
WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button
1 × RESET
LED Indicators
1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
Built-in
Watchdog, Timer
Power Connector
2-pin 5.08 mm Terminal Block
Input Voltage
9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Power Consumption
Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Ingress Protection
IP30
Housing
Metal
Dimension
108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation
Desktop, Wall or DIN Rail Mounting
Operating Temperature
-40°C to +70°C (-40? to +158?)
Storage Temperature
-40°C to +85°C (-40? to +185?)
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25°C
Regulatory
CE, FCC, RCM
Environmental
RoHS
EMC
EN 55032, EN 55035
EMS
IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-4 Level 2, IEC 61000-4-5 Level 2, IEC 61000-4-6 Level 3, IEC 61000-4-8 Level 1, IEC 61000-4-11 Level 3
Radio Frequency
EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
Safety
EN62368-1
