Milesight VS121-915M LoRaWAN AS923 AI Workplace IoT Sensor
- Brand: Milesight
- MPN: VS121-915M
- Part #: CCTMLS1217

Product URL: https://www.pbtech.com/au/product/CCTMLS1217/Milesight-VS121-915M-LoRaWAN-AS923-AI-Workplace-Io
Features

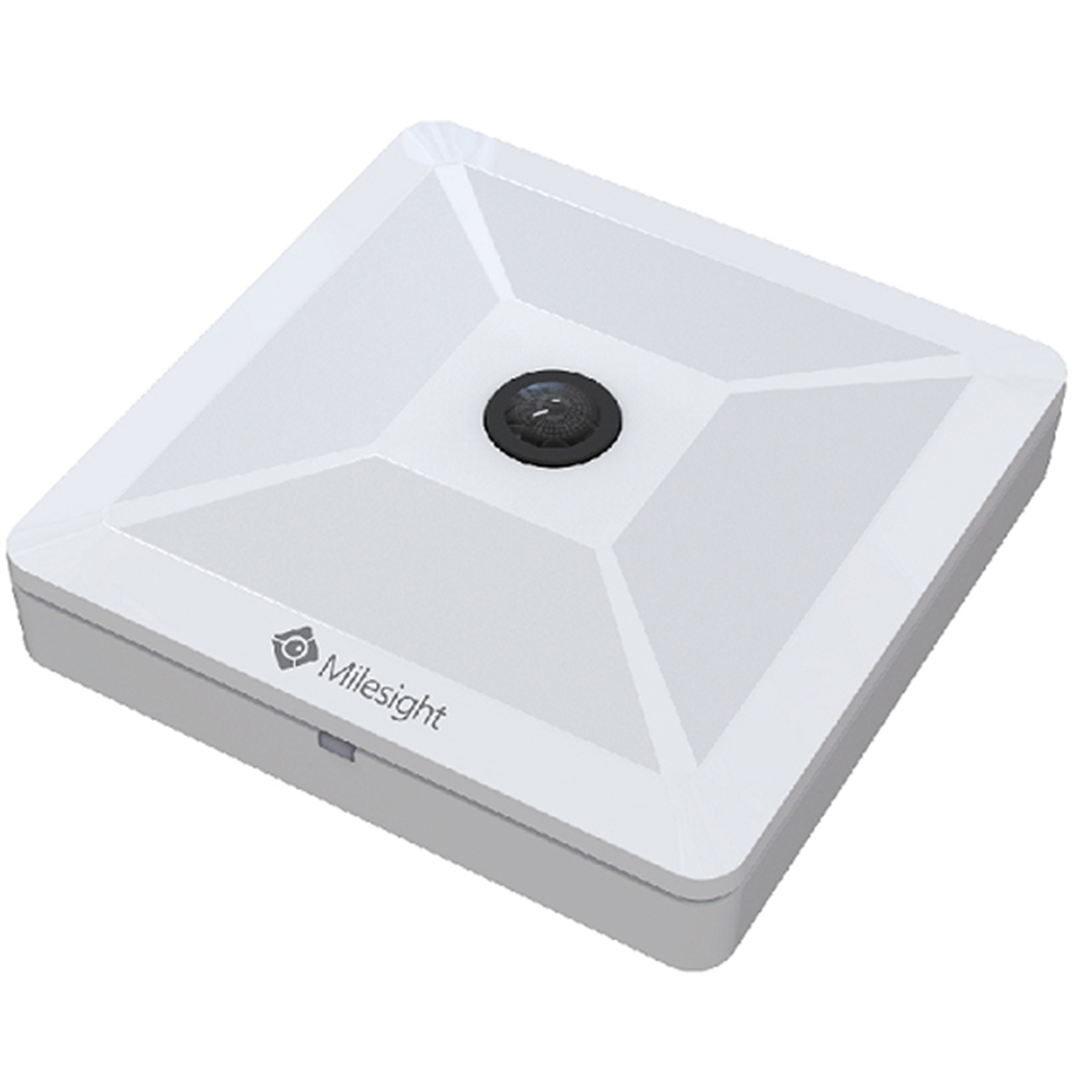

Milesight LoRaWAN AS923 AI Workplace IoT Sensor
Milesight LoRaWAN AU915/AS923 AI Workplace IoT Sensor. The Milesight VS121, based on Artificial Intelligence (AI) technology, is an AI workplace IoT sensor designed to monitor occupancy & utilization in modern workspace, which can reach up to 95% recognition rate. With the ability to sense from up to more than 78 m2, few sensors are needed to cover the same area, decreasing the deploy costs for users. Only counter values are transmitted over LoRaWAN® network, which can prevent the privacy concerns. Based on standard LoRaWAN® protocol, VS121 can work with Milesight LoRaWAN gateway and mainstream LoRaWAN® network servers. With easy installation, VS121 sensor has great use in shops, malls, offices, exhibitions, etc. Milesight VS121 sensors are equipped with Wi-Fi for easy configuration.
- Recognition rate is up to 95% based on advanced AI identification and analysis technology
- Wide detection range
- Supports up to 12 mapped regions for detection
- No image data is collected, free from privacy concerns
- Equipped with Wi-Fi for web GUI configuration
- Function well with standard LoRaWAN IoT gateways and network servers
Specifications
Manufacturer's Code
VS121-915M
Frequency
AU915/AS923
Tx Power
20dBm
Sensitivity
-137dBm @ 300bps
Mode
OTAA/ABP Class C
Field of View
190 ° Horizontal, 112 ° Vertical
Recognition Range
Based on a radius of 5 meters (At the height of 3m)
Recognition Rate
>95%
Advanced Custom Setting
Up to 12 mapped regions for detection
Wi-Fi
IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Buttons
1 × Reset Button, 1 × Wi-Fi Button
LED Indicators
1 x Wi-Fi
Power Input
1 x Type-C
Power Supply
5V / 1.5A by Type-C Port
Operating Temperature
-5°C ~ +55°C
Storage Temperature
-20°C ~ +60°C
Relative Humidity
0 ~ 95% (Non-condensing)
Color
White (Black Optional)
Dimension
85 x 85 x 20 mm (3.35 x 3.35 x 0.79 in)
Installation
Ceiling Mounting
