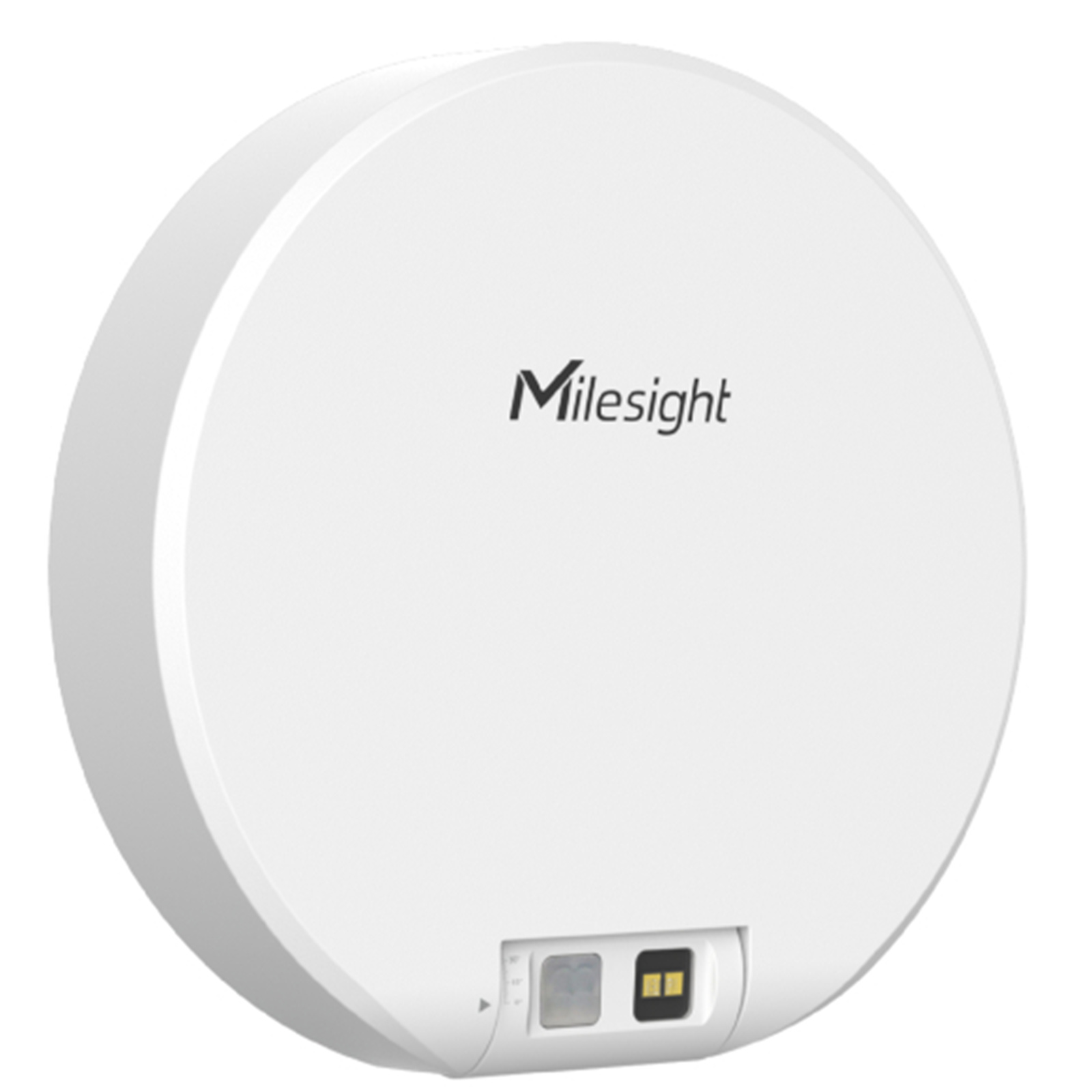

Milesight VS330-915M LoRaWAN AS923 Bathroom Occupancy Sensor with 100% Anonymous Detection
Milesight VS330-915M LoRaWAN AS923 Bathroom Occupancy Sensor with 100% Anonymous Detection
- Brand: Milesight
- MPN: VS330-915M
- Part #: CCTMLS1223
- UPC:
View all shipping info
- Brand: Milesight
- MPN: VS330-915M
- Part #: CCTMLS1223
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Sensors





Milesight VS330-915M LoRaWAN AS923 Bathroom Occupancy Sensor with 100% Anonymous Detection
- Brand: Milesight
- MPN: VS330-915M
- Part #: CCTMLS1223

Product URL: https://www.pbtech.com/au/product/CCTMLS1223/Milesight-VS330-915M-LoRaWAN-AS923-Bathroom-Occupa
Features
Milesight VS330-915M LoRaWAN AS923 Bathroom Occupancy Sensor
- Industry-leading Accuracy exceeding 99.5%
- Wide detection range
- Compliant with GDPR & 100% Anonymous Detection
- No image data is collected, free from privacy concerns
- Dual Technology, Maximal Possibility
- Function well with standard LoRaWAN IoT gateways and network servers
- Real-time Update & Ultra-low Power Consumption
- Artful Design & Flexible Applications
Dual Technology, Maximal Possibility
To optimize accuracy and efficiency, VS330 adopts PIR and ToF to detect space occupancy in each partition of cubicles. With PIR detecting human motion, and ToF measuring the distance from the objects, VS330 can definitely secure the detection results by achieving unparalleled accuracy and ensuring 100% anonymity.
Industry-leading Accuracy Exceeding 99.5%
Milesight develops a smart trigger logic of detection for VS330. PIR detection combining with ToF reconfirmation enables VS330 to accurately monitor the occupancy status of cubicles. The embedded self-calibration algorithm further elevates the accuracy to an industry-leading level of over 99.5%
100% Anonymous Detection
It is GDPR compliant. PIR detects infrared radiation from objects/humans while ToF (Time of Flight) measures the time for a wave to travel to the object and back. No personal information is involved in the whole process.
Real-time Update
In high-traffic but low-capacity applications, it is crucial to update occupancy status immediately for better management and higher facility efficiency. When users enter or leave the cubicles, PIR will be triggered first and then ToF technology will be used to collect data at 5-second intervals to realize prompt and accurate updates on the occupancy status.
Ultra Low Power Consumption
High accuracy does not mean high power consumption. VS330 has sophisticated trigger logic of PIR and ToF detection, which improves power efficiency and guarantees a minimum of 4 years of battery life.
Artful Design
VS330 has an artful design with a chic and dainty enclosure. With a rotatable probe, it can be adjusted within the range of 0~75°, providing high flexibility and minimal detection blind spot. Also, conformal coating on the PCBA of VS330 will prevent the sensor from moisture damage which may occur in damp environments such as restrooms.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Specifications
MPN
VS330-915M
Frequency
AU915/AS923
Tx Power
22 dBm
Sensitivity
-137dBm @ 300bps
Mode
OTAA/ABP Class C
TOF Field of View
27 ° Horizontal, 27 ° Vertical
TOF Recognition Range
0.040 to 3.5m
PIR Field of View
80 ° Horizontal, 80 ° Vertical
PIR Recognition Range
Maximum 2.5m
Sensors Adjustable angle
0°, 15°, 30°, 45°, 60°, 75°
Buttons
1 × Reset Button, 1 × Power/Reset
LED Indicators
1 × Status/Test Indicator
Power Supply
3 x 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries
Operating Temperature
-20°C ~ +60°C
Storage Temperature
-20°C ~ +60°C
Relative Humidity
0 ~ 95% (Non-condensing)
Color
White (Black on request)
Dimension
100 × 100 × 24 mm
Installation
Ceiling Mount or Wall Mount via Screws or 3M tapes
