Milesight TS201-915M TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40°C -125°C
Out of stock
Milesight TS201-915M TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40°C -125°C
- Brand: Milesight
- MPN: TS201-915M
- Part #: CCTMLS1290
- UPC:
View all shipping info
- Brand: Milesight
- MPN: TS201-915M
- Part #: CCTMLS1290
- UPC:
Features

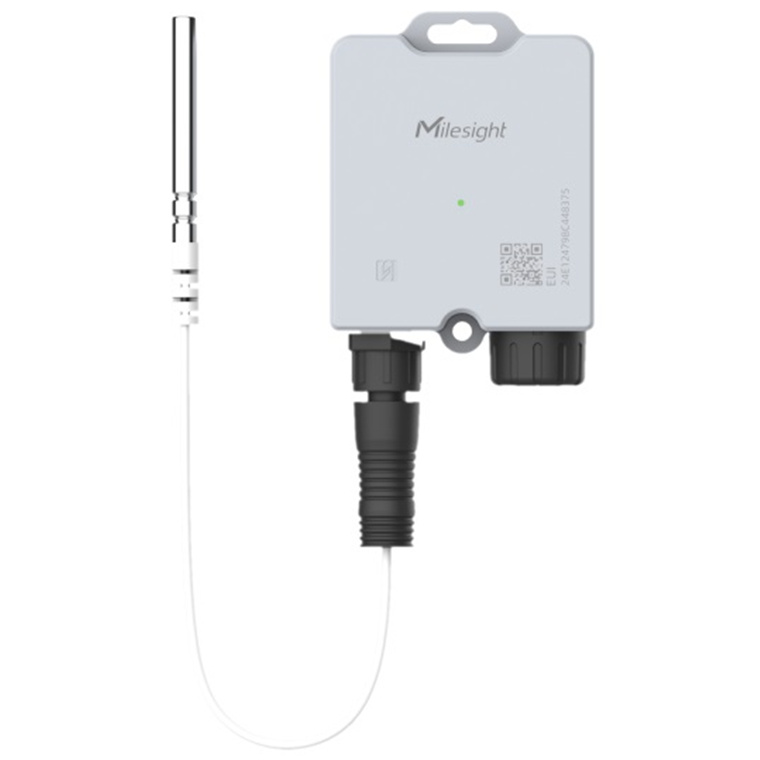

TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology the TS201 can maintain a long operational life with its internal battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine, etc.
- Provide highly accurate and stable DS18B20 temperature sensor probe with high-resolution
- Temperature probe is detachable for self-calibration
- IP67 waterproof with specialized battery compartment design , making it suitable for harshenvironment
- Flexible design for various mounting options
- EN12830 certified for cold-chain applications
- Store up to 2,800 historical records locally and support retransmission to prevent data loss
- Equipped with NFC for quick and easy configuration
- Function effectively with standard LoRaWAN® gateways and network servers
- Compatible with Milesight IoT Cloud
Detachable Probe for Independent Calibration
Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.
Real-time Alerts
Users are able to receive immediate alerts for any potential threats, such as temperature spikes or opened doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory loss.
*It is advisable to place the device outside of the refrigerator.
Pin-point Temperature Anomalies
Accurately spot temperature anomalies through receiving alerts sent from the sensing probe with its own identification number.
* The identification number helps to identify if the probe has been calibrated.
IP67 Rating and Unique Battery Compartment Design
With an IP67 rating and uniquely designed rotatable battery cover, Milesight TS201 is designed to ensure waterproof functionality, providing reliable performance even in challenging environments, while allowing multiple installation methods like wall mount, zip tie, and magnetic mount.
Long Battery Life
With the benefit of low power consumption of LoRaWAN® devices, Milesight TS201 can last up to 3 years with a reporting interval of every 10 minutes.
LoRaWAN® Based
- Penetrating Signals:data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Application Scenarios
With its compact design, EN12830 standard compliance, flexible temperature sensing probe, and IP67 waterproof rating, making it ideal for various scenarios, especially for cold chain and pharmaceutical industries, where temperature control is crucial.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Other Networking
StarTech.com RJ45COVER 100 Pack RJ45 Dust Covers - Reusable RJ45...
Ubiquiti UniFi USW-Flex-Utility Outdoor Weatherproof Enclosure...
Go Wireless PS12V1.5A-WH Power Supply 12V 1.5A DC Mains Plug Pack...
Abeeway DEABE502-19-8AS LoRaWAN AS923 Compact GPS IoT Tracker
PoE World AT-Extender 802.3af/at Ethernet PoE Extender 10/100...
Milesight TS201-915M TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40°C -125°C
- Brand: Milesight
- MPN: TS201-915M
- Part #: CCTMLS1290
Product URL: https://www.pbtech.com/au/product/CCTMLS1290/Milesight-TS201-915M-TS201-LoRaWAN-AS923-High-Accu
Features
TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology the TS201 can maintain a long operational life with its internal battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine, etc.
- Provide highly accurate and stable DS18B20 temperature sensor probe with high-resolution
- Temperature probe is detachable for self-calibration
- IP67 waterproof with specialized battery compartment design , making it suitable for harshenvironment
- Flexible design for various mounting options
- EN12830 certified for cold-chain applications
- Store up to 2,800 historical records locally and support retransmission to prevent data loss
- Equipped with NFC for quick and easy configuration
- Function effectively with standard LoRaWAN® gateways and network servers
- Compatible with Milesight IoT Cloud
Detachable Probe for Independent Calibration
Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.
Real-time Alerts
Users are able to receive immediate alerts for any potential threats, such as temperature spikes or opened doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory loss.
*It is advisable to place the device outside of the refrigerator.
Pin-point Temperature Anomalies
Accurately spot temperature anomalies through receiving alerts sent from the sensing probe with its own identification number.
* The identification number helps to identify if the probe has been calibrated.
IP67 Rating and Unique Battery Compartment Design
With an IP67 rating and uniquely designed rotatable battery cover, Milesight TS201 is designed to ensure waterproof functionality, providing reliable performance even in challenging environments, while allowing multiple installation methods like wall mount, zip tie, and magnetic mount.
Long Battery Life
With the benefit of low power consumption of LoRaWAN® devices, Milesight TS201 can last up to 3 years with a reporting interval of every 10 minutes.
LoRaWAN® Based
- Penetrating Signals:data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Application Scenarios
With its compact design, EN12830 standard compliance, flexible temperature sensing probe, and IP67 waterproof rating, making it ideal for various scenarios, especially for cold chain and pharmaceutical industries, where temperature control is crucial.
Specifications
Brand
Milesight
Manufacturer Part Number
TS201-915M
Protocol
LoRaWAN
Frequency
US915/AU915/KR920/AS923-1&2&3&4
Tx Power
22dBm (915MHz)
Sensitivity
-137dBm @300bps
Mode
OTAA/ABP Class A
Connector Type
Type 1 × 5-Pin M12 A-Coded Male Connector
Measuring Range
-40°C ~ 125°C
Accuracy
± 0.5°C(-10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
Resolution
0.1°C
Cable Length
1.5 m
Cable Material
TPE
LED Indicator
1 × Status Indicator
Configuration
Mobile App (via NFC)
Advanced Feature
Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Power Supply
1 × 2700 mAh ER14505 Li-SOCL2 Battery
Battery Life
Around 3 Years (25°C, 10 min Interval, SF10), Around 9 Years (25°C, 10 min Interval, SF7)
Operating Temperature
TS201 Device: -30°C ~ 55°C (-22°F ~ 131°F), Sensor Cable: -40°C ~ 125°C (-40°F ~ 257°F)
Relative Humidity
0% to 95% (Non-condensing)
Ingress Protection
IP67
Dimensions
84.7 × 58 × 25 mm (3.33 × 2.28 × 0.98 in)
Installation
Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.)
