Reolink 8MP/4K 8 Channel NVR Surveillance System with 2TB HDD
Includes 4x RLC-B800 Bullet Camera & 4x 18m Network Cable
Reolink 8MP/4K 8 Channel NVR Surveillance System with 2TB HDD
Includes 4x RLC-B800 Bullet Camera & 4x 18m Network Cable
- Brand: Reolink
- MPN: RLK8-800B4
- Part #: CCTRLK1013
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"I have found this system very much plug and play, so easy for a non technical person. Picture quality excellent"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Surveillance Kits - Wired





Reolink 8MP/4K 8 Channel NVR Surveillance System with 2TB HDD Includes 4x RLC-B800 Bullet Camera & 4x 18m Network Cable
- Brand: Reolink
- MPN: RLK8-800B4
- Part #: CCTRLK1013

Product URL: https://www.pbtech.com/au/product/CCTRLK1013/Reolink-8MP4K-8-Channel-NVR-Surveillance-System-wi
Features
4K UHD - Sharpest Ever
4K Ultra HD (8MP, 3840 x 2160) delivers almost 4 times the clarity of 1080p, and by a wide margin, outshines 5MP/4MP Super HD. This superior kit can show the finest key details in vividness, even when you digitally zoom in, so that every ambiguity in video footage you met before is cleared up.
Ultra-Clarity Also at Night
The 18pcs powerful infrared LEDs in each 4K security camera emit invisible lights that pierce the darkness up to 100 feet. Plus, advanced 3D-DNR technology dramatically reduces noise levels - ensuring clearer, sharper and smoother night performance.
- 18pcs Infrared LEDs
- 100 Feet Night Vision
- 97° Viewing Angle
24/7 Surveillance, Ceaseless Protection
This 8CH 4K PoE NVR security camera system supports simultaneous live feed and 24/7 recording for all cameras. When something unusual is detected, you'll get notified instantly. Also, you can optimize recording mode and motion zone to better serve your specific security needs. Not only non-stop, but smarter security solution for you!
Smart Motion Alerts
This 4K 8MP security camera can detect motion and notify you instantly through push notifications, emails alerts or buzzer sounds. You can personalize all kinds of alerts to fit your needs.
- Push Notification: Receive instant motion alerts right on your phone. No delay.
- Emails: Send motion snapshots or clips to you right away.
- Buzzer in NVR: Triggered by motion to make sound warning.
Live Streaming
Access the camera remotely via user-friendly Reolink Client, Reolink App or web browsers. View live feeds in 4K UHD anytime and stay connected with your world with just simple clicks.
- Onsite Storage: Saved in the NVR locally. Immediate access to data.
- Offsite Storage: Uploaded to FTP server for backup.
Replay Recorded Moments
Recorded videos can be saved in NVR with built-in 2TB HDD. The intuitive timeline design in Reolink Client or App enables you to easily find the videos of interest and grasp ins and outs of whole things.
Customize Recording Mode
Each camera can be set to record in different mode. 24/7 recording is ideal in high-traffic areas like store entrances, while in lower activity regions like warehouses or at night, motion-triggered recording can help you save storage space.
Focus on the Areas That Matter
Delineate the specific spots where you want to detect motions and receive alerts. For example, create motion areas around your driveway or front door, which can minimize unwanted alarms from high traffic nearby roads.
Work with All Reolink PoE IP Cameras
This 4K home security camera system can be expanded up to 8-camera kit with any Reolink PoE IP cameras without any compatibility issue - bullet, dome or PTZ - to fit your specific needs. Supported Reolink 5MP/4MP IP cameras include: RLC-410, RLC-511, RLC-420, RLC-422, RLC-423, etc.
* The Reolink NVRs work with Reolink security cameras ONLY.
PoE - Easy Setup, Beginner-Friendly
A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable (up to 330ft, whole-house coverage), for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.
Ready for All Weather
The 4K Ultra HD PoE camera features IP66 waterproof rating (its cables too!) and is suitable for both outdoor and indoor installation. Unfazed by rain, snow, hail or other harsh conditions.
Package Content
- x1 RLN8-410-E
- x4 B800 PoE Camera
- x1 NVR Power Adapter
- x1 HDMI Cable
- x1 USB Mouse
- x1 1m Network Cable
- x4 18m Network Cable
- x1 Quick Start Guide
- x5 Mounting Hole Template
- x4 Surveillance Card
- x4 Waterproof Lid
- x4 RJ45 Connector
- x5 Pack of Screws
- x1 Wrench
Specifications
Video/Audio Input
IP Video Input
PoE IP Camera x 8
Audio Input
Cameras with Built-in Mic
Video/Audio Output
HDMI Output
3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
VGA Output
1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
Audio output
1CH RCA
Decoding
Live View/Playback Resolution
3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080p, 720p
Frame Rate
PAL: 4CH @25fps; NTSC: 4CH @30fps
Synchronous Playback
1CH @8MP; 4CH @4MP
HDD
SATA Devices
1 x 2TB SATA HDD
Maximum Capacity
8TB (Maximum 4TB HDD/Port)
External HDD
1 x eSATA

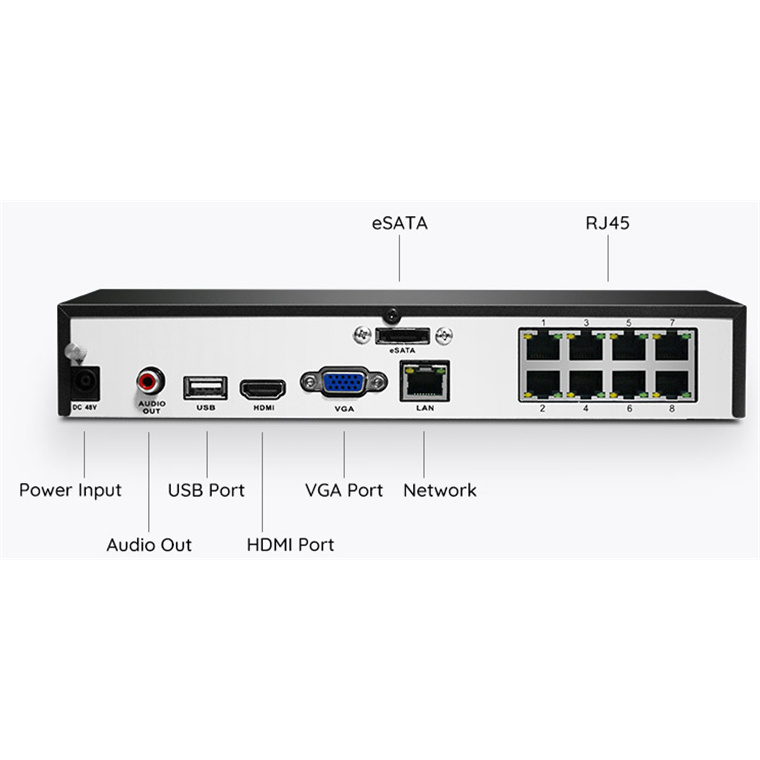

External Interface
USB Interface
2 x USB 2.0
Network Interface
RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
PoE
Interface
8 Independent 100 Mbps PoE Network Interfaces
Max. Power Consumption
25W
Supported Standard
IEEE 802.3at
Network
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
IE, Firefox, Chrome
OS Supported
PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access
20 Users
General
Power Supply
DC 48V/2A
Power Consumption
<10W (Without HDD&PoE)
Working Environment
Temperature: -10 C~+55 C (14°F~131°F); Humidity: 10%~90%
Dimensions (mm)
260(W) x 41(H) x 230(D)
Weight (w/o HDD)
1.2 kg
B800
Camera
Image Sensor
1/2.5" CMOS Sensor
Effective Pixels
3840x2160 (8.0 Megapixel)
Lens
f=4.0mm F=2.0
Angle of View
Horizontal: 97° ; Vertical: 51°
Day/Night Mode
Auto Switchover
Min. Illumination
0 Lux (With IR Illuminator)
IR Distance
30 Meters (100ft) (LED: 18pcs/14mil/850nm)
Backlight Compensation
Support
Noise Reduction
3D DNR
Video
Resolution
Main Stream: 3840x2160 2560x1440, 2304x1296; Sub Stream: 640x360
Bitrate
Main Stream: 1024Kbps ~ 8192Kbps; Sub Stream: 64Kbps ~ 512Kbps
Frame Rate
Main Stream @20fps; Sub Stream @7fps
Audio
Interface
Built-in Microphone
Network
Interface
One 10M/100Mbps RJ45
Network Protocol
SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS
General
Power Supply
DC12V & PoE (IEEE 802.3af)
Power Consumption
<8W
Working Environment
Temperature: -10~+55C (14°F~131°F); Humidity: 10%~90%
Ingress Protection
IP66
Dimensions
F66 x 192mm
Weight
485g
