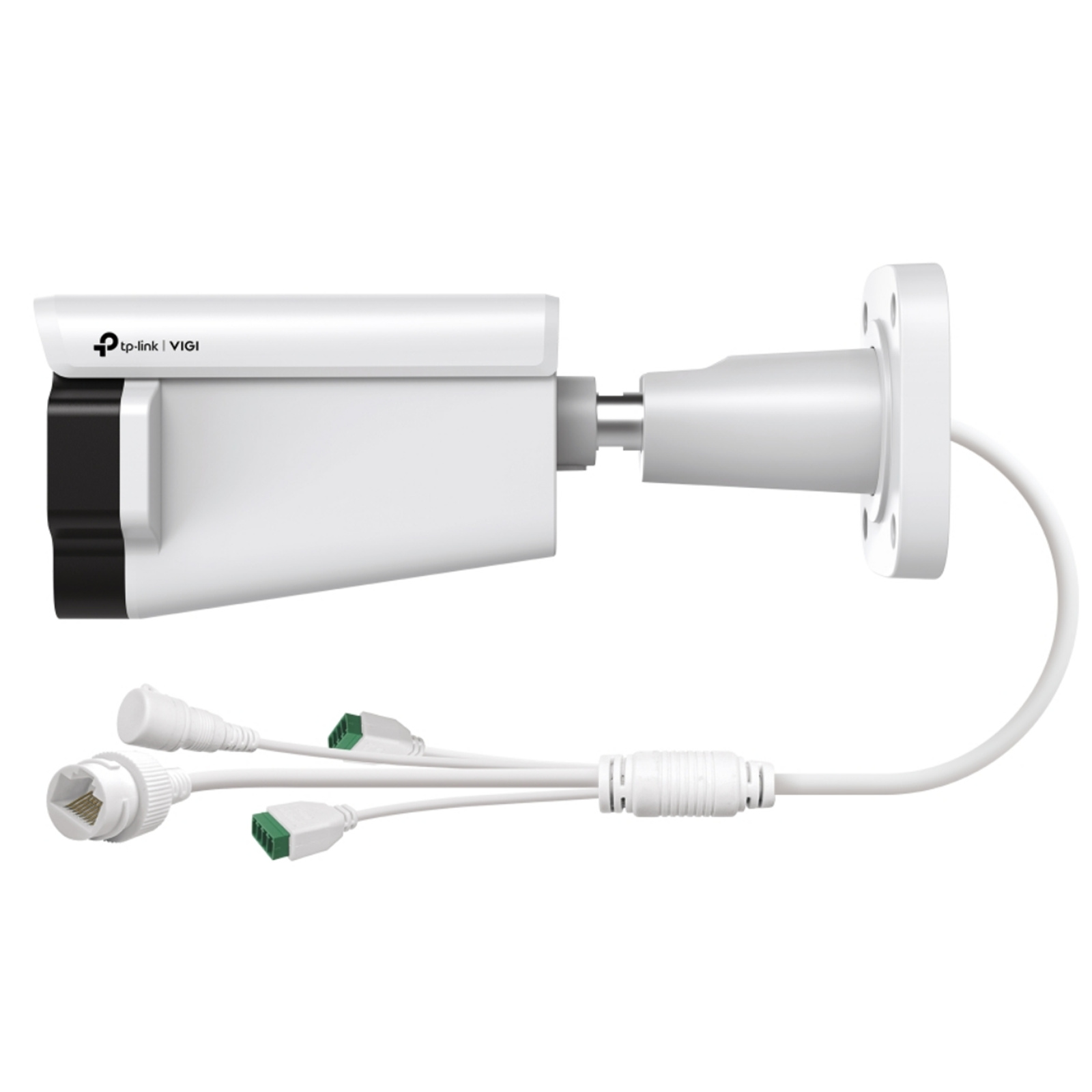

TP-Link VIGI Insight S345ZI 4MP/2K+ Outdoor IR Motorised Varifocal Bullet Network Camera
5 x Optical Zoom
TP-Link VIGI Insight S345ZI 4MP/2K+ Outdoor IR Motorised Varifocal Bullet Network Camera
5 x Optical Zoom
- Brand: TP-Link
- MPN: Insight S345ZI
- Part #: CCTTPL34501
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: Insight S345ZI
- Part #: CCTTPL34501
- UPC:
Features
VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.**
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Reolink RLC-823A 8MP/4K Outdoor PTZ PoE IP Camera 16 x Optical...
TP-Link VIGI Insight S345ZI 4MP/2K+ Outdoor IR Motorised Varifocal Bullet Network Camera 5 x Optical Zoom
- Brand: TP-Link
- MPN: Insight S345ZI
- Part #: CCTTPL34501
Product URL: https://www.pbtech.com/au/product/CCTTPL34501/TP-Link-VIGI-Insight-S345ZI-4MP2K-Outdoor-IR-Motor
Features
VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.**
Specifications
CAMERA
Image Sensor
1/2.9" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Motorized Varifocal Lens
Focal Length
2.7-13.5 mm (5X Optical Zoom)
Aperture
F1.6
FOV
2.7-13.5 mm:
- Horizontal FOV: 29.6°-102.0°
- Vertical FOV: 16.8°-53.8°
- Diagonal FOV: 34.1°-122.8°
Lens Mount
F14
DORI Distance
2.7-13.5 mm:
- Detect: 66-207 m (217-579 ft)
- Observe: 28-86 m (92-282 ft)
- Recognize: 13-41 m (43-135 ft)
- Identify: 7-21 m (23-69 ft)
Angle Adjustment (Manual)
Range
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED
- Quantity: 4
- Range: 60m (197ft)
- Wavelength: 850nm
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2688 x 1520
Main Stream
- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Note:
- If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
- Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
- Main Stream: 256 Kbps to 6 Mbps
- Sub-Stream: 512 Kbps to 1024 Kbps
Image Settings
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Yes
Audio Output
Yes
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF
Yes
API
Open Network Video Interface (Profile S/T/G)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- People Detection
- Vehicle Detection
- Abnormal Sound Detection
- Scene Change Detection
Basic Event
- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception ( Illegal Login)
Alarm Linkage
- Memory Card Video Recording
- Message Push
- Audible Warning
- Email Alarm
- Upload Capture to FTP
- Alarm Out Device
Linkage Method
N/A
Output Notification
- Message Push
- Email Alarm
- Upload Capture to FTP
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
1 Alarm In, 1 Alarm Out
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
N/A
Audio
1 Audio In, 1 Audio Out
GENERAL
Operating Temperature
-30-60 °C
Storage Temperature
-40-60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Material
Metal
Net Weight
1.04 Kg
Power Supply
- 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max.12 W
Protection
IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)
10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
