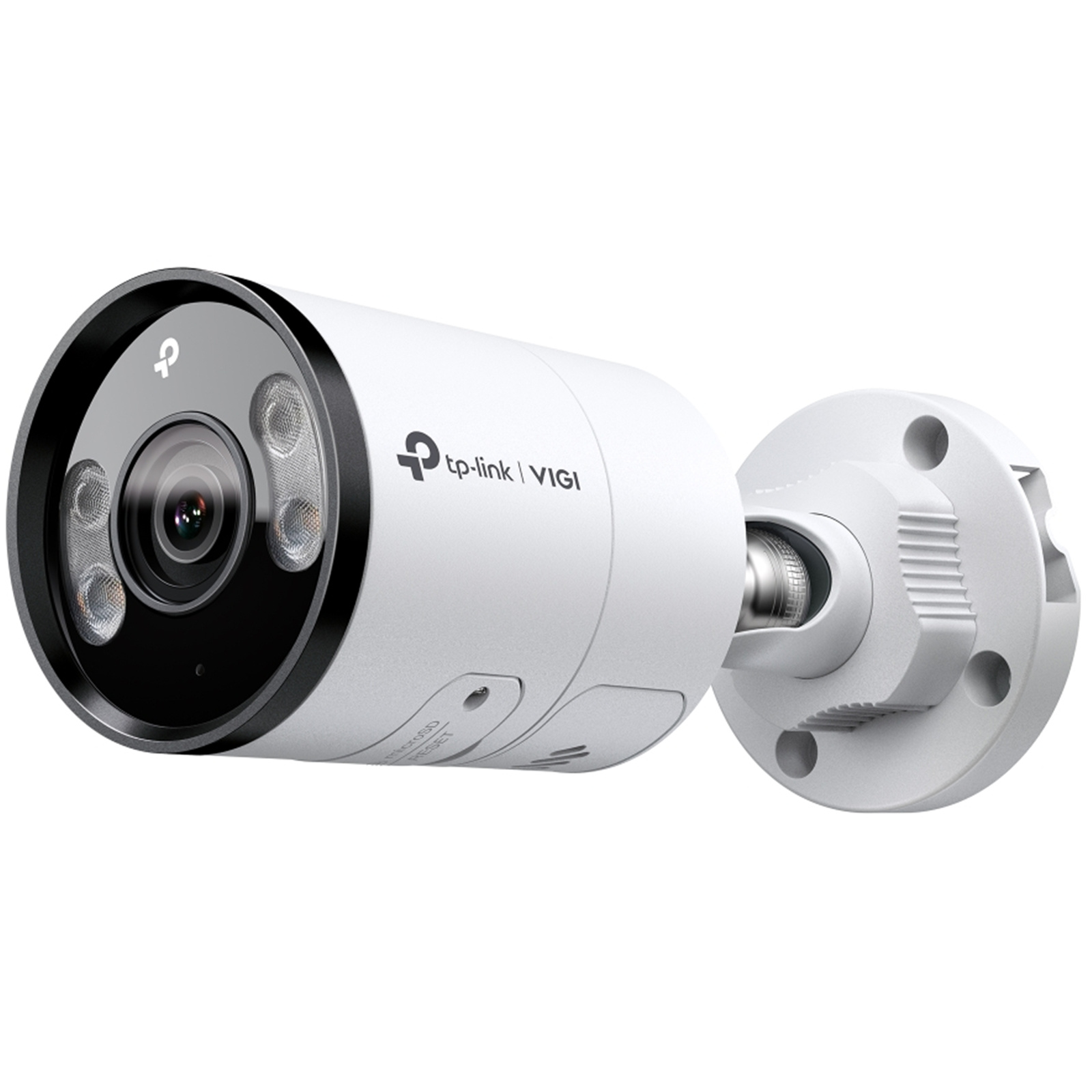

TP-Link VIGI Insight S358(4mm) 8MP/4K Outdoor Full-Color Bullet Network Camera

CAMERA

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

LENS

Type

Fixed Focal Lens

Focal Length

2.8/4 mm

Aperture

F1.6

FOV

- 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

- 4 mm:
Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6°

Lens Mount

M12*P 0.5

DORI Distance

- 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

- 4 mm
Detect: 107 m (350 ft)
Observe: 44 m (146 ft)
Recognize: 21 m (70 ft)
Identify: 11 m (35 ft)

Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR

IR LED

- Quantity: 2
- Range: 30m
- Wavelength: 850nm

White LED

- Quantity: 2
- Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

3840 X 2160

Main Stream

- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

- Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

- Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Sub-Stream

- Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

- Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

- Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

- Main Stream: 256 Kbps to 8 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR

= 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF

Yes

API

ONVIF (Profile S/T/G)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS,VIGI Cloud VMS

Web Browser

- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned Detection
- Object Removal Detection
- Loitering Detection
- People Detection
- Vehicle Detection
- Abnormal Sound Detection
- Scene Change Detection

Basic Event

- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception ( Illegal Login)

Alarm Linkage

- Memory Card Video Recording
- Message Push
- Audible Warning
- White Light Flashing

Linkage Method

N/A

Output Notification

Message Push

Deep Learning Function

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

GENERAL

Operating Temperature

-30-60 °C

Storage Temperature

-40-60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Content

- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories

Material

Metal

Net Weight

0.525 Kg

Power Supply

- 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max. 11.5 W

Protection

IP67

Product Dimensions (L x W x H)

7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)

Certifications

CE, NTRA, VCCI, KC, BSMI, FCC, IC
