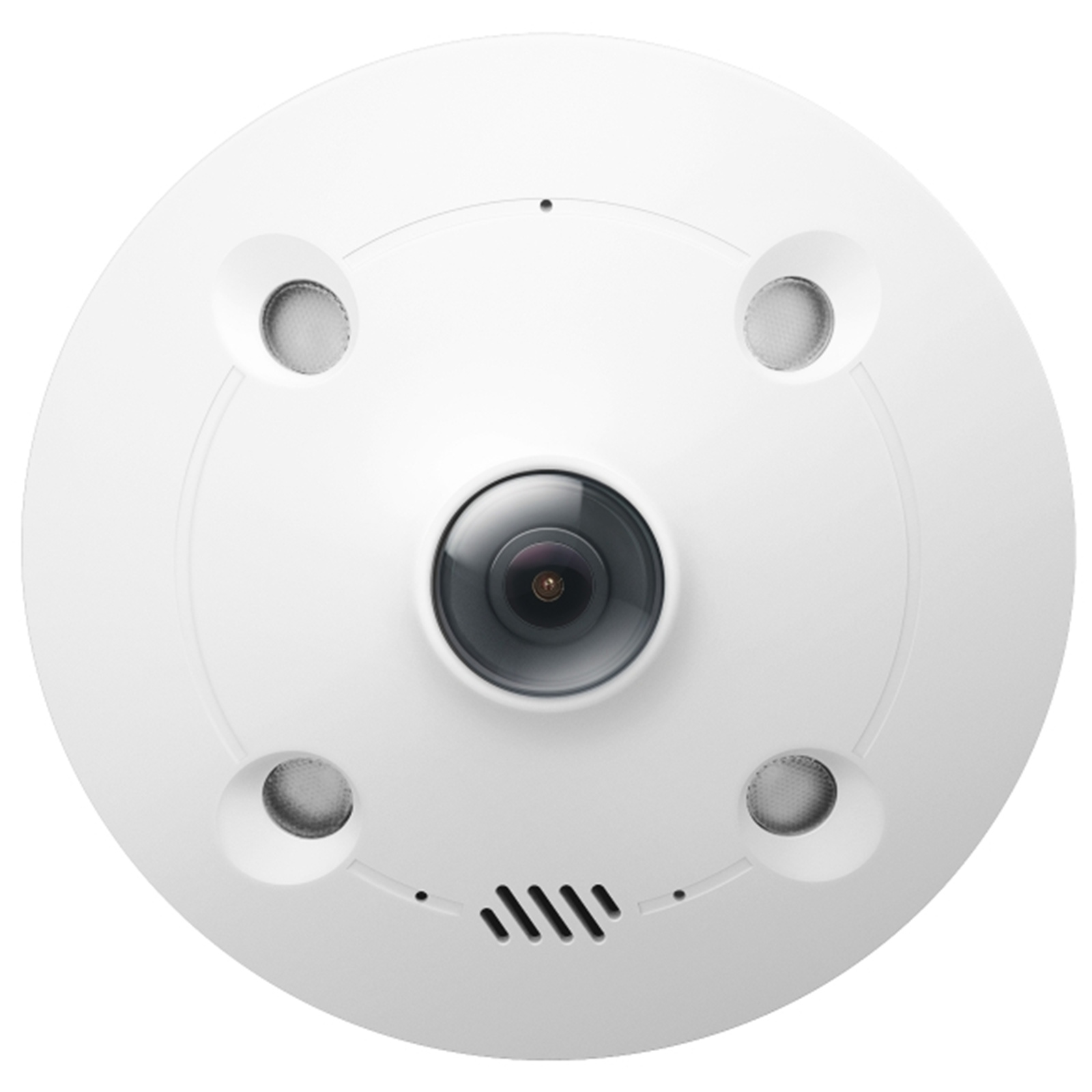

TP-Link VIGI Insight S655I 5MP/3K Outdoor Fisheye Network Camera
360° Coverage without Blind Spots / Supports Multiple Display Modes and ePTZ / Supports Ceiling Mount / Wall Mount / Pendant Mount / Built-In Microphone & Speaker
TP-Link VIGI Insight S655I 5MP/3K Outdoor Fisheye Network Camera
360° Coverage without Blind Spots / Supports Multiple Display Modes and ePTZ / Supports Ceiling Mount / Wall Mount / Pendant Mount / Built-In Microphone & Speaker
- Brand: TP-Link
- MPN: Insight S655I
- Part #: CCTTPL65501
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: Insight S655I
- Part #: CCTTPL65501
- UPC:
Features
TP-Link VIGI Insight S655I 5MP/3K Outdoor Fisheye Network Camera
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Areas like Retail Shops and Offices
360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
VIGI Fisheye Camera
Note: You can drag the screen in 4PTZ display mode to see the entire monitoring area.
4PTZ
Multiple Display Modes***
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer. **
Cylinder
360° Panorama
Fisheye+ 3PTZ
Fisheye+ 8PTZ
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
**Please see the specifications for supported display modes in different installation modes.
***The following display modes are under Ceiling Mount.
****The microSD card and pendant mounting kits are not included in the package.
Note: The surveillance images from the fisheye camera displayed on this page are sourced from VIGI VMS Web.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
TP-Link VIGI Insight S655I 5MP/3K Outdoor Fisheye Network Camera 360° Coverage without Blind Spots / Supports Multiple Display Modes and ePTZ / Supports Ceiling Mount / Wall Mount / Pendant Mount / Built-In Microphone & Speaker
- Brand: TP-Link
- MPN: Insight S655I
- Part #: CCTTPL65501
Product URL: https://www.pbtech.com/au/product/CCTTPL65501/TP-Link-VIGI-Insight-S655I-5MP3K-Outdoor-Fisheye-N
Features
TP-Link VIGI Insight S655I 5MP/3K Outdoor Fisheye Network Camera
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Areas like Retail Shops and Offices
360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
VIGI Fisheye Camera
Note: You can drag the screen in 4PTZ display mode to see the entire monitoring area.
4PTZ
Multiple Display Modes***
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer. **
Cylinder
360° Panorama
Fisheye+ 3PTZ
Fisheye+ 8PTZ
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*
*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
**Please see the specifications for supported display modes in different installation modes.
***The following display modes are under Ceiling Mount.
****The microSD card and pendant mounting kits are not included in the package.
Note: The surveillance images from the fisheye camera displayed on this page are sourced from VIGI VMS Web.
Specifications
CAMERA
Image Sensor
1/2.7" Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
Color: 0.01 Lux; 0 Lux with IR light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
1.44 mm
Aperture
F2.0
FOV
Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°
Lens Mount
M12*P0.5
DORI Distance
Detect: 28.8 m (94 ft)
Observe:12 m (39 ft)
Recognize: 5.7 m (19 ft)
Identify: 2.8 m (9 ft)
Fisheye Display
Installation
Ceiling Mount; Wall Mount; Pendant Mount
Display Mode
On VIGI VMS:
Ceiling Mount:
Fisheye, AR Dewarp, 180 Panorama, 360 Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ
Wall Mount:
Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ
On VIGI App:
Ceiling Mount:
Fisheye, 180 Panorama, 360 Panorama, Fisheye+3PTZ, 4PTZ, Cylinder, AR Dewarp
Wall Mount:
Fisheye, 360 Panorama Unwrap, Fisheye+3PTZ, 4PTZ, 2PTZ, AR Dewarp
ILLUMINATOR
IR LED
Quantity: 4
Range: 10 m
Wavelength: 850 nm
White LED
N/A
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2560x1920
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1920, 2256x1696, 2048x1536, 1280x960
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480, 320x240
Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR,
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Yes
Audio Output
Yes
Audio Compression
Yes
Audio Sampling Rate
8 KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps (G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF
Yes
API
Open Network Video Interface (Profile S/T/G)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
Intrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Abnormal Sound Detection
Basic Event
Motion Detection
Video Tampering Detection
Exception ( Illegal Login)
Alarm Linkage
Memory Card Video Recording
Message Push
Audible Warning
Email Alarm
Upload Capture to FTP
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
Audio
N/A
GENERAL
Operating Temperature
-30 to 60 °C
Storage Temperature
-40 to 60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Material
Metal
Net Weight
0.44 Kg ( without Mounting Accessories)
0.48 Kg ( with Mounting Accessories)
Power Supply
12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12.14W
Protection
IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)
5.2 × 5.2 × 2.2 in (132 × 132 × 56 mm)
Certifications
CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
