Vaddio RoboSHOT 12E HDBT OneLINK HDMI S
- Brand: Vaddio
- MPN: 999-99600-109
- Part #: CCTVDO1050

Product URL: https://www.pbtech.com/au/product/CCTVDO1050/Vaddio-RoboSHOT-12E-HDBT-OneLINK-HDMI-S
Features

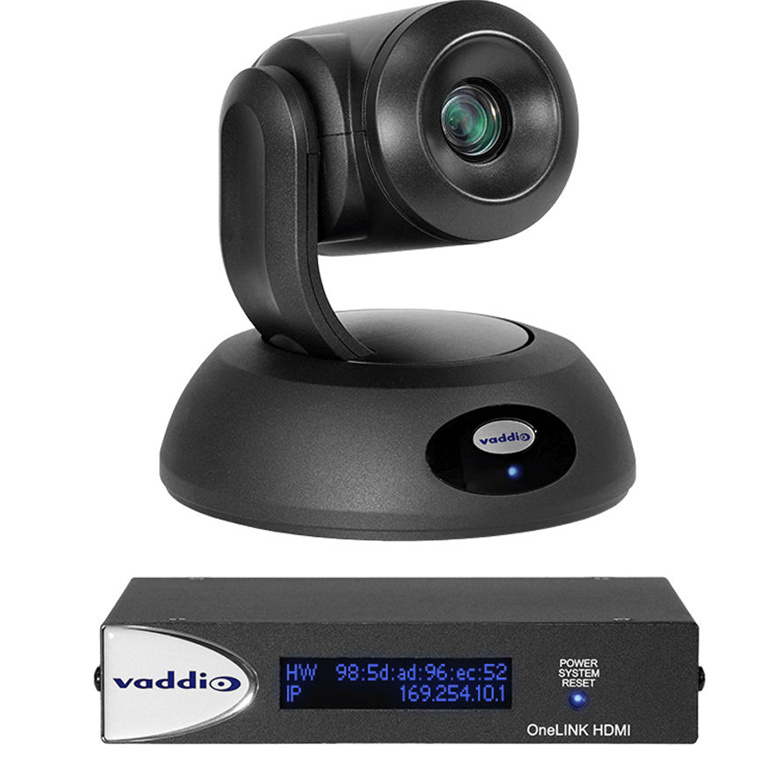

RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Includes OneLINK HDMI Extension System.
-12x Optical Zoom
-1/2.5-type Exmor R CMOS sensor
-70.2° horizontal field of view
-Simultaneous HDbaseT, HDMI and IP H.264 streaming
-Remote IP Management
-Simple, clutter-free camera extension with HDBaseT technology
-Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
-Simultaneous HDMI and IP Streaming outputs
This Package Includes:
-RoboSHOT 12E HDBT camera
-Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
-Vaddio IR Remote Commander
-OneLINK HDMI Interface
-48V power supply with AC cord set(s)
-EZCamera RS-232 Control Adapter
-Quick-Start Guides
Specifications
Colour:
Black
Certifications:
CE Approved, FCC Approved
Product Width:
7.05" (17.91 cm)
Product Height:
6.94" (17.63 cm)
Product Depth:
6.75" (17.15 cm)
Product Weight:
4.85 lbs (2.2 kg)
Signal Type:
HDMI, RS-232, IP-Streaming
Power Type:
PoE+
Output Ports:
HDMI, IP-Streaming
Zoom:
12x
Max Resolution:
1080p/60
Field of View:
70.2° Wide End to 4.1° Tele End
Estimated Room Size:
Small Conference Room, Large Conference Room, Large Venue
Minimum Illumination:
1.0 Lux (F1.6), 100+ Lux Recommended
Browser-based User Interface for Remote Control:
Built-in
Control Method:
Joystick, Web UI, Telnet, RS-232 and IR Remote
OneLINK Compatibility:
With OneLINK EZIM
OneLINK HDMI adds:
328 ft (100 M) Power, Video, Control Extension
OneLINK Bridge adds:
328 ft (100 M) Power, Video, Control Extension, 3G-SDI, USB 3.0, Audio Mixer
PTZ Motors:
Silent BLDC Direct Drive Motors
Tri-Sync Motion:
Yes
Pan and Tilt Range: Pan:
±160°, Tilt: +90° to -30°
Pan and Tilt Speed:
0.35°/sec to 120°/sec
Pixels:
8.51 Megapixel (8.57 Total MP)
Top Resolution:
1080p/60
Invertible:
Yes
Focus System:
Auto, Manual
Gain:
Auto, Manual
Operating Temperature:
32° to 104°F (0° to 40°C)
Preset Positions:
16 + Custom Home Position
White Balance:
Auto, Manual, One-Push
Power Supply:
PoE+ Midspan Power Injector
Quick-Connect Compatibility:
No
