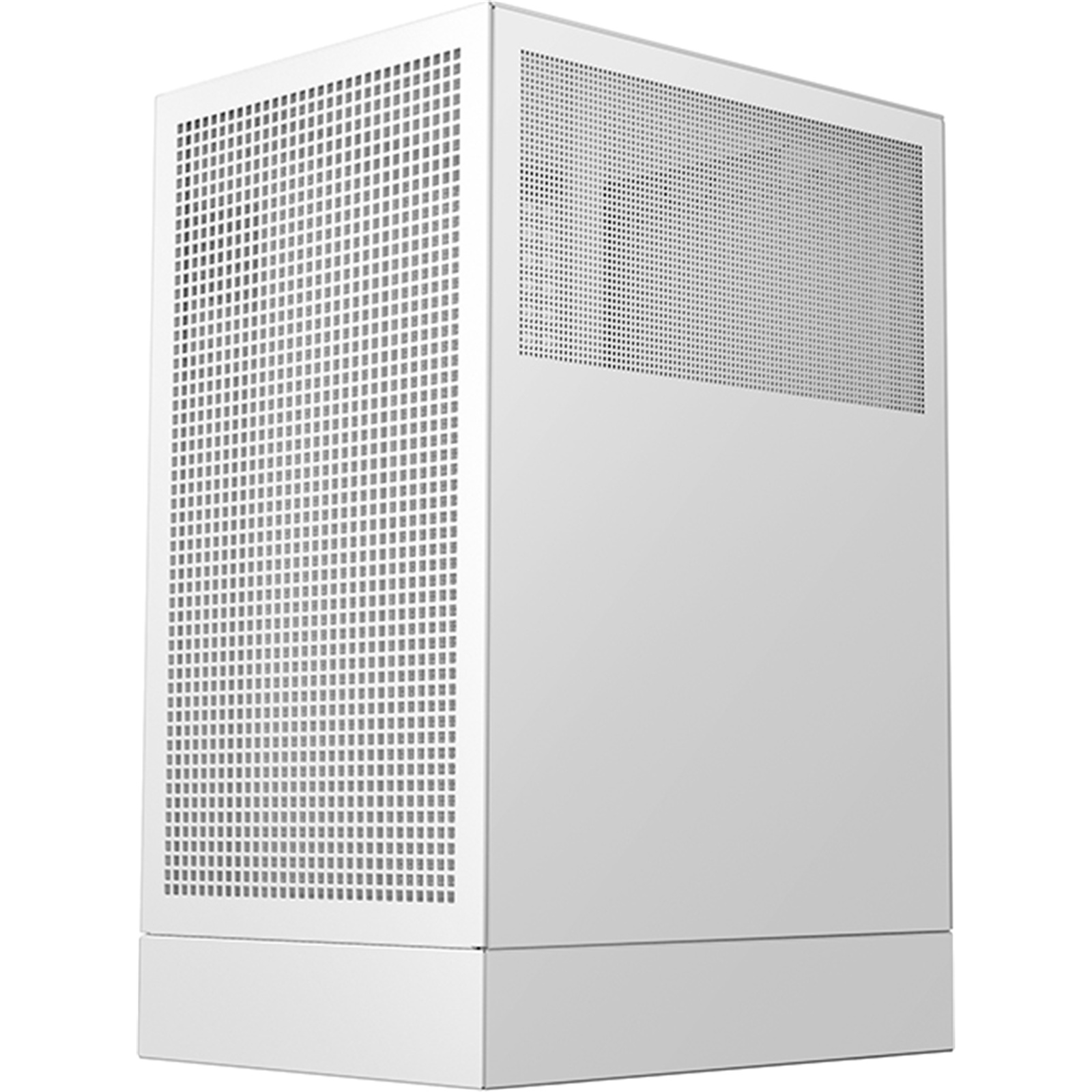

DEEPCOOL CH170 Digital ITX case White CPU Cooler Support Upto 172mm, GPU Support Upto 230mm with ATX PSU/up to 305mm with SFX PSU, 240mm Radiator Support

PB Tech price
PB Tech price
$ 88 .44
 +GST
$ 97 .28
 inc GST

Out of stock

DEEPCOOL CH170 Digital ITX case White CPU Cooler Support Upto 172mm, GPU Support Upto 230mm with ATX PSU/up to 305mm with SFX PSU, 240mm Radiator Support

Small chassis design with large graphic card support!
  • Brand: DEEPCOOL
  • MPN: R-CH170-WHNPI0D-G-1
  • Part #: CHADPC1036
  • UPC:
PB Tech price
$ 88 .44 $ 97 .28
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
  • Brand: DEEPCOOL
  • MPN: R-CH170-WHNPI0D-G-1
  • Part #: CHADPC1036
  • UPC:

Form Factor

mini-ITX

Side Window

No

Radiator Support

240mm

Maximum Card Length

305mm

CPU Cooler Height Clearance

172mm

Colour

White

Dedicated 2.5" Bay

N/A

2.5" / 3.5" Bays

1

Features

CH170 DIGITAL WH - The Tiny Tower of Power

The CH170 DIGITAL WH is a vertical ITX case that has all the hallmarks of a high-airflow DeepCool case but in a tiny footprint. The internal layout provides a lot of flexibility for coolers and PSU options.

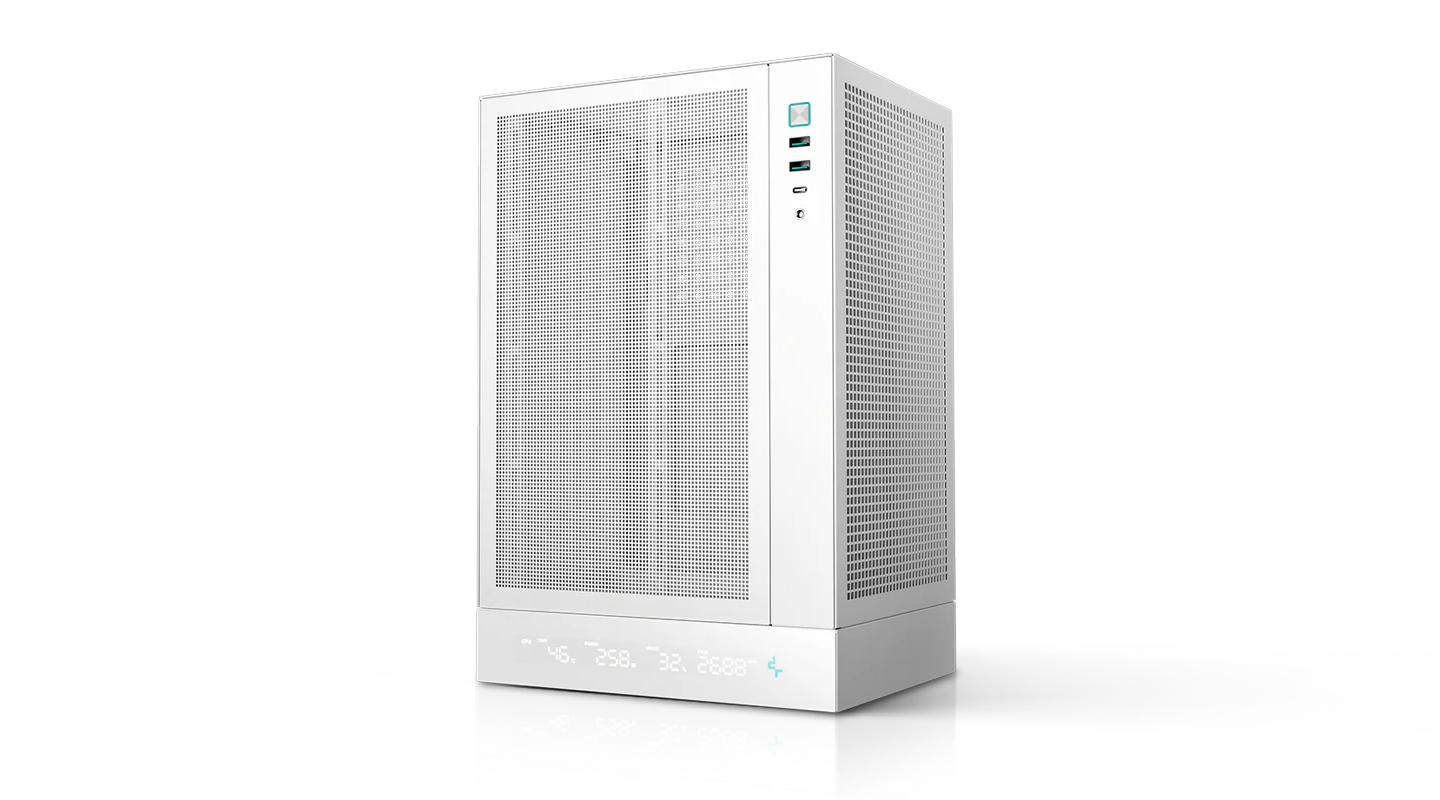

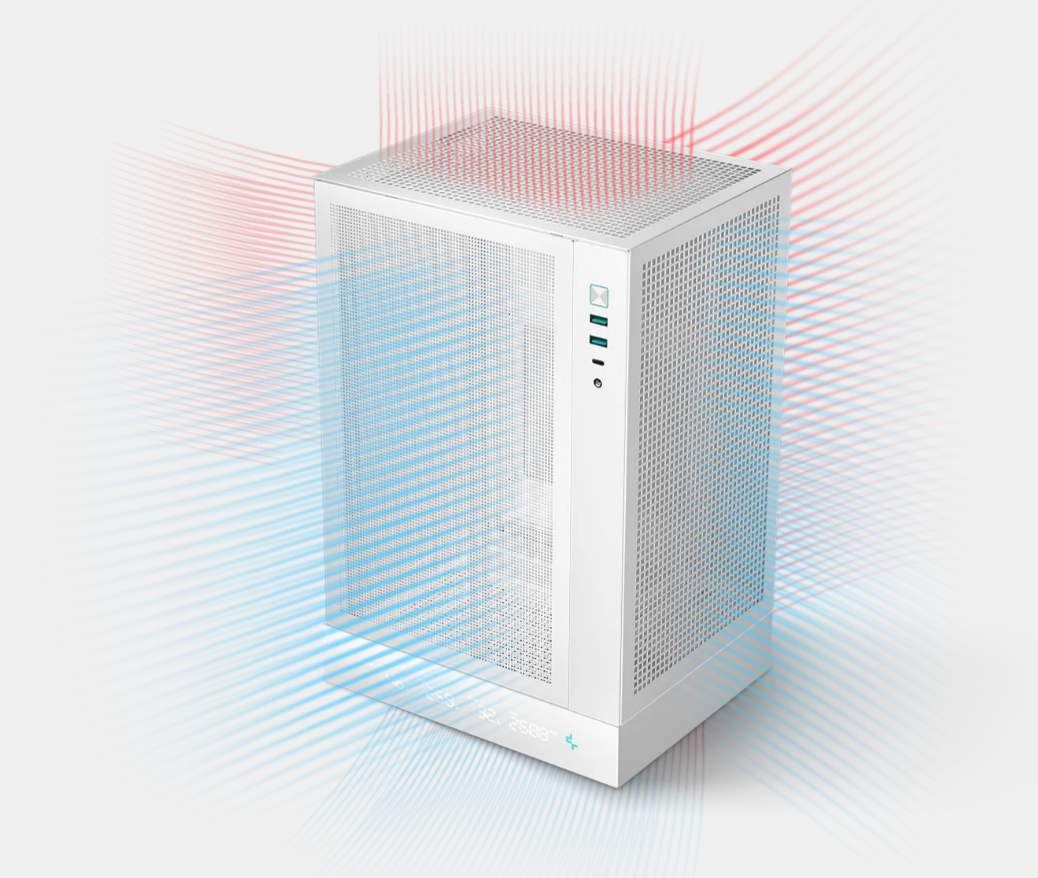

HIGH AIRFLOW PANELS

Mesh panels surround the CH170 DIGITAL WH from every side and create a high-airflow, small-form-factor case like no other.

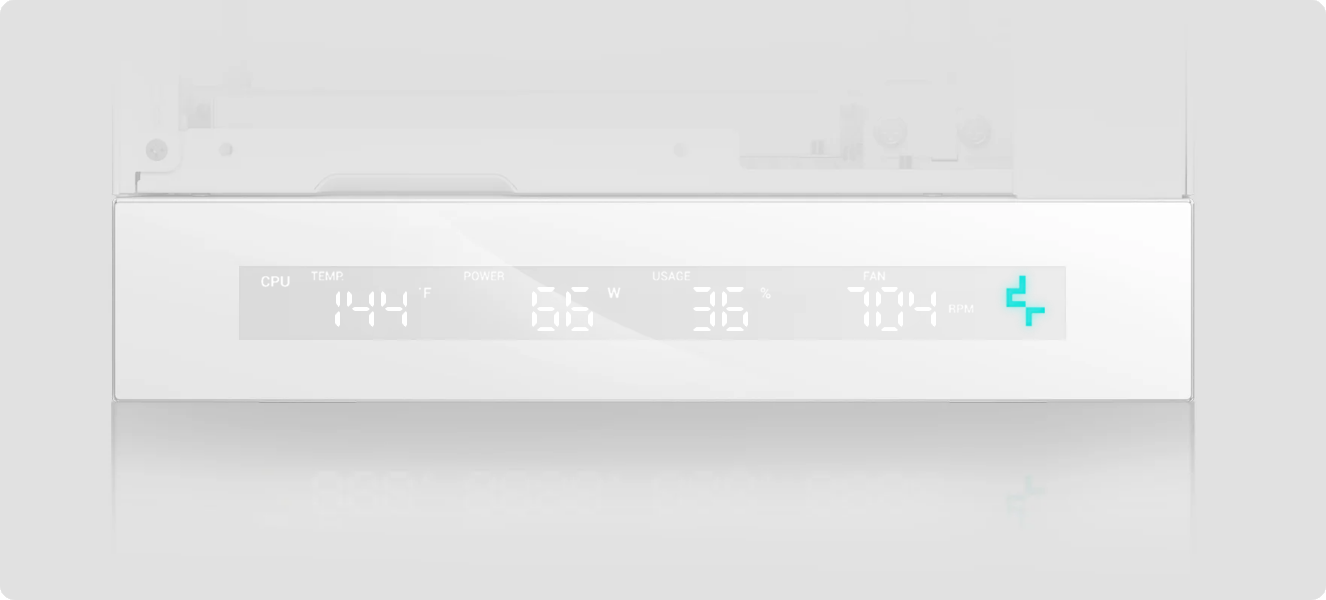

MULTIPLE DATA POINT DISPLAY

The CH170 DIGITAL WH has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

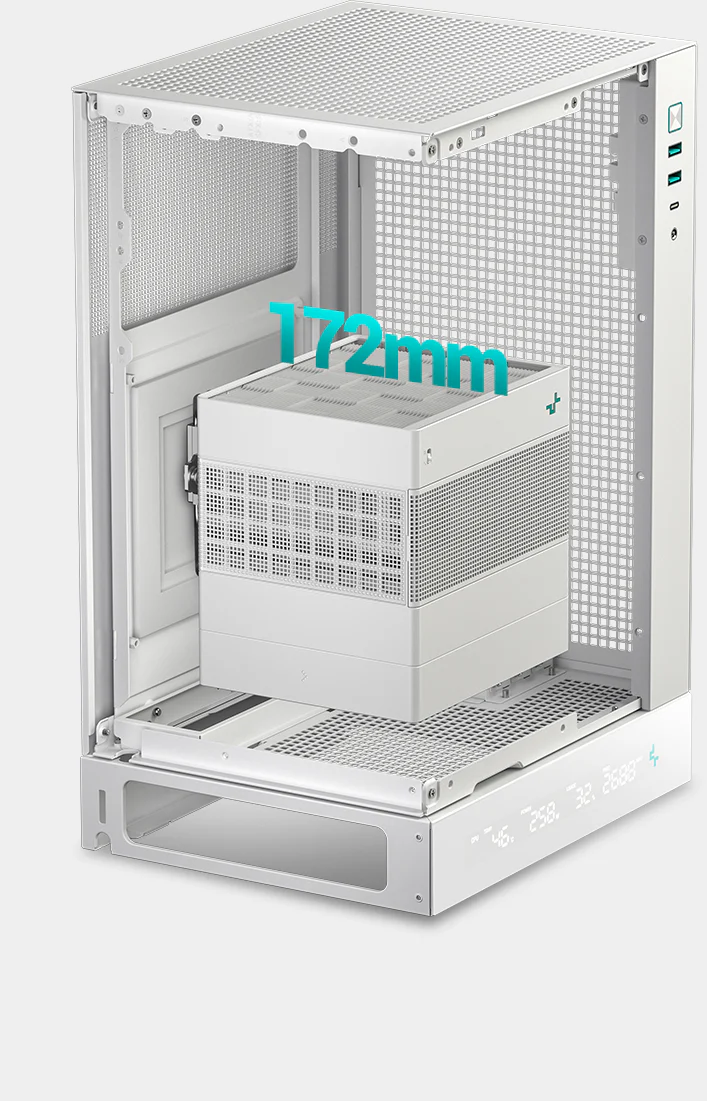

FULL SIZED AIR COOLING!

Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL WH can support giant air coolers up to 172mm in height!

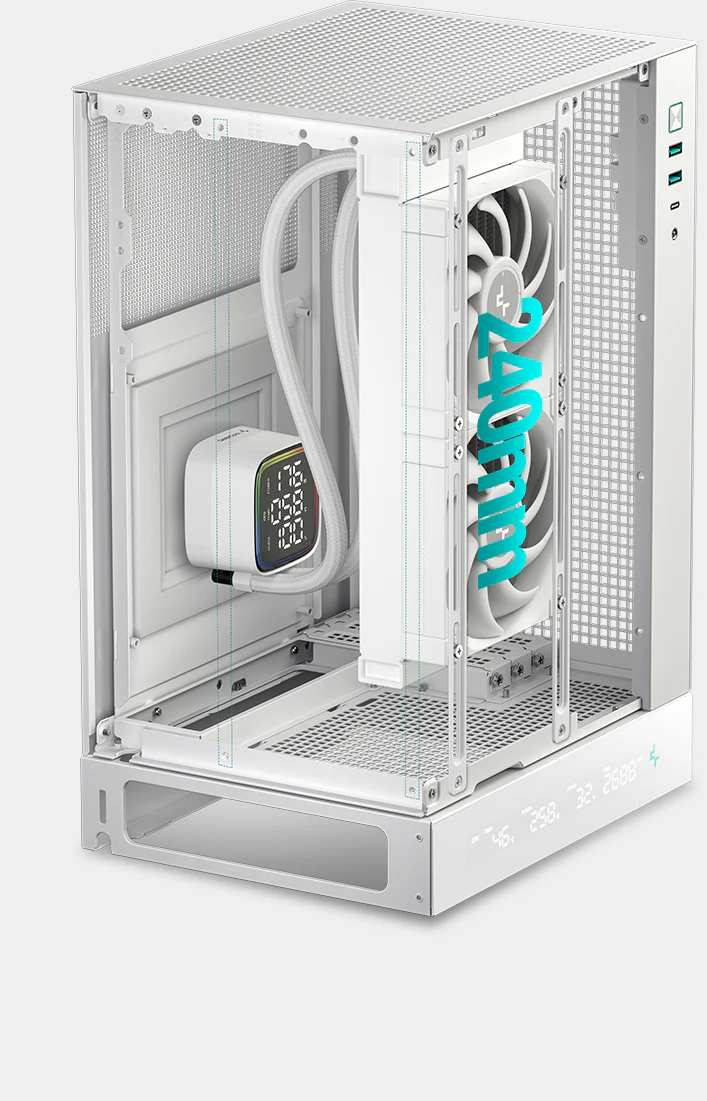

OR GO LIQUID

If liquid cooling is preferred, that is also an option with the CH170 DIGITAL WH. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.

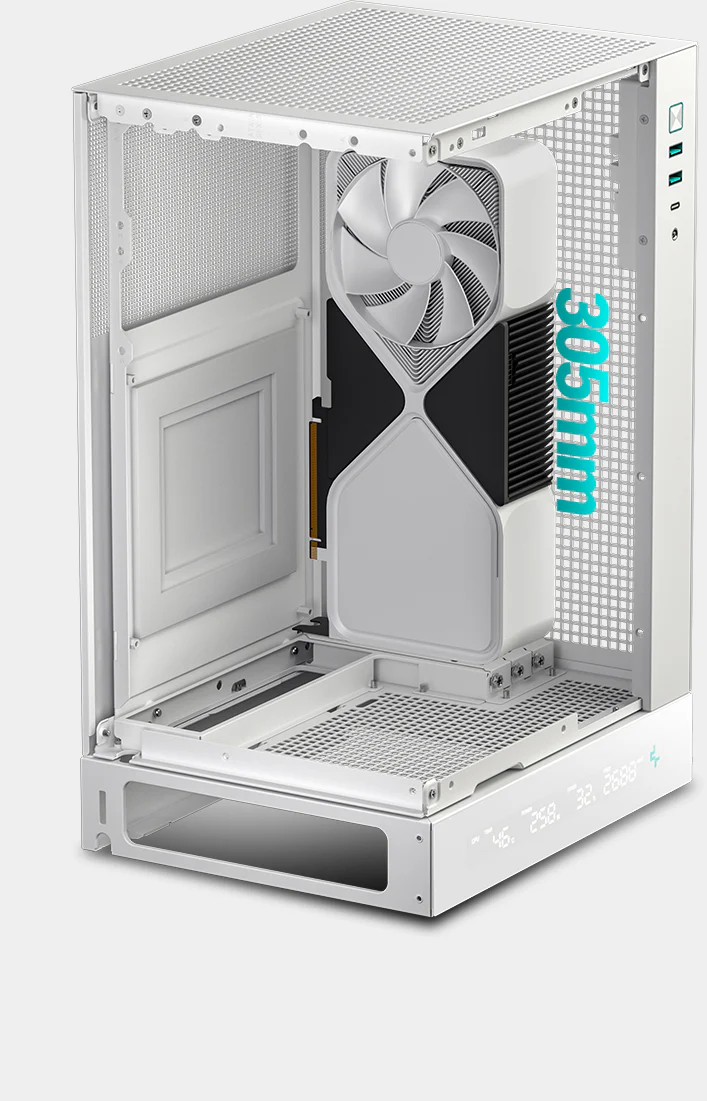

NO ADDED GPU LATENCY!

Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable-no added GPU latency concerns!

Maximum GPU Length Based on PSU:
SFX/SFX-L: 305mm
ATX: 230mm

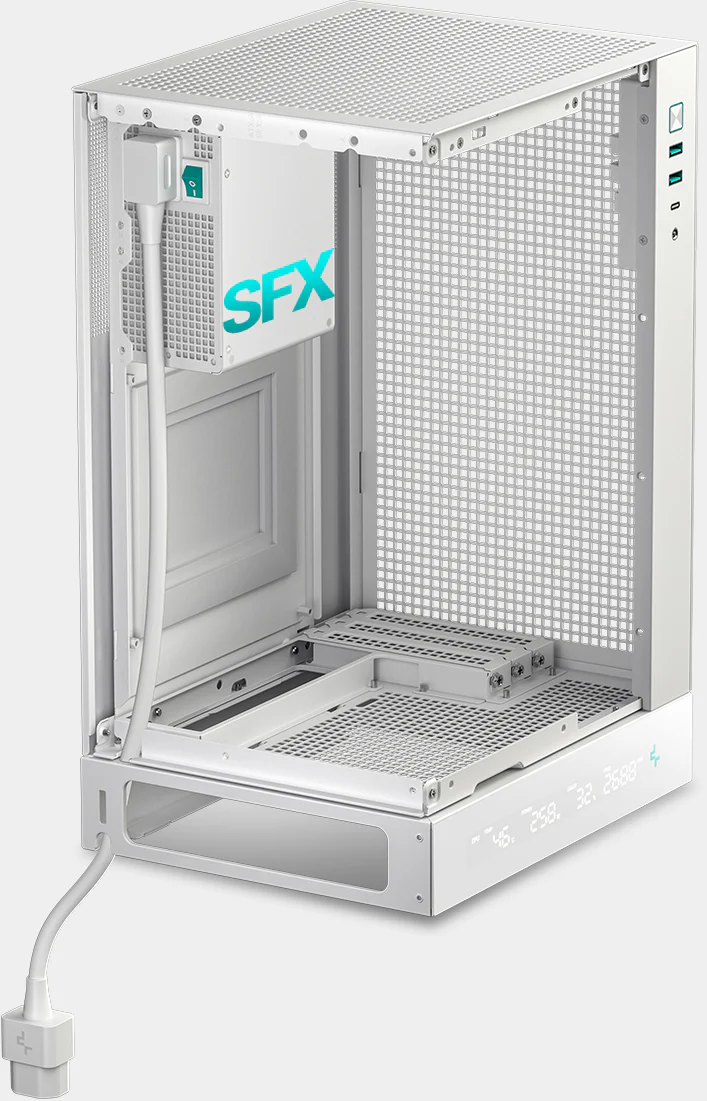

FLEXIBLE POWER OPTIONS

Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL WH can support any of them up to 140mm.



Create on PlXEL canvas

DeepCool PIXEL bits are colorful rubber pieces offered to add creativity and playfulness to the case panels for customized designs, currently compatible with CH series and MORPHEUS cases.

Let out your inner designer and create with PIXEL bits on DeepCool PC cases.

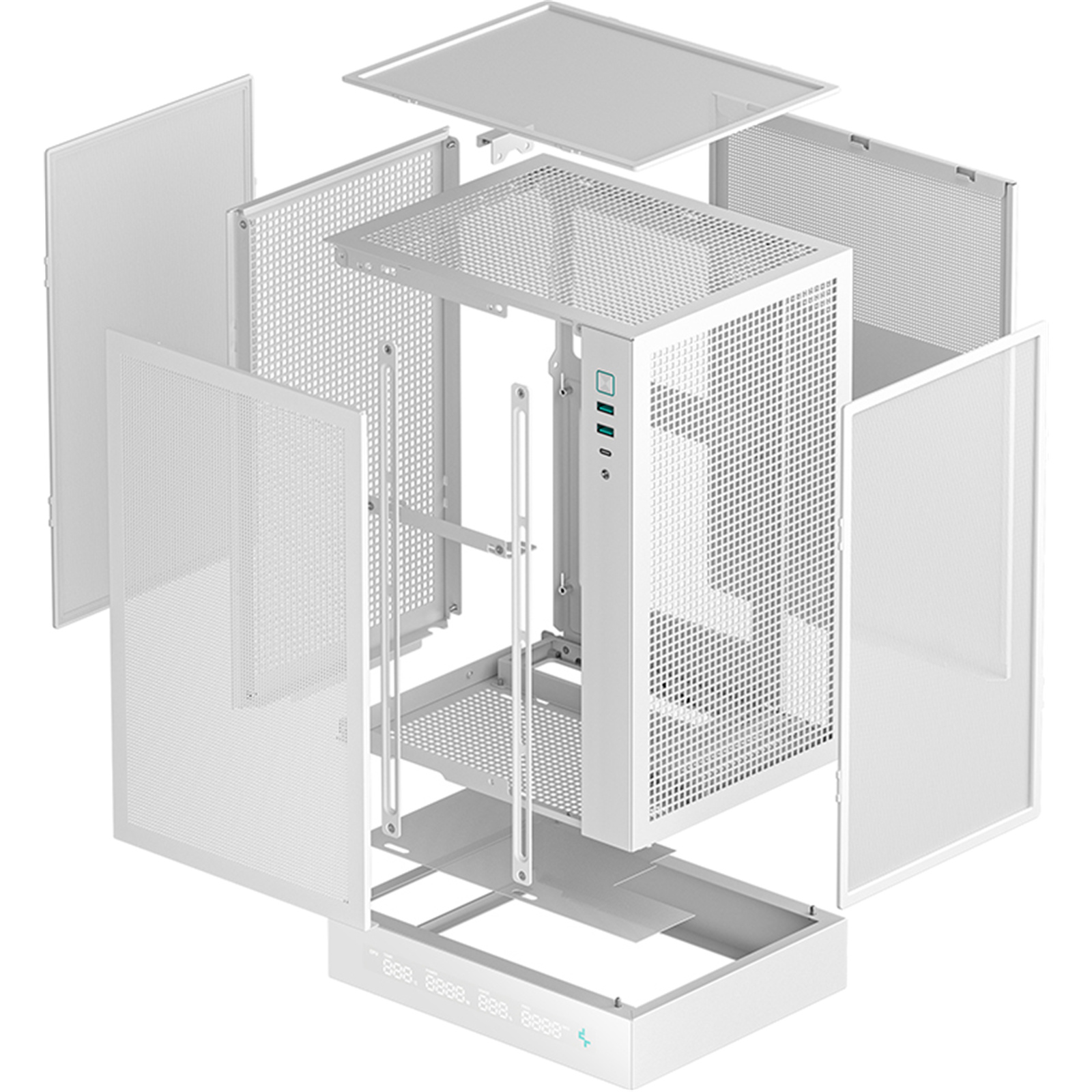

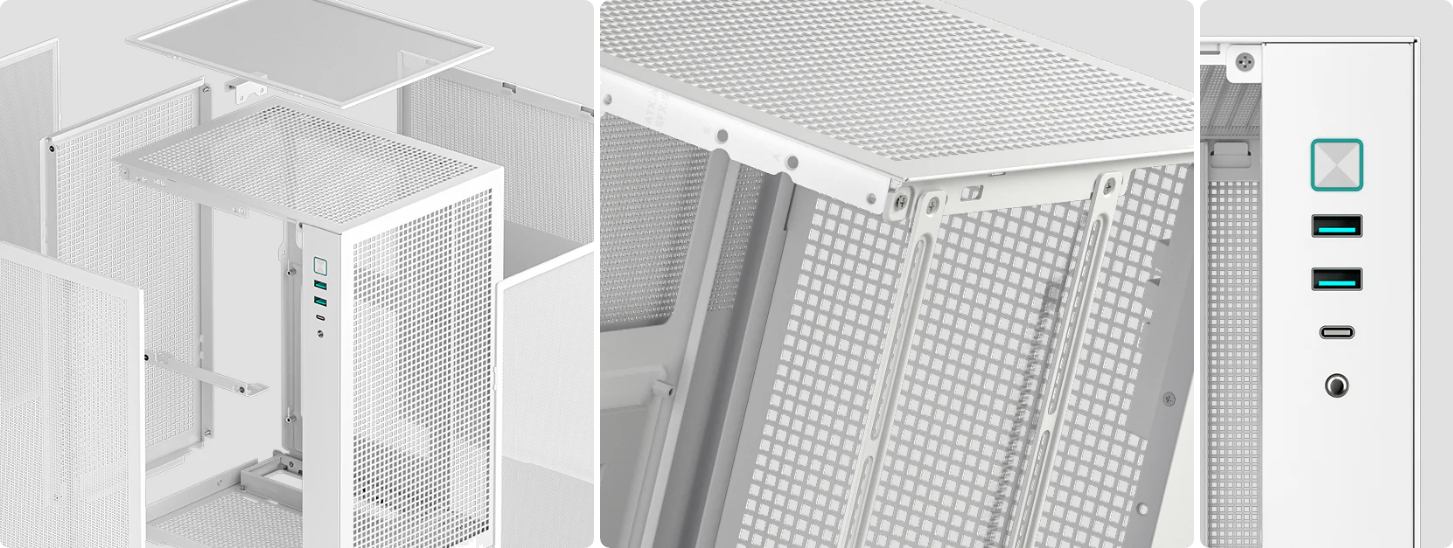

QUALITY OF LIFE IMPROVEMENTS

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL WH makes everything a little easier.

Specifications

Product Dimensions

250x200x380mm(L×W×H)

Net Weight

3.4Kg

Materials

ABS+SPCC

Motherboard Support

Mini-ITX

Front I/O Ports

USB3.0×2?Audio×1?Gen2 TypeC×1

3.5" Drive Bays

1 (2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)

2.5" Drive Bays

1 (2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three)

Expansion Slots

3 Slots

Pre-Installed Fans

None

Fan Support

Top:1×120 mm
Front: NA
Rear: 2×120 mm
Bottom:1×120 mm
Side : 2×120 mm

Radiator Support

Side : 240mm

CPU Cooler Height Limit

172mm

GPU Size Limit

Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)

Power Supply Type

ATX PS2 (maximum length: 140mm)/ SFX / SFX-L

P/N

R-CH170-WHNPI0D-G-1

Manufacturer Part No:
R-CH170-WHNPI0D-G-1
Brand:
Product Type:
-
UPC
-
Product Family:
CH170 Digital
Shipping Weight:
3.3 kg
PB Part No:
CHADPC1036
Product Model:
ITX case
Warranty: 12 months *
