DEEPCOOL CG580 Black ATX Mid Tower Tempered Glass, with 4x 120mm ARGB Fans Pre-installed, CPU Cooler Support Upto 176mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Ratiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio

CG580 4F - STUNNING PANORAMIC SHOWCASE

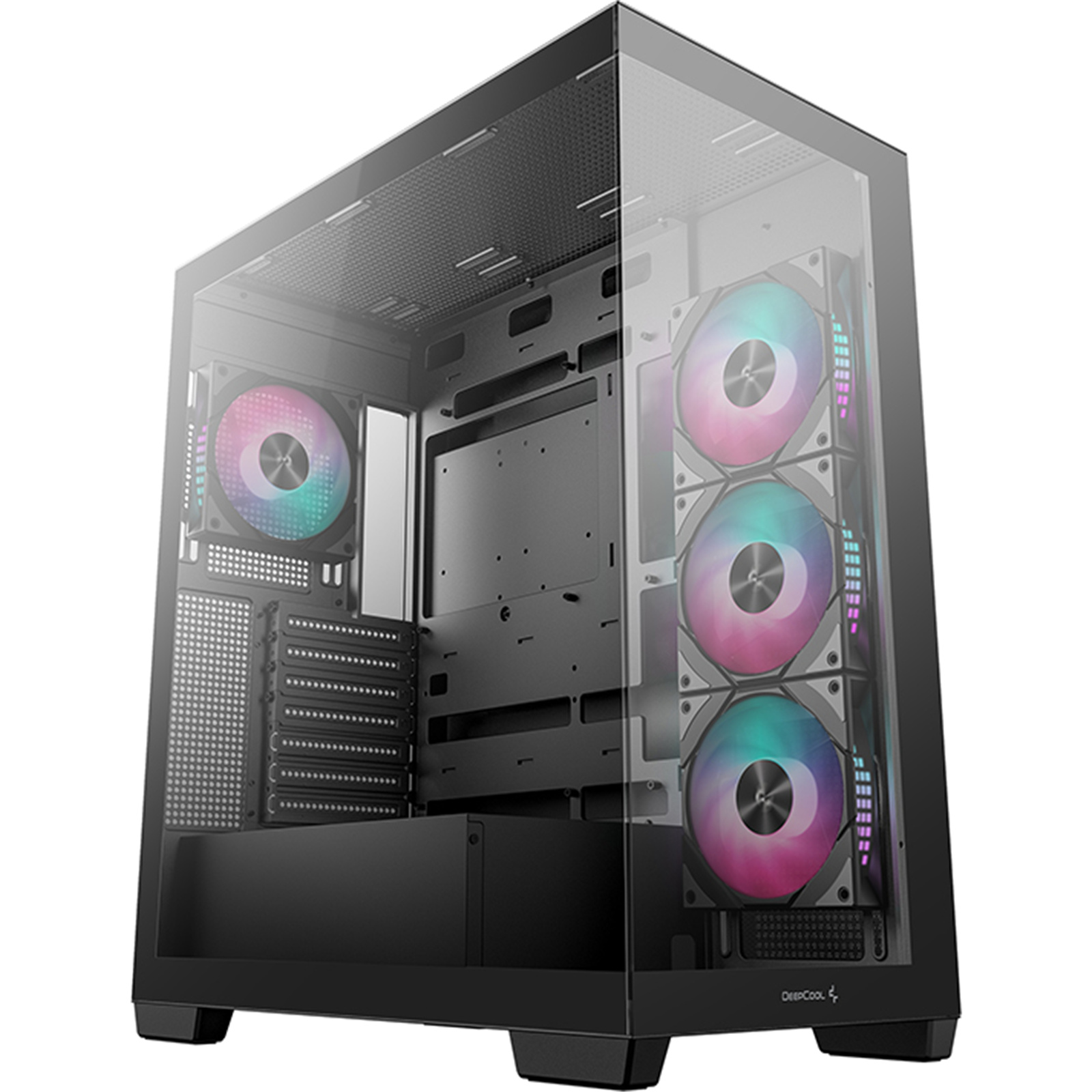

The CG580 4F is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.

SCENIC VIEW

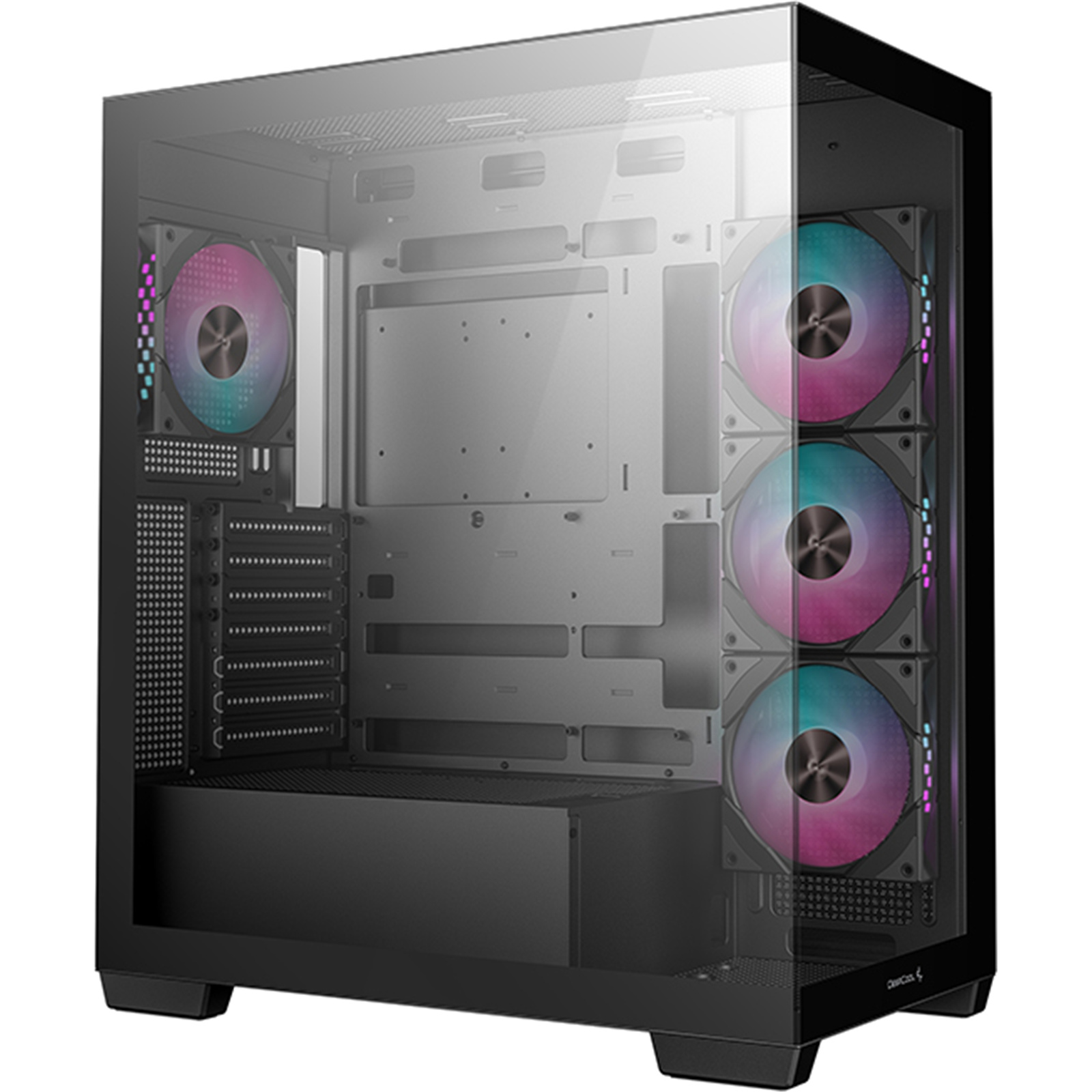

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.

INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

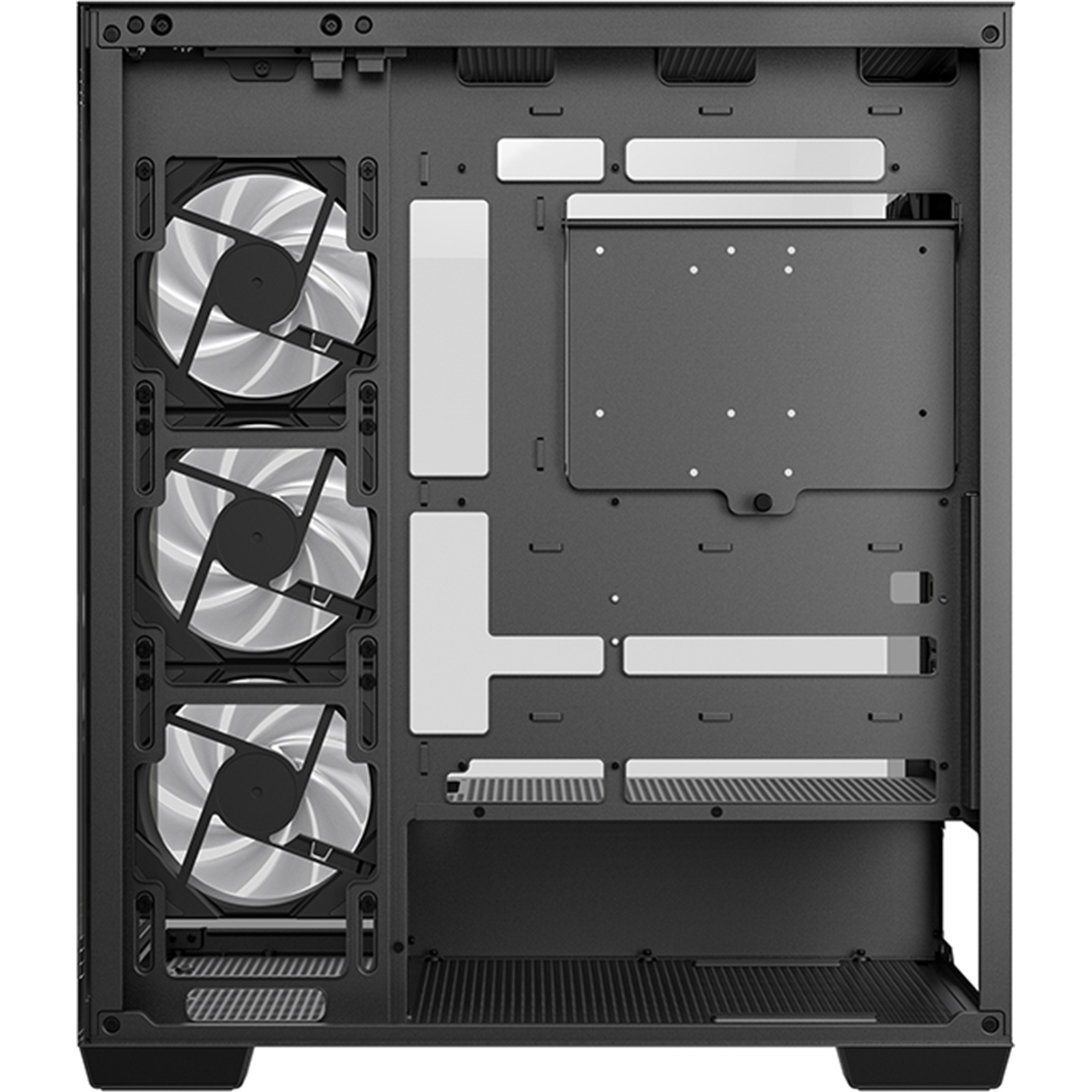

The CG580 4F is designed to stand out with its pre-installed cooling system, featuring three PWM ARGB reverse flow fans on the side and one PWM ARGB fan at the rear. This setup creates an efficient heat dissipation structure that enhances overall performance. The case also incorporates a dot matrix fan design with side frame lighting that supports motherboard synchronization, offering a unique technical atmosphere. By adjusting the fan settings, users can create captivating lighting modes such as a starry sky or meteor effect, transforming the interior of the case into a visual spectacle.

THE SUPPORT YOU NEED

The CG580 4F is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATx motherboards and features 7 expansion slots, along with 2 x 3.5"" drive bays and 2 x 2.5"" drive bays, providing ample space for storage and expansion.

EXCEPTIONAL COOLING CAPACITY

The CG580 4F is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5"" HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.

Radiators:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140m

Fans:
Top: 3x120mm / 2x140mm
Side: 3x120mm
Rear: 1x120mm / 1x140mm
Bottom: 1x120mm (3.5 HDD/120mm fan: Choose one of two)
PSU Shroud: 2x120mm

CPU Cooler:176mm

ATX

COOLER

GPU

PSU

RADIATORS

FANS(120)

FANS(140)

QUALITY OF LIFE FEATURES

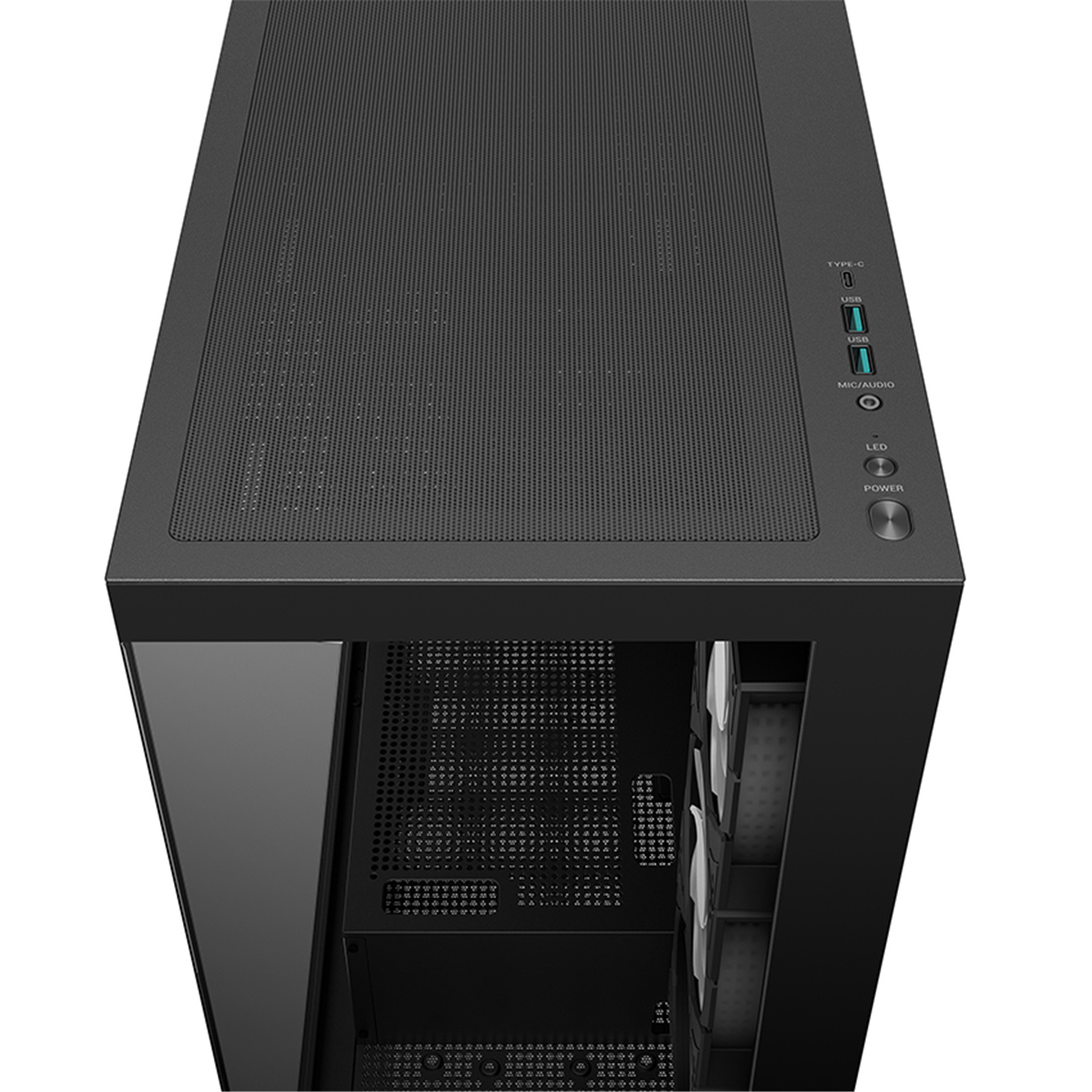

With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.
