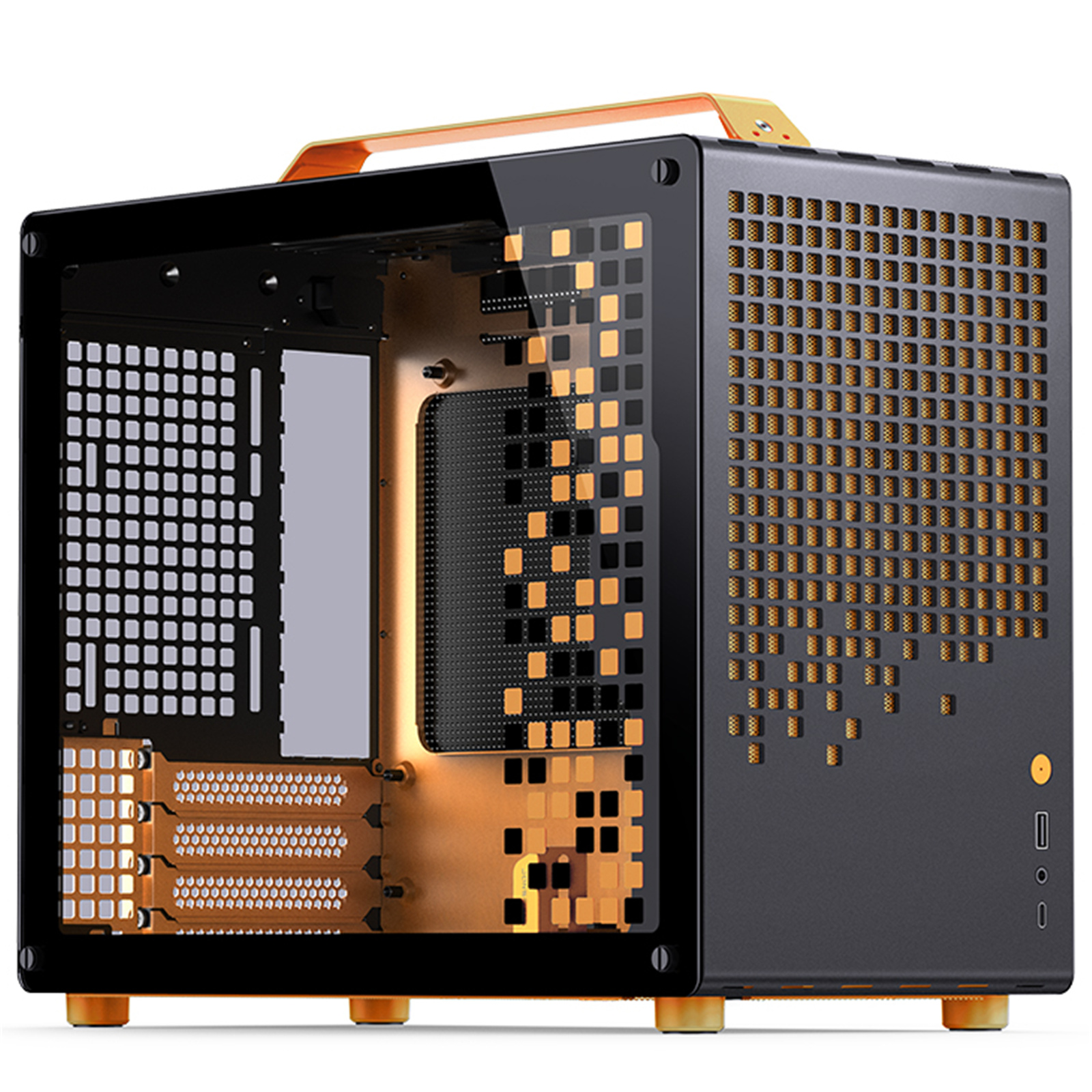

Jonsbo Z20 Orange/Black mATX Mini Tower Gaming Case, With Detachable Carrying Handle, Tempered Glass, CPU Cooler Support Upto 164mm, GPU Support Upto 363mm, 4x PCI Slot, 240mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio

High Performance Hardware Compatibility / Compact Design

Building a compact desktop host is a lot of fun, but there are also a lot of trade-offs to be made. While the size of the chassis shrinks, the compatibility/heat dissipation/installation experience also increases, so only a few experienced users have a clear idea of how to build it and the ability to assemble it. In this regard, we are constantly thinking about how to optimize the design to maintain a compact hardware layout while improving internal hardware compatibility, so that more users can ultimately experience the practicality and fun of miniaturized models:

- Main body size 370mm*186mm*295mm (L*W*H, excluding protruding objects such as carrying handles/foot pads), only about 20L volume
- Integral bending of the outer frame, up to 2mm thick / Equipped with detachable carrying handle
- Compatible with 60mm thick (30mm cooler + fan) performance grade 240 water cooled or 160mm height dual tower air cooled radiators
- Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards.
- Supports at least 15cm length ATX PSUs in air-cooled mode and at least 14cm length ATX PSUs in water-cooled mode
- Optimized design for installation experience: flexible and versatile hardware combinations in small spaces

Built with only about 20L of volume, it can be easily placed in various desktop environments

Main body dimensions of 370mm*186mm*295mm (D/W/H, excluding protrusions such as handles/feet) are similar to TX chassis dimensions to achieve compatibility with full-size Micro-ATX motherboards and long graphics cards.

*With handle/footrest protrusions: 382mm*198mm*335mm (D/W/H)

Compatible with full-size Micro-ATX motherboards

Fully meets the demand of high performance hardware system in small volume chassis.

Radiator Support

- Supports 240 high-performance water cooling with radiator thickness =30mm
- Compatible with high-performance air-cooled tower radiators =164mm in height
- Can be equipped with up to 5 cooling fans

Various hardware combinations

Provide a high degree of freedom for system building

- Supports installation of 3 x 2.5-inch SSD
- Supports bottom-mounted 3.5-inch HDD x1
- The length of the power supply needs to be selected according to the specifications of the remaining hardware, usually even when installing longer graphics cards (=363mm):

1. With air-cooled CPU cooler, the power supply can be installed in the first stage (P1), and the length of the power supply can support at least 15cm.
2. When water-cooled CPU cooler is used, the power supply can be installed in the second stage (P2), and the length of the power supply can support at least 14cm.

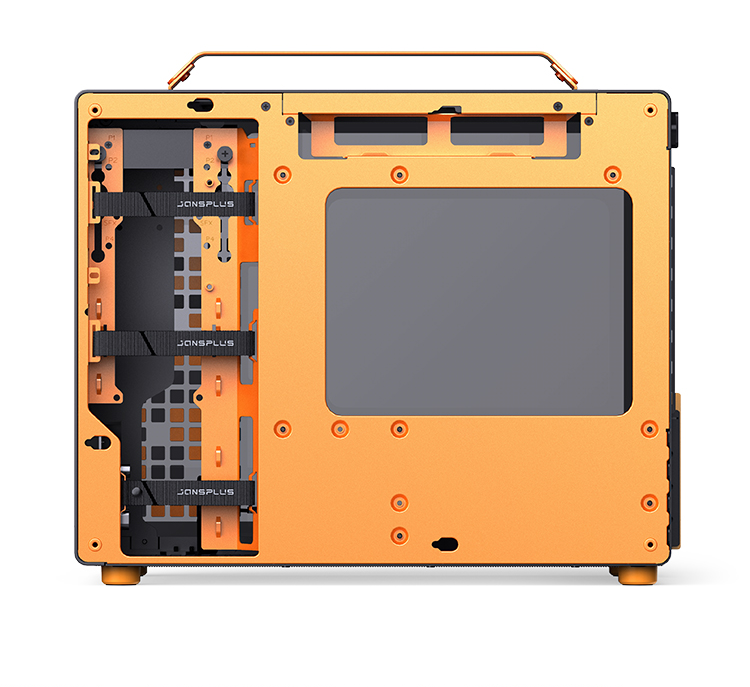

Dedicated 22mm deep back cable routing channel (with 3 Velcro strips to limit cables)

It's often difficult to plan for cable space in a compact chassis, so the Z20 comes with dual cable routing channels on the back and Velcro strips to limit the amount of extra cables that need to be routed, easing cable routing anxiety.

Front I/O interface

- USB 3.2 Gen 1 Type-A 5Gbps
- Earphone&microphone composite audio port
- USB 3.2 Gen 2 Type-C 10Gbps+

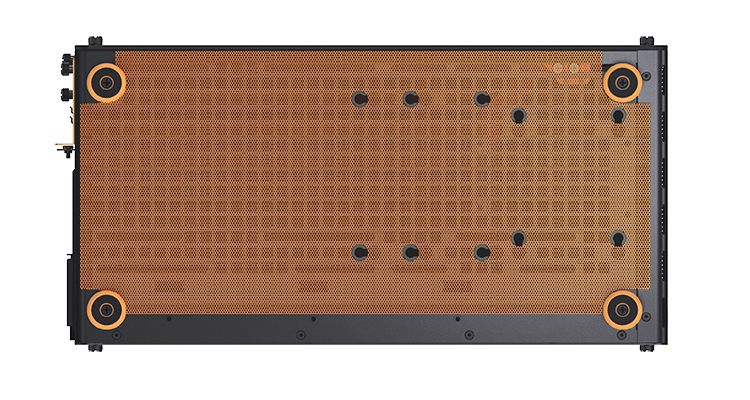

Comprehensive Coverage Magnetic Dust Filter

The main air inlet and outlet of the chassis are equipped with magnetic dust filters to isolate the environmental dust and ensure the stable operation of the host for a long time.

* Rear dust filters can be used for rear fan intake (to bring additional cooling airflow to the top cooler to optimize CPU temperature) or rear fanless configurations.
