NZXT H5 Black Flow 2024 Edition ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x Type C, 1x USB, HD Audio
Out of stock
NZXT H5 Black Flow 2024 Edition ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x Type C, 1x USB, HD Audio
- Brand: NZXT
- MPN: CC-H52FB-01
- Part #: CHANZX0530
- UPC: 810074845915
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Good price , lots of space / easy cable management."
"Doesn't look fancy, but it's great for blending into the room. I was a bit skeptical of the metal mesh outer layer as a replacement for actual dust filters, but it's actually doing ...view more"
"Purchased the other day as was wanting to change cases and this was very easy to swap everything into. Came with lots of screws (didn't end up using over half of them) and a few sm ...view more"
Features
H5 Flow - Compact Mid-Tower ATX Airflow Case
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) -one in front, one in rear-for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)-one in front, one in rear-for out-of-the-box cooling. *Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access

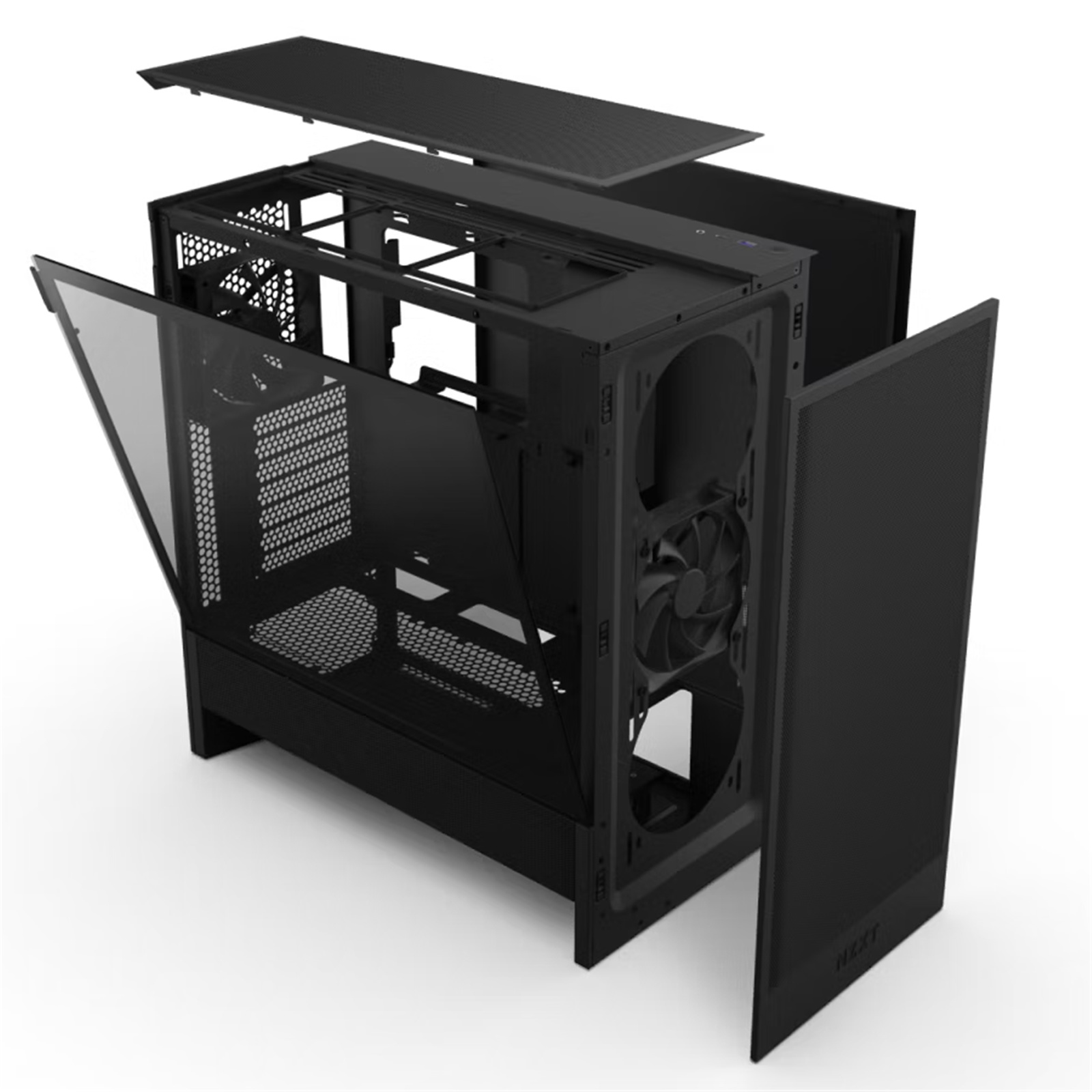

Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Cases / Chassis
ASUS PRIME A21 Plus Black mATX Case with 4 X ARGB Fans CPU Cooler...
ASUS ProArt PA401 Wood With Tempered Glass Edition ATX Tower Case...
mbeat ACA-MFS-01K activiva Heavy-Duty PC Mobile Floor Stand with...
mbeat ACA-MNT-RGB01K activiva RGB Ultra-Wide Adjustable Wall &...
NZXT H5 Black Flow 2024 Edition ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x Type C, 1x USB, HD Audio
- Brand: NZXT
- MPN: CC-H52FB-01
- Part #: CHANZX0530
- UPC:810074845915
Product URL: https://www.pbtech.com/au/product/CHANZX0530/NZXT-H5-Black-Flow-2024-Edition-ATX-MidTower-Gamin?is-review=1
Features
H5 Flow - Compact Mid-Tower ATX Airflow Case
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) -one in front, one in rear-for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Equipped with two 120mm Quiet Airflow fans (CV)-one in front, one in rear-for out-of-the-box cooling. *Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
Motherboard Support
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Dark Tinted Tempered Glass (Black)
Dimensions
Height (with feet)
465 mm / 18.31 in
Width
225 mm / 8.86 in
Depth
430 mm / 16.93 in
Weight
7.28 kg / 16.04 lb
Compatibility & Clearance
CPU Cooler Height
Up to 170 mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 28.7 mm
Top Radiator
Up to 240 mm (280 mm with low-profile memory)
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness
Up to 55 mm
Front Ports
USB 3.2 Type-A
1
USB 3.2 Type-C
1
Headset Audio Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
2
3.5"
1
Fan Support
Front
3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top
2 x 120 mm / 2 x 140 mm
Bottom
2 x 120 mm
Rear
1 x 120 mm (1 x F120Q Case Version included)
Radiator Support
Front
Up to 360 mm
Top
Up to 240 mm (280mm with low-profile memory only)
Fan Specs
Model
F120Q (Case Version)
Speed
1,350 ± 150 RPM
Airflow
60.2 CFM
Static
1.05 mm-H2O
Noise
24.1 dBA
Fan Connector
3-pin
