NZXT H5 White Flow RGB 2024 Edition ATX MidTower Gaming Case Tempered Glass, 1x F360 RGB and 1x F120Q Pre-installed, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x Type C, 1x USB,

PB Tech price
PB Tech price
$ 155 .19
 +GST
$ 170 .71
 inc GST

Out of stock

NZXT H5 White Flow RGB 2024 Edition ATX MidTower Gaming Case Tempered Glass, 1x F360 RGB and 1x F120Q Pre-installed, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x Type C, 1x USB,

More air to the GPU!
  • Brand: NZXT
  • MPN: CC-H52FW-R1
  • Part #: CHANZX0533
  • UPC: 810074845922
PB Tech price
$ 155 .19 $ 170 .71
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
  • Brand: NZXT
  • MPN: CC-H52FW-R1
  • Part #: CHANZX0533
  • UPC: 810074845922

Colour

Black White

Form Factor

EATX

Side Window

Yes

Radiator Support

360mm

Maximum Card Length

410mm

CPU Cooler Height Clearance

170mm

Dedicated 2.5" Bay

2

2.5" / 3.5" Bays

1

Features

H5 Flow RGB - Compact ATX Mid-Tower Airflow Case with RGB Fans

The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.

- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.

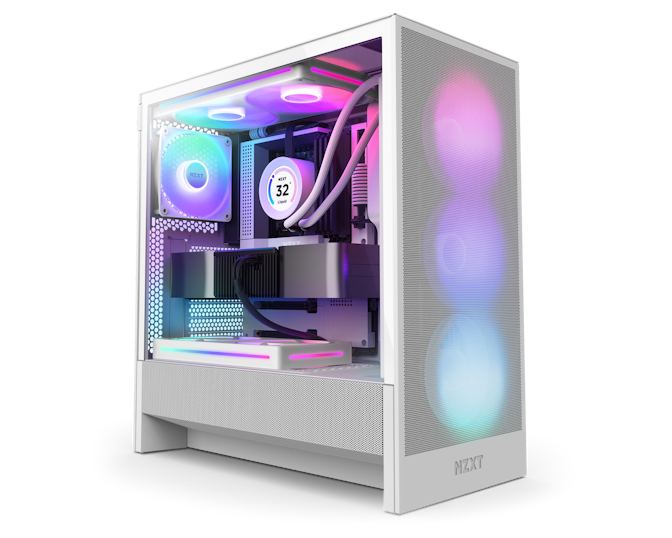

H5 Flow RGB

Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.



More Air to the GPU

Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

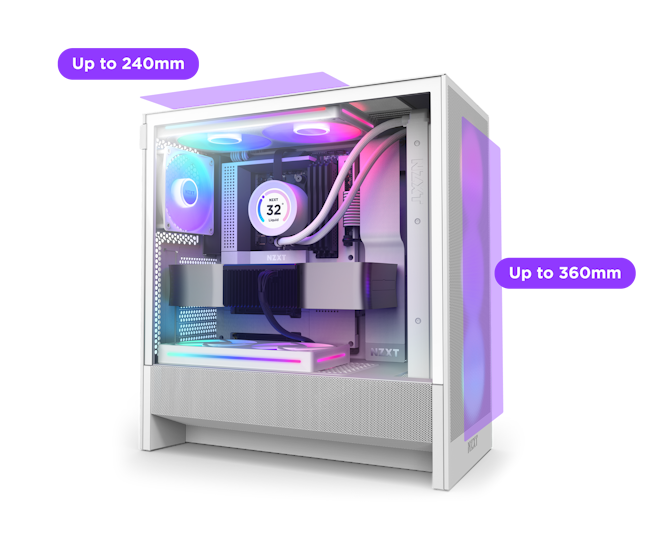

Fits Large Radiators

Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.



Optimized for Airflow

Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

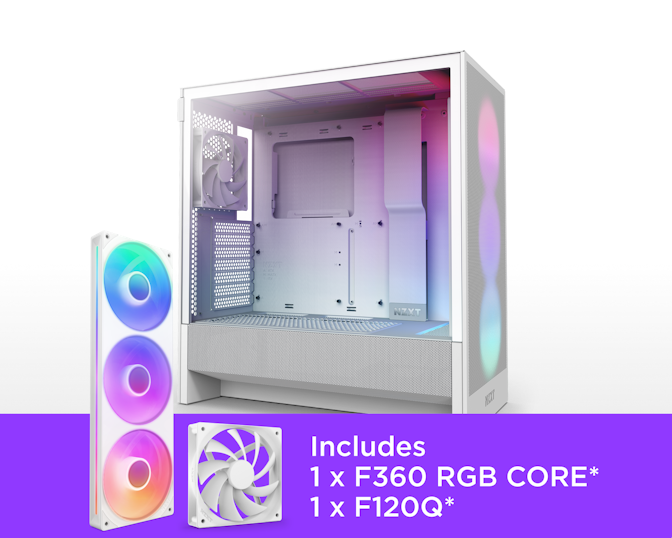

Pre-Installed Fans*

Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.

*Case Version (3-pin DC)



Easy Cable Management

Effortlessly route and conceal cables using the wide channels, hooks, and straps.

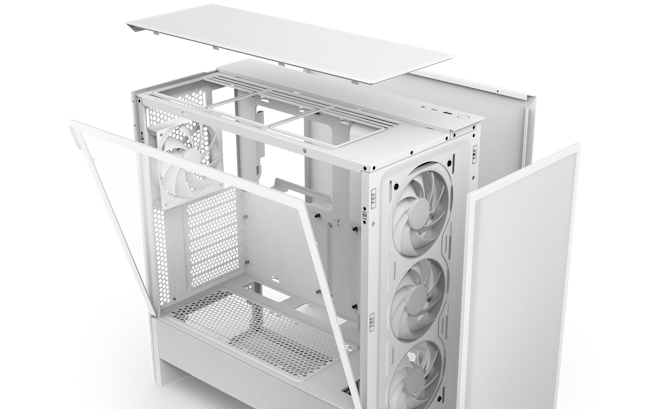

Tool-less Access

Easily open up the front, side, and top panels without any tools.

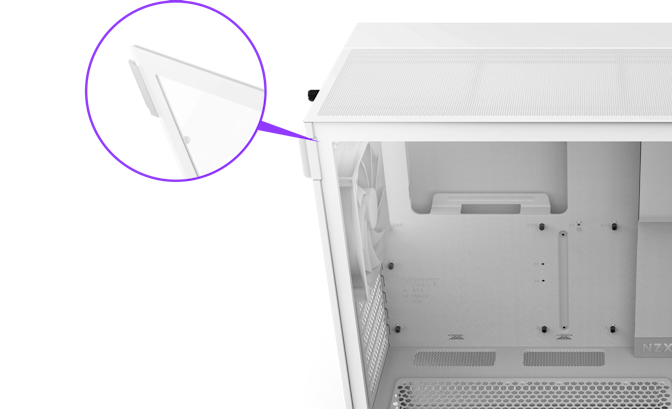

Strong and Sleek

Crafted from thick steel and tempered glass for long-lasting quality.

Specifications

Motherboard Support

E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

Enclosure Type

Mid-Tower

Case Material

SGCC Steel, Ultra-Clear Tempered Glass (White)

Dimensions

Height (with feet)

465 mm / 18.31 in

Width

225 mm / 8.86 in

Depth

430 mm / 16.93 in

Weight

7.28 kg / 16.04 lb

Compatibility & Clearance

CPU Cooler Height

Up to 170 mm

GPU Length

Up to 410 mm

PSU Length

Up to 200 mm

Cable Management

Up to 28.7 mm

Top Radiator

Up to 240 mm (280 mm with low-profile memory)

Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness

Up to 55 mm

Front Ports

USB 3.2 Type-A

1

USB 3.2 Type-C

1

Headset Audio Jack

1

Expansion Slots

Standard

7

Vertical

0

Drive Bays

2.5"

2

3.5"

1

Fan Support

Front

3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included)

Top

2 x 120 mm / 2 x 140 mm

Bottom

2 x 120 mm

Rear

1 x 120 mm (2 x F120Q Case Version included)

Radiator Support

Front

Up to 360 mm

Top

Up to 240 mm (280mm with low-profile memory only)

Fan Specs (Front)

Model

F360 RGB Core (Case Version)

Speed

1,700 ± 200 RPM

Airflow

50.1 CFM

Static

1.27 mm-H2O

Noise

23.3 dBA

Fan Connector

3-pin

Fan Specs (Rear)

Model

F120Q (Case Version)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static

1.05 mm-H2O

Noise

24.1 dBA

Fan Connector

3-pin

Manufacturer Part No:
CC-H52FW-R1
Brand:
Product Type:
ATX MidTower Gaming Case
UPC
810074845922
Product Family:
H5
Shipping Weight:
7.43 kg
PB Part No:
CHANZX0533
Product Model:
White Flow RGB 2024 Edition
Warranty: 12 months *
