NZXT H7 Flow RGB White Mid-Tower Case - Tempered Glass - 3x ARGB Fan Pre-installed CPU Cooler Support Upto 185mm, GPU Support Upto 400mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB 3.2, 1x Type C, HD Audio
Out of stock
NZXT H7 Flow RGB White Mid-Tower Case - Tempered Glass - 3x ARGB Fan Pre-installed CPU Cooler Support Upto 185mm, GPU Support Upto 400mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB 3.2, 1x Type C, HD Audio
- Brand: NZXT
- MPN: CM-H72FW-R1
- Part #: CHANZX07023
- UPC: 810074845588
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Nzxt hit the nail on the head with this one"
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Cases / Chassis




NZXT H7 Flow RGB White Mid-Tower Case - Tempered Glass - 3x ARGB Fan Pre-installed CPU Cooler Support Upto 185mm, GPU Support Upto 400mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB 3.2, 1x Type C, HD Audio
- Brand: NZXT
- MPN: CM-H72FW-R1
- Part #: CHANZX07023
- UPC:810074845588

Product URL: https://www.pbtech.com/au/product/CHANZX07023/NZXT-H7-Flow-RGB-White-Mid-Tower-Case---Tempered-G?is-review=1
Features

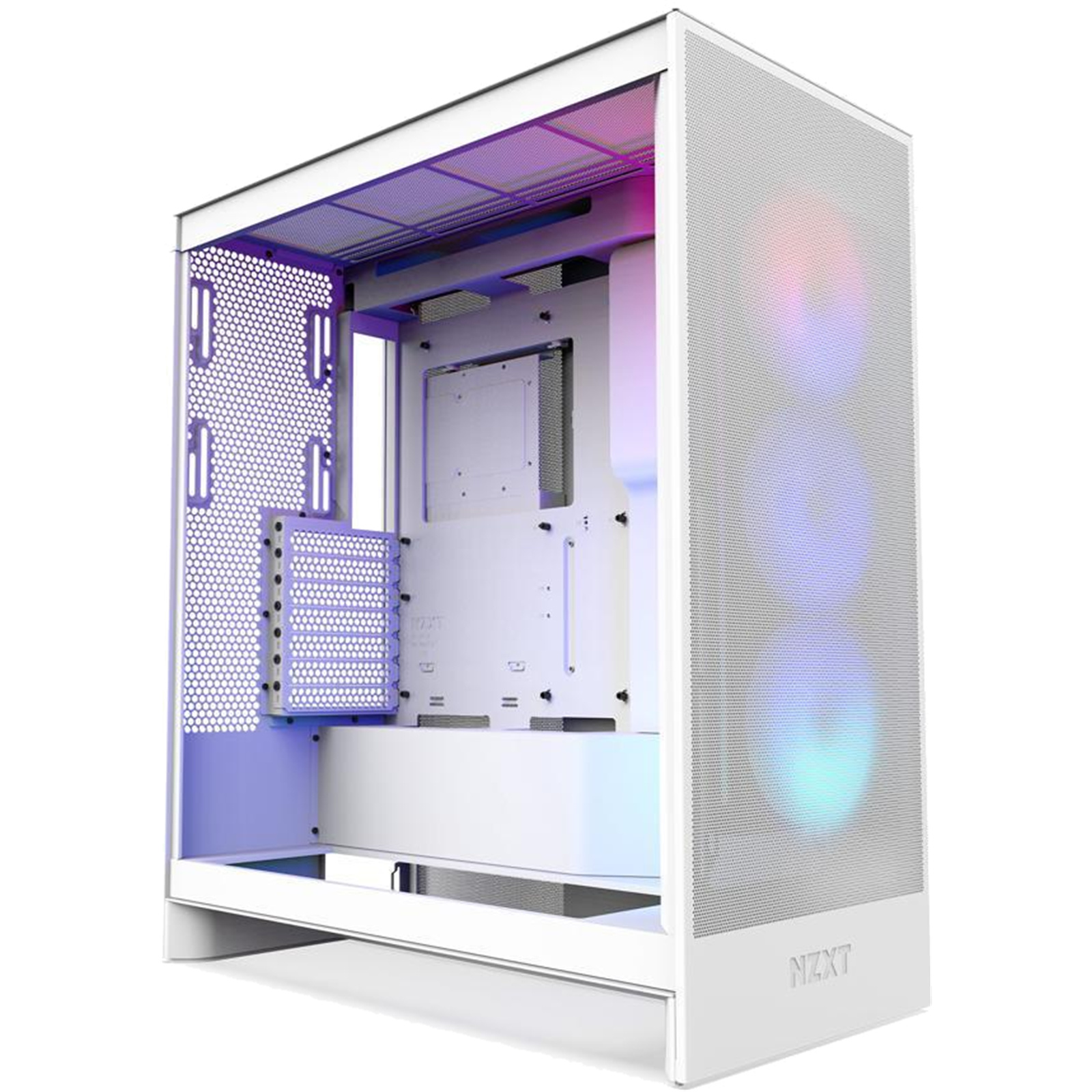

H7 Flow RGB - Mid-Tower ATX Airflow Case with RGB Fans
The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.

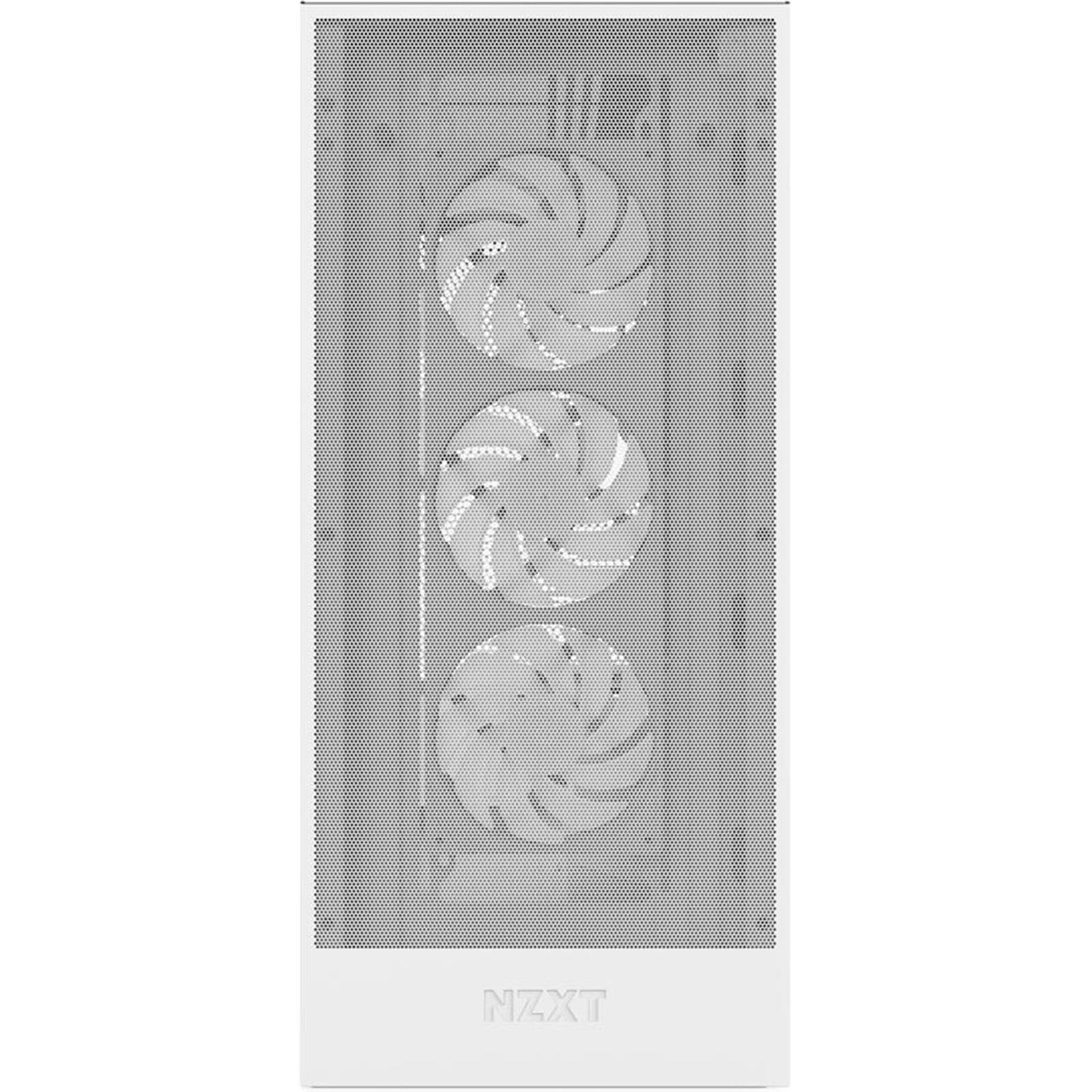

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables

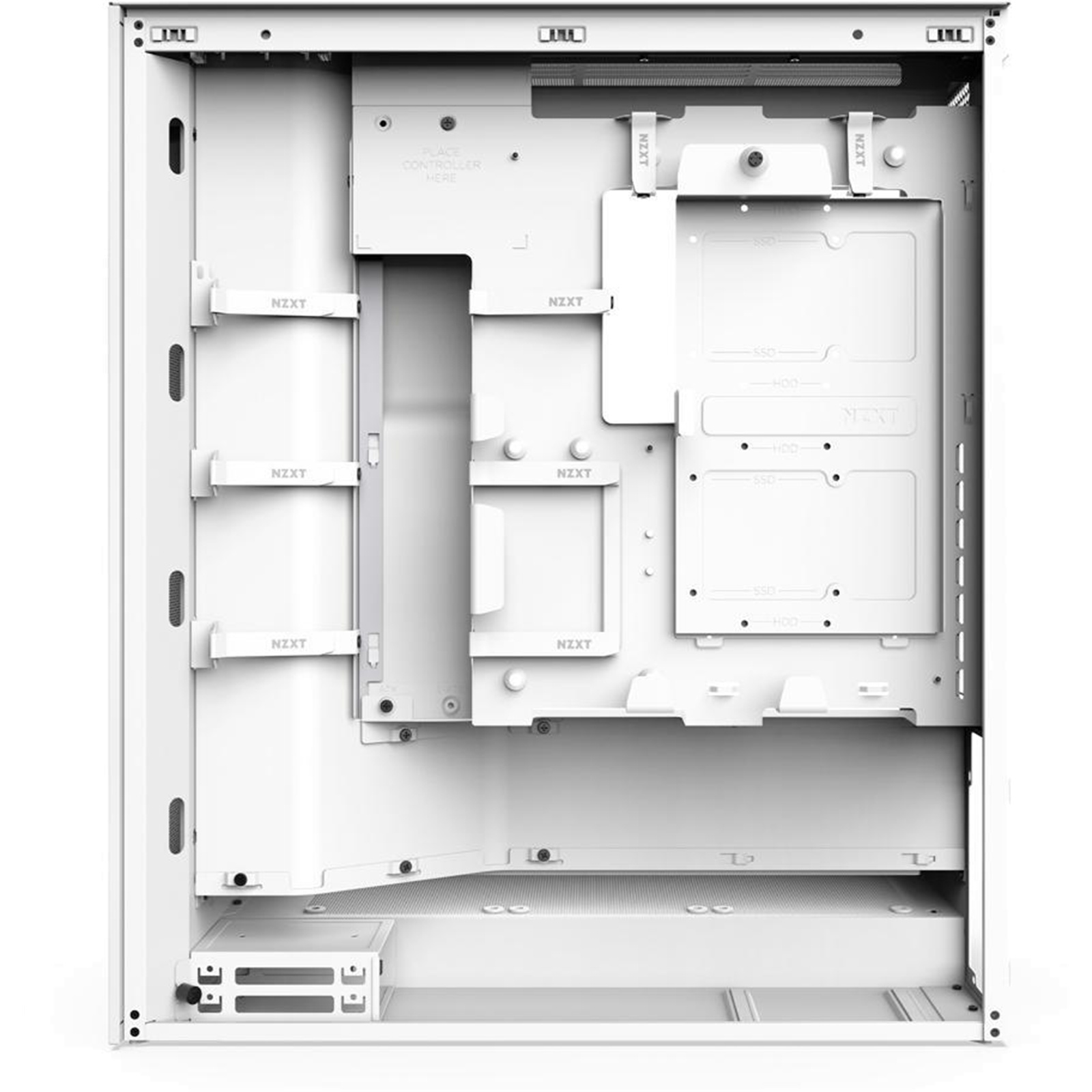

Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Specifications
Inside the Box
H7 Flow RGB x1
F360 RGB Core (pre-installed, case version) x1
Installation Accessories x1
Manual x1
Key Specs
Motherboard Support
E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type
Mid-Tower
Case Material
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
Height (With Feet)
544 mm
Width
244 mm
Depth
468 mm
Weight
11.13 kg
Compatibility & Clearance
CPU Cooler Height
Up to 185mm
GPU Length
Up to 410 mm
PSU Length
Up to 200 mm
Cable Management
Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness
Up to 57 mm
Front I/O Ports
USB 3.2 Gen 1 Type-A
2
USB 3.2 Gen 2 Type-C
1
Headset Audio Jack
1
Expansion Slots
Standard
7
Vertical
0
Drive Bays
2.5"
2+2
3.5"
2
Fan Support
Front
3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top
3 x 120 mm / 2 x 140 mm
Bottom
3 x 120 mm
Rear
1 x 120 mm / 1 x 140 mm
Filters
High-Performance Mesh
Radiator Support
Front
Up to 420 mm
Top
Up to 360mm
Rear
Up to 140mm
Fan Specs
Model
F360 RGB Core Fan (Case Version)
Speed
1,700 ± 200 RPM
Airflow
50.1 CFM
Static
1.27 mm-H2O
Noise
23.3 dBA
Fan Connector
3-pin
