Silverstone GD08 Grandia - ATX Black HTPC Case
Out of stock
Silverstone GD08 Grandia - ATX Black HTPC Case
- Brand: Silverstone
- MPN: G410GD08B000020
- Part #: CHASVT6076
- UPC: 844761008888
View all shipping info
- Brand: Silverstone
- MPN: G410GD08B000020
- Part #: CHASVT6076
- UPC: 844761008888
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Cases / Chassis





Silverstone GD08 Grandia - ATX Black HTPC Case
- Brand: Silverstone
- MPN: G410GD08B000020
- Part #: CHASVT6076
- UPC:844761008888

Product URL: https://www.pbtech.com/au/product/CHASVT6076/Silverstone-GD08-Grandia---ATX-Black-HTPC-Case
Features
GD08
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Support expansion cards up to 13.6 inches (345mm)
- Supports Extended ATX motherboard
- Quick access filters to prevent dust buildup
- Aluminum front panel with premium styling
- LED indicator with adjustable brightness
- Impressive storage capacity of up to twelve drive bays
Specifications
Model No.
SST-GD08B(Black)
Material
Aluminum front panel, SECC body
Motherboard
SSI EEB, SSI CEB, Extended ATX, ATX, Micro ATX *1
Drive bay
External: 5.25" x 2 (support optical drive only)
Internal: 3.5" x8, 2.5" x2
Cooling system
Rear: 2 x 80mm fan slot
Top: oversized vents
Bottom: 2 x 120mm intake fans, 900rpm, 18dBA (backwards compatible with 1 x 120mm fan + 3 x 80mm fans, or 6 x 60mm fans)
Side: 1 x 120mm intake fans, 900rpm, 18dBA, 1 x 120mm fan slot
Limitation of CPU cooler
138mm

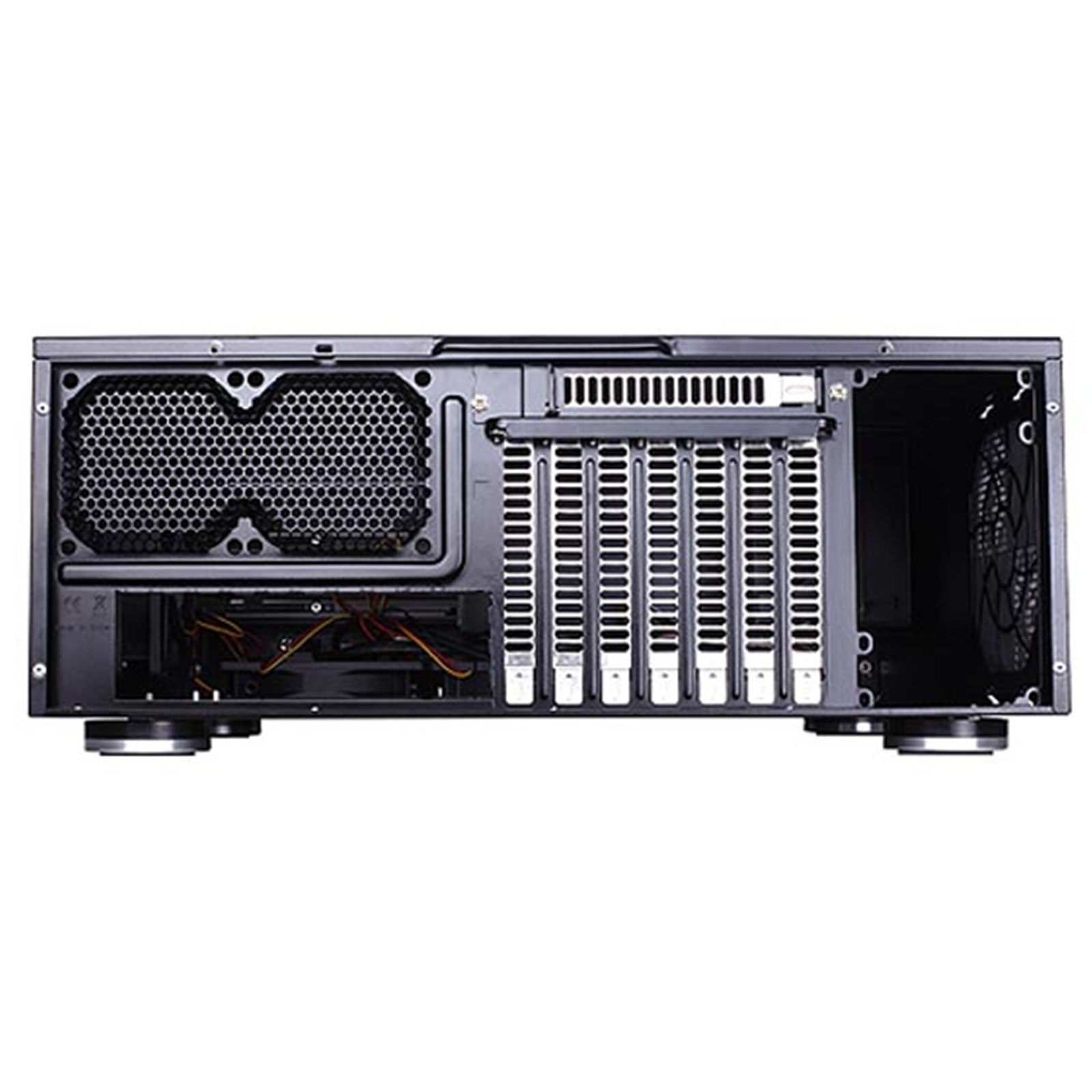

Expansion slot
7+1
Limitation of expansion card
Compatible up to 13.6" (345mm) long, width restriction-5.25" (133mm)
Limitation of VGA card
Support graphic cards up to 13.6 inches
Power supply
Support standard PS2 (ATX) up to 220mm, recommend depth is under 180mm *2
Limitation of PSU
220mm

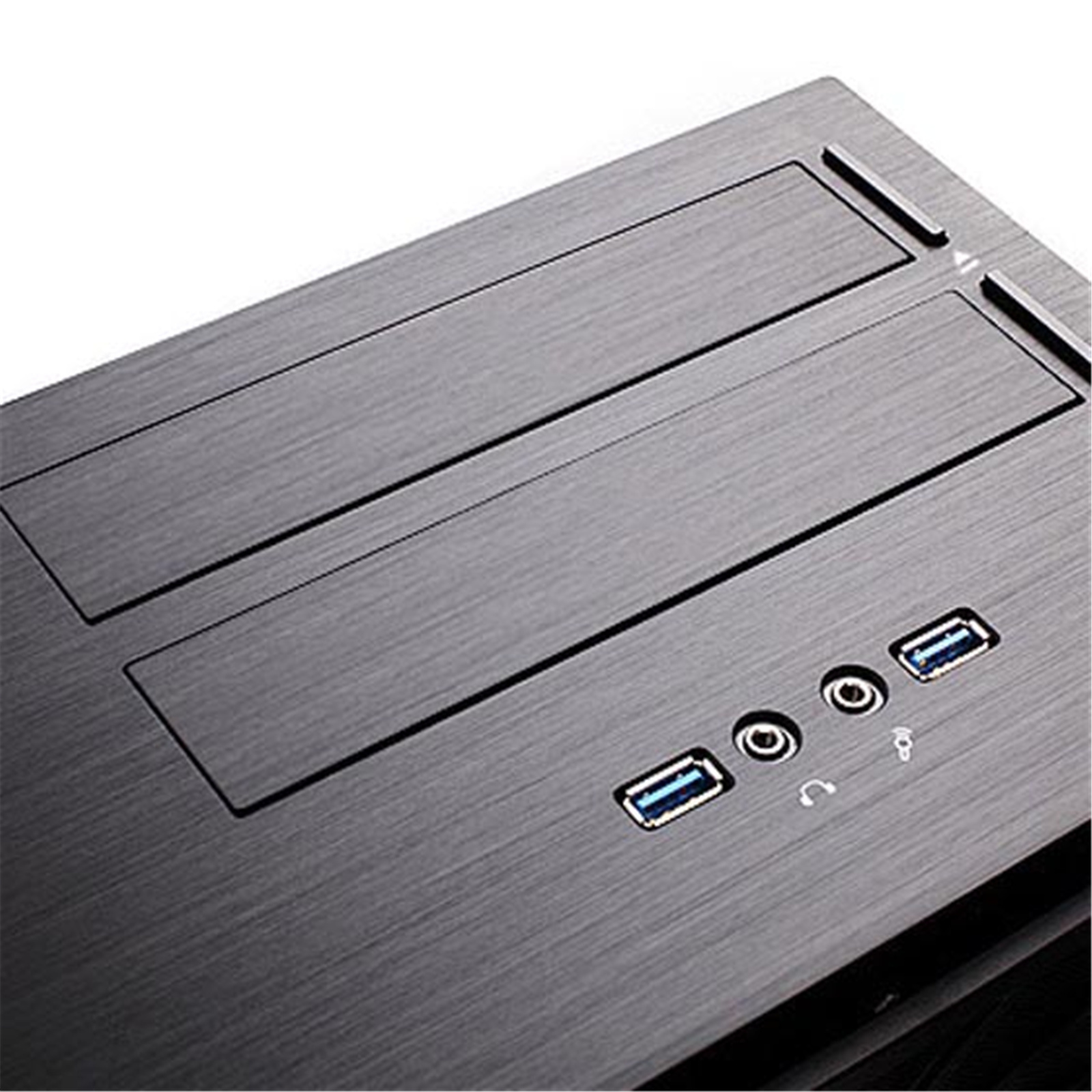

Front I/O port
USB 3.0 x 2
audio x 1
MIC x 1
Dimension
440mm(W) x 175mm(H) x 425mm(D), 32.7 liters
17.32" (W) x 6.89" (H) x 16.73" (D), 32.7 liters
Net weight
7kg
Extra
Support Kensington lock
