Silverstone SST-RM42-502 4U Case Supports Upto SSI-CEB MBD - 7x PCI Slot - Front Secure Locker 240mm AIO - 2x 5.25" External (2.5" x 4 or 3.5" x 2) - 1x 2.5" Internal - CPU Cooler Support Upto 148mm - Front I/O: 2x USB - 1x Type C - ATX/Min
Out of stock
Silverstone SST-RM42-502 4U Case Supports Upto SSI-CEB MBD - 7x PCI Slot - Front Secure Locker 240mm AIO - 2x 5.25" External (2.5" x 4 or 3.5" x 2) - 1x 2.5" Internal - CPU Cooler Support Upto 148mm - Front I/O: 2x USB - 1x Type C - ATX/Min
- Brand: Silverstone
- MPN: SST-RM42-502
- Part #: CHASVT904502
- UPC: 844761020491
View all shipping info
- Brand: Silverstone
- MPN: SST-RM42-502
- Part #: CHASVT904502
- UPC: 844761020491
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Cases / Chassis




Silverstone SST-RM42-502 4U Case Supports Upto SSI-CEB MBD - 7x PCI Slot - Front Secure Locker 240mm AIO - 2x 5.25" External (2.5" x 4 or 3.5" x 2) - 1x 2.5" Internal - CPU Cooler Support Upto 148mm - Front I/O: 2x USB - 1x Type C - ATX/Min
- Brand: Silverstone
- MPN: SST-RM42-502
- Part #: CHASVT904502
- UPC:844761020491

Product URL: https://www.pbtech.com/au/product/CHASVT904502/Silverstone-SST-RM42-502-4U-Case-Supports-Upto-SSI
Features
RM42-502

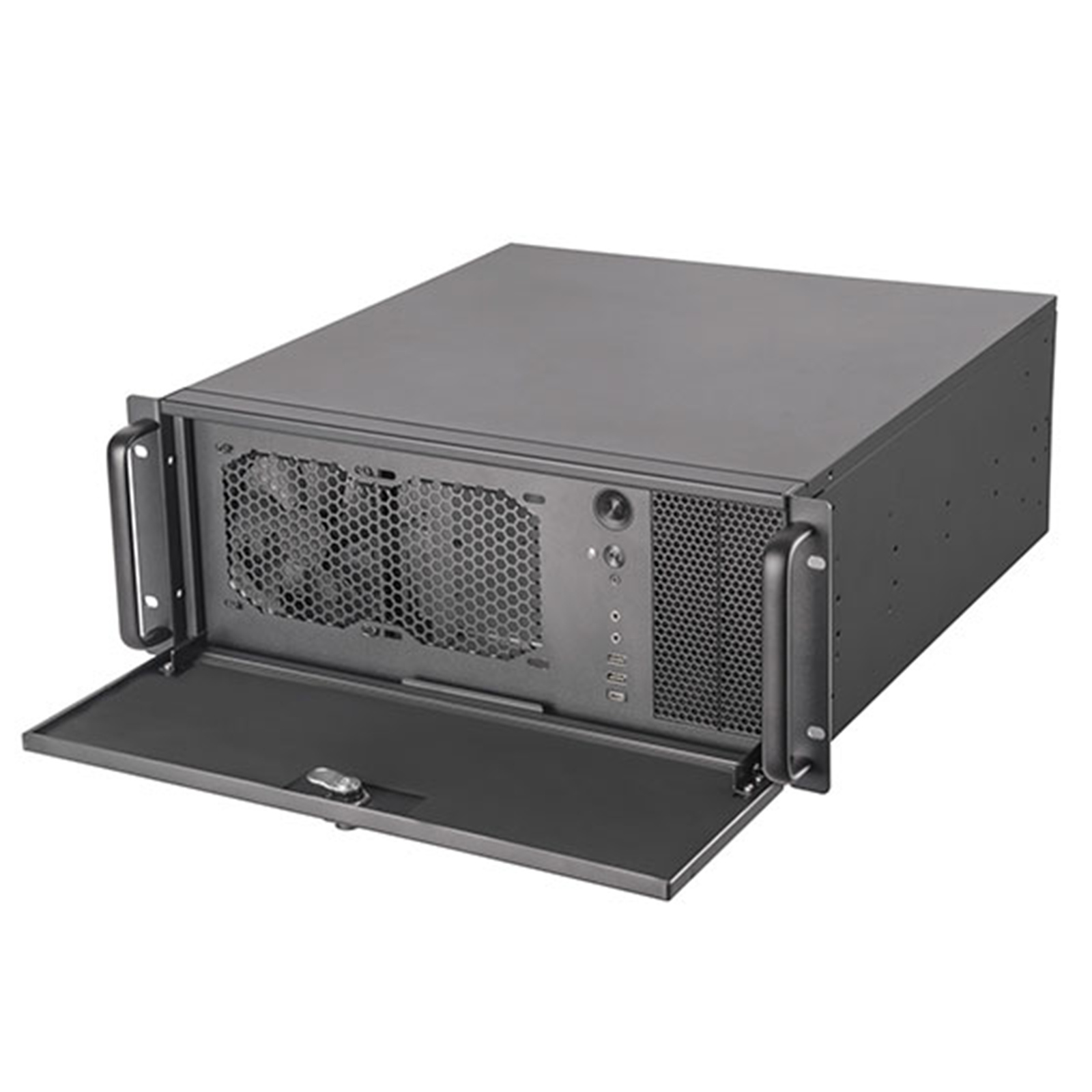

4U rackmount server chassis with liquid cooling compatibility
- Supports up to SSI-EEB motherboards
- Front panel features anti-theft lock design providing additional security
- Supports 240mm liquid cooling radiators
- Two 5.25" drive bays directly compatible with 3.5" or 2.5" drives
- Includes one USB Type-C interface
- Includes sliding rail mounting holes for quick rail installation
- Can be placed upright or horizontal
Dual-purpose chassis - Industrial / Home
Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal placements
Distinctive exterior

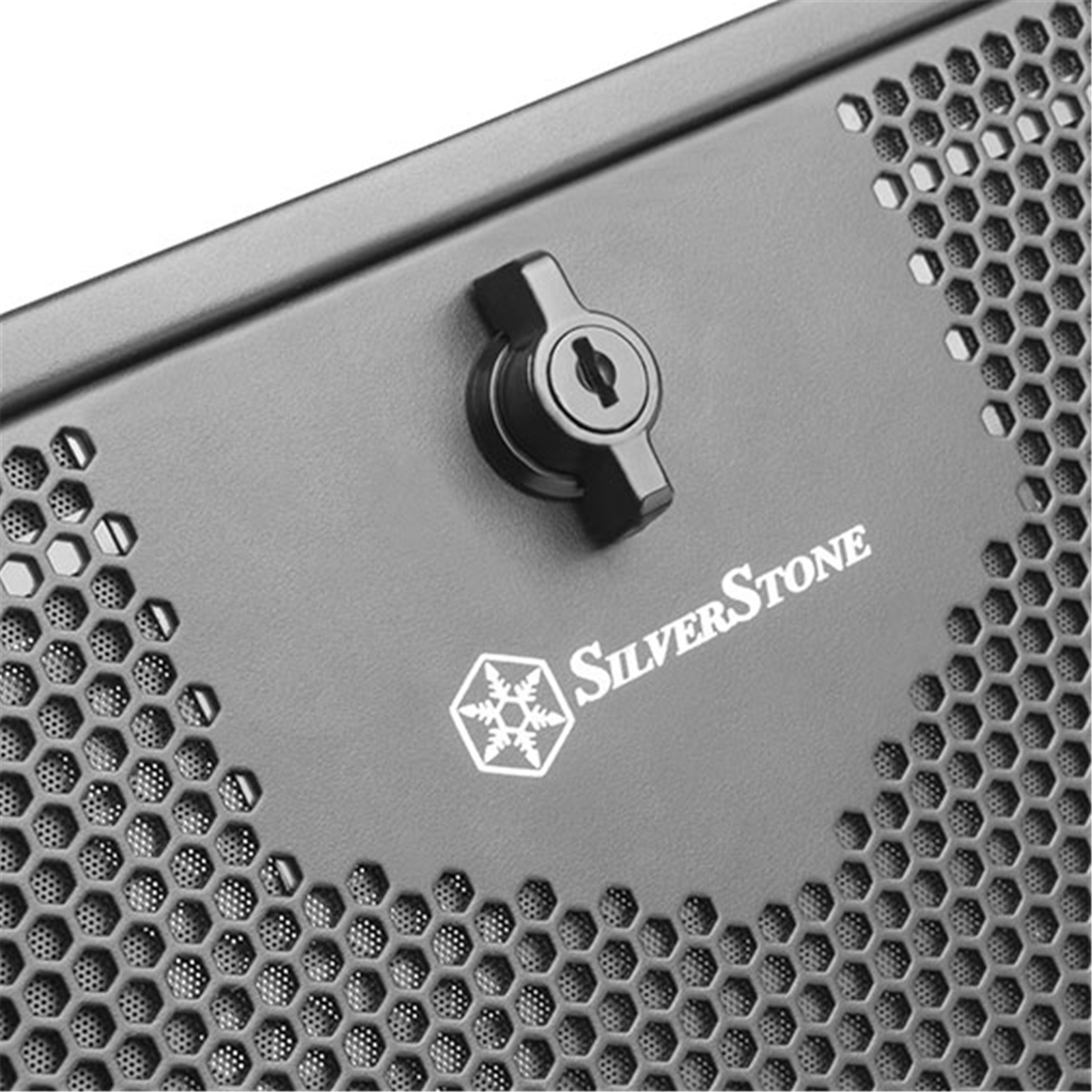

Distinctive front panel features anti-theft lock design to provide additional security along with one USB Type-C interface
Cooling capabilities

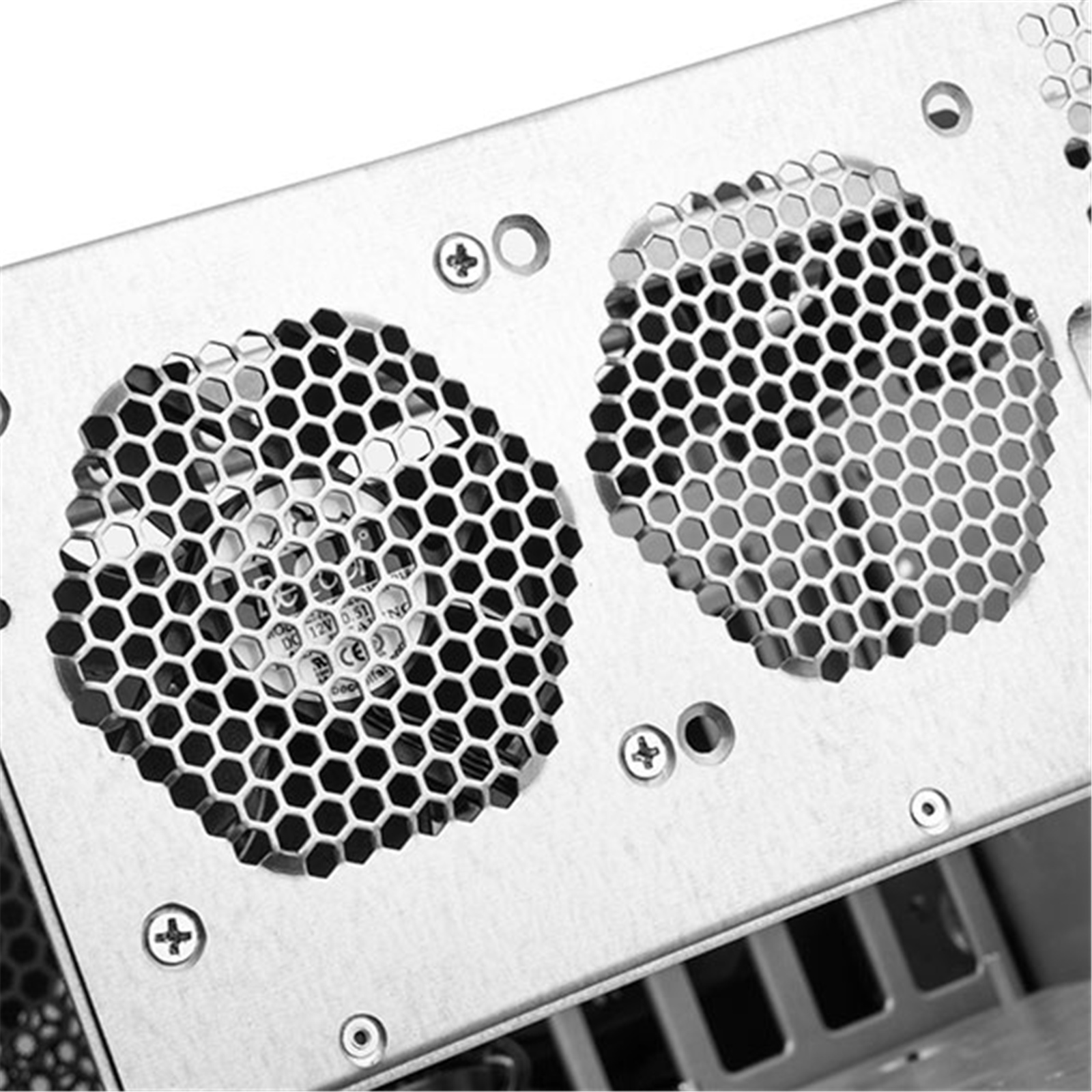

RM42-502 comes pre-installed with 1 x 120mm fan at the front and 1 x 80mm fan at the rear achieving front-to-back directional airflow out of the box, and unlike most rackmounts cases on the market, RM42-502 supports up to 240mm liquid cooling radiators
Expansion card protection
Expansion card holder and retainer* are included for total support of expansion / graphics card. They help prevent dislodging during movement and transport.
*The use of expansion card retainer requires card with extension bracket
Specifications
Model No.
SST-RM42-502B (Black)
Chassis form factor
4U
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Material
Steel
Drive Bay
External
5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)
Internal
2.5" x 1
Power Supply
PS2 (ATX) (PSU + optical drives / 5.25" devices = 442mm) / Mini Redundant
Cooling system
Front
120mm x 2 (120mm x 1 fan included)
Rear
80mm x 2 (80mm x 1 fan included)
Radiator support
Front
120mm x 2 / 240mm x 1
Limitation of CPU cooler
w/ GPU holder: 130mm
w/o GPU holder: 148mm
Expansion card
Length w/ expansion card retainer: 337mm
Length w/o expansion card retainer: 426mm
Width w/ GPU holder: 116mm
Width w/o GPU holder: 154mm

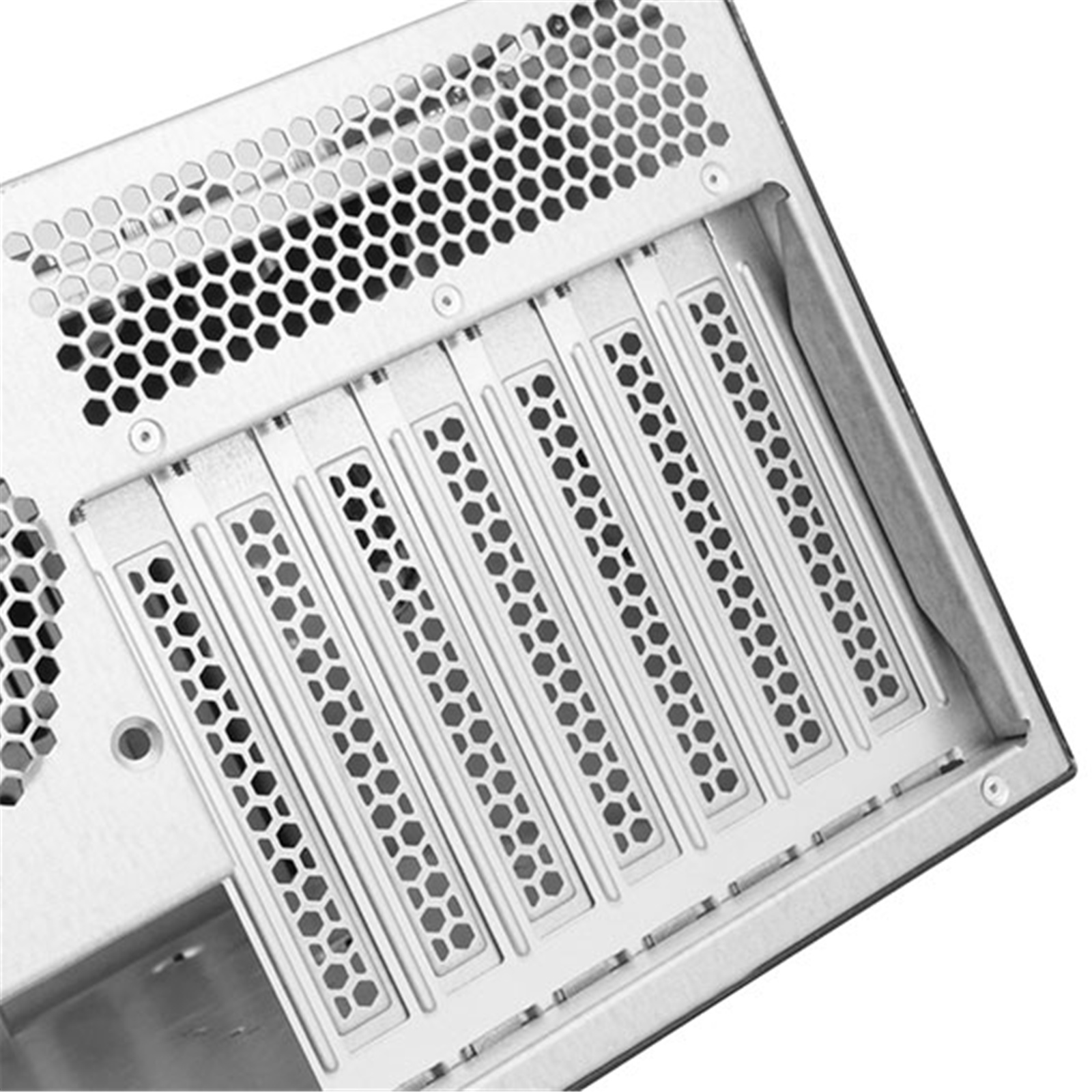

Expansion Slot
7
Front I/O Port
USB Type-C x 1, USB 3.0 x 2, Audio x 1, MIC x 1
LED indicator
Power status x 1, HDD activity x 1
Dimension
430mm (W) x 176mm (H) x 468mm (D)
Net Weight
9.9kg
Extra
Side switch for chassis intrusion security
