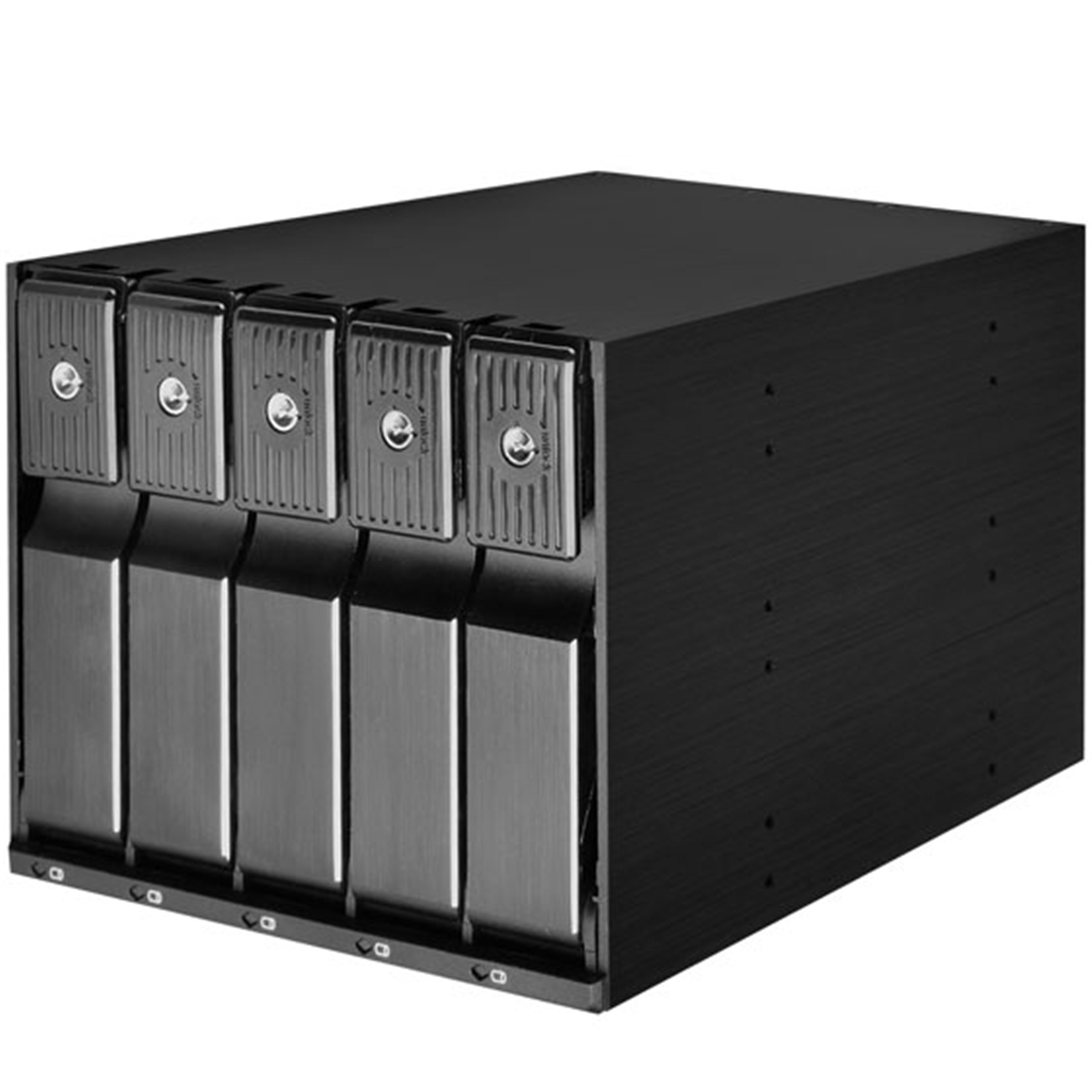

Silverstone SST-FS305-12G Three 5.25" device bay to five 3.5" SAS-12G / SATA-6Gbit/S Trayless Hot-Swap Cage
Out of stock
Silverstone SST-FS305-12G Three 5.25" device bay to five 3.5" SAS-12G / SATA-6Gbit/S Trayless Hot-Swap Cage
- Brand: Silverstone
- MPN: SST-FS305-12G
- Part #: CHSSVT0305
- UPC: 844761019518
View all shipping info
- Brand: Silverstone
- MPN: SST-FS305-12G
- Part #: CHSSVT0305
- UPC: 844761019518
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Drive Bays & Mounts





Silverstone SST-FS305-12G Three 5.25" device bay to five 3.5" SAS-12G / SATA-6Gbit/S Trayless Hot-Swap Cage
- Brand: Silverstone
- MPN: SST-FS305-12G
- Part #: CHSSVT0305
- UPC:844761019518

Product URL: https://www.pbtech.com/au/product/CHSSVT0305/Silverstone-SST-FS305-12G-Three-525-device-bay-to
Features
FS305-12G
Three 5.25" device bay to five 3.5" SAS-12G / SATA-6Gbit/s trayless hot-swap cage
- Fits five 3.5" SAS-12G/SATA-6Gbit/s drives in three 5.25" device bay
- Adjustable drive status LED and fan control system
- Trayless & screwless design
- Individual metal key lock for each drive for extra security
- All aluminum body with beautiful hairline brushed finish
- Independent drive status LED
- Built-in cooling fan for excellent heat dissipation
- Fully supports Hot-Swap function

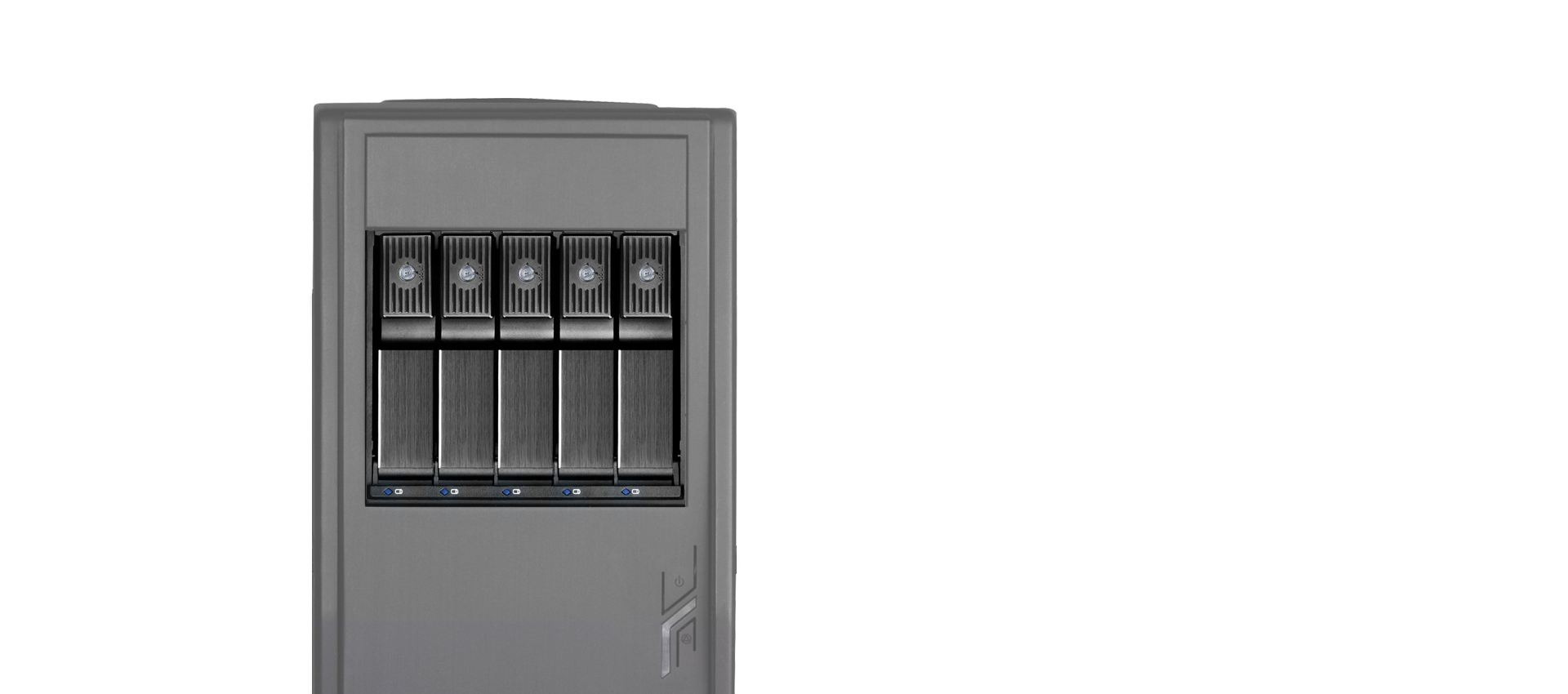

Fit into three 5.25" device bay

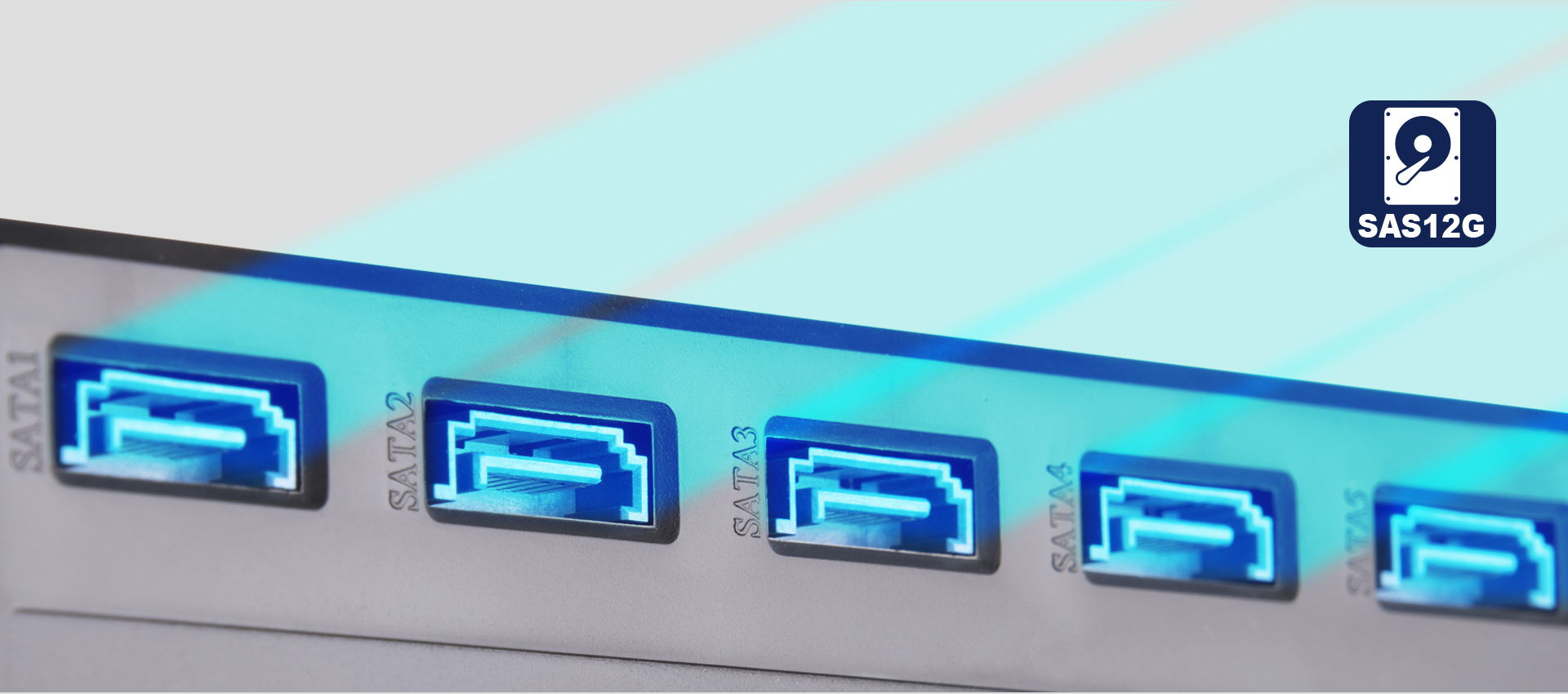

Support up to SAS 12G/ SATA 6Gbit/s device
Trayless & screwless design Fully supports Hot-Swap function

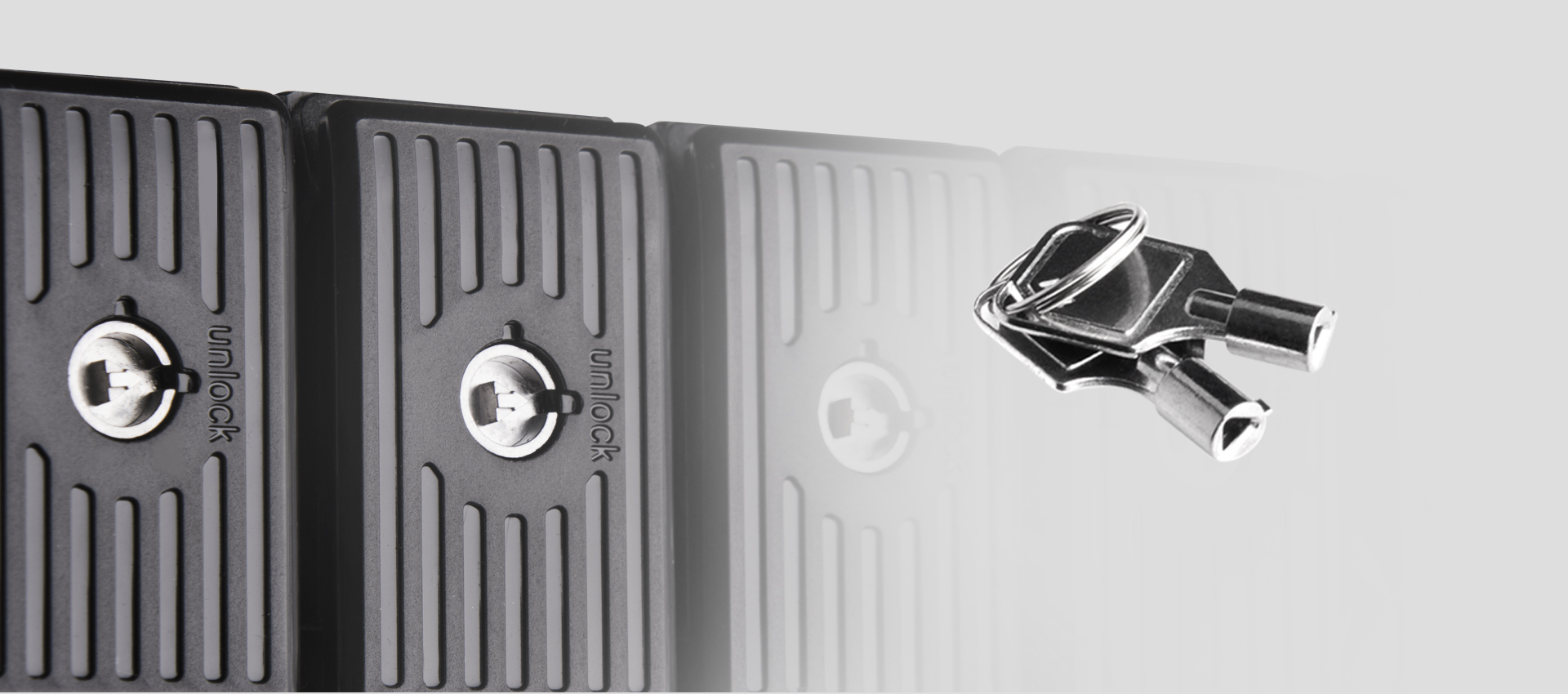

Individual metal key lock for each drive for extra security

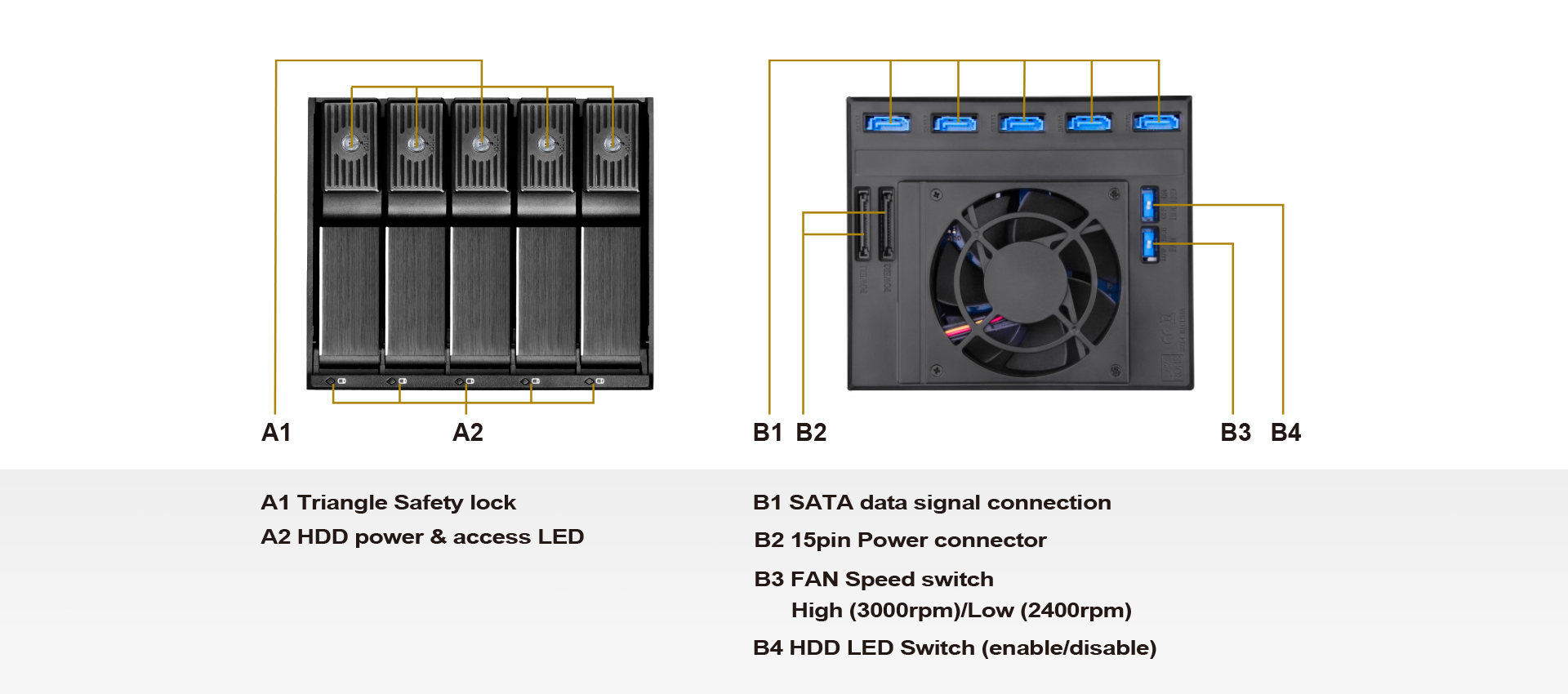

Specifications
Model No.
SST-FS305B-12G
Color
Black
Material
Aluminum and front bezel with plastic clip button
Transfer rate
Up to 12 Gbit/s (dependent on drive speed)
Application
5.25" drive bay x 3**
Cooling system
80mm fan x 1, 3000rpm
Power connector
SATA 15-Pin x 2
Drive support
5 x 3.5" SAS*/SATA HDD or SSD
Host interface
7-Pin SATA connector x 5 or SAS* primary channel connection
Drive security
Triangle metal key lock design
Number of key
2
LED indicator
Power ON : Blue
Accessing : Purple blinking
Switch button
Fan speed:High/Low
HDD LED:ON/OFF
Dimension
146mm (W) x 126mm (H) x 199mm (D)
Net weight
1.40kg
Notes
* Your system must have SAS controller if you want to use SAS HDD.
* Hard drive capacity and RAID support is dependent on SAS or SATA controller used.
** FS305-12G is designed for maximum space utilization. In order for it to fit five 3.5" drive bays into the space of three 5.25" bays, its sides are flat with no cutouts for fitting between 5.25" bays with protruding lip or brackets. Therefore, please make sure your case has 5.25" bays that are also flat on the inside with no protrusions. If not, please consider using FS303 or FS304 instead.
