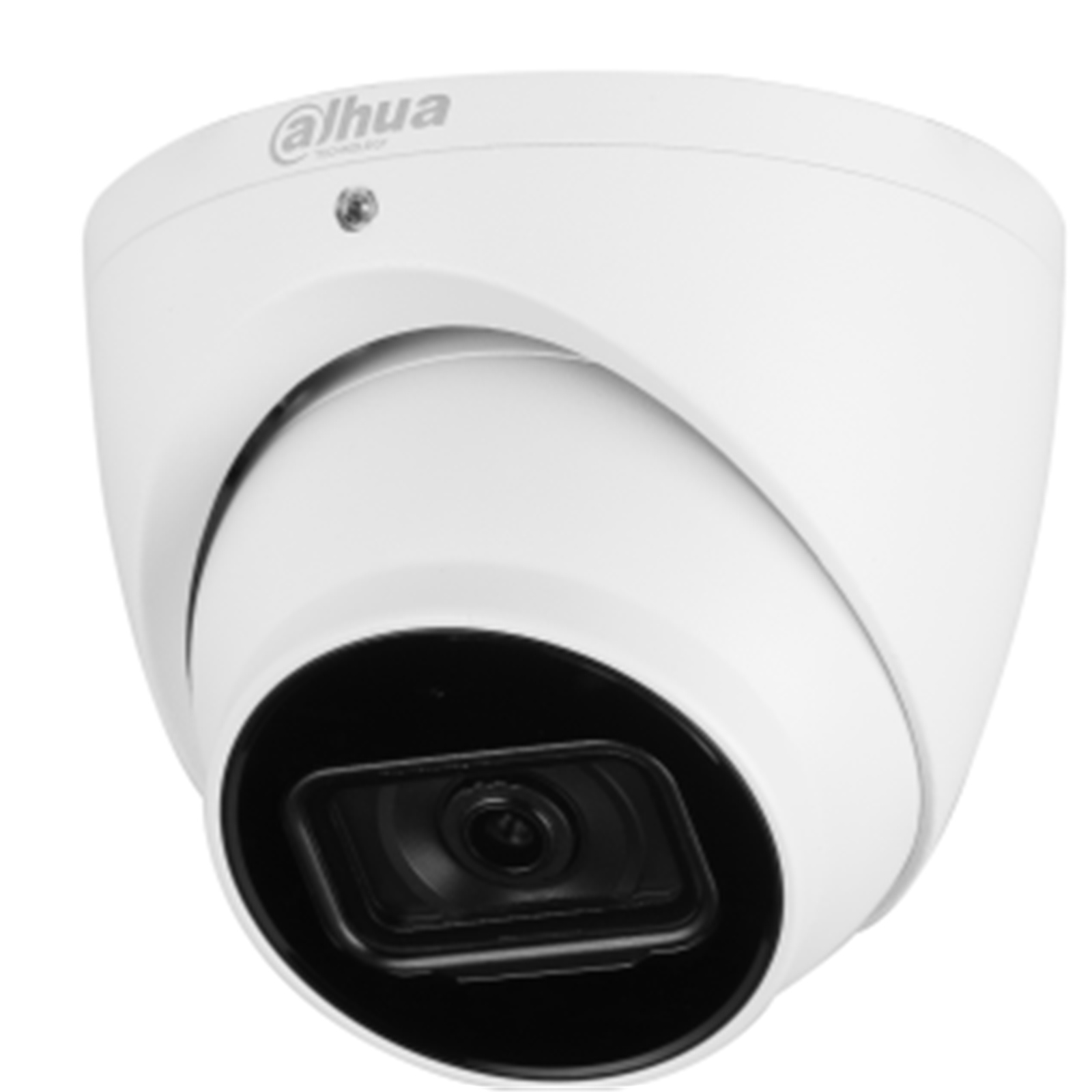

Dahua WizSense 6MP IR Fixed-Focal Eyeball Network Camera
2.8mm - 12 VDC/PoE - H.265 Codec - IP67 - Built-in Mic - Micro SD Card Slot - Up to 256GB - Intrusion - Tripwire - IR up to 30m
Out of stock
Dahua WizSense 6MP IR Fixed-Focal Eyeball Network Camera
2.8mm - 12 VDC/PoE - H.265 Codec - IP67 - Built-in Mic - Micro SD Card Slot - Up to 256GB - Intrusion - Tripwire - IR up to 30m
- Brand: Dahua
- MPN: IPC-HDW3666EMP-S
- Part #: DHA1767
- UPC:
View all shipping info
- Brand: Dahua
- MPN: IPC-HDW3666EMP-S
- Part #: DHA1767
- UPC:
Features
DAHUA 6MP IR Fixed-Focal Eyeball WizSense Network Camera
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
- 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 6 MP (3072 x 2048) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- SMD 4.0, AI SSA.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI SSA
Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
The deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defenses against external cyber threats and prevent malicious programs from comprising the device.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Wired IP Cameras
Ubiquiti UniFi Protect UVC-G5-Turret-Ultra 4MP/2K Turret PoE...
EZVIZ H9c Dual 5MP/3K Dual-Lens Outdoor PT WiFi Camera with...
Reolink TrackMix PoE 8MP/4K Dual-Lens Outdoor PTZ PoE Camera with...
Ubiquiti UniFi Protect UVC-G6-Bullet 8MP/4K Bullet PoE Camera ...
Ubiquiti UniFi Protect UVC-G5-Bullet 4MP/2K Bullet PoE Camera ...
Dahua WizSense 6MP IR Fixed-Focal Eyeball Network Camera 2.8mm - 12 VDC/PoE - H.265 Codec - IP67 - Built-in Mic - Micro SD Card Slot - Up to 256GB - Intrusion - Tripwire - IR up to 30m
- Brand: Dahua
- MPN: IPC-HDW3666EMP-S
- Part #: DHA1767
Product URL: https://www.pbtech.com/au/product/DHA1767/Dahua-WizSense-6MP-IR-Fixed-Focal-Eyeball-Network
Features
DAHUA 6MP IR Fixed-Focal Eyeball WizSense Network Camera
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
- 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 6 MP (3072 x 2048) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 30 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- SMD 4.0, AI SSA.
SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
AI SSA
Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
The deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with instable voltage.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defenses against external cyber threats and prevent malicious programs from comprising the device.
Specifications
Camera
Image Sensor
1/2.7" CMOS
Max. Resolution
3072 (H) × 20488 (V)
ROM
128 MB
RAM
1 GB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s-1/100,000 s
Min. Illumination
0.005 lux @ F1.4 (Color, 30 IRE)
0.0005 lux @ F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
30 m (164.04 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm
Max. Aperture
F1.4
Field of View
2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.1 m (3.61 ft)
DORI Distance
D: 63.6 m (208.66 ft), O: 25.4 m (83.33 ft), R: 12.7 m (41.67 ft), I: 6.4 m (21.00 ft)
Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA
Yes
Quick Pick
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+
Smart H.264+
AI Coding
AI H.265
AI H.264
Video Frame Rate
Main stream: 3072× 2048 @ (1-25/30) fps
Sub stream 1: 704 × 576 @ (1-25 fps)/704 × 480 @ (1-30 fps)
Sub stream 2: 1920 × 1080 @ (1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability
3 streams
Resolution
6M(3072x2048);5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 3 kbps-8192 kbps
H.265: 3 kbps-8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Defog
Yes
AFSA
Yes
Image Rotation
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability
CGI; P2P; Milestone; Genetec
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE:IE11
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply
12 VDC/PoE (802.3af)
Power Consumption
Basic: 4.3 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
Environment
Operating Temperature
-40 °C to +60 °C (-40 °F to 140 °F) /Less than 95% (RH)
Storage Temperature
-40 °C to +60 °C (-40 °F to 140 °F)
Protection
IP67
Structure
Casing
Metal
Product Dimensions
93.6 mm × F106.0 mm (3.69" × F4.17")
Net Weight
500 g (1.10 lb)
Gross Weight
770 g (1.70 lb)
