Gigabyte Remanufactured MX33-BS0 Entry Server Board, mATX, LGA1200 Xeon E-2300 series, 4 DIMM, 2x GbE LAN, 1x PCIe Gen4 x16, 1x PCIe Gen4 x4, 1x M.2 (Gen3 2280/2242), 6x SATA, IPMI /PB 6 mths warranty
Out of stock
Gigabyte Remanufactured MX33-BS0 Entry Server Board, mATX, LGA1200 Xeon E-2300 series, 4 DIMM, 2x GbE LAN, 1x PCIe Gen4 x16, 1x PCIe Gen4 x4, 1x M.2 (Gen3 2280/2242), 6x SATA, IPMI /PB 6 mths warranty
- Brand: Gigabyte
- MPN: EXMBDGBS25233
- Part #: EXMBDGBS25233
- UPC:
View all shipping info
- Brand: Gigabyte
- MPN: EXMBDGBS25233
- Part #: EXMBDGBS25233
- UPC:
Features
MX33-BS0
Intel® C252 chipset
- Entry and small business server board
- Micro ATX form factor
- Intel® Xeon® E-2300 series processors
- Intel® C252 Express Chipset
- 4 x UDIMM slots, DDR4 3200MHz
- 2 x GbE LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 6 x 7-pin SATA 6Gb/s ports
- Ultra-Fast M.2 PCIe Gen3 x4 interface
- 2 x USB 3.2 Gen2 ports supported
- 2 x PCIe Gen4 expansion slots
Intel® Xeon® E-2300 Processors
The Intel Xeon E-2300 processors offer 10 new processor varieties, including options with 4, 6, or 8 cores, and thermal design points (TDPs) ranging from 65W up to 95W. With Intel® Turbo Boost Technology frequencies as high as 5.1 GHz, and memory speeds up to 23 percent faster than the prior generation, these new processors outperform the prior Intel Xeon E processor by up to 17 percent. And when coupled with Intel® C250 Series Chipsets, this platform offers more I/O bandwidth and speed across options including new PCIe 4.0, more lanes of PCIe 3.0, USB 3.2 with new 2x2 (20 Gb), and SATA 3.0 support.

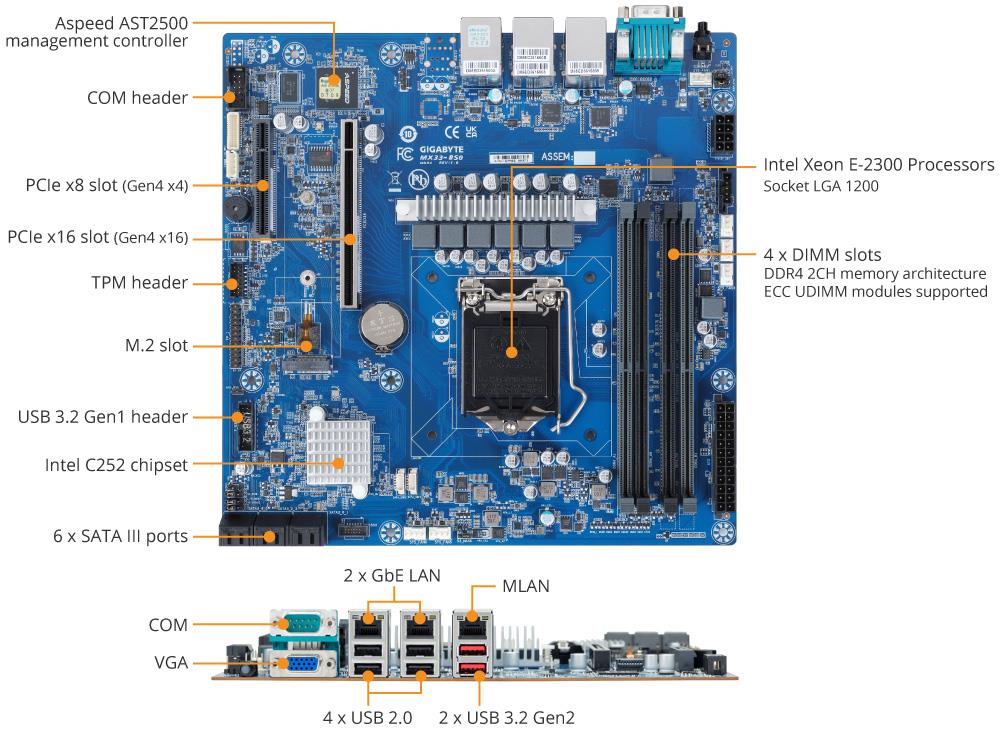

MX33-BS0 Product Overview

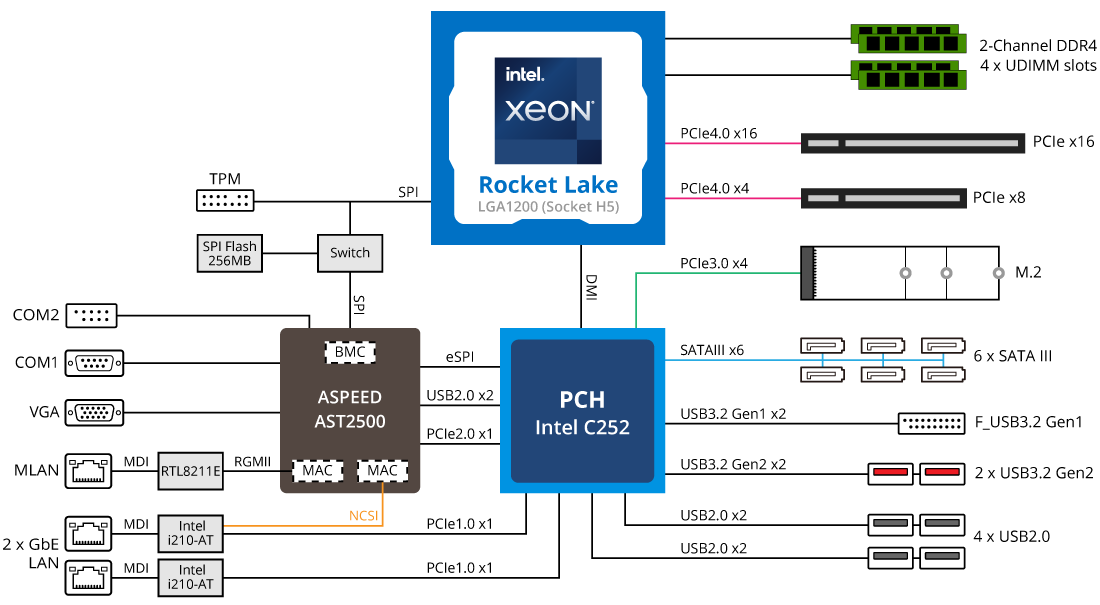

MX33-BS0 Block Diagram
Hardware Security - Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

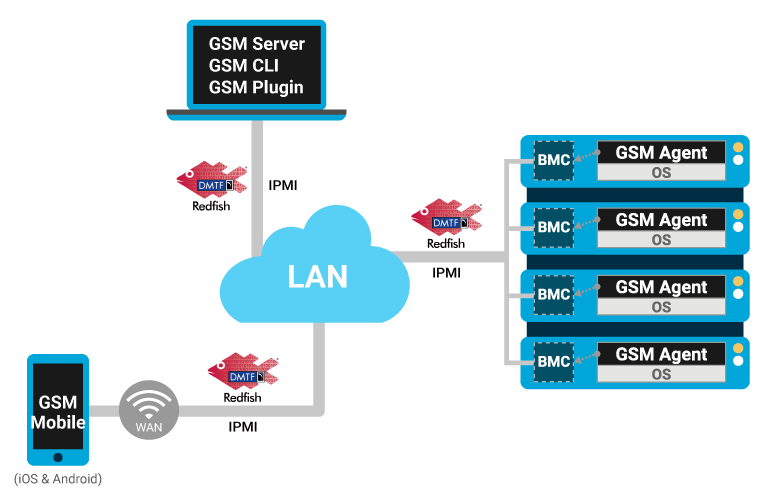

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator's computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Motherboards
Gigabyte B650M GAMING PLUS WIFI mATX Motherboard Ready For AMD...
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
Gigabyte Remanufactured MX33-BS0 Entry Server Board, mATX, LGA1200 Xeon E-2300 series, 4 DIMM, 2x GbE LAN, 1x PCIe Gen4 x16, 1x PCIe Gen4 x4, 1x M.2 (Gen3 2280/2242), 6x SATA, IPMI /PB 6 mths warranty
- Brand: Gigabyte
- MPN: EXMBDGBS25233
- Part #: EXMBDGBS25233
Product URL: https://www.pbtech.com/au/product/EXMBDGBS25233/Gigabyte-Remanufactured-MX33-BS0-Entry-Server-Boar
Features
MX33-BS0
Intel® C252 chipset
- Entry and small business server board
- Micro ATX form factor
- Intel® Xeon® E-2300 series processors
- Intel® C252 Express Chipset
- 4 x UDIMM slots, DDR4 3200MHz
- 2 x GbE LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 6 x 7-pin SATA 6Gb/s ports
- Ultra-Fast M.2 PCIe Gen3 x4 interface
- 2 x USB 3.2 Gen2 ports supported
- 2 x PCIe Gen4 expansion slots
Intel® Xeon® E-2300 Processors
The Intel Xeon E-2300 processors offer 10 new processor varieties, including options with 4, 6, or 8 cores, and thermal design points (TDPs) ranging from 65W up to 95W. With Intel® Turbo Boost Technology frequencies as high as 5.1 GHz, and memory speeds up to 23 percent faster than the prior generation, these new processors outperform the prior Intel Xeon E processor by up to 17 percent. And when coupled with Intel® C250 Series Chipsets, this platform offers more I/O bandwidth and speed across options including new PCIe 4.0, more lanes of PCIe 3.0, USB 3.2 with new 2x2 (20 Gb), and SATA 3.0 support.
MX33-BS0 Product Overview
MX33-BS0 Block Diagram
Hardware Security - Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

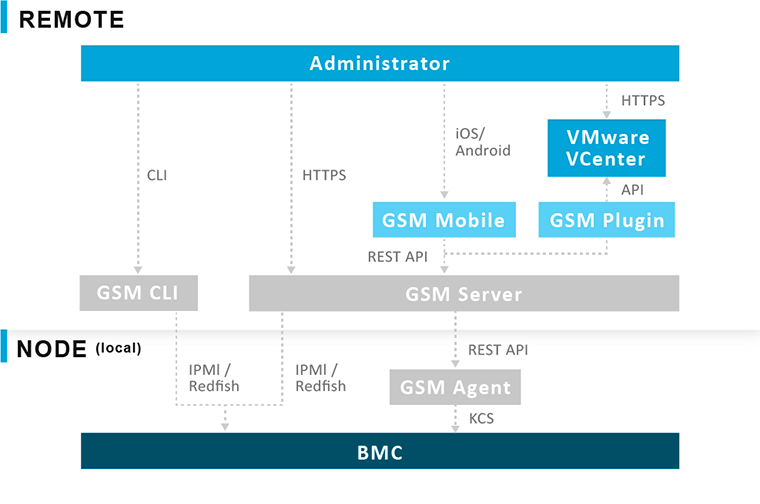

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator's computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
Specifications
Form Factor
microATX
244W x 244D (mm)
CPU
Intel® Xeon® E-2300 series processors
11th Gen. Intel Pentium® processors
CPU TDP up to 95W
Socket
1 x LGA 1200
Socket H5
Chipset
Intel® C252 Express Chipset
Memory
4 x DIMM slots
Dual channel memory architecture
Supports 1.2V DDR4 memory
ECC UDIMM modules supported
Total capacity up to 128GB
Supported speeds: 3200/2666 MHz
LAN
2 x GbE LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Audio
in option
SAS
N/A
SATA
6 x SATA 6Gb/s ports
RAID
Intel® SATA RAID 0/ 1/ 10/ 5
Expansion Slots
1 x PCIe x16 (Gen4 x16 bus) slot from CPU*
1 x PCIe x8 (Gen4 x4 bus) slot from CPU**
* NOTE: Gen3 x16 supported if installed Intel Pentium® Processor
** NOTE: Function not available if installed Intel Pentium® Processor
1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280/2242 cards
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x COM2 header
1 x back panel connector
1 x TPM header
1 x Front panel header
1 x JTAG BMC header
1 x Case Open header
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x ME update jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x IPMB connector
1 x PMBus connector
1 x Buzzer

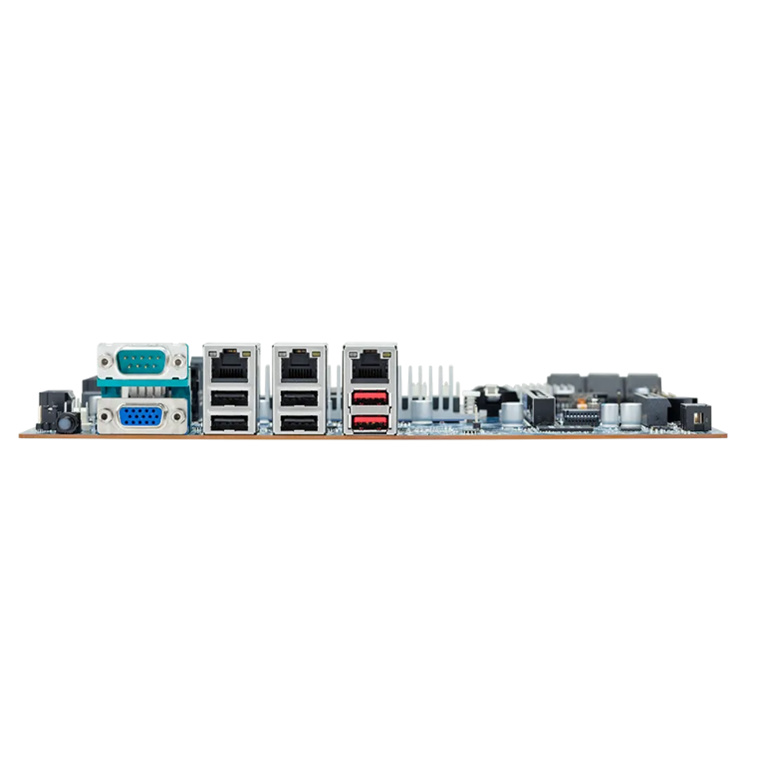

Rear I/O
1 x COM
1 x VGA
2 x RJ45
1 x MLAN
2 x USB 3.2 Gen2
4 x USB 2.0
1 x ID switch
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
OS Compatibility
Windows Server 2019 x64
Windows Server 2016 x64
Red Hat Enterprise Linux 7.3 x64
Red Hat Enterprise Linux 6.9 x64
SUSE Linux Enterprise Server 12.2 x64
SUSE Linux Enterprise Server 11.2 x64
Ubuntu 18.04.2 LTS x64
Ubuntu 16.04.6 LTS x64
VMware 6.5
Citrix Hypervisor 8.0.0
Citrix Xenserver 7.1 CU2 LTSR
Board Management
Aspeed® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables
Box dimensions: 321 x 308.5 x 78.5 mm
