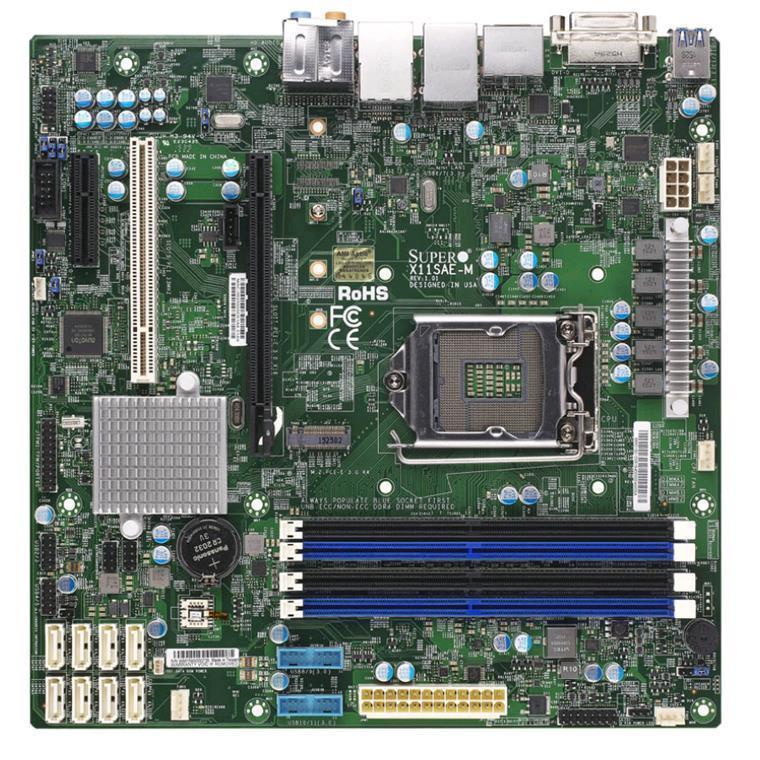

Supermicro Remanufactured X11SAE-M Server Board, mATX, LGA1151, C236, 4 DIMM, 2x GbE (i210AT + i219LM), 8x SATA3, 6x USB3.0, 2x USB3.1, 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, 1x PCI, 1x DVI, 1x DP, 1x HDMI, ALC 888S HD Audio, 1x M.2 /PB 6 mths

Normally $178.06
Normally $195.87
You save $9
You save $10
$ 168 .18
 +GST
$ 185 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.
This product is a Factory Remanufactured unit in full working condition. View the Help Section to learn more about Factory Remanufactured units.

Supermicro Remanufactured X11SAE-M Server Board, mATX, LGA1151, C236, 4 DIMM, 2x GbE (i210AT + i219LM), 8x SATA3, 6x USB3.0, 2x USB3.1, 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, 1x PCI, 1x DVI, 1x DP, 1x HDMI, ALC 888S HD Audio, 1x M.2 /PB 6 mths

  • Brand: Supermicro
  • MPN: EXMBDSPMX11117
  • Part #: EXMBDSPMX11117
  • UPC:
REMANUFACTURED
Normally $178.06
Normally $195.87
You save $9
You save $10
PB Tech price
$ 168 .18 $ 185 .00
 +GST  inc GST


  • Brand: Supermicro
  • MPN: EXMBDSPMX11117
  • Part #: EXMBDSPMX11117
  • UPC:

MB Socket

Intel LGA 1151

Chipset

C236

Form Factor

mATX

Memory Type

DDR4

M.2 Connectors

1

PCIE x16 Slots

1

PCIE x4 Slots

1

PCI Slots

1

Features

- Single socket H4 (LGA 1151) supports
- Intel Xeon processor E3-1200 v5,
- Intel 6th Gen. Core i7/i5/i3 series,
- Intel Celeron and Intel Pentium
- Intel C236 chipset
- Up to 64GB Unbuffered ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x4, and 1x 5V PCI 32-bit slots
- Single GbE LAN with Intel i210-AT
- Single GbE LAN with Intel i219LM
- 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (PCIe x4, 2242/2260/2280/22110)
- 1x COM, TPM 1.2 header
- 2x SuperDOM with built-in power
- 6x USB 3.0 (2 rear + 4 via header)
- 6x USB 2.0 (2 rear + 4 via headers)
- 2x USB 3.1 (10Gbps, rear)

Specifications

Form Factor
micro ATX

Dimensions
9.6" x 9.6", (22.4cm x 22.4cm)

CPU
Single Socket H4 (LGA 1151) supports:
Intel Xeon processor E3-1200 v5,
Intel 6th Gen Core i7/i5/i3,
Intel Pentium,
Intel Celeron processors
CPU TDP up to 95W

Memory Capacity
4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 ECC UDIMM

Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes
16GB, 8GB, 4GB

Memory Voltage
1.2 V

Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

Chipset
Intel C236 chipset

SATA
SATA3 (6Gbps) via C236 controller
RAID 0, 1, 5, 10 support

Network Controllers

Intel I210-AT + Intel PHY i219LM Ethernet Controllers
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

SATA
8x SATA3 (6Gbps) ports

LAN
2x RJ45 Gigabit Ethernet LAN ports

USB
6x USB 3.0 ports (2 rear + 4 via headers)
6x USB 2.0 ports (2 rear + 4 via headers)
2x USB 3.1 (rear)

Video
1 DVI - D, 1 DP (Display Port), 1 HDMI

Audio
ALC 888S HD Audio

Serial Port / Header
1x COM port (1 header)

SuperDOM
2x SuperDOM (Disk on Module) ports with built-in power

TPM
1x TPM 1.2 20-pin Header

Chassis (Optimized for X11SAE-M )
Mid/Mini Tower Chassis:
SC731i-300B
SC732D4-500B

4U / Tower Chassis:
SC743TQ-1200B-SQ

PCI-Express
1x PCI-E 3.0 x16 slot
1x PCI-E 3.0 x4 slot
1x 5V PCI 32bit slot

BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features
Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI 2.3.1
RTC (Real Time Clock) Wakeup

Software
AMT
SuperDoctor 5
vPro
Watch Dog

Power Configurations
ACPI Power Management
Keyboard Wakeup from Soft-Off
CPU Fan auto-off in sleep mode
Power-on mode for AC power recovery

Voltage
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN
Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI

LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID

Other Features
Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS

Manufacturer Part No:
EXMBDSPMX11117
Brand:
Product Type:
-
UPC
-
Product Family:
Remanufactured
Shipping Weight:
0.9 kg
PB Part No:
EXMBDSPMX11117
Product Model:
-
Warranty: 6 months *
