Jonsbo CR-1400 EVO ARGB White CPU Cooling Fan, D-TD 180W, PWM, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
Out of stock
Jonsbo CR-1400 EVO ARGB White CPU Cooling Fan, D-TD 180W, PWM, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
- Brand: Jonsbo
- MPN: CR-1400 EVO ARGB White
- Part #: FANJSB41401
- UPC: 100048975602
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Good little cooler, dropped temps by about 30degree on my sons i5 based on standard intel cooler. Good pricing"
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Air Cooling





Jonsbo CR-1400 EVO ARGB White CPU Cooling Fan, D-TD 180W, PWM, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
- Brand: Jonsbo
- MPN: CR-1400 EVO ARGB White
- Part #: FANJSB41401
- UPC:100048975602

Product URL: https://www.pbtech.com/au/product/FANJSB41401/Jonsbo-CR-1400-EVO-ARGB-White-CPU-Cooling-Fan-D-TD
Features

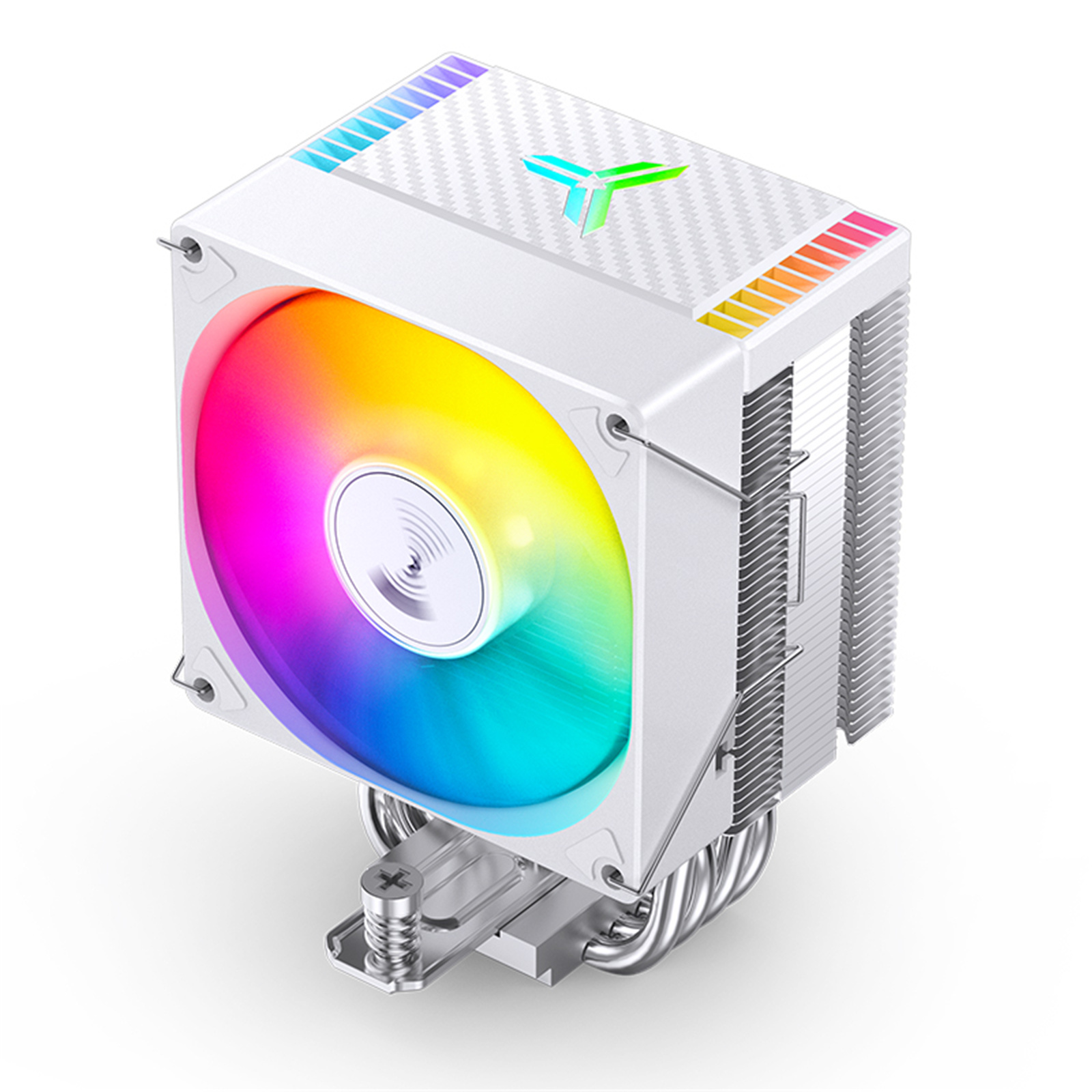

SILENT SERIES - CR-1400 EVO ARGB
90MM SINGLE TOWER COOLER
- Significant upgrades to iterative performance
- Low-noise design trend to optimise noise friendliness
- Nickel plated anti-oxidation coating on heat pipes
- New through-bar fasteners
Product overview
The CR1400EVO series newly defines the appearance design language and adds multiple versions to choose from, taking into account different application scenarios, 130mm height size to complement the MINI chassis, significantly upgraded cooling performance, low noise design tendency, optimized noise friendliness, nickel-plated heat pipes to prevent oxidation and oxidation, new through-bar fasteners, redefining the new benchmark of MINI cooler products.
New performance iteration
Optimising heat pipe performance
25% improvement in heat pipe load solving efficiency

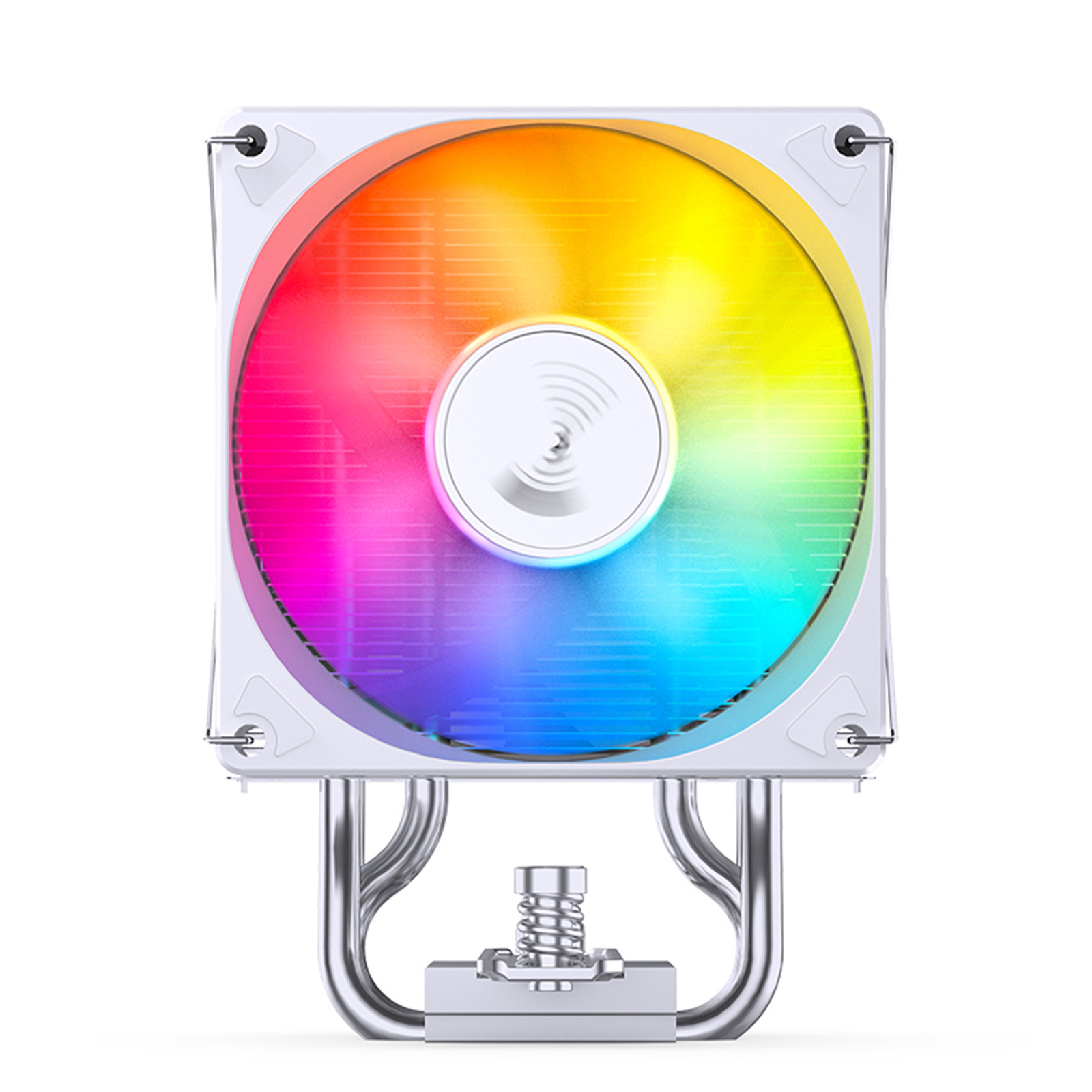

New fan iteration
9CM minimalist appearance
New low-noise design with sickle-shaped fan blades
The new look iteration
Top corrugated grille with light transmission channels
Large area carbon fiber sun textured texture

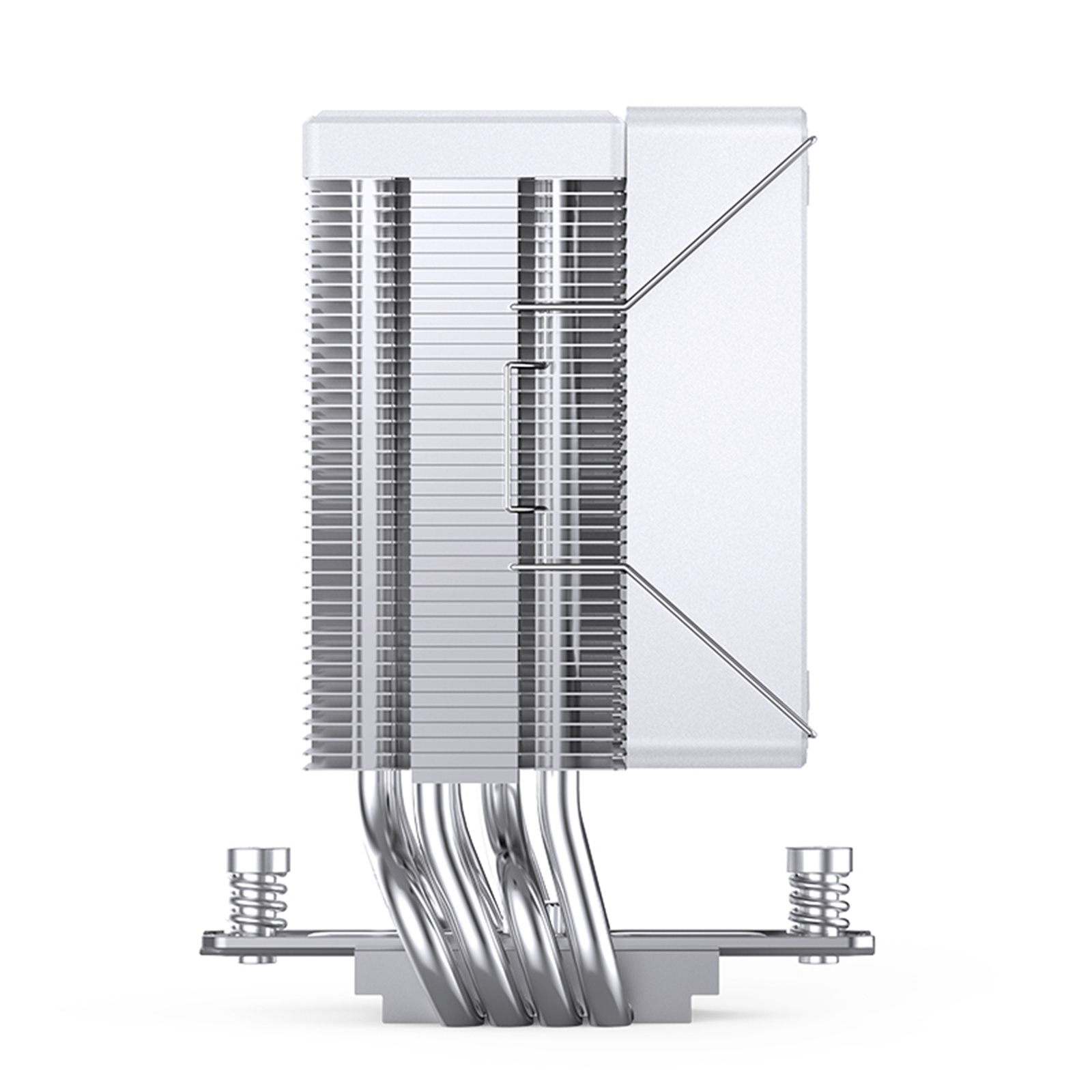

New heat pipe
Nickel plated heat pipes against oxidation
A new way of laying out
Better for heat transfer

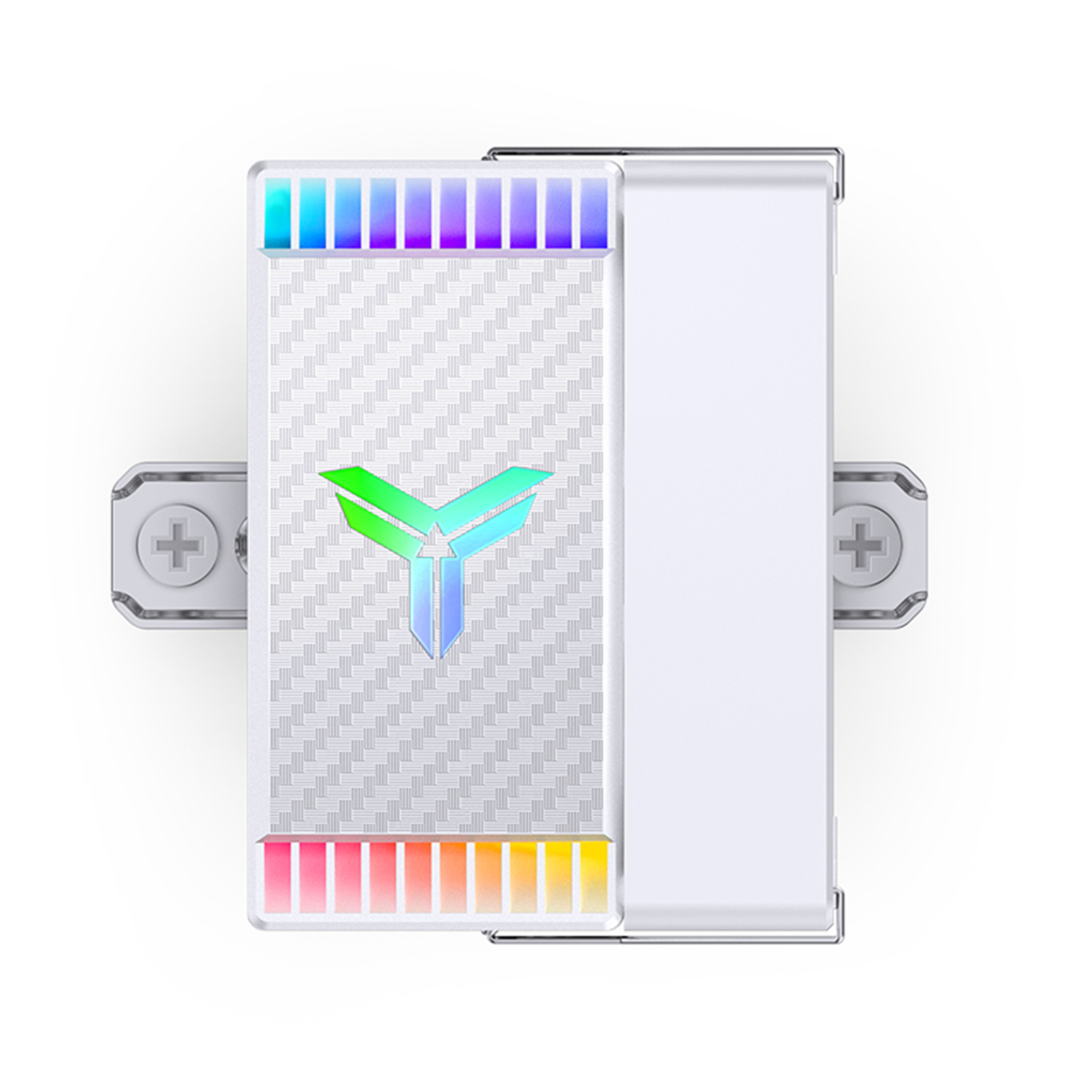

New integrated top cover
Carbon fibre sunburst texture over the end of the heat pipe to enhance the overall simplicity
No blocking of the memory position
Crooked neck heatpipe avoids memory, Full dispaly of memory (light effect)
Quick and easy installation without removing
Thoughtful packaging protection
Thoughtful wrapping to avoid transport damage
Specifications
Model
CR-1400 EVO ARGB White
Dimensions
92 mm(L)*70mm(W)*130mm(H)
Heatpipe size
F6mm*4PCS
D-TDP
180W
Fan Dimensions
92mm* 92mm* 25mm
Fan Speed
800 -2200RPM(±10%)
Fan Air Flow
11.95-38.2CFM(MAX)
Fan Air Pressure
0.25-2.0mmH2O
Fan Noise Level
22.3-33.8dB(A) (MAX)
Fan Bearing Type
Hydraulic bearing
Fan MTTF
=40000h @25?
Connector
FAN 4Pin PWM / LED 3Pin ARGB
Rated Current
Fan 0.19A(MAX) / LED 0.37A(MAX)
Rated Voltage
Fan 12V / LED 5V
Power Consumption
Fan 2.28W(MAX) / LED 1.85W(MAX)
Scope of Application
INTEL: LGA 1700/1200/115X
AMD: AM4/AM5
Net Weight
341g
