Silverstone Air Slimmer 90 Case Fan 92*92*15mm, PWM 500~2500rpm , Hydro bearing, Black Color
Silverstone Air Slimmer 90 Case Fan 92*92*15mm, PWM 500~2500rpm , Hydro bearing, Black Color
- Brand: Silverstone
- MPN: SST-AS90B
- Part #: FANSVT80900
- UPC: 844761025120
View all shipping info
- Brand: Silverstone
- MPN: SST-AS90B
- Part #: FANSVT80900
- UPC: 844761025120
What PB Tech customers are saying about this product...
See More Reviews
"Is a good exhaust fan as I’ve been upgrading my case fans.
Very quiet, well made, comes with a nice little extension.
I think it’s definitely worth that little bit more compar ...view more"
"Bought for an older Inwin PC case that needed a 92mm exhaust fan. Wasn't expecting much due to the size, but was very surprised by how much air these can shift without making an un ...view more"
COMBO DEALS: Frequently Bought Together





ProsKit SD-9857M DIY Tool 57 IN 1 Screwdriver Set For Cell Phone, Notebook, Electronic Field, Home,...
$27.03 +GST
$29.73
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Case Fans





Silverstone Air Slimmer 90 Case Fan 92*92*15mm, PWM 500~2500rpm , Hydro bearing, Black Color
- Brand: Silverstone
- MPN: SST-AS90B
- Part #: FANSVT80900
- UPC:844761025120

Product URL: https://www.pbtech.com/au/product/FANSVT80900/Silverstone-Air-Slimmer-90-Case-Fan-929215mm-PWM-5?is-review=1
Features

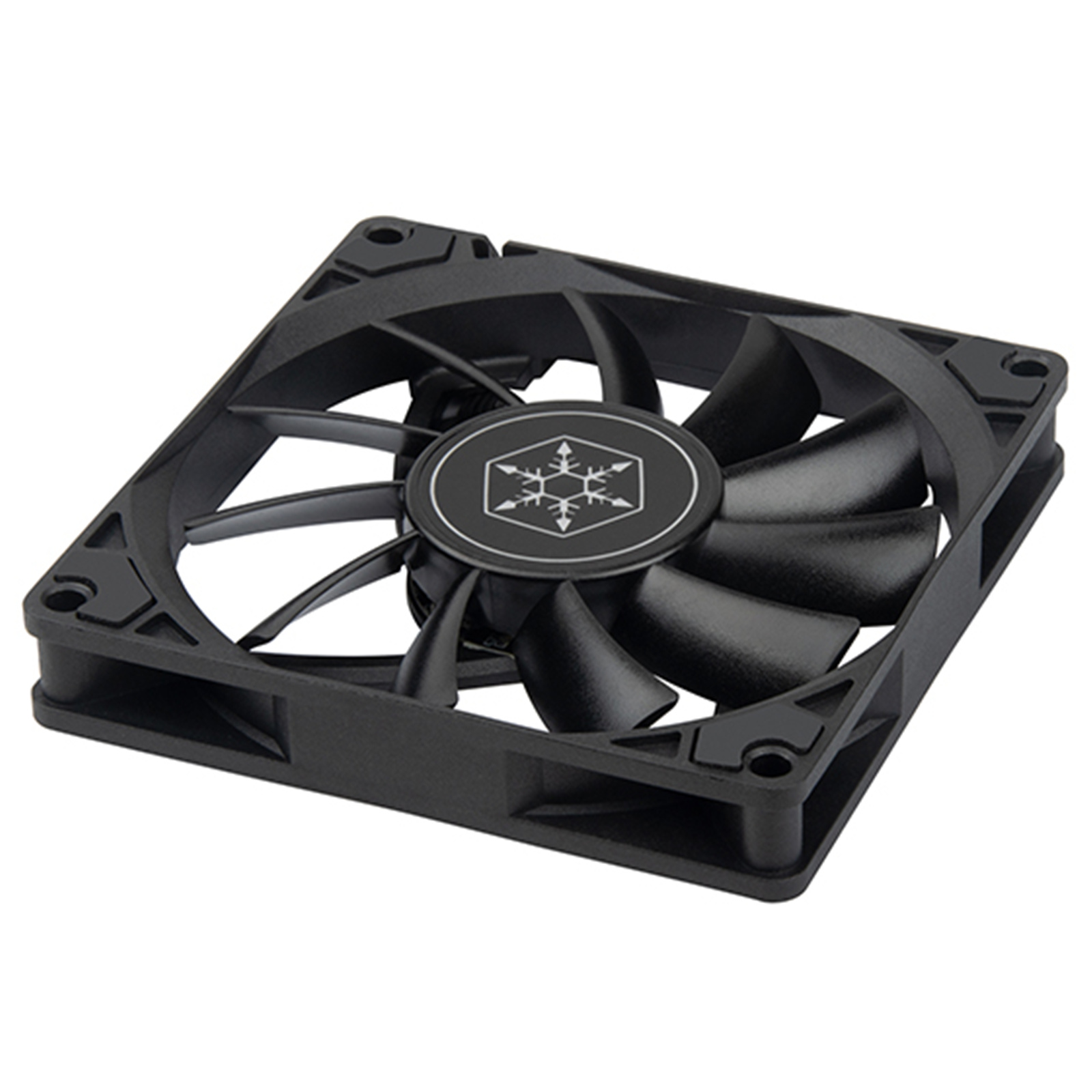

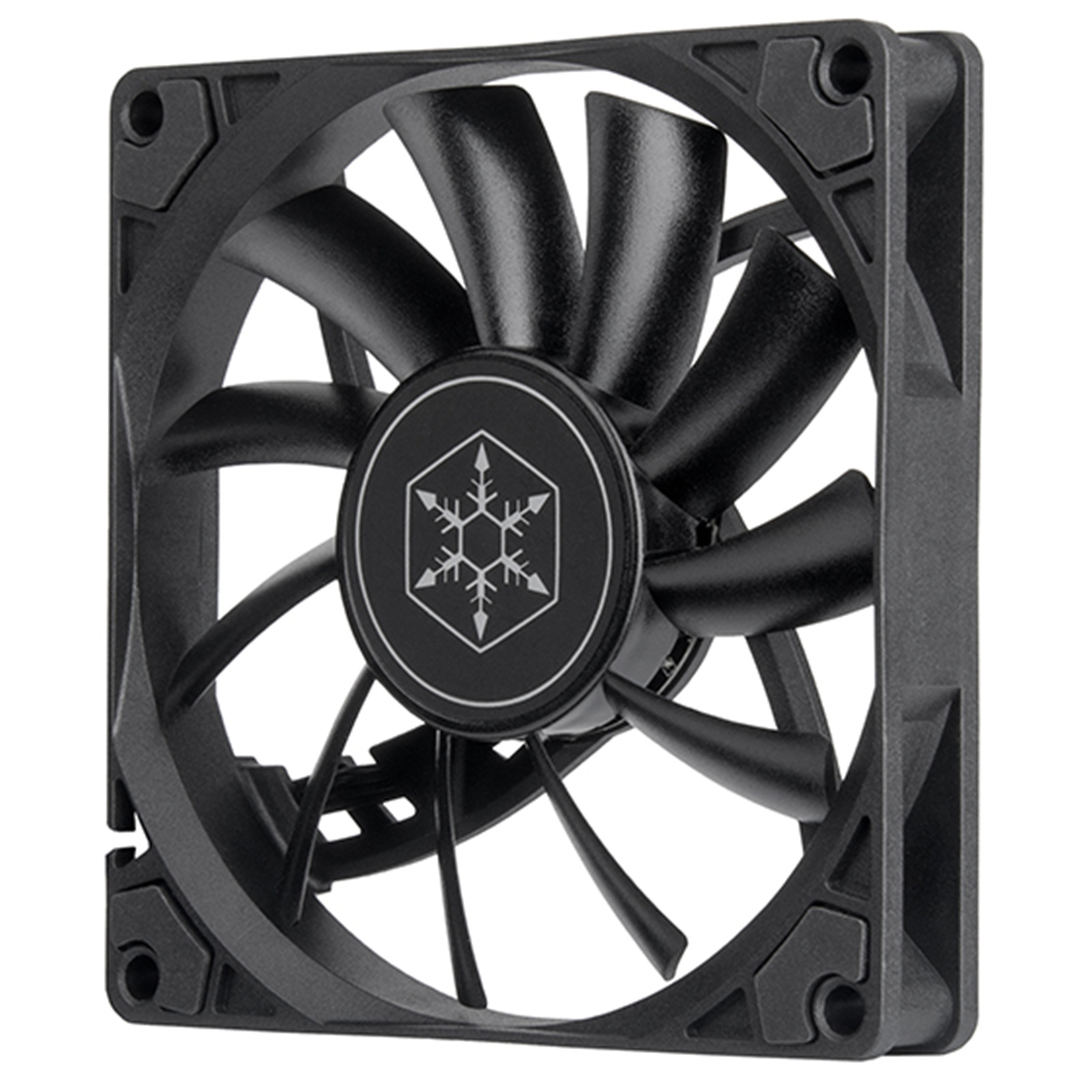

Air Slimmer 90
Enhanced performance 92mm slim fan with PWM
- 15.2mm thick slim fan, ideal for space-limited builds
- Staggering performance 92mm fan with great airflow and static pressure
- Wide 500~2,500 RPM speed range via PWM control

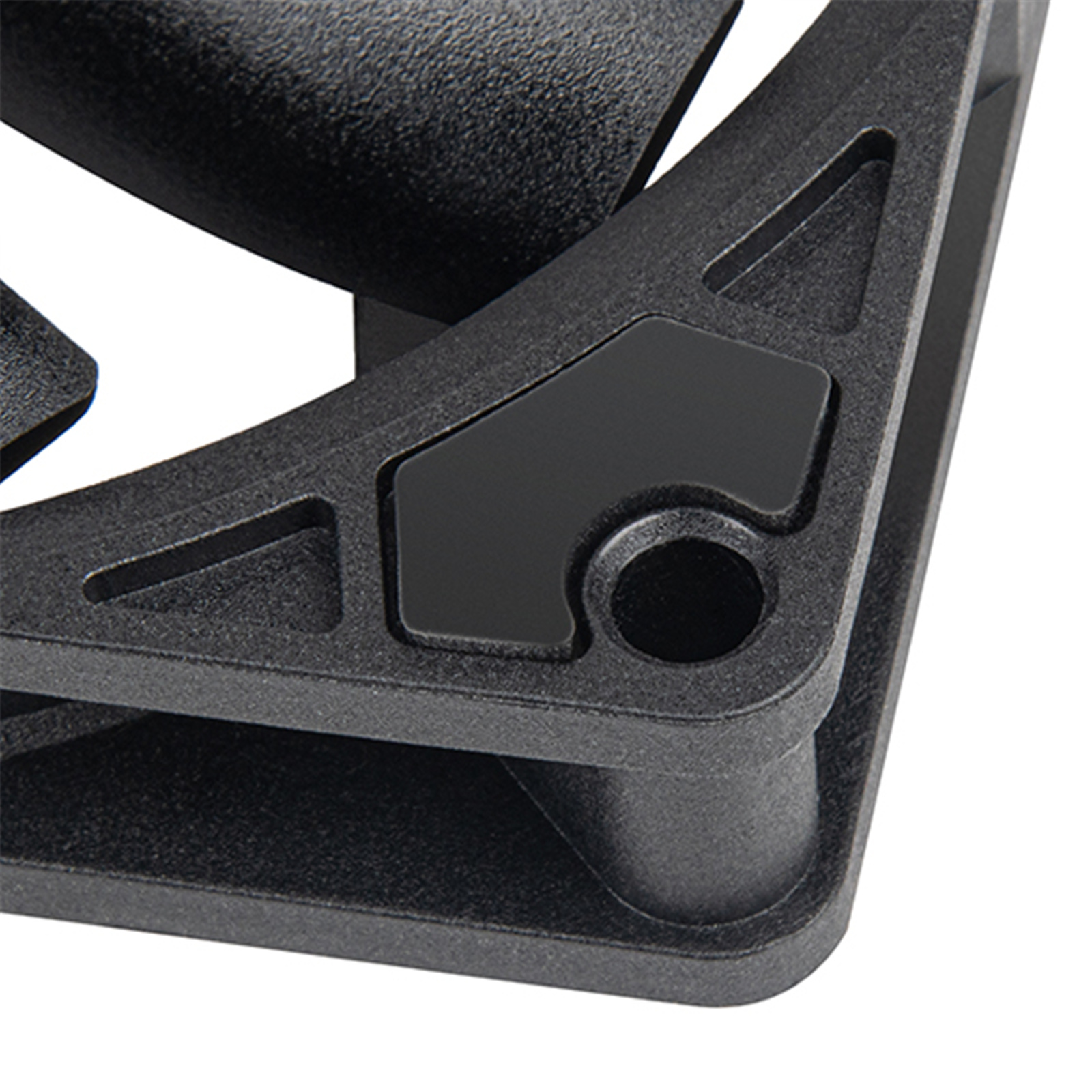

- Integrated rubber padding helps to further reduce vibrational noise
Ideal for SFF applications

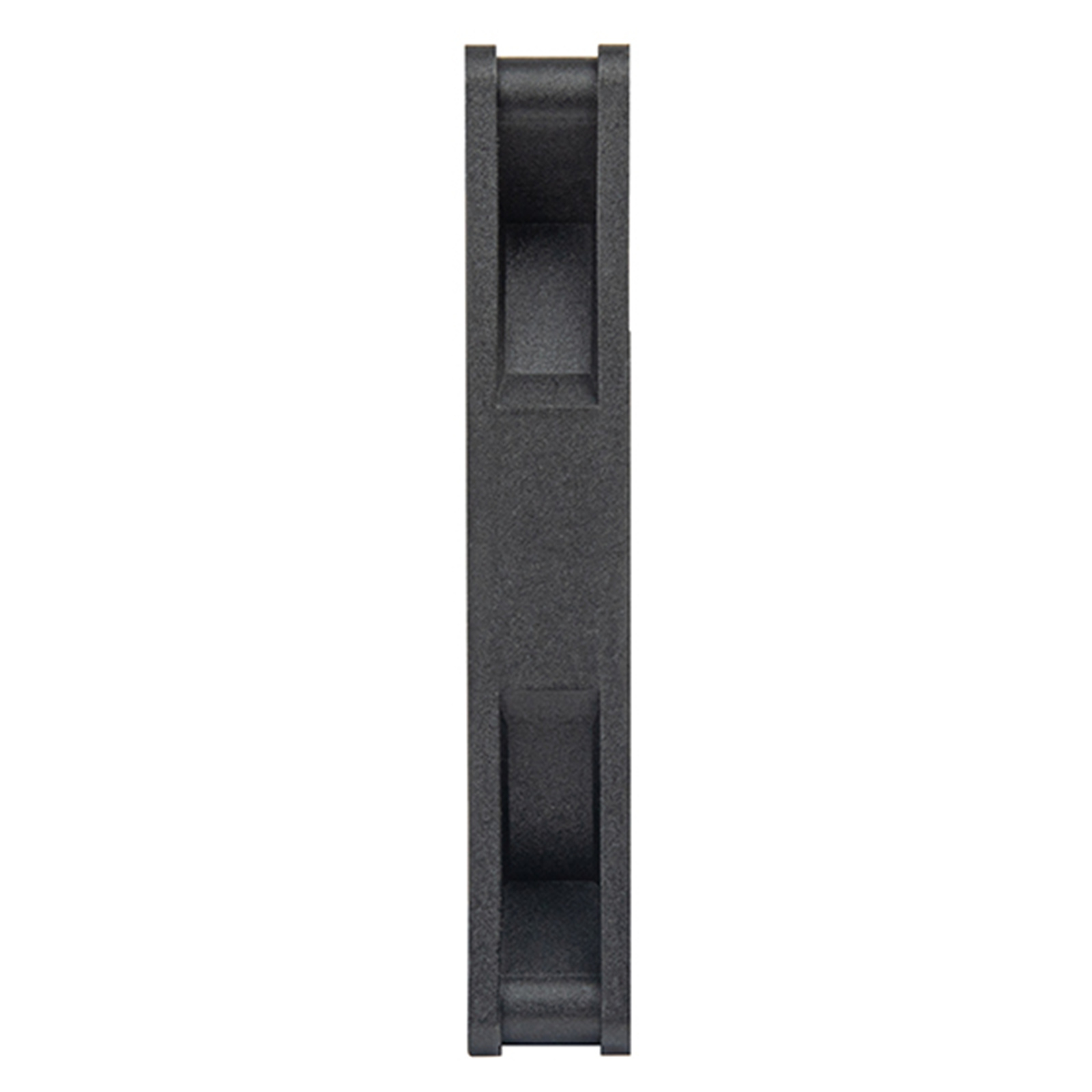

At only 15.2mm total thickness, the overall slim-profile design allows ease of installation with staggering cooling performance for space-limited systems.
An all-rounder!

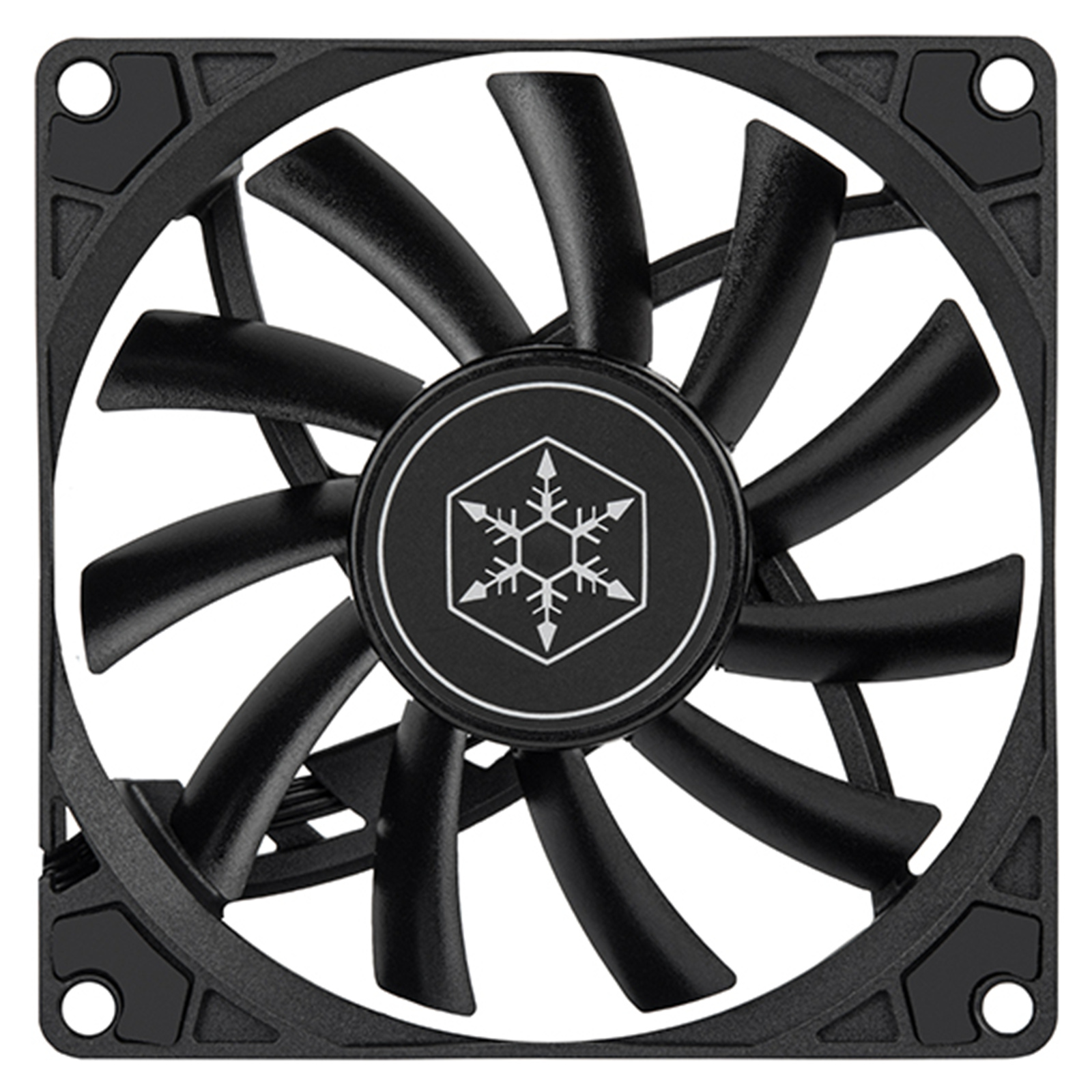

Engineered for heatsink & exhaust applications, the 11 high-efficiency fan blades provide large airflow volume with great resistance level.
Tailored performance on demand
Wide 500 ~ 2,500 speed range via PWM control
Specifications
Model No.
SST-AS90B
Material
Polycarbonate fan blades, PBT frame
Color
Black
Bearing
Hydraulic bearing

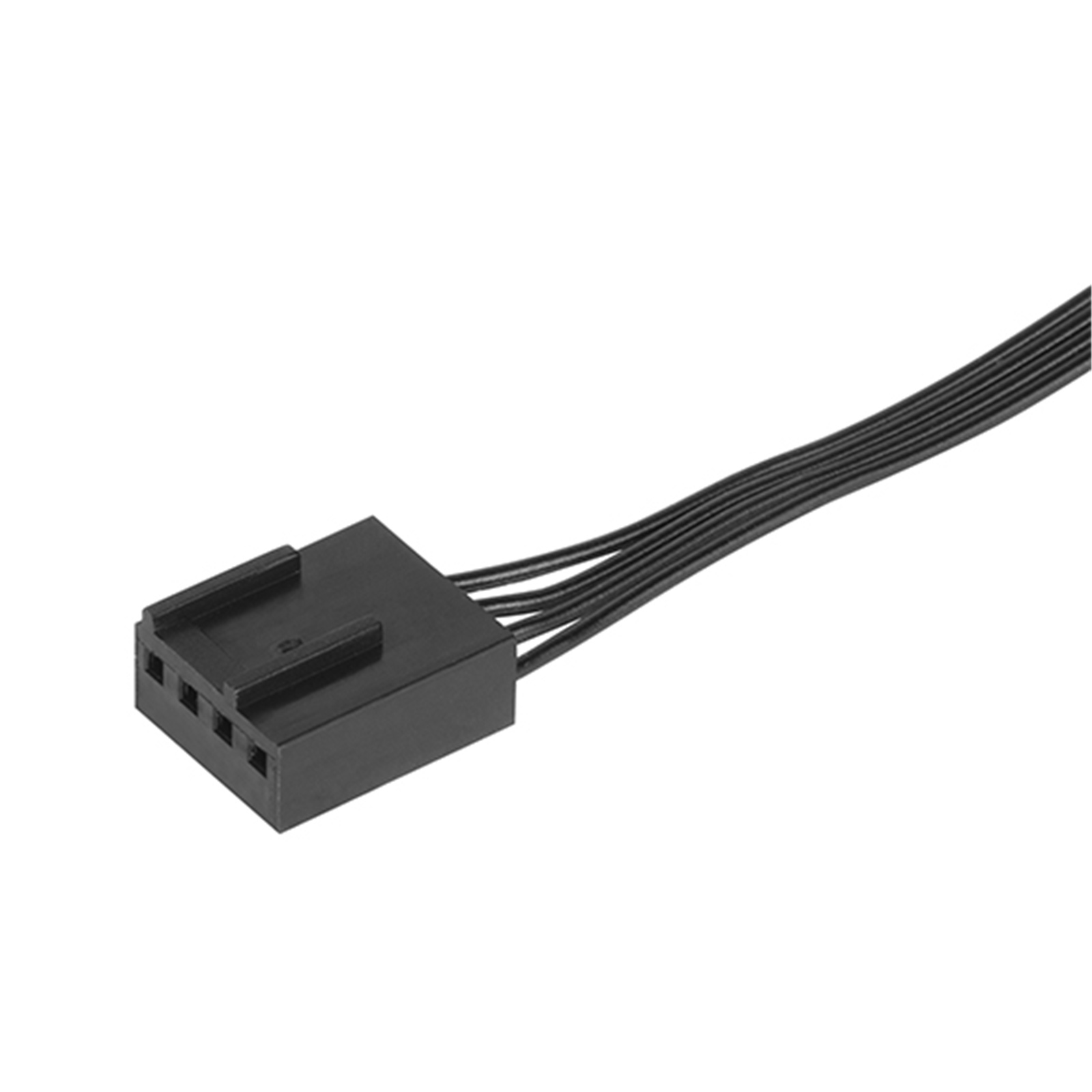

Connectors
4 pin PWM connector
Rated Voltage
12V
Starting Voltage
6V
Rated Current
0.32A
Rated Power
3.84W
Speed
500 ~ 2,500 RPM
Airflow
5.38 ~ 45.73 CFM
Static Pressure
0.11 ~ 2.29mmH2O
Noise Level
11.3 ~ 32 dBA
Dimension
92mm (W) x 15.2mm (H) x 92mm (D)
3.62" (W) x 0.6" (H) x 3.62" (D)
Weight
64g
Cable length
[4-pin PWM fixed cable] 300mm
