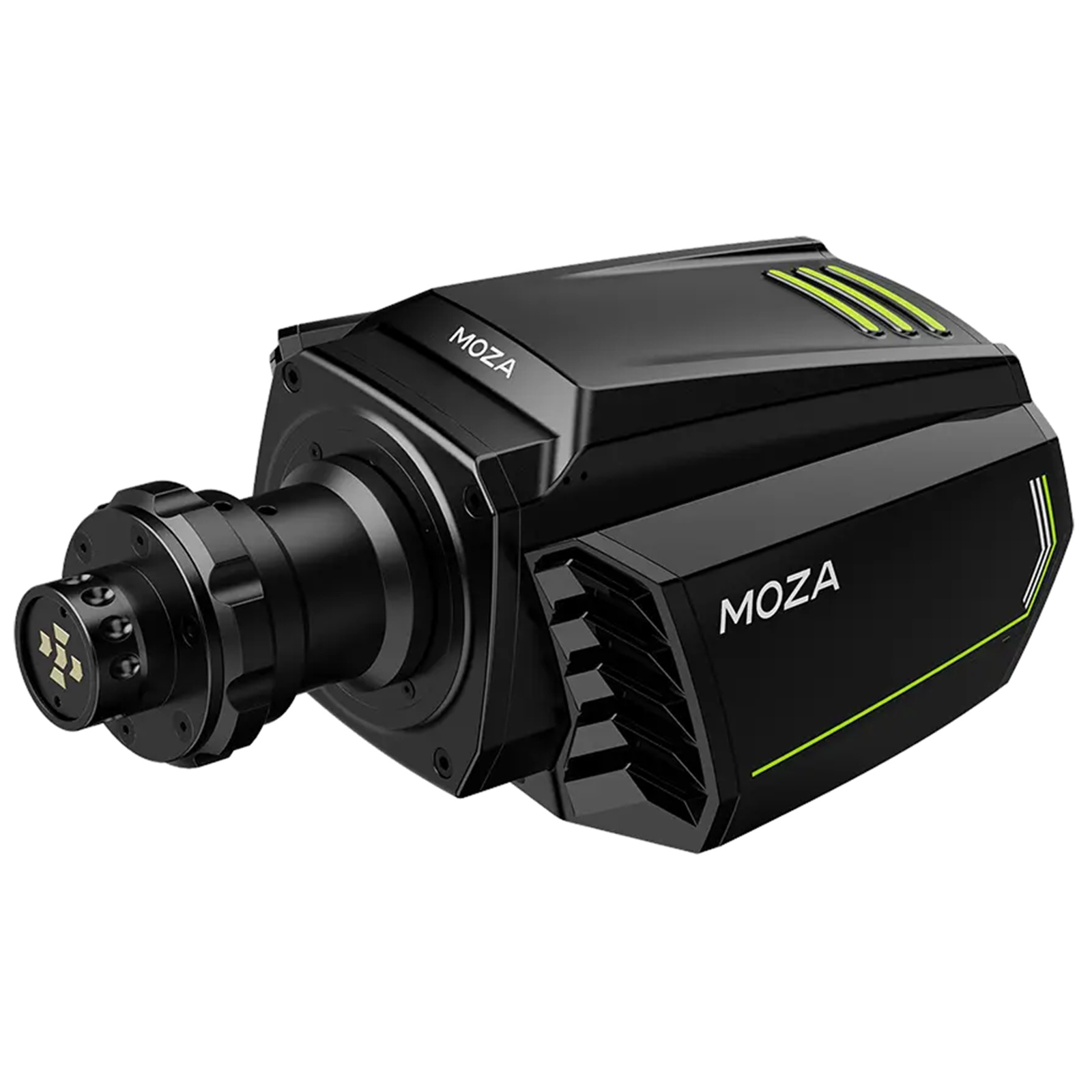

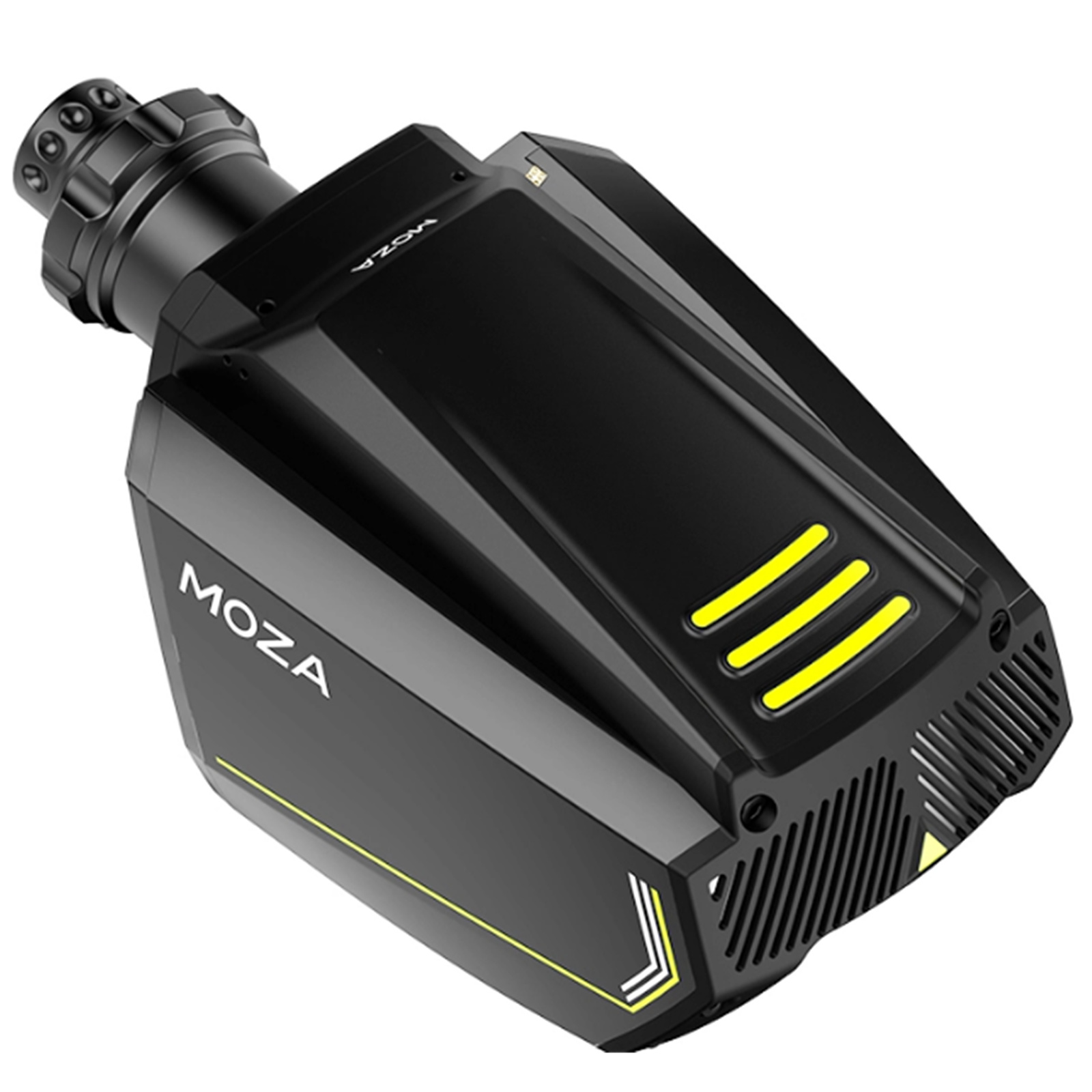

MOZA RS031 R16 DIRECT DRIVE WHEEL BASE - BLACK
Out of stock
MOZA RS031 R16 DIRECT DRIVE WHEEL BASE - BLACK
- Brand: MOZA
- MPN: RS031
- Part #: GAMMZA14841
- UPC: 743791914995
View all shipping info
- Brand: MOZA
- MPN: RS031
- Part #: GAMMZA14841
- UPC: 743791914995
Features
16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
21-Bit Magnetic Encoder
With 280MHz High-Performance Processor Divides each full rotation into 2,097,152 precise steps. Delivers microscopic 0.00017° resolution. Enables ultra-smooth control feel and instant response. Reproduces exceptionally detailed force feedback.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection. Effectively suppresses eddy current losses. Superior thermal management for sustained performance.
Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
Sturdy All-aluminum Body
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.
Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.
Speed-dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.
Force Feedback Equalizer
MOZA's FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.
One-click Launching
Save your game configuration in the MOZA Pit House launcher to quickly launch into a game from within the Pit House.
Multiple Connection Ports
With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.
Front Mount Compatibility
Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.
Specifications
Reviews
Accessories
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular PC Game Controllers
MOZA R5 Direct Drive Racing Simulator Bundle for PC
GameSir T4 Nova Lite Multi-Plalform Gaming Controller - Stella...
MOZA R3 Direct Drive Racing Simulator Bundle for Xbox & PC
Honeycomb Alpha Flight Controls Yoke & Switch Panel
Honeycomb Bravo Throttle Quadrant
MOZA RS031 R16 DIRECT DRIVE WHEEL BASE - BLACK
- Brand: MOZA
- MPN: RS031
- Part #: GAMMZA14841
- UPC:743791914995
Product URL: https://www.pbtech.com/au/product/GAMMZA14841/MOZA-RS031-R16-DIRECT-DRIVE-WHEEL-BASE---BLACK
Features
16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
21-Bit Magnetic Encoder
With 280MHz High-Performance Processor Divides each full rotation into 2,097,152 precise steps. Delivers microscopic 0.00017° resolution. Enables ultra-smooth control feel and instant response. Reproduces exceptionally detailed force feedback.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection. Effectively suppresses eddy current losses. Superior thermal management for sustained performance.
Intelligent Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
Sturdy All-aluminum Body
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.
Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.
Speed-dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.
Force Feedback Equalizer
MOZA's FFB equalizer allows full customization and fine-tuning of the FFB effects spectrum for a perfect setup in any conditions.
One-click Launching
Save your game configuration in the MOZA Pit House launcher to quickly launch into a game from within the Pit House.
Multiple Connection Ports
With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.
Front Mount Compatibility
Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.
Specifications
Platform
PC
FFB Drive System
Direct Drive
MOZA Pit House Control
Support
Max Steering Angle
90~2700°
Housing Material
Aviation Grade Aluminum Alloy
Color
Black
Peak Power
360W
Input voltage
110V~220V AC ->36V DC
USB Refresh Rate
1000Hz
V-shaped Struts
-
Encoder Resolution
21-Bit Magnetic Encoder with 280MHz High-Performance Processor
Indicator
YES
App Functions
Supported
Quick Release
Supported
Connection Ports
Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Box Contents
R16 V2 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method
Bottom mount
Side Mount Option
With optional side/front mount bracket
Desk Clamp
Optional
Emergency Stop Switch
Optional
Online Firmware Upgrade
Applicable
Firmware Update
Applicable
Dimension (L x W x H)(mm)
327*170*130
Weight
8.9kg
