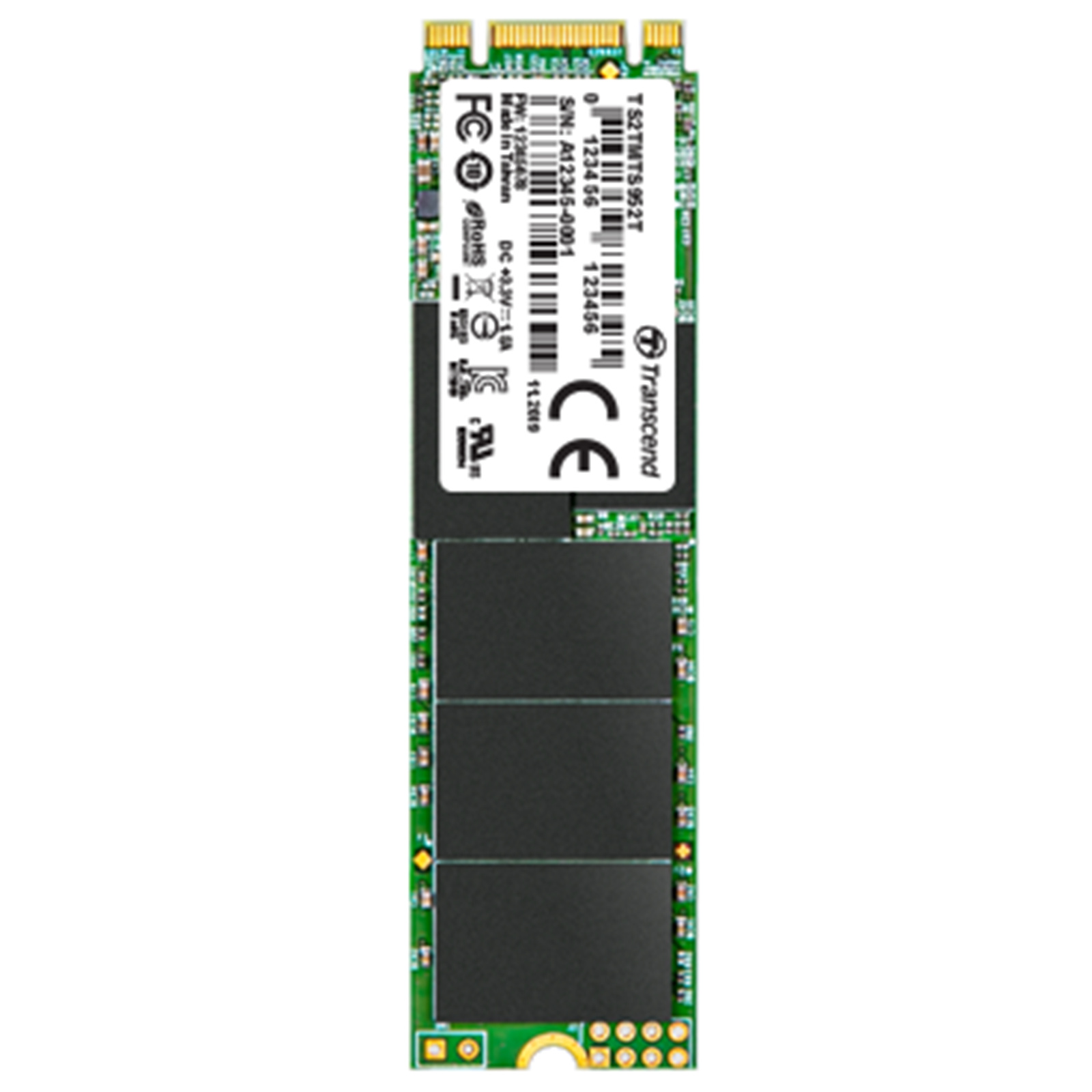

Transcend Embedded 128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, wide temp.
Transcend Embedded 128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, wide temp.
- Brand: Transcend Embedded
- MPN: TS128GMTS952T-I
- Part #: HDDTRSI11102
- UPC:
View all shipping info
- Brand: Transcend Embedded
- MPN: TS128GMTS952T-I
- Part #: HDDTRSI11102
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Storage / Memory





Transcend Embedded 128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, wide temp.
- Brand: Transcend Embedded
- MPN: TS128GMTS952T-I
- Part #: HDDTRSI11102

Product URL: https://www.pbtech.com/au/product/HDDTRSI11102/Transcend-Embedded-128GB-M2-2280-SSD-SATA3-BM-Key
Features
Transcend's MTS952T M.2 SSD features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to BiCS3 NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTS952T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
Transcend also offers the MTS952T-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (80mm) - ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software
Specifications
Appearance
Dimensions
80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight
9 g (0.32 oz)
M.2 Type
2280-D2-B-M (Double-sided)
Form Factor
M.2 2280
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
128 GB
Flash Type
3D NAND flash
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Standard Temp.0°C (32°F) ~ 70°C (158°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)
2.1 watt(s)
Power Consumption (Sleep)
0.4 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 560 MB/s
Write: up to 520 MB/s
4K Random Read/Write (IOmeter)
Read: up to 95,000 IOPS
Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 3,520 TBW
Drive Writes Per Day (DWPD)
1.61 (3 yrs)
