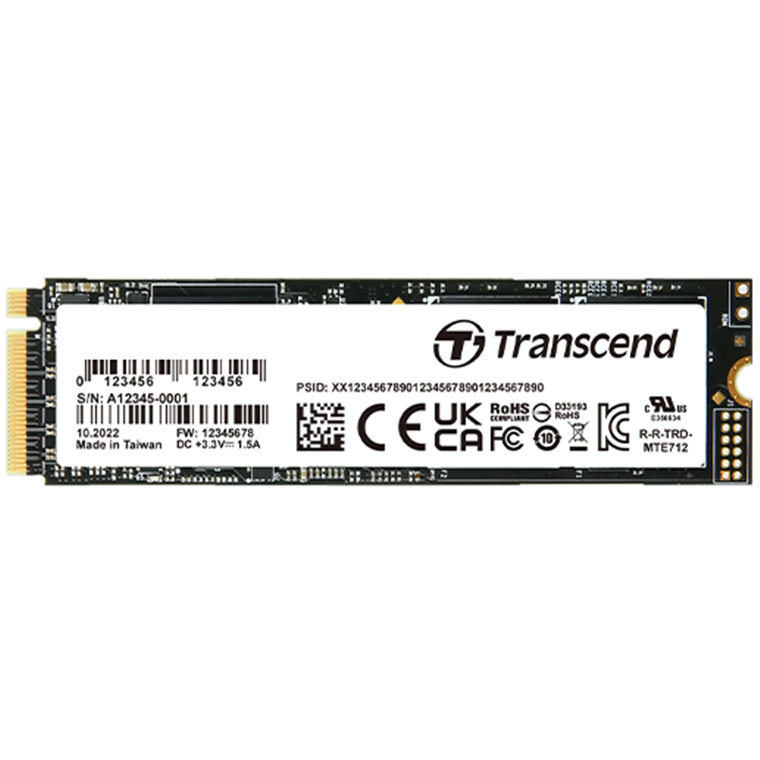

Transcend Embedded M.2 2280, 160GB, PCIe Gen4x4, NVMe, 3D TLC BICS5, Wide Temp, SLC mode, TCG OPAL, eDrive

PB Tech price

$ 158 .56

+GST

$ 174 .42

inc GST

Transcend Embedded M.2 2280, 160GB, PCIe Gen4x4, NVMe, 3D TLC BICS5, Wide Temp, SLC mode, TCG OPAL, eDrive

Brand: Transcend Embedded
MPN: TS160GMTE560I
Part #: HDDTRSI12126
UPC:

PB Tech price

$ 174 .42

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Transcend Embedded
MPN: TS160GMTE560I
Part #: HDDTRSI12126
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Transcend's M.2 SSD MTE560I features a PCI Express (PCIe) Gen4 x4 interface, 112 layers of 3D NAND flash, and SLC Mode technology, delivering high sustained speeds and SLC-grade durability. Its built-in DRAM cache enables fast random read and write speeds, and improves drive endurance. In addition, the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistors guarantee its reliability in harsh conditions. Transcend's MTE560I is also 100% chamber tested in-house for wide operating temperatures of -40?~85?.

Additionally, the MTE560I is a self-encrypting drive (SED) that complies with the TCG (Trusted Computing Group) 2.0 standards. Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address) sector-specific permissions.

Firmware Features

- Supports NVM command
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES)
- Compliant with TCG Opal specifications and IEEE 1667 standards

Hardware Features

- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.4
- Compliant with PCI Express specification 4.0
- Space-saving M.2 form factor (80mm) - ideal for mobile computing devices
- PCIe Gen 4 x4 interface
- DDR4 DRAM Cache embedded
- High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

Specifications

Appearance

Dimensions

80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight

9 g (0.32 oz)

M.2 Type

2280-D2-M (Double-sided)

Form Factor

M.2 2280

Interface

Bus Interface

NVMe PCIe Gen4 x4

Storage

Capacity

160 GB

Flash Type

112-layer 3D NAND flash (SLC mode)

Operating Environment

Operating Voltage

3.3V±5%

Operating Temperature

Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)

Humidity

5% ~ 95%

Shock

15 G, 11 ms, 3 axis

Vibration (Operating)

20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)

Power

Power Consumption (Operation)

5.6 watt(s)

Power Consumption (IDLE)

1.28 watt(s)

Performance

Sequential Read/Write (CrystalDiskMark)

Read: Up to 3,800 MB/s
Write: Up to 3,200 MB/s

4K Random Read/Write (IOmeter)

Read: Up to 350,000 IOPS
Write: Up to 330,000 IOPS

Mean Time Between Failures (MTBF)

3,000,000 hour(s)

Terabytes Written (TBW)

Up to 38,000 TBW

Drive Writes Per Day (DWPD)

54.2 (3 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Warranty

Certificate

CE/UKCA/FCC/BSMI

Warranty

Three-year Limited Warranty

Warranty Policy

Please click here for more information about the Transcend Warranty Policy.
Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
