Transcend Embedded 4TB, 2.5" SSD, SATA3, 3D TLC BiCS5, PE: 3K, wide temp.
- Brand: Transcend Embedded
- MPN: TS4TSSD470K-I
- Part #: HDDTRSI20006

Product URL: https://www.pbtech.com/au/product/HDDTRSI20006/Transcend-Embedded-4TB-25-SSD-SATA3-3D-TLC-BiCS5-P
Features

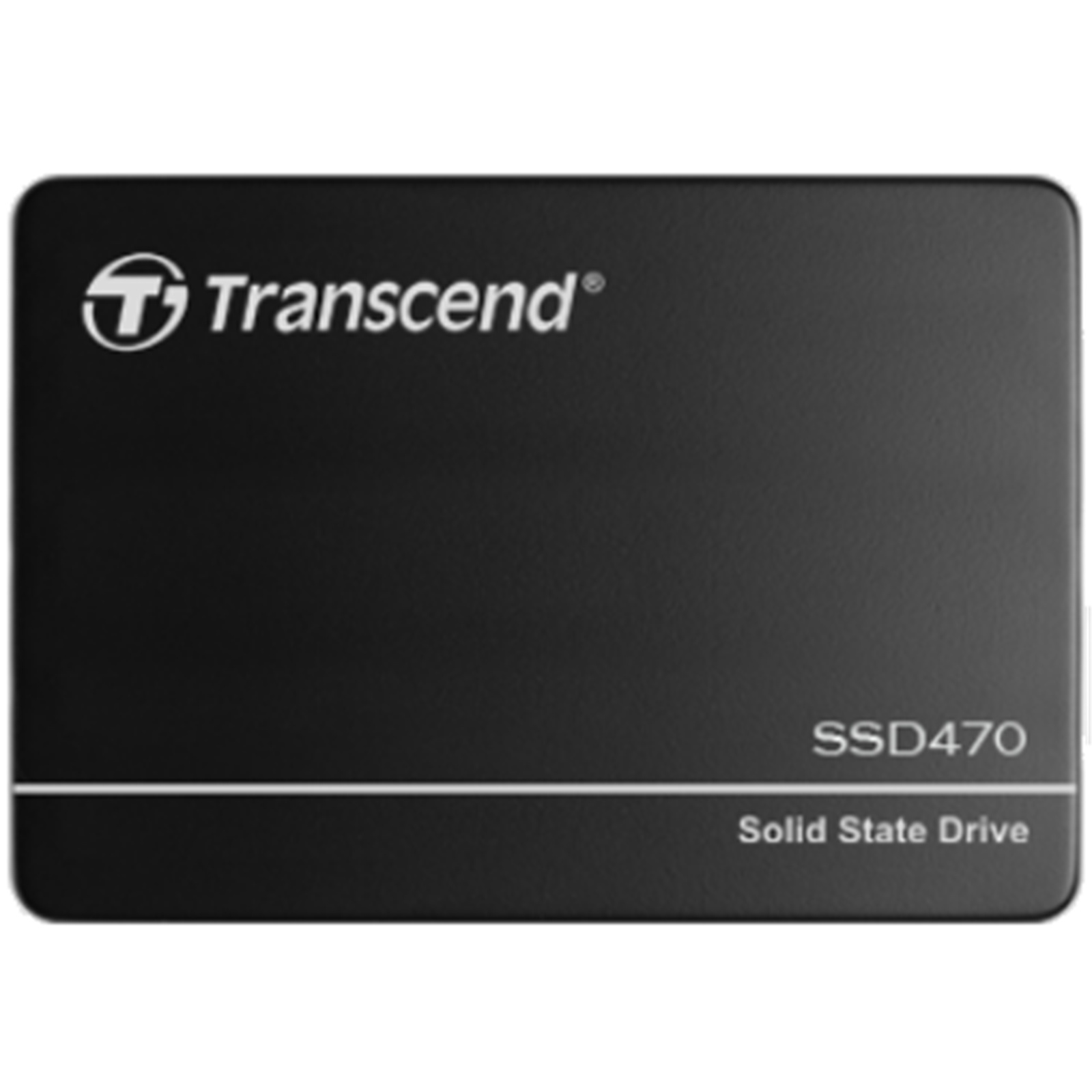

Transcend's SSD470K features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. The SSD470K is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20?~75?.
Transcend also offers the SSD470K-I with wide temperature (-40? ~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
Firmware Features
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)
Hardware Features
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
- Supports Transcend Scope Pro software
Specifications
Appearance
Dimensions
100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight
54 g (1.9 oz)
Form Factor
2.5"
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
4 TB
Flash Type
112-layer 3D NAND flash
Operating Environment
Operating Voltage
5V±5%
Operating Temperature
Extended Temp.-20°C (-4°F) ~ 75°C (167°F)
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation)
5 watt(s)
Power Consumption (Sleep)
1.3 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 560 MB/s
Write: up to 520 MB/s
4K Random Read/Write (IOmeter)
Read: up to 90,000 IOPS
Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 9680 TBW
Drive Writes Per Day (DWPD)
2.16 (3 yrs)
