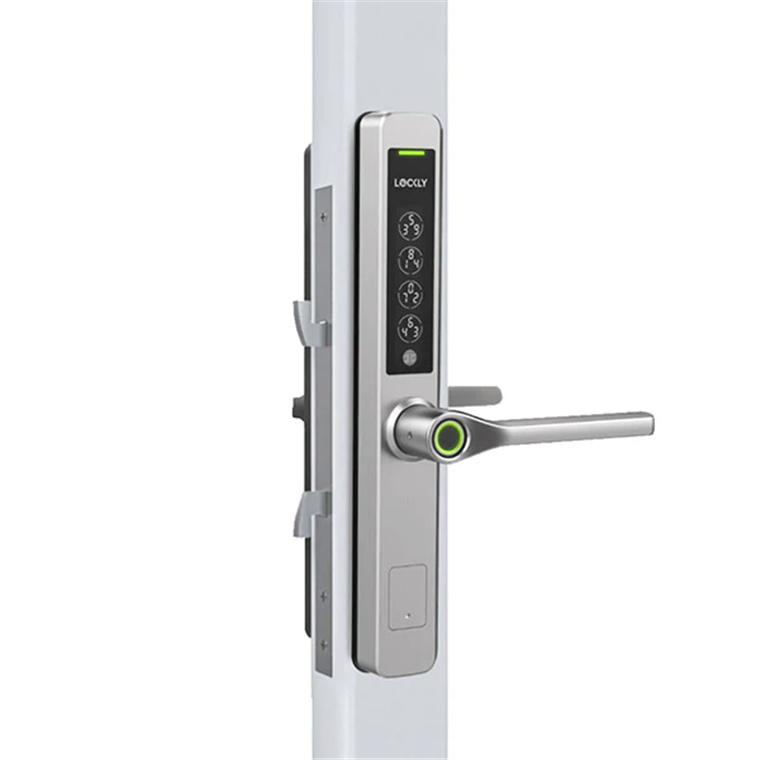

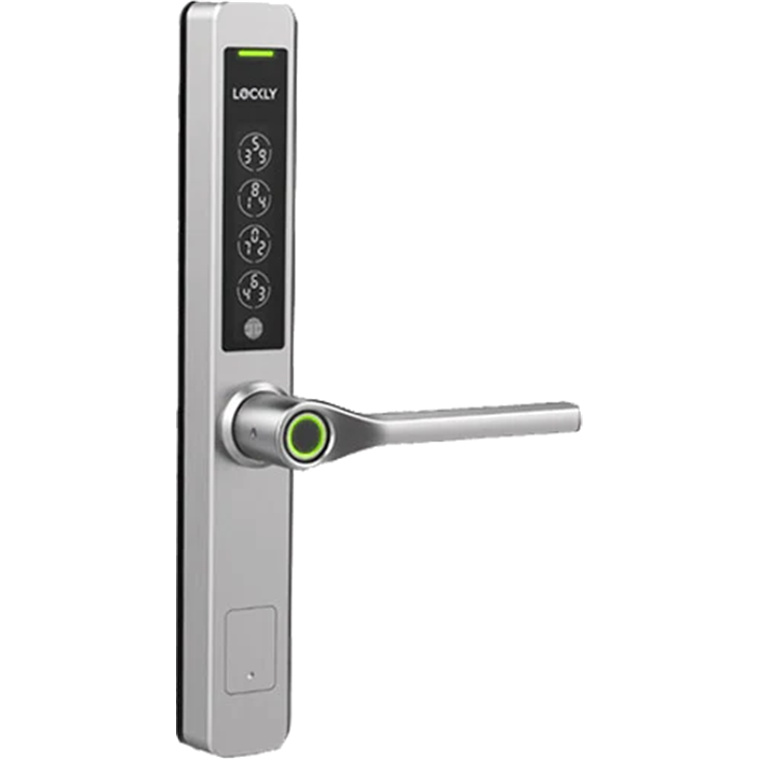

Lockly Guard ATHENA PGD228WSL Smart Latch Lock - Satin Nickel - Slide Edition
Backset 30mm / Fingerprint / Bluetooth / Passcode Patent / Includes WiFi & Sensor
Lockly Guard ATHENA PGD228WSL Smart Latch Lock - Satin Nickel - Slide Edition
Backset 30mm / Fingerprint / Bluetooth / Passcode Patent / Includes WiFi & Sensor
- Brand: Lockly
- MPN: PGD228WSLSS-118
- Part #: HOMLOK2284
- UPC: 810055601608
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"Works well."
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Smart Locks





Lockly Guard ATHENA PGD228WSL Smart Latch Lock - Satin Nickel - Slide Edition Backset 30mm / Fingerprint / Bluetooth / Passcode Patent / Includes WiFi & Sensor
- Brand: Lockly
- MPN: PGD228WSLSS-118
- Part #: HOMLOK2284
- UPC:810055601608

Product URL: https://www.pbtech.com/au/product/HOMLOK2284/Lockly-Guard-ATHENA-PGD228WSL-Smart-Latch-Lock---S?is-review=1
Features
LOCKLY GUARD™ ATHENA SLIDE EDITION
Access for thin framed sliding doors
Provides main entrance lever access and security for thin framed metal, aluminum or wooden sliding doors.
- Hack-proof PIN Genie® digital touchscreen
- 3D biometric fingerprint sensor access - Stores up to 99 fingerprints
- IPX4 rated for water protection
- Issue Offline Access Codes™ that do not require users to download an app or have WiFi or Internet connection to use
- Fast Pass MIFARE RFID access
- eKeys - Grant one-time use or specific time duration access by issuing codes, digital eKeys via a mobile device
- Grant access even when you're not home - Remotely lock and unlock your door from anywhere using the Lockly app
- Full control with smartphone and Lockly\OS ™
Note: This product is model number PGD228WSLSS-30
Specifications
Function
Narrow Stile Mortise Smart Lock
Dimensions (HxW)
12 5/16" x 1 5/8" (313mm x 42mm)
Fit
door frames 2" - 3" (50.8mm - 76.2mm)
Door handle
field reversible for L/R slide doors
Backset
1 3/16" (30mm)
Latch
1/2" (12.7mm) steel
Doorframe thickness
1" - 2 1/8" (25.4mm - 54mm)
Doorframe width
2" - 3" (50.8mm - 76.2mm)
Working environment
-5 ~ 170°F(-20 ~ 76°C)
Power Supply
AA Batteries x 4
Color
Stainless Steel
Included
Lockly Guard Athena Slide Edition smart lock
Mortise assembly
Secure Link Wifi Hub
Wired door sensor
MIFARE RFID Card x 3
Laser Cut Keys x 5
Installation screws
Strike plate
Strike plate housing
Back plate
AA alkaline batteries x 4
Quick start guide
Installation and user manuals
