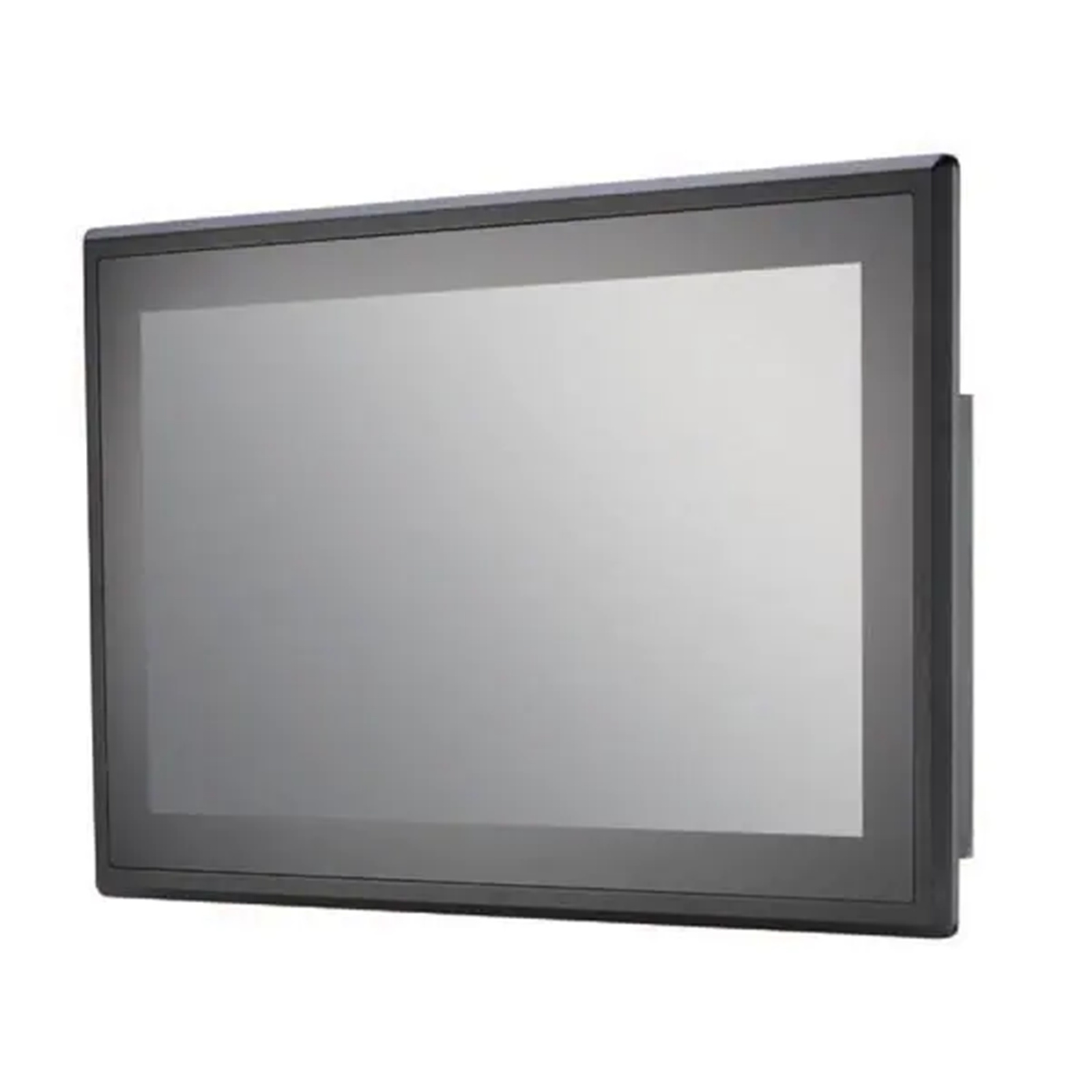

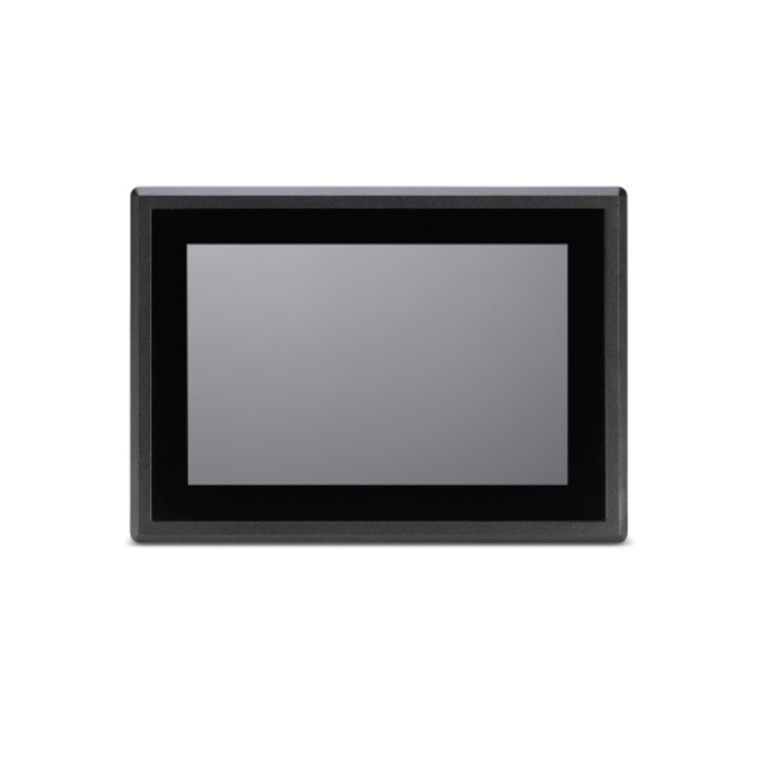

ADLINK STC-AL Series STC-10WP-E3950 4GB,64GB, Win10 IoT, 10.1", PCAP,1280 x 800, Intel Apollo Lake, E3950, M.2x, 2xCOM, 1x USB 2.0, 1x USB 3.0, 1x DP, 2x LAN
- Brand: ADLINK
- MPN: STC-10WP-E3950
- Part #: IPCADL00121

Product URL: https://www.pbtech.com/au/product/IPCADL00121/ADLINK-STC-AL-Series-STC-10WP-E3950-4GB64GB-Win10
Features
- 10.1"/12.1"/15.6" wide ratio TFT-LCD display with up to 1280 x 800 resolution
- 5-wire resistive touch sensor and optional 5-point projected capacitive sensor
- IP65-rated front bezel to deter water and dust ingress
- Robustness with wide 9- 36V DC input and optional -20°C to 60°C support
- Ease of installation with panel and optional VESA mount
- SEMA support and custom I/O and function expansion
Specifications
System
Processor
Intel Atom® x7-E3950 Processor
Main Memory
4GB DDR3L default (up to 8GB)
Storage
1 x M.2 slot (M Key)
Display
Size
10.1"
Resolution
1280 x 800
Luminance (Nits)
400 nits (w/o touch)
Backlight MTBF (Hrs)
50000
Contrast Ratio
1300:1
Viewing Angle (U/D/R/L)
85/85/85/85
Touch Screen
Projective capacitive sensor
5-wire resistive touch sensor (Optional)
Motherboard and System Components
I/O Port
1 x USB 2.0, Type A
1 x USB 3.0
2 x GbE LAN, RJ45
2 x COM ports, RS232/422/485 1 x DP port
1 x DC Power input
1 x Audio port (line out)
Expansion
1 x PCIe mini card with PCIe and USB interface
Wi-Fi and Bluetooth
802.11 a/b/g/n/ac and BT 4.0 (optional with PCIe mini card)
Operating System
Windows® 10 IoT En
Physical Characteristics
Construction
Aluminum front bezel and metal chassis
Weight
2.9kg
Dimensions (HxWxD) (mm)
283 x 202 x 53
Mounting Options
Panel Mount (Standard)
VESA Mount, MIS-D 100mm (Optional)
Working Environment
Operating Temperature
-20°C to 50°C
Storage Temperature
-20°C to 60°C
Operating Humidity
10% to 90% @ 40°C (non-condensing)
Vibration
1G random 5 to 500Hz
Shock
10G acceleration part to part, 11ms
