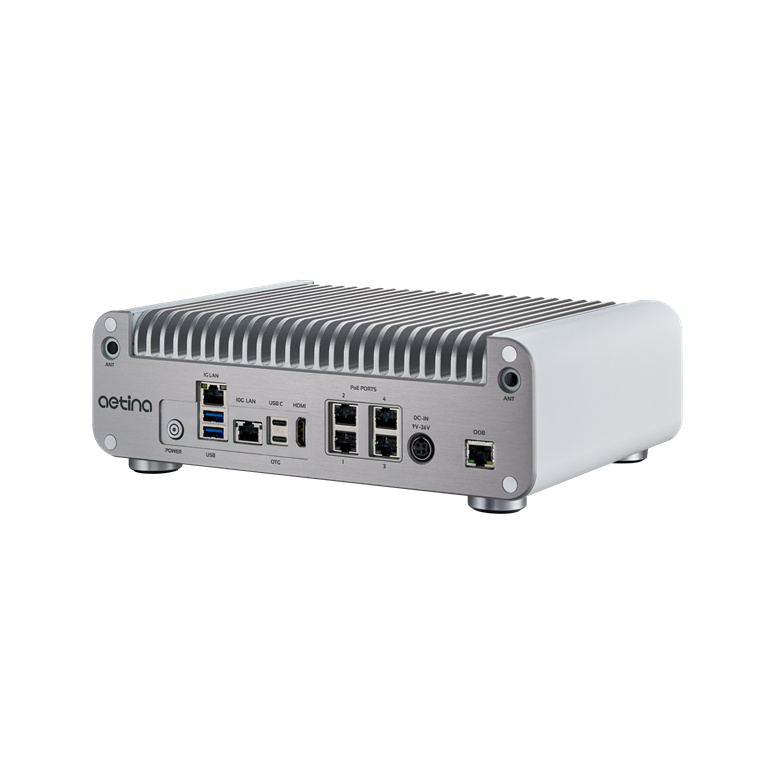

Aetina Fanless System AGX ORIN 64GB 1 x HDMI, 1 x GbE, 1 x 10GbE, 4 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25 C + 55 C

PB Tech price
PB Tech price
$ 5,830 .69
 +GST
$ 6,413 .76
 inc GST
$5,830.69  +GST
$6,413.76

Aetina Fanless System AGX ORIN 64GB 1 x HDMI, 1 x GbE, 1 x 10GbE, 4 x PoE, 3 x USB, B/E/M Key, 9 to 36 VDC input, -25 C + 55 C

  • Brand: Aetina
  • MPN: AIE-PX22
  • Part #: IPCAEA10055
  • UPC:
PB Tech price
$ 5,830 .69 $ 6,413 .76
 +GST  inc GST


Delivery: Order now and it ships on 21 Oct
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$5,830.69  +GST
$6,413.76

Features

- Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module

- 2/4 x IEEE 802.3af GbE PSE ports

- 1 x GbE port, 1 x 10GbE port

- 1 x M.2 B-Key, 1 x M.2 E-Key, 1 x M.2 M-Key slot

- Wide input voltage range from 9 to 36 VDC

- Operating Temperature -25°C ~ +55°C

- Fanless Design



-- 8 x AI performance enables AI inference with low latency

NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency.

-- Comprehensive M.2 expansion, PSE and LAN ports

 AIE-PX22 are fanless systems with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.

-  Wide input power and fanless design for smart city and smart agriculture

To cater to diverse applications, such as smart city and smart agriculture, where cost-effective maintenance and improved reliability are crucial, AIE-PX22 have been specifically designed with a fanless and silent mechanism. These systems are capable of operating within a wide temperature range of -25°C to 55°C. Additionally, they support a wide input power range from 9 to 36 VDC, enabling flexible power supply options.


* AIE-PX22 are preliminary products, so the specifications are subject to change without prior notice.

Specifications

Model Number

AIE-PX22

Module Compatibility

NVIDIA Jetson AGX Orin 64GB

AI Performance

275 TOPS

GPU

2048-core NVIDIA Ampere GPU with 64 Tensor Cores

CPU

12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3

Memory

64GB 256-bit LPDDR5 204.8 GB/s

Storage

64GB eMMC 5.1

Display

1 x HDMI 2.0 Type A

TPM

TPM v2.0 (optional)

LAN

1 x RJ-45 GbE, 1 x RJ-45 10GbE

PoE Interface

4 x RJ-45 GbE PSE
(IEEE 802.3af compliant, Power Output 15W/Port)*
*PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W

USB

2 x USB 3.2 Gen1 Ty pe A, 1 x USB 2.0 (DB-15), 1 x OTG Ty pe-C, 1 x USB 3.2 Gen2 Ty pe-C/td>

I/O Interfaces

2 x I2C,
1 x SPI,
5 x GPIO,
2 x UART,
1 x RS-232,
1 x RS-422/485 (2-in-1),
2 x CAN 2.0b (isolation; support CAN FD),
1 x microSIM Card Slot,
1 x OOB (optional)

Expansion

1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2280 (supports NVMe; PCIe x2 Gen3)
1 x microSD Card Slot

MISC. Function

1 x Power / 1 x Recovery / 1 x Reset Button

Power Input/Connector

DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector

Power Consumption

Idle: 8 W
Full Loading: 130* W
*For more test condition information, please refer to user manual

Dimension (WxDxH)

270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)

Mounting

Wall Mount (optional) / Din Rail (optional)

Net Weight

4.3 kg (9.48 lb)

Vibration

1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock

10 G, IEC 60068-2-27, half sine, 11 ms duration

Temperature

Operating Temperature: -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s airflow
Storage Temperature: -40°C ~ +85°C (-40°F ~ +185°F)

Humidity

95% @ 40°C (104°F) (non-condensing)

Software Support

Linux (Support Jetpack 5.0 above)

Certification

CE / FCC Class A / UKCA

Manufacturer Part No:
AIE-PX22
Brand:
Aetina
Product Type:
-
UPC
-
Product Family:
Fanless System
Shipping Weight:
1 kg
PB Part No:
IPCAEA10055
Product Model:
AGX ORIN 64GB
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
