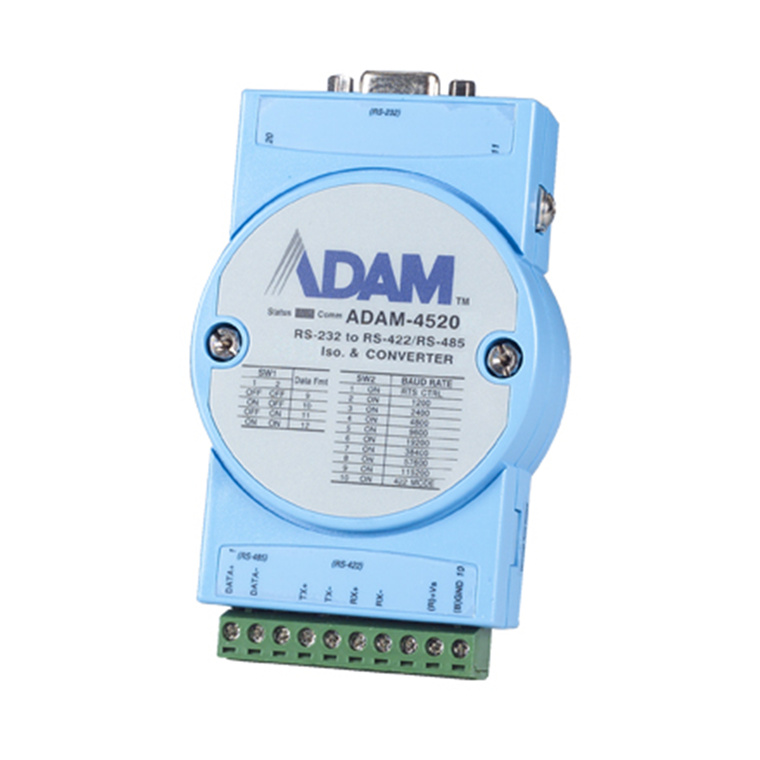

Advantech ADAM-4520-F Isolated RS-232 to RS-422/485 Converter
- Brand: Advantech
- MPN: ADAM-4520-F
- Part #: IPCAVH010008

Product URL: https://www.pbtech.com/au/product/IPCAVH010008/Advantech-ADAM-4520-F-Isolated-RS-232-to-RS-422485
Features
- Automatic RS-485 data flow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- LED indicator to monitor status
Specifications
General
Connectors
1 x plug-in terminal block
(#14 ~ 22 AWG)
(RS-422/485)
1 x DB9-F (RS-232)
Isolation Voltage
3,000 VDC
Power Consumption
Typical: 0.8 W @ 24 VDC
Max.: 1 W @ 24 VDC
Serial Communications
Input
RS-232 (DB9)
Output
RS-485 (2-wire) or RS-422 (4-wire)
Speed Modes (bps)
1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, RTS control and RS-422 (switchable)
