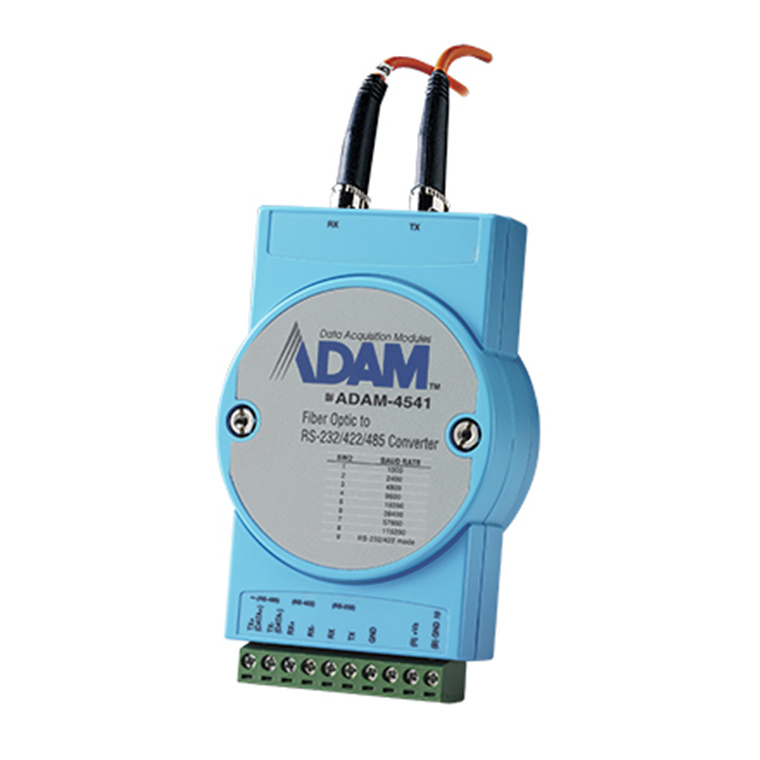

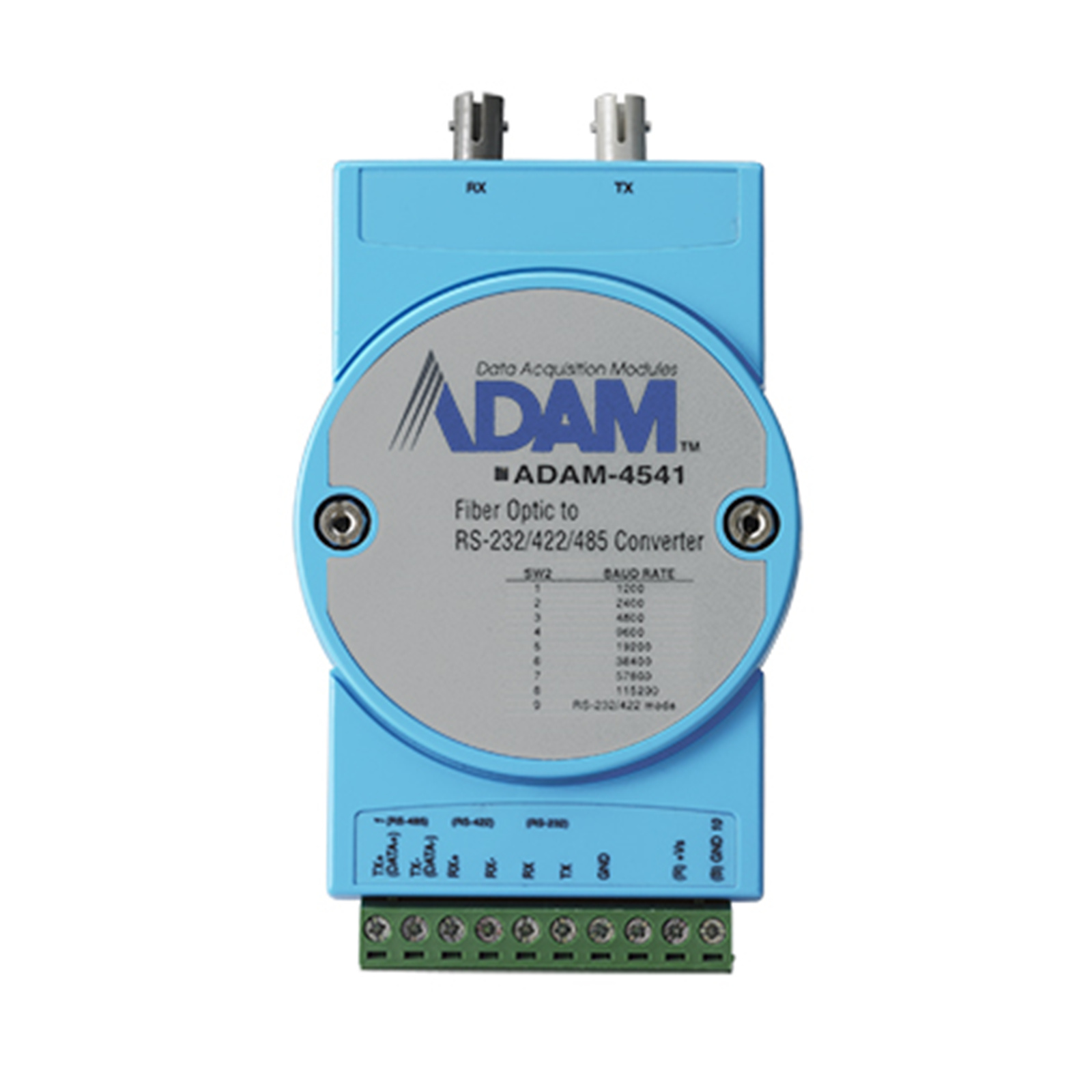

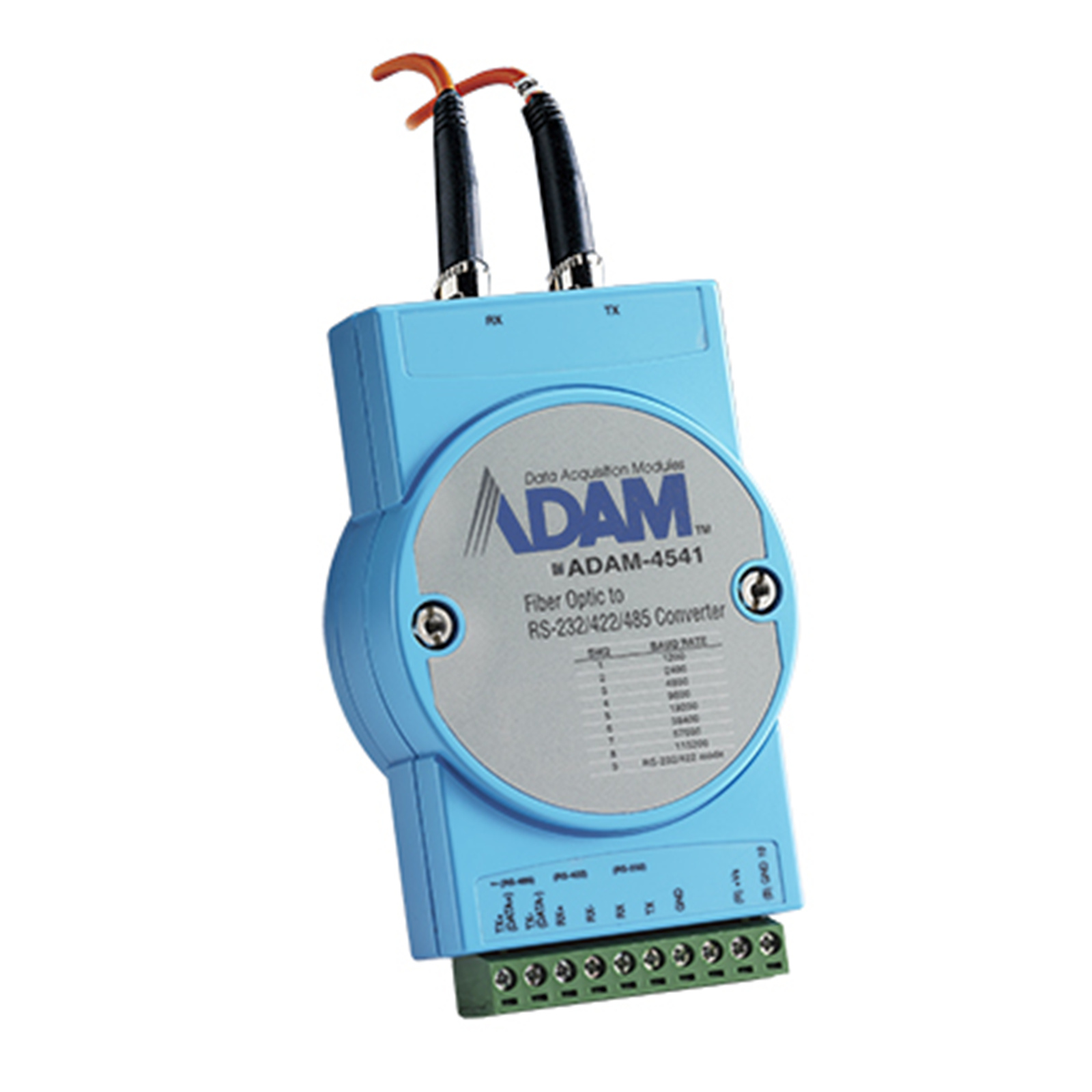

Advantech ADAM-4541-C Multi-mode Fiber Optic to RS-232/422/485 Converter
- Brand: Advantech
- MPN: ADAM-4541-C
- Part #: IPCAVH010010

Product URL: https://www.pbtech.com/au/product/IPCAVH010010/Advantech-ADAM-4541-C-Multi-mode-Fiber-Optic-to-RS
Features
- 2 x ST fiber connector
- Operation mode: Point-to-Point, and Ring (half-duplex)
- Half/Full-duplex, bidirectional transmission mode
- Automatic RS-485 data flow control
- LED indicator to monitor status
Specifications
General
Power Input
Unregulated 10 ~ 30 VDC
Connectors
1 x plug-in terminal block
(#14 ~ 22 AWG)
(RS-232/422/485)
2 x ST fiber connector
Power Consumption
0.4 W @ 24 V DC typ.
0.7 W @ 24 V DC max.
Operation Modes
Support Point-to-Point,and Ring (half-duplex)
Fiber Optic Communications
?Optical Power Budget
15 dB (measured with (Attenuation) 62.5/125 µm)
Transmission
2.5 km
?Transmission Mode
Multi mode (Send and Receive)
Wavelength
820 nm
Serial Communications
?Communication
Asynchronous Mode
Speed Modes (bps)
1200, 2400, 4800, 9600, 19.2 k, 38.4 k, 57.6k, 115.2 k and RS-232/422 mode (switchable)
Transmission Mode
Full/half duplex, bidirectional
