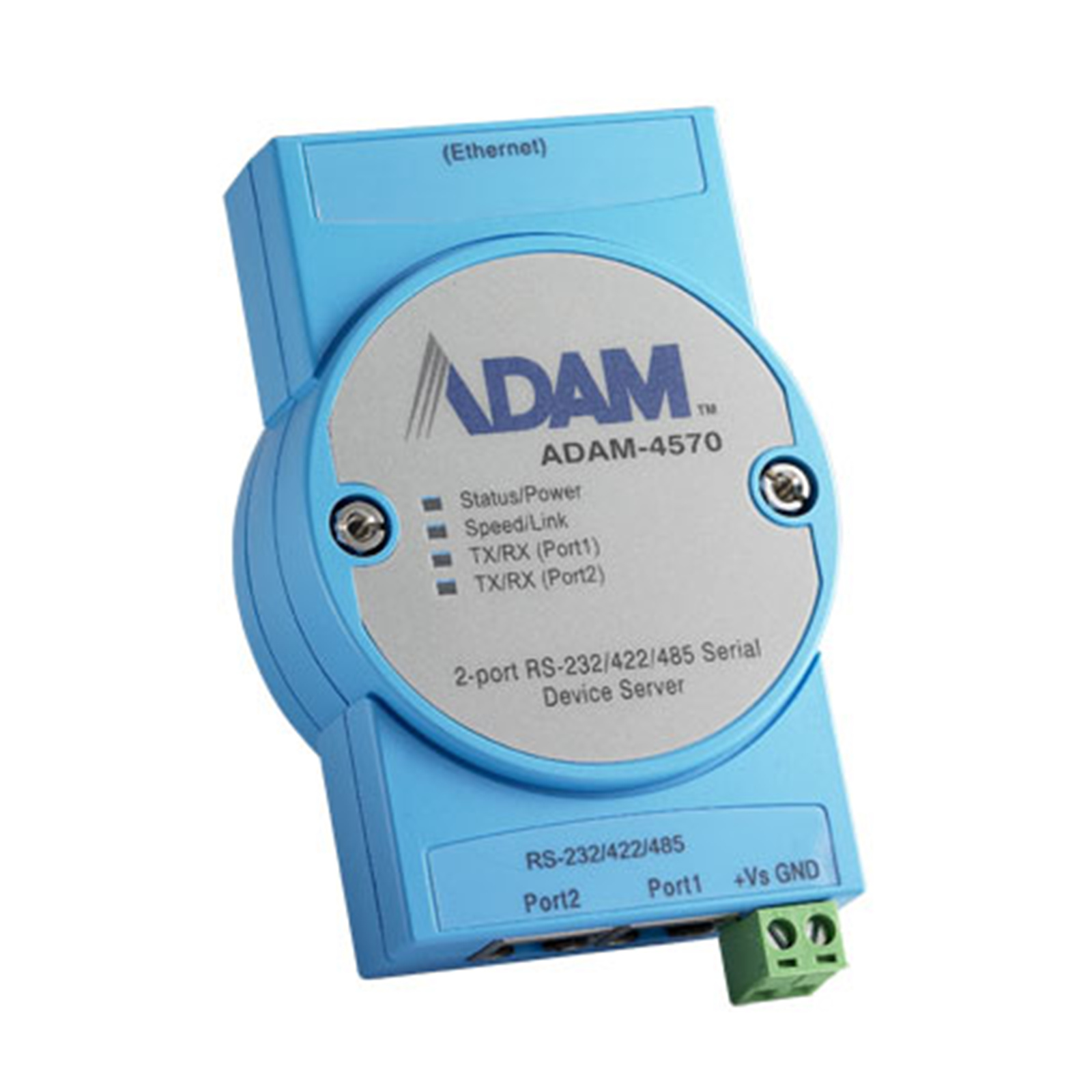

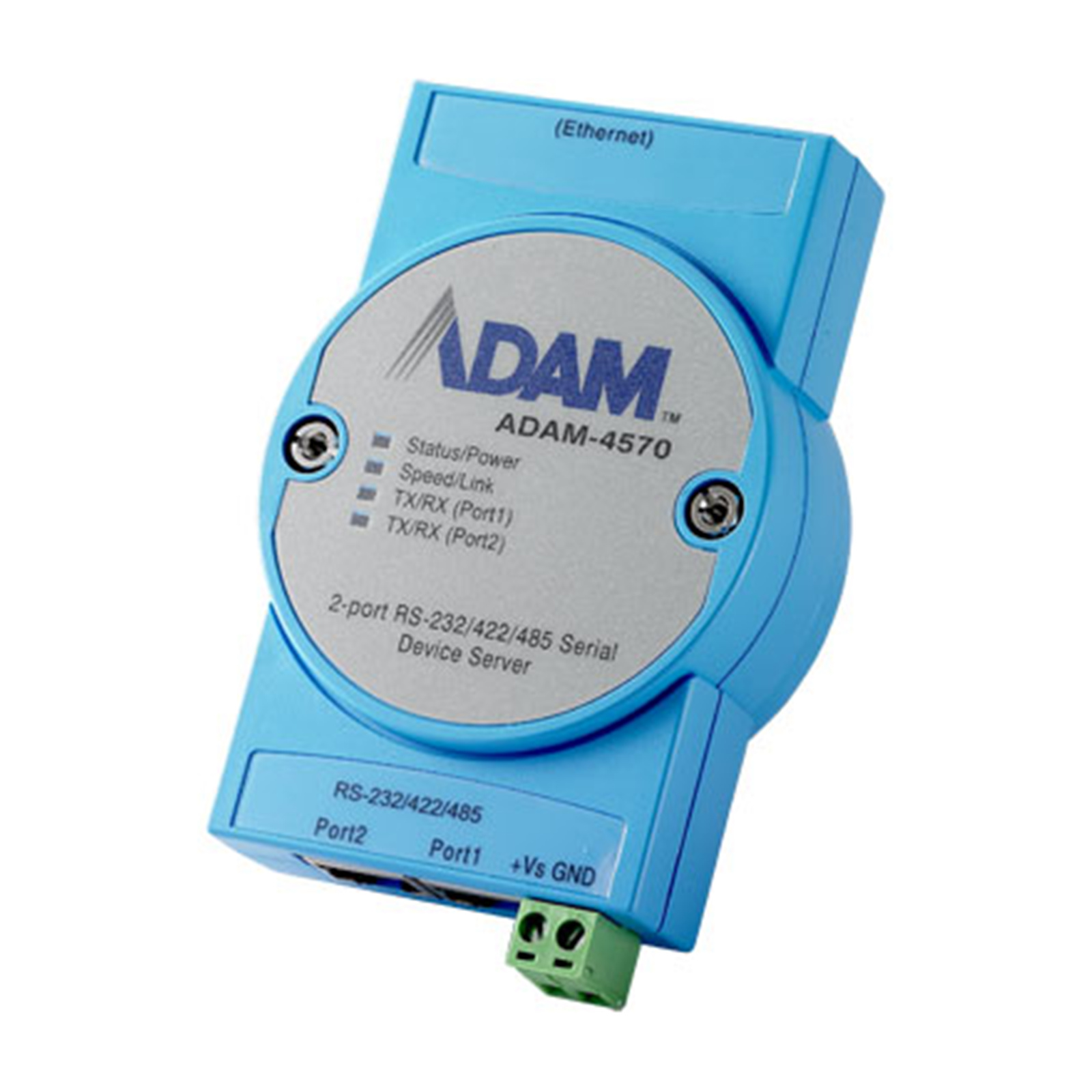

Advantech ADAM-4570-CE 2-Port Serial Device Server
- Brand: Advantech
- MPN: ADAM-4570-CE
- Part #: IPCAVH010014

Product URL: https://www.pbtech.com/au/product/IPCAVH010014/Advantech-ADAM-4570-CE-2-Port-Serial-Device-Server
Features
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and dataaccessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can useWindows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future networkexpandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC andyour RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the localnetwork, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meetyour needs.
- Supports RS-232/422/485 serial communications
- Supports baud rate up to 921.6 kbps
- Allows a max. of 5 hosts to access one serial port
- Allows a max. of 16 hosts to be accessed as TCP client mode
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports auto re-connection function
- Supports Windows 2000/XP/Vista drivers
- Built-in 15 KV ESD protection for all serial signals
- Automatic RS-485 data flow control
Specifications
Connector Type
RJ-45
Ethernet Standard
IEEE 802.3 , 802.3u
RJ-45 Port Number
1
RJ-45 Transmission Speed
10/100 Mbps
Serial Port Connector Type
RJ48
Serial Port Number
2
RS-232
Yes
RS-422
Yes
RS-485
Yes
Baud Rate
50 ~ 921.6 Kbps
Dimensions (W x H x D)
70 x 112 x 25 mm
Enclosure (Plastic)
Yes
IP Rating
IP30
Mounting (DIN-rail)
Yes
Mounting (Wall)
Yes
Weight
125 g
Configuration
Windows utility, Web Browser
Driver
Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode
Virtual COM, TCP/UDP server TCP/UDP client
