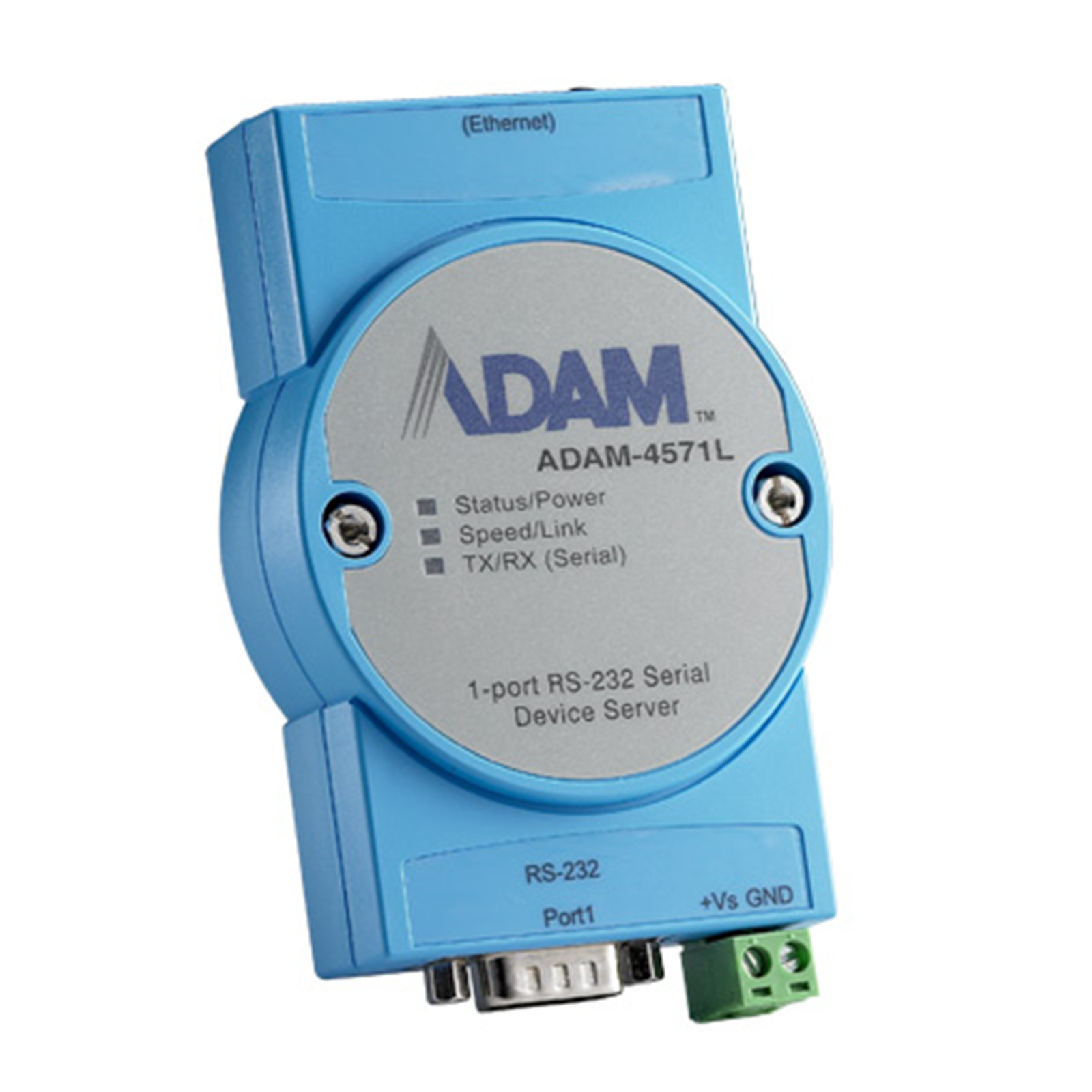

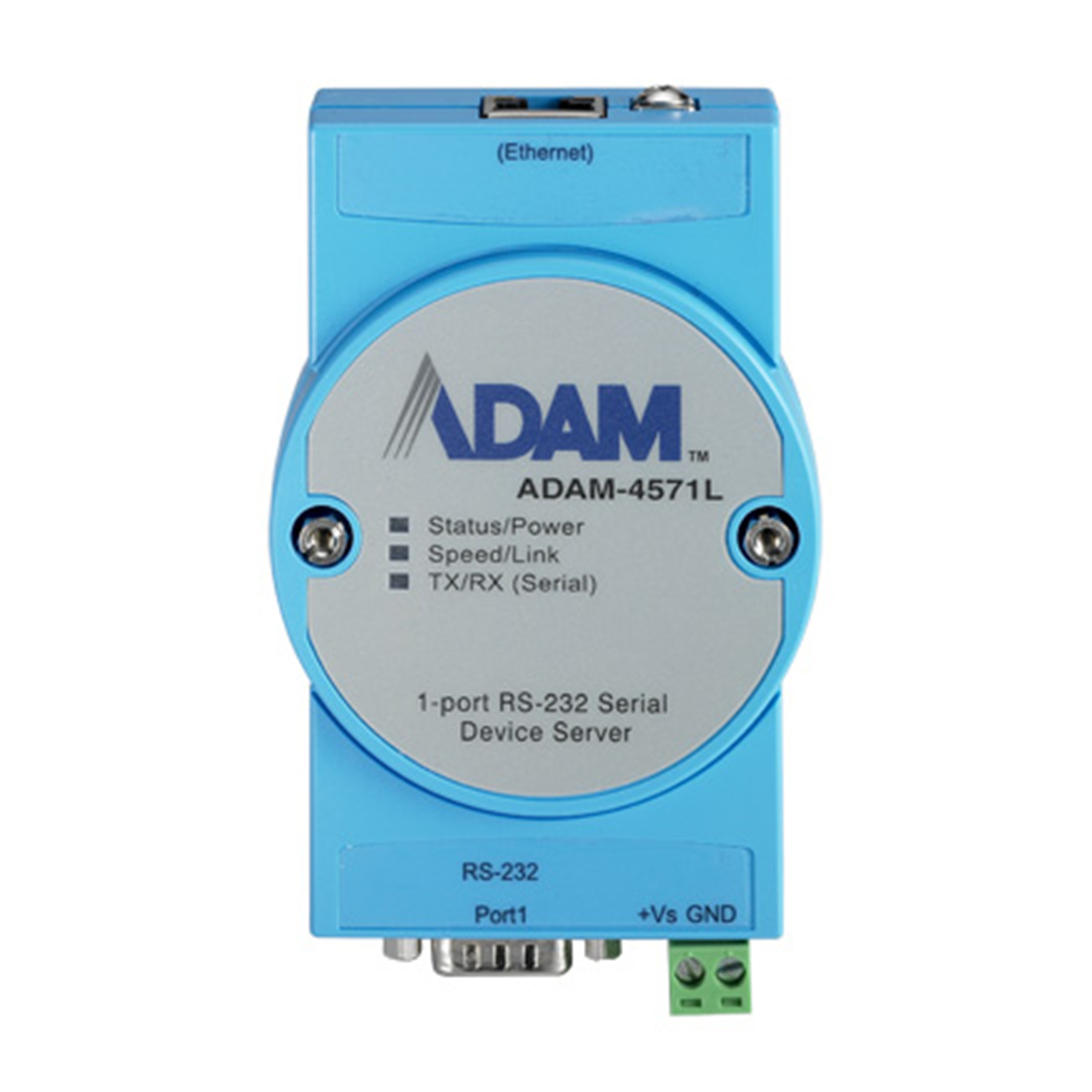

Advantech ADAM-4571 ETHERNET TO 232/422/485

  • Brand: Advantech
  • MPN: ADAM-4571L-DE
  • Part #: IPCAVH010017
  • UPC:
PB Tech price
$ 207 .30 $ 228 .03
 +GST  inc GST


Delivery: Order now and it ships on 30 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$207.30  +GST
$228.03

Features

The ADAM-4571L provides a robust and cost effective way to network-enable equipment in an industrial automation environment. It also brings the advantages of remote management and data accessibility to RS-232 devices. The transmission speed of the ADAM-4571L is up to 921.6 Kbps, meeting the demands for high-speed data exchanges. By encapsulating serial data and transporting it over Ethernet, the ADAM-4571L allows virtual serial links over TCP/IP networks. After Advantech Serial Device Server Configuration Utility installation, standard serial operation calls are transparently redirected to the serial device server, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. The ADAM-4571L comes with a Windows configuration utility. The configuration tool can auto-detect all serial device servers on the local network, and let you adjust all settings. The configuration utility merges the port mapping function to helps you to setup Virtual COM ports for Windows 2000/XP/Vista(x86) platform. This helps you configure all ports to meet your needs.

- Supports RS-232 serial communication
- Supports baud rate up to 921.6 kbps
- Provides COM port redirection (Virtual COM) mode
- Allows a max. of 5 hosts to access one serial port
- Built-in 15 KV ESD protection for all serial signals
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports auto re-connection function
- Supports Windows 2000/XP/Vista drivers
- Supports remote update firmware

Specifications

EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024

Freefall

NA

RJ-45 Port Connector Type

RJ-45

Ethernet Standard

IEEE 802.3 , 802.3u

RJ-45 Port Number

1

RJ-45 Transmission Speed

10/100 Mbps

Serial Port Connector Type

RJ48

Serial Port Number

1

RS-232

Yes

Baud Rate

50 ~ 921.6 Kbps

Humidity (Operating Range)

5~95% RH

Temperature (Min. Operating)

-10°C (14°F)

Temperature (Max. Operating)

60°C (140°F)

Temperature (Operating Range)

-10 ~ 60°C (14 ~ 140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)

Dimensions (W x H x D)

70 x 112 x 25 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

125 g

Power Consumption

2.5W

Power Input (DC)

10 ~ 30 VDC

Power Operating Current

0.3A @ 12 V

Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client

Manufacturer Part No:
ADAM-4571L-DE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
IPCAVH010017
Product Model:
ADAM-4571
Warranty: 12 months *
