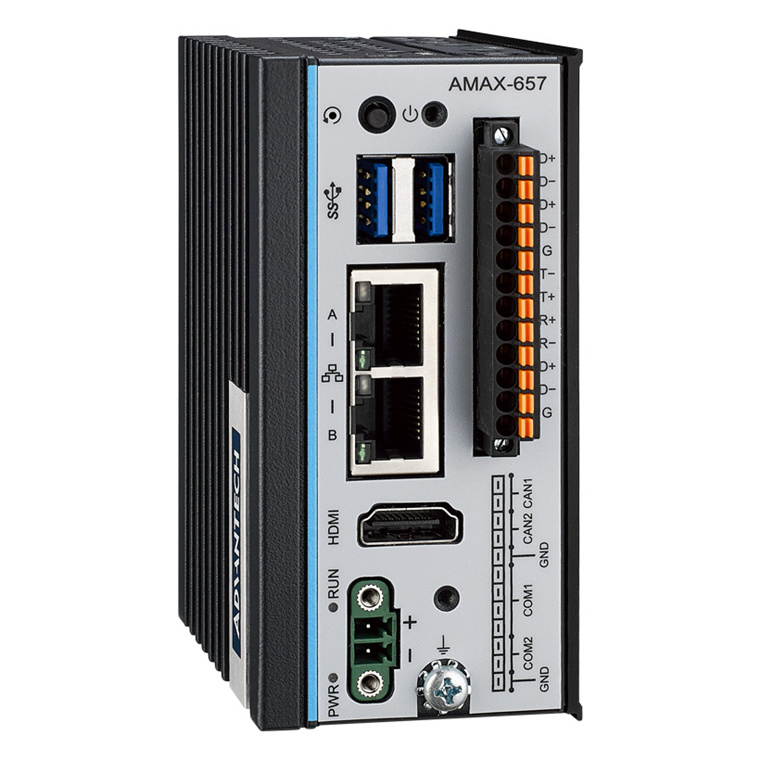

Advantech AMAX-657-E2CW0RA, Real-Time SoftLogic Cabinet Controller, 64-axis with 1ms cycle time NVRAM (2MB/4MB)
- Brand: Advantech
- MPN: AMAX-657-E2CW0RA
- Part #: IPCAVH011003

Product URL: https://www.pbtech.com/au/product/IPCAVH011003/Advantech-AMAX-657-E2CW0RA-Real-Time-SoftLogic-Cab
Features
Real-time SoftLogic Programmable Edge Controller
- CODESYS Control Real Time Engine (RTE) & Visualization (Target & Web)
- Embedded OS with optimized BIOS adjustment for real-time demand
- Support CODESYS Redundancy (optional license, supported from SP18)
- Supports IEC-61131-3 PLCopen languages (FBD, LD, IL, ST, and SFC)
- Upstream connectivity IT/OT communication (MQTT, OPC UA, and ODBC)
- Supports EtherCAT, ProfiNet, Ethernet/IP, and Modbus TCP/RTU protocols

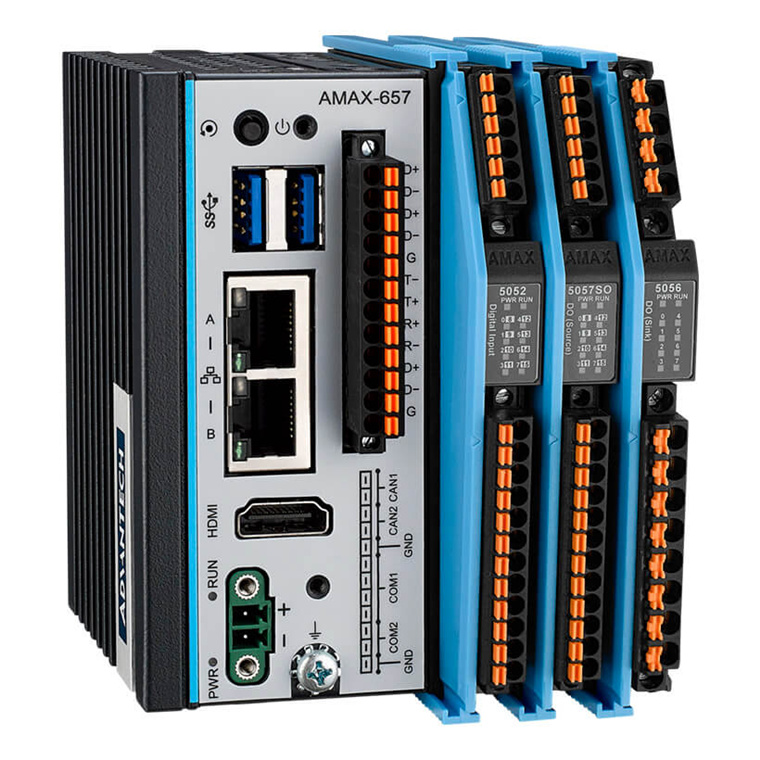

- Local AMAX-5000 series EtherCAT IO expansion module
- Online upgrade of SoftMotion and CNC Robotics license from Advantech WISE-Marketplace
- Advantech CODESYS Agent integrated third party software for data transmission via symbols (PLC Handler) and shared memory (C/C++/C#)
Specifications
SoftLogic
Runtime
CODESYS Control RTE V3.5
Visualization
Target Visualization (Local HMI), Web Visualization (Web Browser)
Industrial Fieldbus Protocol
EtherCAT MainDevice, PROFINET IO-Controller, EtherNet/IP Scanner (IEC/CIFX), MODBUS/TCP Server (Slave) and Client (Master), MODBUS/RTU Client (Master) PROFIBUS Master & CANopen Manager (optional by expansion module)
Uplink communication
OPC UA Server, MQTT (Sparkplug), ODBC for Database(Via Advantech CODESYS installation package
Advance Motion
Control SoftMotion & CNC Robotic (Optional-Upgrade from Advantech WISE-Marketplace)
Motion Control Capability
64-axis with 1ms cycle time
Sysem Hardware
Processor
Intel ® Atom™ 1.5GHz
Memory
4GB
Storage
64GB eMMC
Retain Memory
NVRAM (2MB/4MB)
Retain Memory
NVRAM (2MB/4MB)
Expansion
1 x M.2 B-Key AMAX-5000 Slice I/O module
I/O Interfaces
Power Supply
DC24V ± 20%
Serial Ports
1 x RS-232/422/485, 1 x 485 (terminal) 2 x CAN Bus (terminal)
LAN Ports
2 x RJ45, 10/100/1000 Mbps
IEEE 802.3u 1000BASE-T
Display
1 x HDMI
Isolation
CAN & Serial Port isolation (500VDC)
Grounding Protection
No ground isolation
Environment
Operation Temperature
-20~60°C
Dimension
48.8 x 100 x 70mm
Approval
CE, UL61010, BSMI
