Advantech AMAX-658-6CCW00A Real-Time SoftLogic Cabinet Controller, 64-axis with 1ms cycle time Real-Time SoftLogic Modular Controller

PB Tech price

$ 3,893 .24

+GST

$ 4,282 .56

inc GST

Advantech AMAX-658-6CCW00A Real-Time SoftLogic Cabinet Controller, 64-axis with 1ms cycle time Real-Time SoftLogic Modular Controller

Brand: Advantech
MPN: AMAX-658-6CCW00A
Part #: IPCAVH011004
UPC:

PB Tech price

$ 4,282 .56

inc GST

+GST inc GST

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

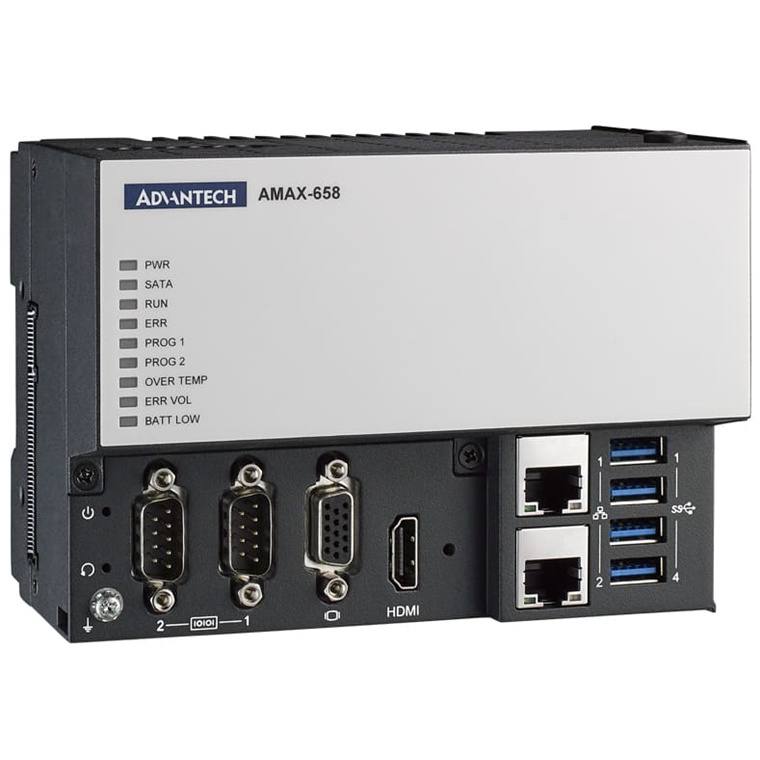

Click or hover over image to enlarge

Brand: Advantech
MPN: AMAX-658-6CCW00A
Part #: IPCAVH011004
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech AMAX-658-6CCW00A Real-Time SoftLogic Cabinet Controller

- CODESYS Control Real Time Engine (RTE) & Visualization (Target & Web)
- Embedded OS with optimized BIOS adjustment for real-time demand
- Support CODESYS Redundancy (optional license, supported from SP18)
- Supports IEC-61131-3 PLCopen languages (FBD, LD, IL, ST, and SFC)
- Upstream connectivity IT/OT communication (MQTT, OPC UA, and ODBC)
- Supports EtherCAT, ProfiNet, Ethernet/IP, and Modbus TCP/RTU protocols
- Local AMAX-5000 series EtherCAT IO expansion module
- Online upgrade of SoftMotion and CNC Robotics license from Advantech WISE-Marketplace
- Advantech CODESYS Agent integrated third party software for data transmission via symbols (PLC Handler) and shared memory (C/C++/C#)

For more information: https://advdownload.advantech.com/productfile/PIS/AMAX-658/file/AMAX-658_637_657_DS(071823)20230718161544.pdf

Specifications

General

Model

AMAX-658

MPN

AMAX-658-6CCW00A

SoftLogic

Runtime

CODESYS Control RTE V3.5

Visualization

Target Visualization (Local HMI), Web Visualization (Web Browser)

Industrial Fieldbus Protocol

EtherCAT MainDevice, PROFINET IO-Controller, EtherNet/IP Scanner (IEC/CIFX), MODBUS/TCP Server (Slave) and Client (Master), MODBUS/RTU Client (Master), PROFIBUS Master & CANopen Manager (optional by expansion module)

Uplink communication

OPC UA Server, MQTT (Sparkplug), ODBC for Database(Via Advantech CODESYS installation package)

Advance Motion Control

SoftMotion & CNC Robotic (Optional-Upgrade from Advantech WISE-Marketplace)

Motion Control Capability

64-axis with 1ms cycle time

Sysem Hardware

Processor

Intel® Celeron 2.0GHz

Memory

Storage

128GB SSD

Retain Memory*

NVRAM (2MB/4MB)
* 4MB only supported for CODESYS version newer than SP18

Expansion

AMAX-5400 PCIe modules (max.4)
AMAX-5000 Slice I/O modules

I/O Interfaces

Power Supply

DC24V ± 20%

Local Digital IO

Serial Ports

2 x RS-232/422/485 (DB9)

LAN Ports

2 x RJ45, 10/100/1000 Mbps
IEEE 802.3u 1000BASE-T

Display

1 x VGA

1 x HDMI

Isolation

Grounding Protection

Chassis grounding

Environment

Operation Temperature

-10 ~60°C

Dimension (W x H x D)

139 x 100 x 80mm

Approval

CE, UL62368, BSMI

Manufacturer Part No:

AMAX-658-6CCW00A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH011004

Product Model:

AMAX-658-6CCW00A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
